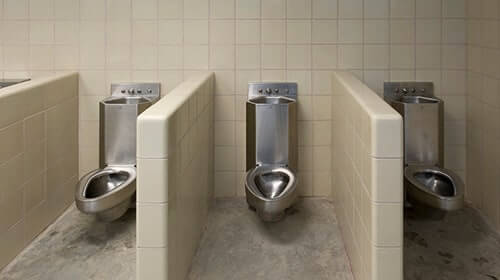

Master-Trol^® Systems for New Construction

A new building is an investment and getting the right start in a new correctional facility is important. If you’re starting from the ground up, ensure that your facility is using water efficiently and preventing inmates from engaging in destructive behaviors, such as flooding cells and passing contraband through the plumbing system. Acorn can help with Electronic Water Management Systems like Master-Trol and Master-Trol Plus.

Master-Trol and Master-Trol Plus prevent inmates from flooding correctional facilities and discarding contraband. It can potentially reduce water usage by 68% or more. Take control of your facility’s plumbing system from the very beginning and contact us to find out more about installing a Master-Trol or Master-Trol Plus system in your facility.

---

Master-Trol vs. Master-Trol Plus

Features	Master-Trol	Master-Trol Plus
Set and Adjust Valve Timing Change the timing on individual water flow valves, pods or the entire facility in a matter of seconds.
Apply and Adjust Valve Lockouts Lockouts give the ability to automatically disable specific valves for a period of time.
Enable/Disable Valves Remotely enable or disable individual valves, pods or the entire facility in seconds. Great for shakedowns to prevent the flushing of contraband.
Remote Operation Reduces Maintenance Interaction Remote operations allow maintenance staff to safely text and activate valves without having to enter the inmate's cell.
Standalone or Communicating Configuration Options Standalone: Factory pre-programmed valve controllers can be adjusted with a handheld programmer. Communicating System: Networked through the facility, allowing for remote operation from a computer.
Rock Solid Pneumatic Button Pneumatic buttons omit the need for electronic components on the cell side, allowing air-activated operation.
Piezo Button Electronic touch operation for easy use
Repair Parts Readily Available Nationwide Repair parts are readily available and commonly stocked nationwide through several distribution channels.
New Modular Design for Easier Sizing A new modular design gives you the option of utilizing a 4-, 8- or 12-port controller to fit your facility’s needs.
IP54 Rated Enclosures Protected from water spray in any direction, and also from common contaminants found in a chase (dust, dirt, etc.).
Interface Box Maintenance Control Maintenance staff has the ability to put a valve in maintenance mode from the chase side, disabling the activation button on the cell side.
Power Fail Bypass Mode In the event of facility power loss, the inmate will still have the ability to activate cold water on the fixture for drinking water.
Optional Graphical Floor Plan View The communicating system is available with a user-friendly graphical interface that allows for simpler navigation.
Graphical Fixture/Status Icons Graphical icons give visual status of each fixture throughout the facility.

---

---

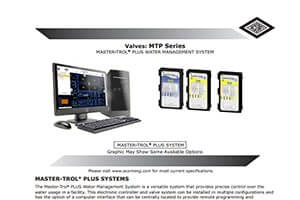

Master-Trol & Master-Trol Plus Literature
