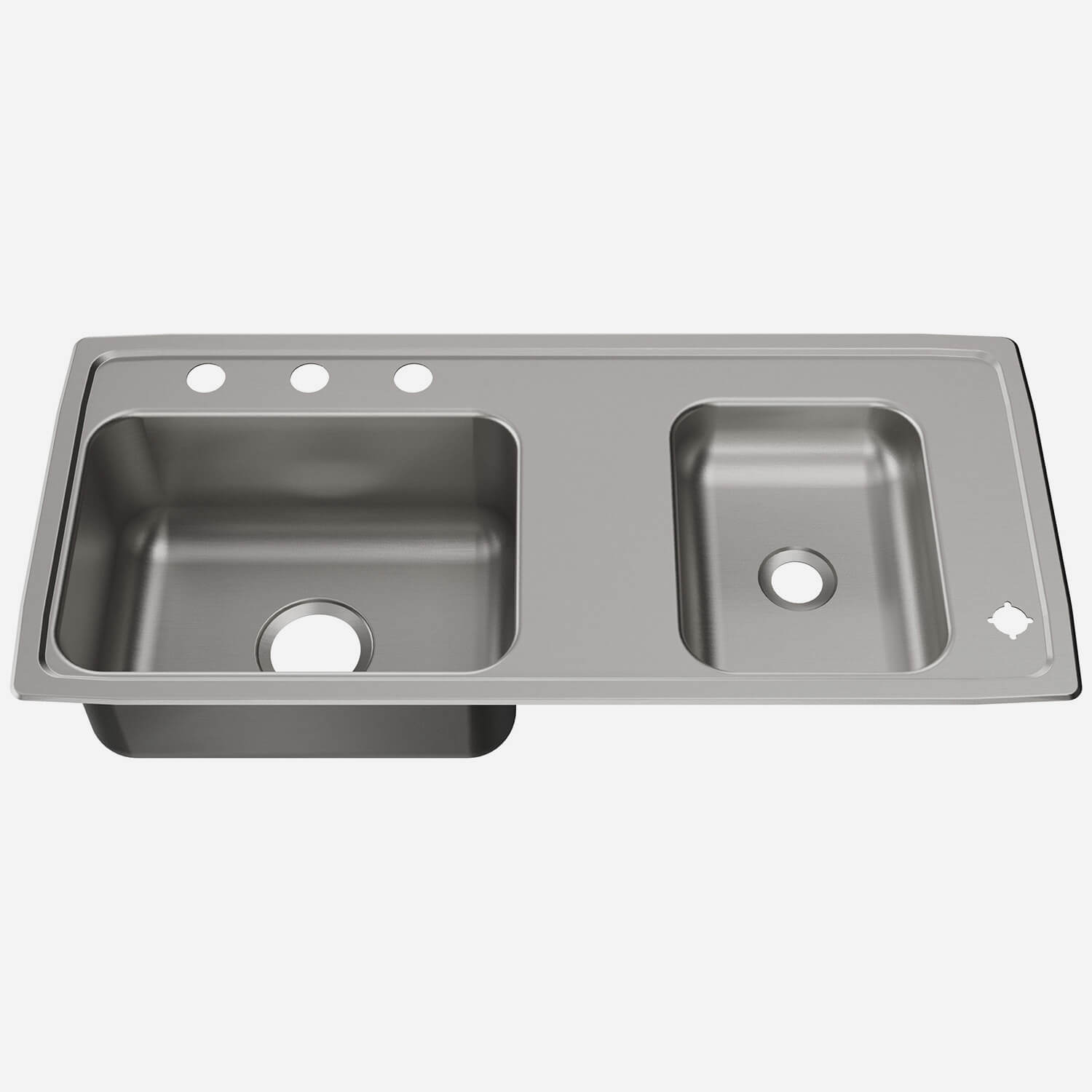

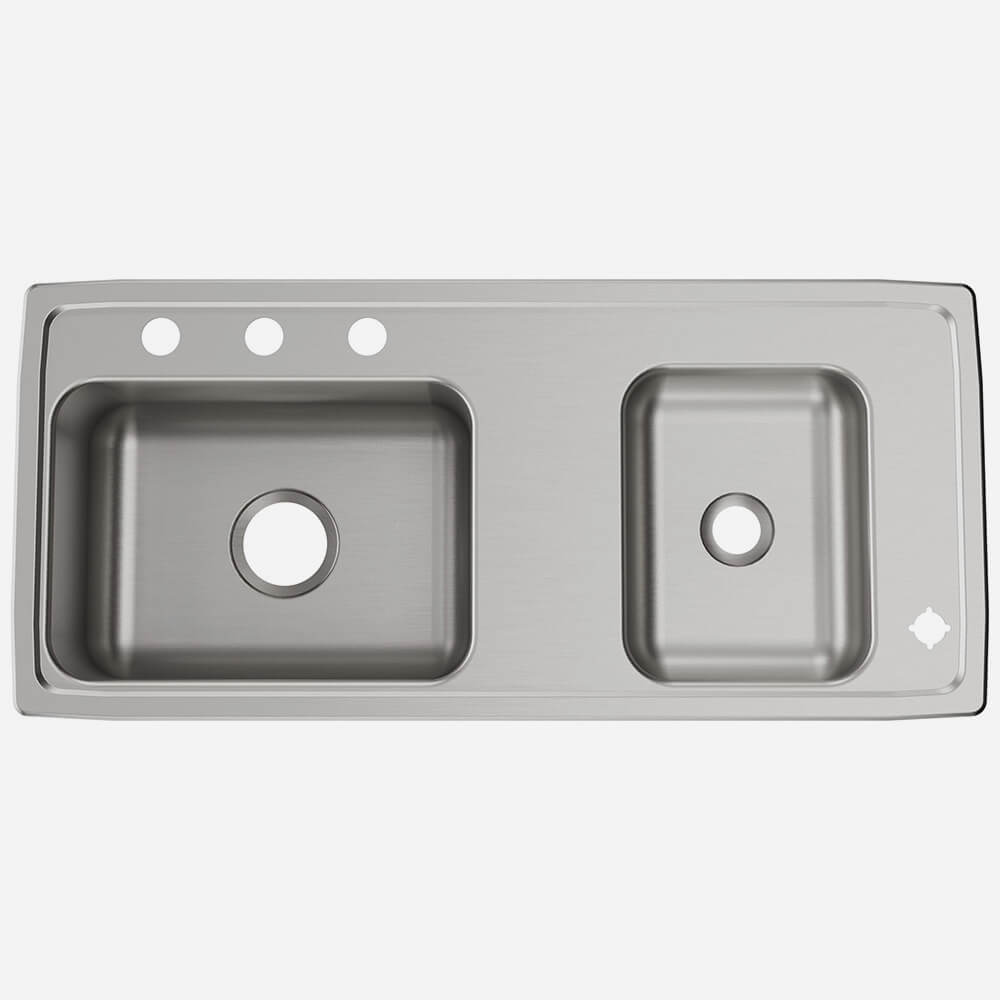

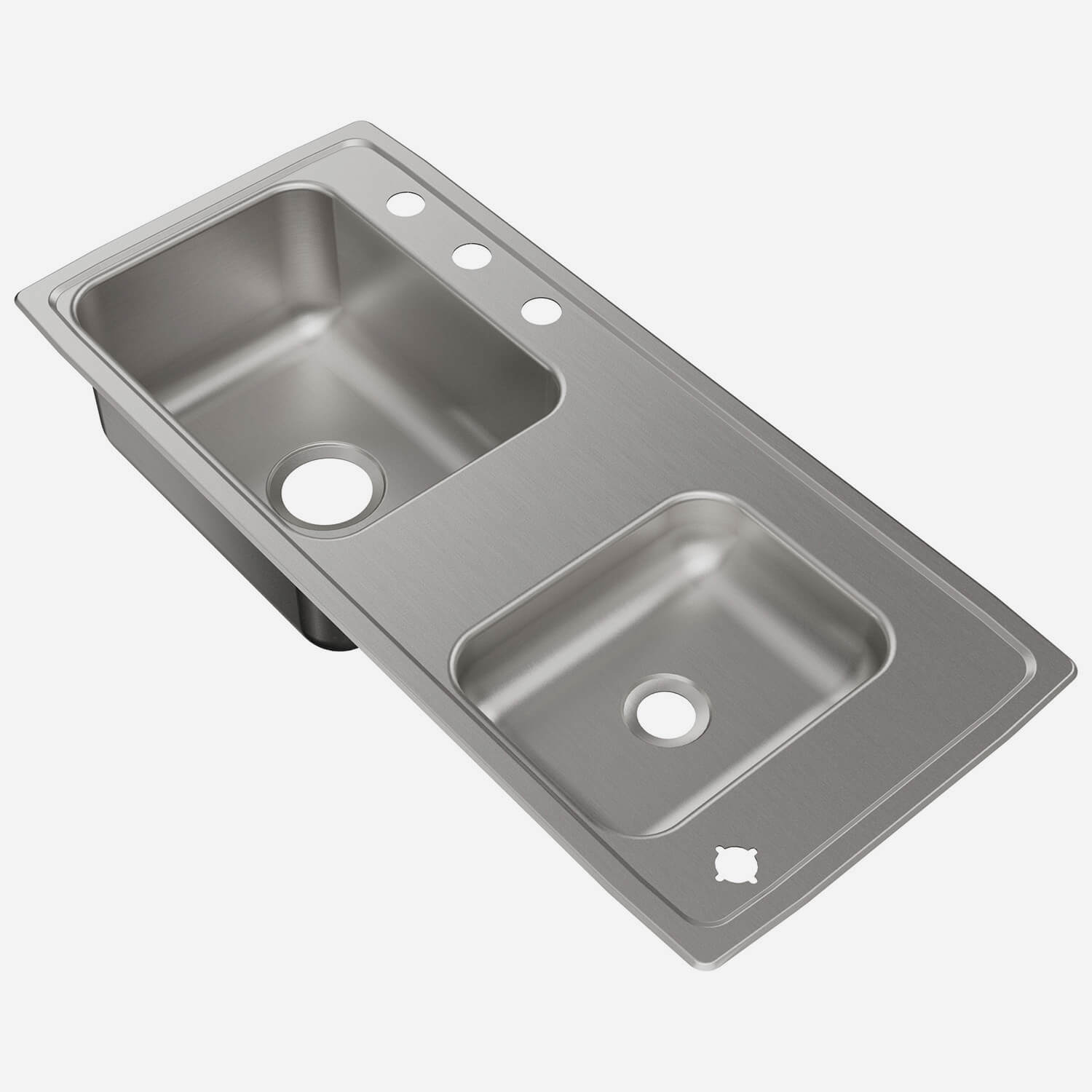

Acorn-Sinks® Stainless Steel Drop-In Classroom Sink, 37" x 17" (Back Faucet/Right Bubbler Ledge)

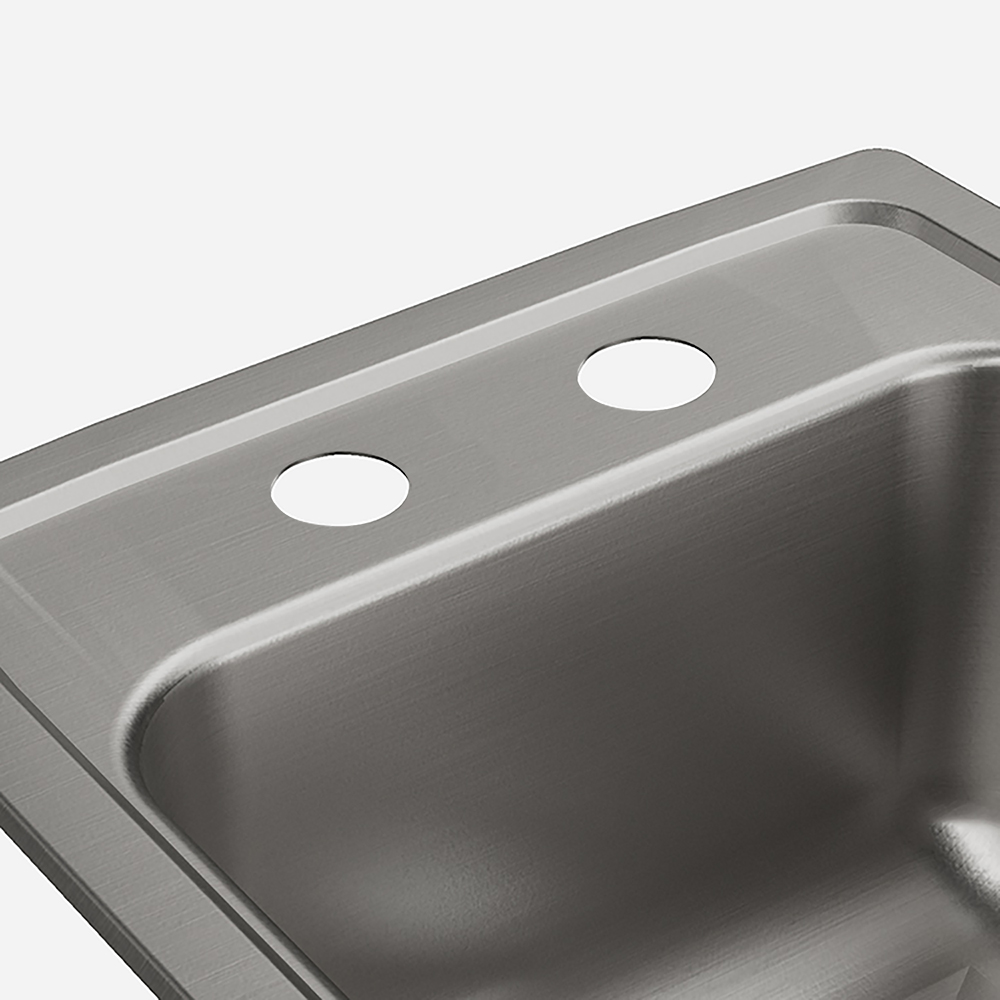

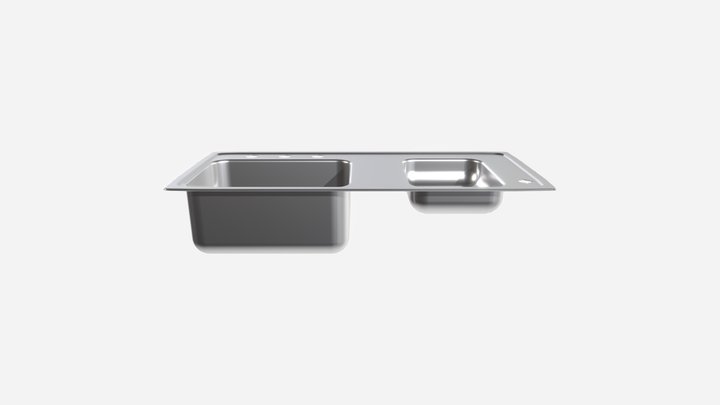

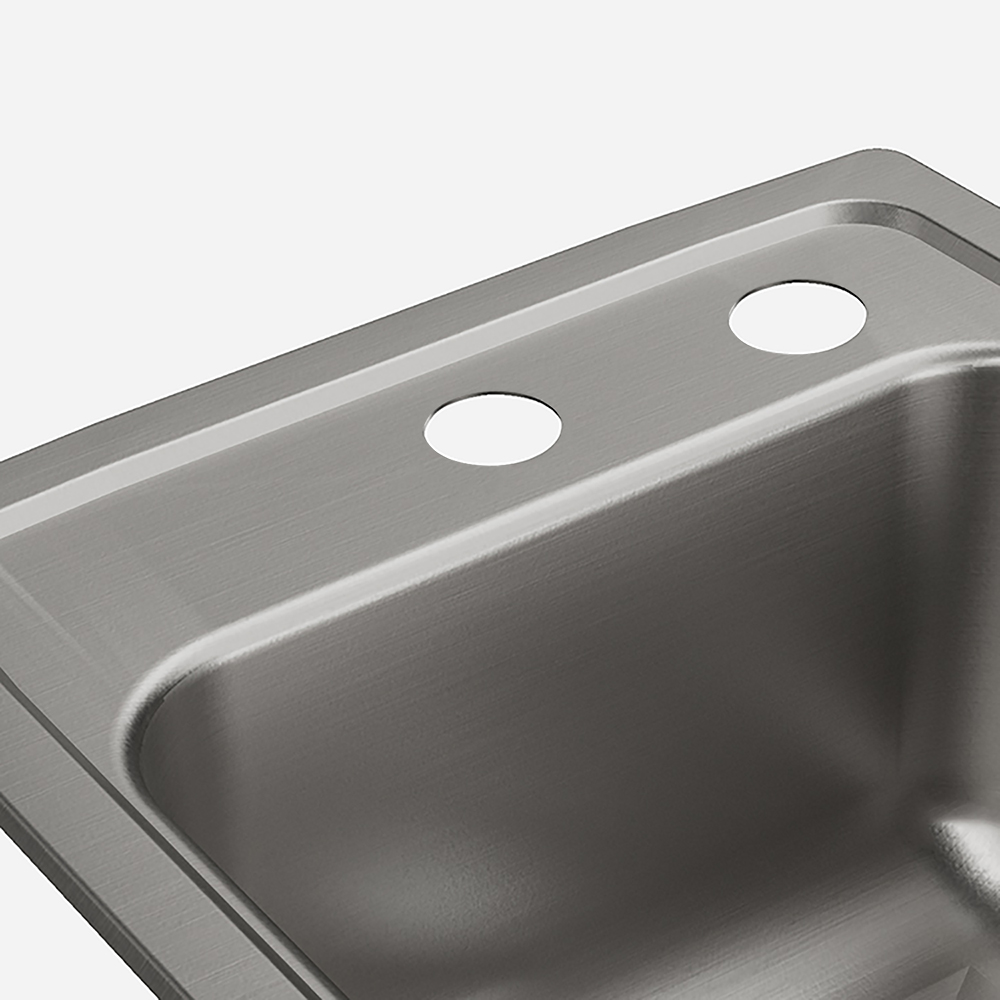

A double bowl drop-in sink designed specifically for classroom applications. CDDRB-3717 features a left side bowl measuring 16" x 11-1/2". The bowl is available at 8" depth. Faucet punching can be made to on the rear ledge of this bowl. A right side bowl measures 9-1/4" x 12" with a 3-1/2" depth. A drinking bubbler is designed to be mounted on the right ledge of this bowl.

A minimum cabinet size of 42" is required.

Acorn-Sinks® Features & Benefits:

• Ideal for classroom appplications
• Dual bowls - one for faucet and second for drinking bubbler
• Faucet mounting ledge on the back; bubbler mounting ledge on the left
• Seamless, die-drawn construction of 18-gauge, type 304 stainless steel polished to a #4 satin finish
• Simple drop-in installation
• Sound deadening pads on the sink bottom for reduced noise

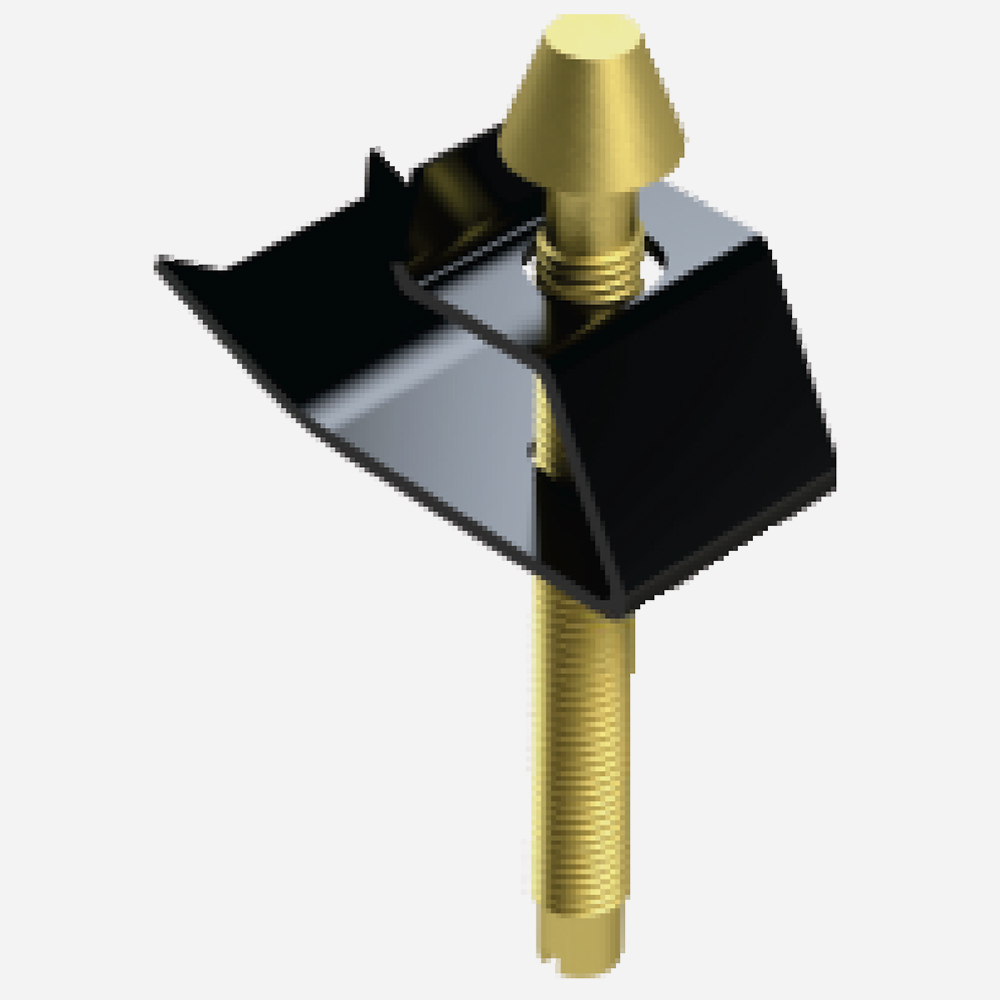

• Concealed U-channels with mounting hardware
• Vertical side walls feature a 1-3/4" internal radius for increased resistance to glass tipping and breakage
• Meticulous packaging that prevents shipping damage
• UPC, cUPC, IPC

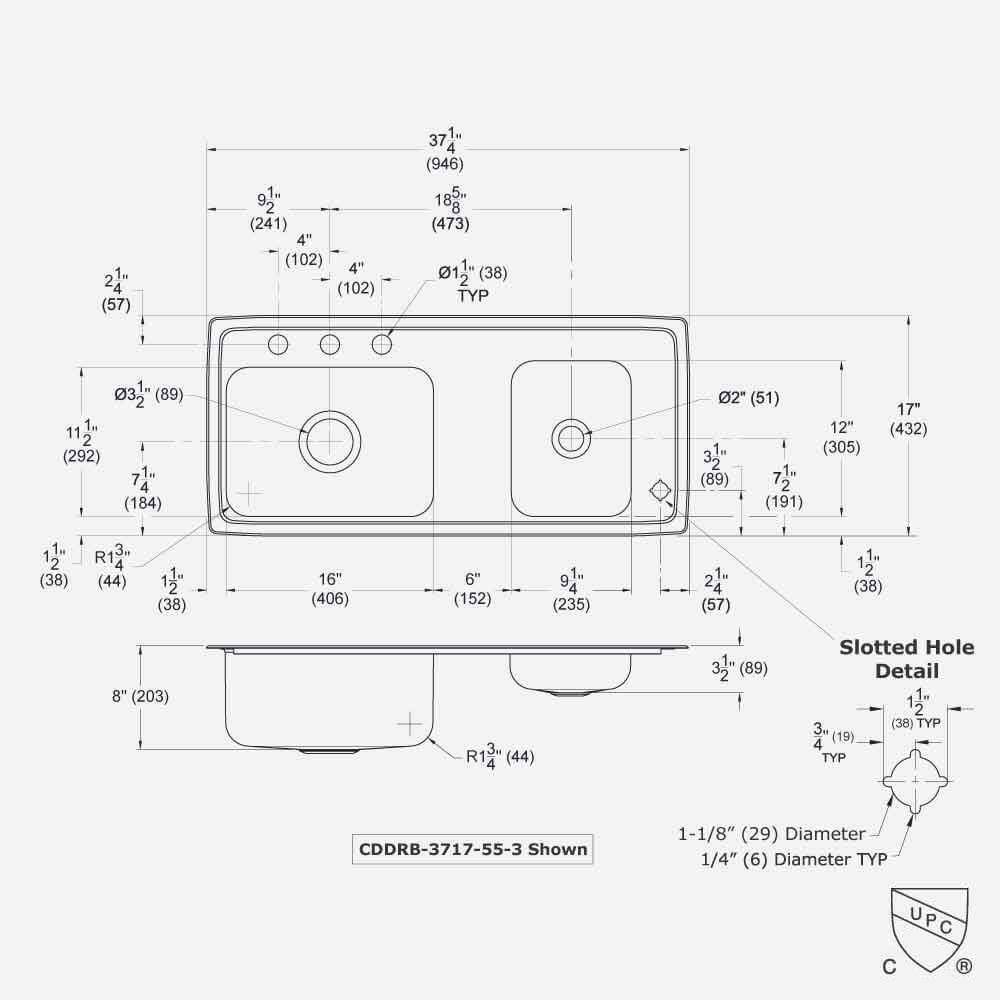

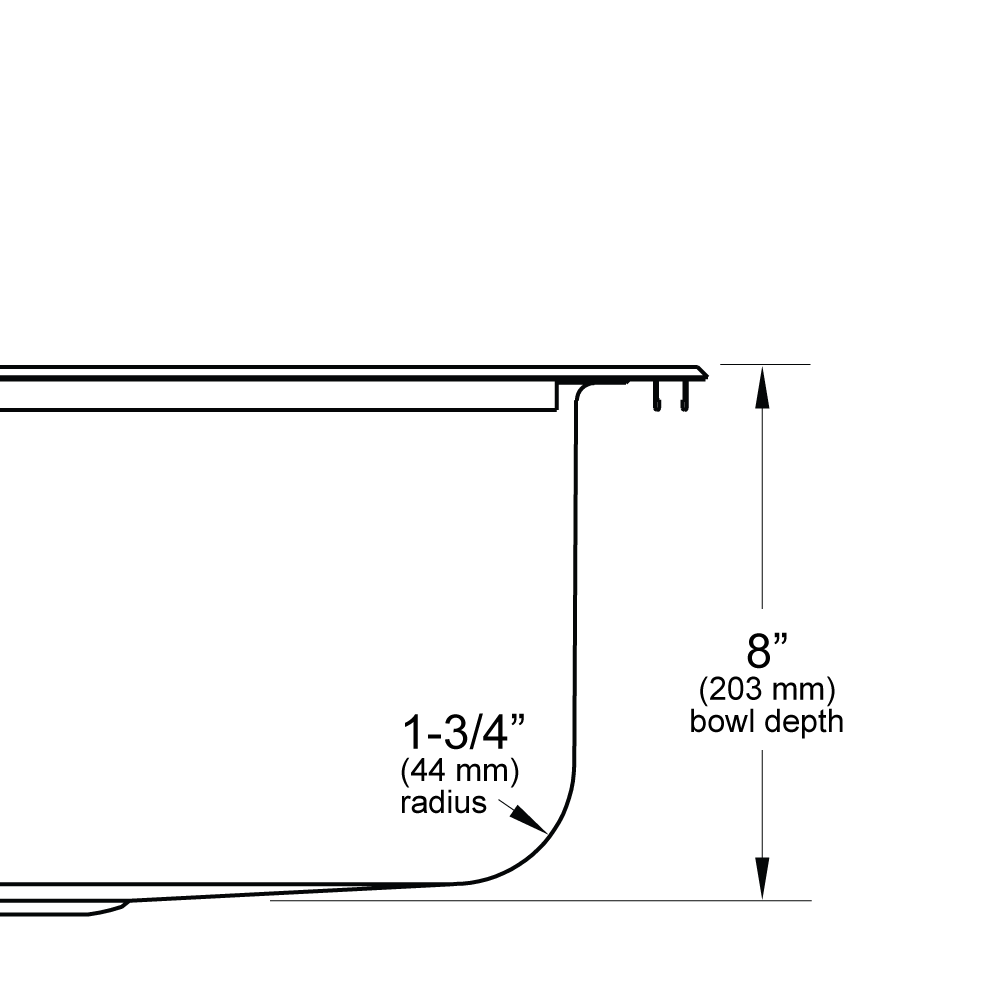

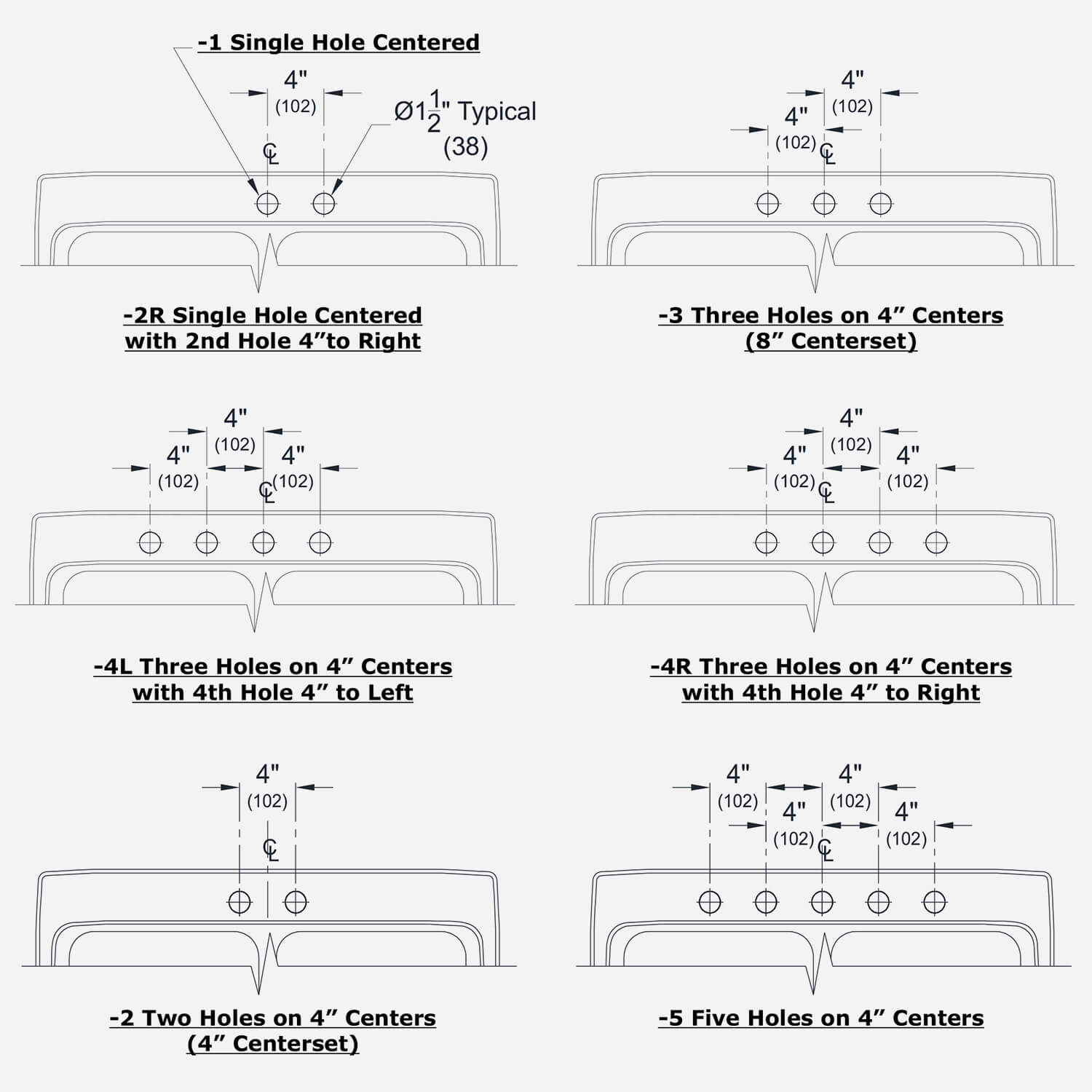

CDDRB-3717-55 features two bowls. The left bowl is for the faucet. It measures 16" (406 mm) side-to-side x 11-1/2" (292 mm) front-to-back x 8" (203 mm) deep with 1-3/4" (44 mm) radius corners. A 3-1/2" (89 mm) diameter drain is punched in the center of this bowl. Faucet punching is provided on the rear ledge of this bowl.

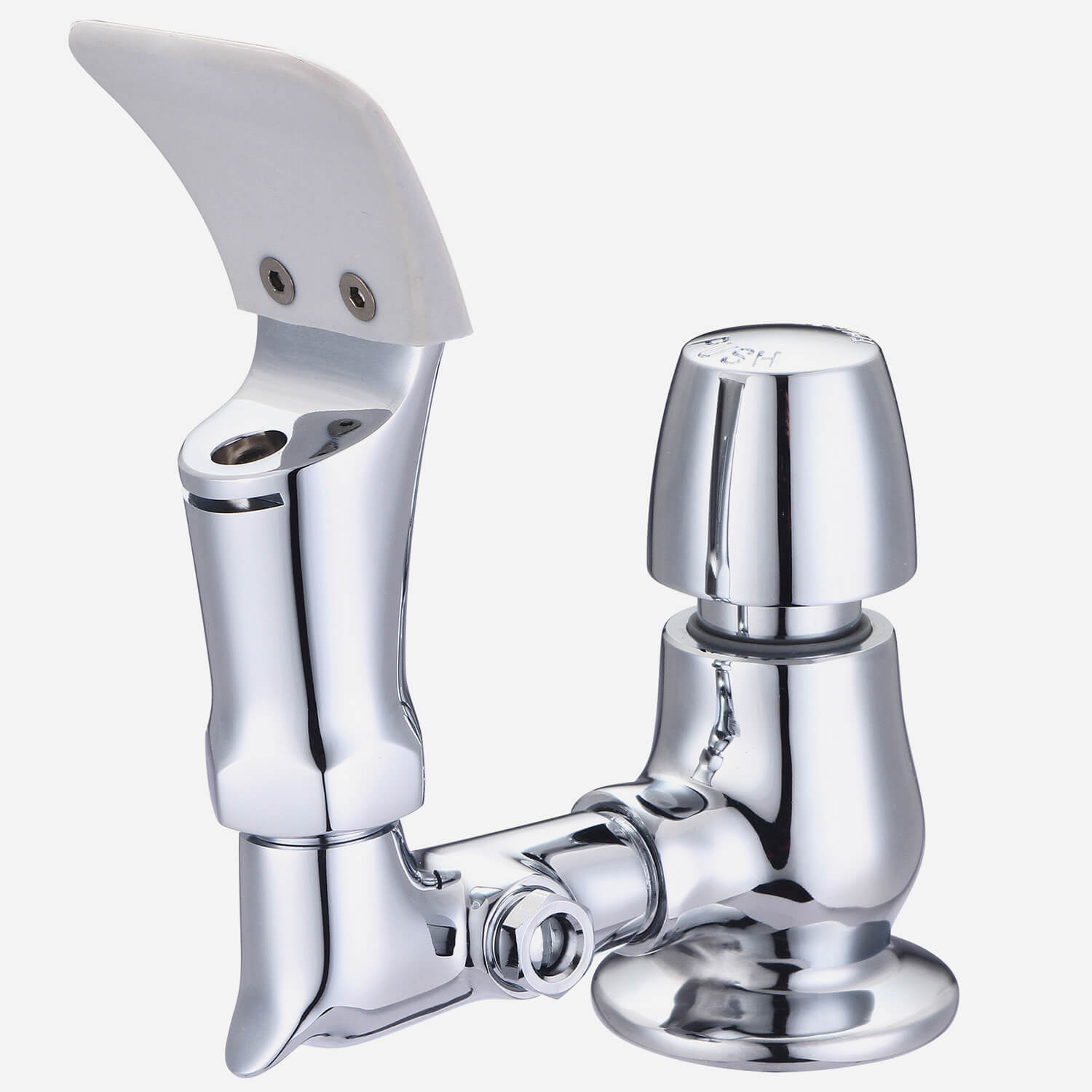

The right bowl is for the drinking bubbler. It measures 9-1/4" (235 mm) side-to-side x 12" (305 mm) front-to-back x 3-1/2" (89 mm). A 2" (51 mm) diameter drain is centered in the bowl. A 7/8" (22 mm) slotted hole is punched on the left ledge for a drinking bubbler.

Overall dimensions are 37-1/4" (946 mm) side-to-side x 17" (432 mm) front-to-back. There is 6" (152 mm) spread between the two bowls.
