Model DD-3322
Acorn-Sinks® Stainless Steel Drop-In Sink, 33" x 22" (Double Bowl)

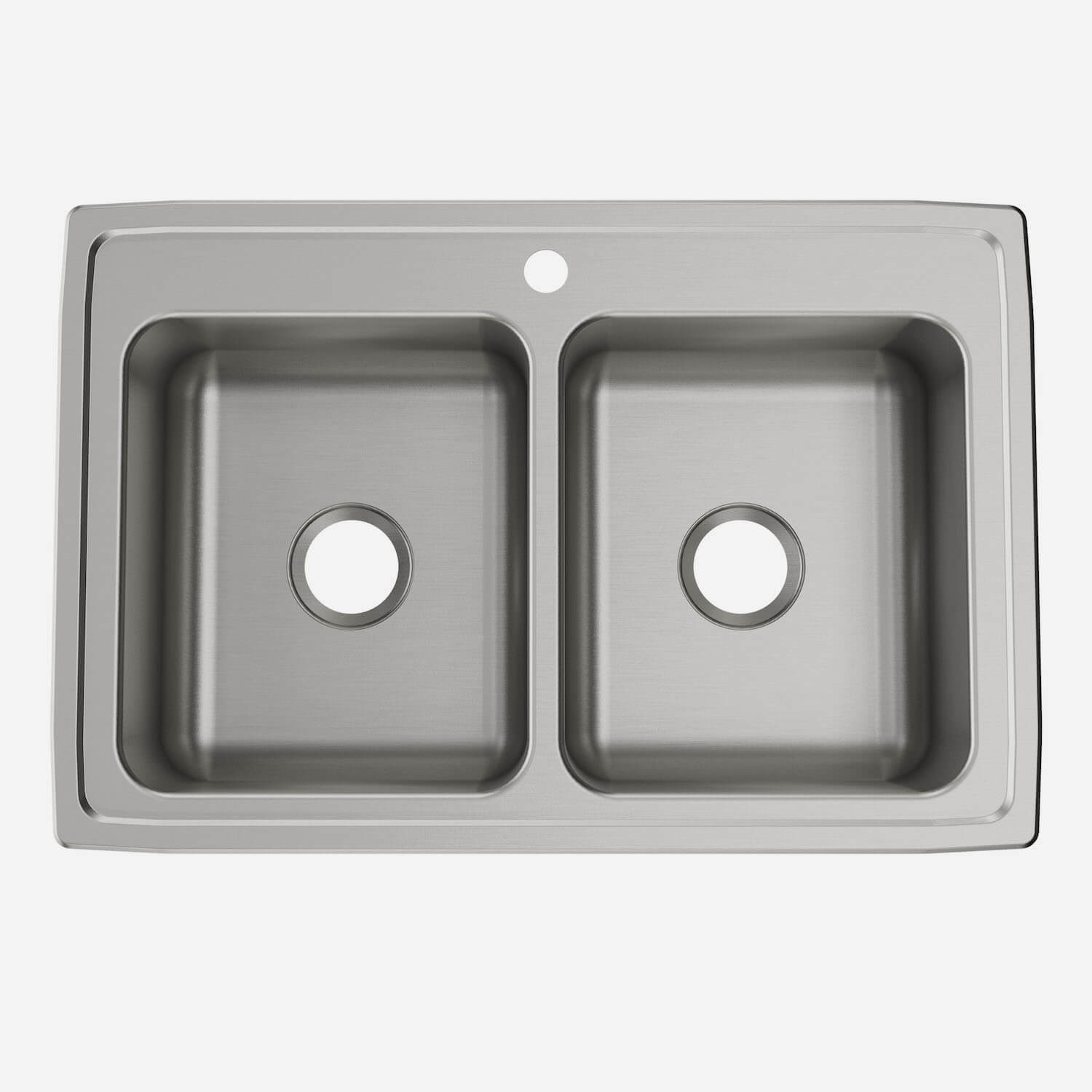

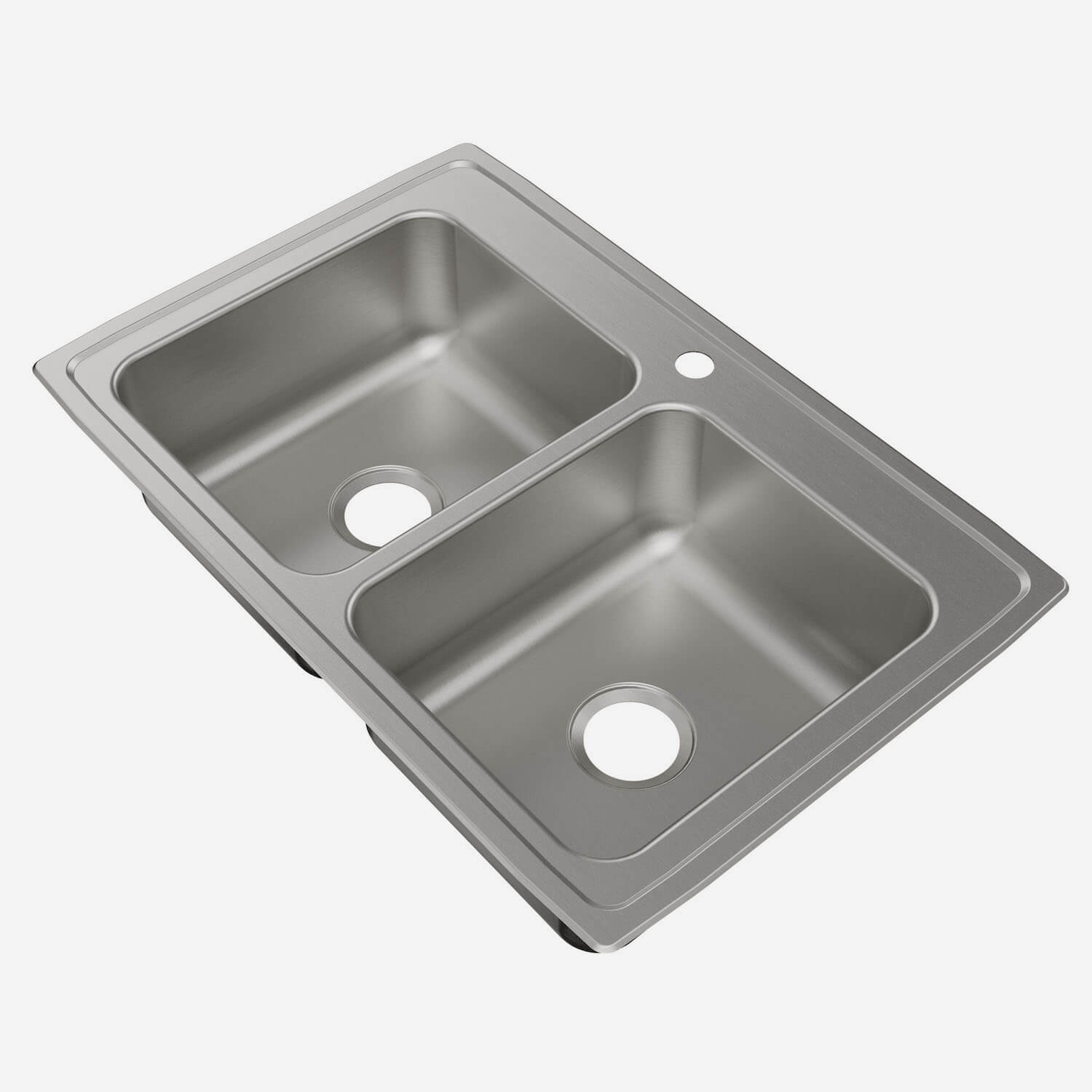

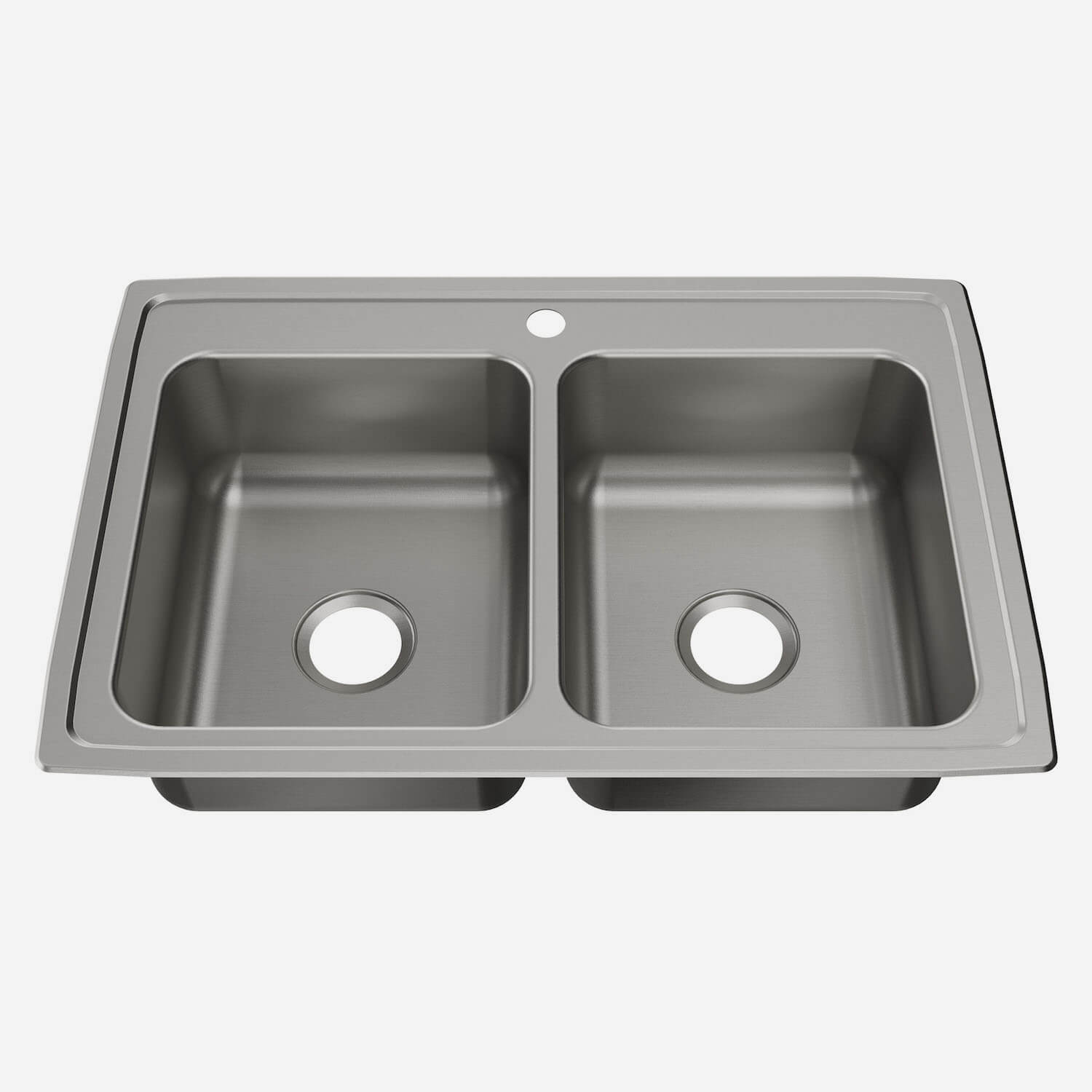

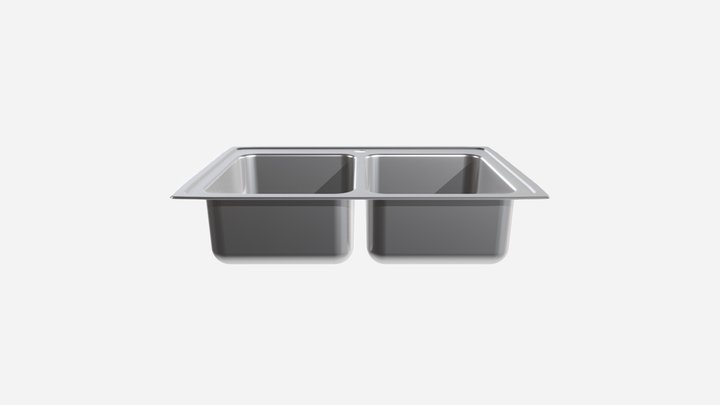

DD-3322 is a double bowl drop-in sink measuring 33" x 22" with a bowl size of 16" x 13-1/2". It has centered drains and an 8" bowl depth. A minimum cabinet size of 36" is required.
Acorn-Sinks® Features & Benefits:
- Seamless, die-drawn construction of 18-gauge, type 304 stainless steel polished to a #4 satin finish
- Simple drop-in installation
- Sound deadening pads on the sink bottom for reduced noise
- Concealed U-channels with mounting hardware
- Vertical side walls feature a 1-3/4" internal radius for increased resistance to glass tipping and breakage
- Meticulous packaging that prevents shipping damage
- UPC, cUPC, and IPC compliant

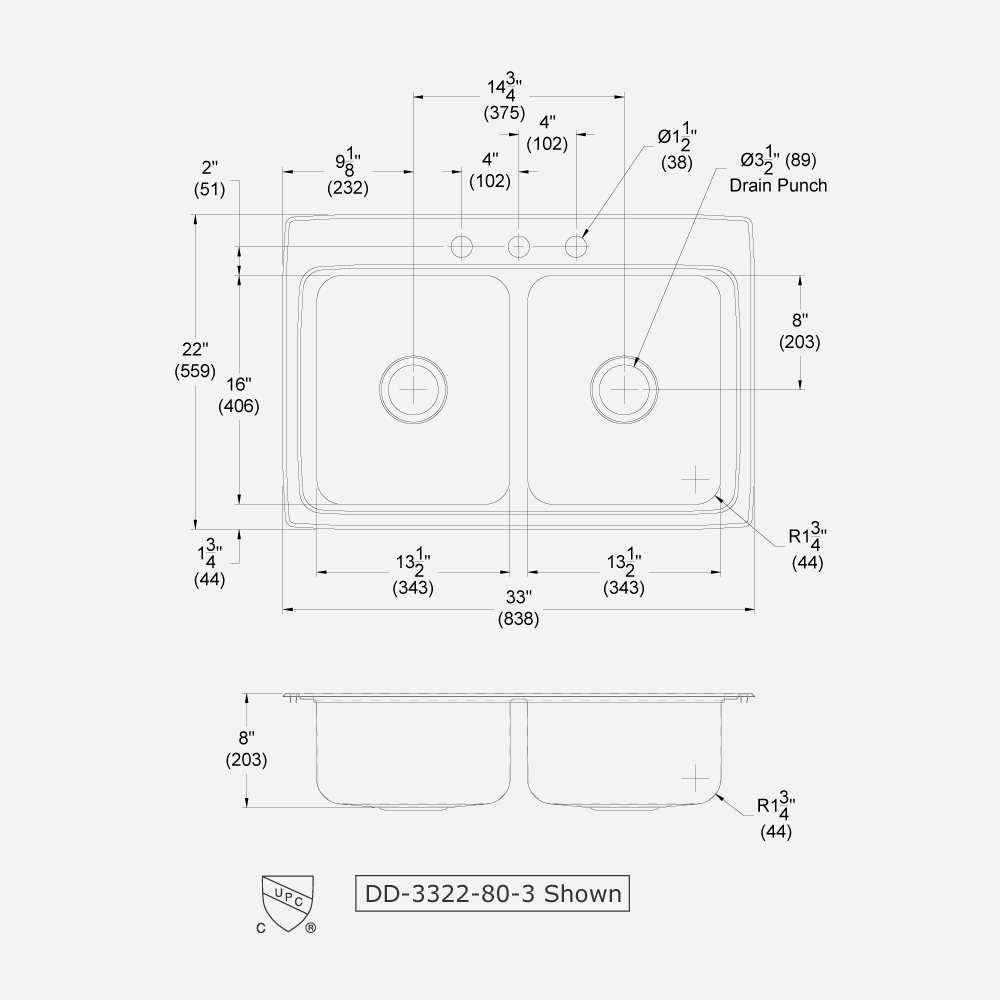

DD-3322-80 features a pair of 8" (203 mm) deep x 16" (406 mm) front-to-back x 13-1/2" (343 mm) wide (side-to-side) bowls with 1-3/4" (44 mm) radius corners. A 3-1/2" (89 mm) diameter drain is punched 8" (203 mm) from the back wall of each bowl. Overall dimensions are 33" (338 mm) side-to-side x 22" (559 mm) front-to-back.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Install Guide for Acorn-Sinks® - Commercial Stainless Steel Sinks - Drop-in [CD-2220, CD-2517, CD-3120, CDADA-2220, CDADA-2517, CDADA-3120, SDB-1515, DD-3320, DD-3322, DDADA-3320, DDADA-3322, SD-1518, SD-1716, SD-1722, SD-1918, SD-2019, et al] | 0 | 186 KB | ||
| | Acorn-Sinks® Stainless Steel Drop-In Sink - Double Bowl 33" x 22" Size - includes submittal, accessory spec sheet, faucet punching spec sheet, installation instruction | 0 | 537 KB | ||
 | | Acorn-Sinks® Stainless Steel Drop-In Sink - Double Bowl 33" x 22" Size - includes faucet configuration variations | 0 | 2 MB | ||
 | | Cutout Template for DDADA-3322, DD-3322 Acorn-Sink® Double Drop-In Sinks | 0 | 257 KB | ||
| | Acorn Engineering - Commercial Plumbing Fixtures | 0 | 473 KB | ||
 | | Acorn Engineering - Commercial Plumbing Fixtures | 0 | 771 KB | ||
| | Acorn Sinks Sales Brochure (pdf) | 0 | 4 MB | ||
| | Acorn Sinks Technical Brochure with Competitive Crosscover | 0 | 2 MB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB | ||
 | | Video - How to Install Acorn-Sink® Drop-in Sink | 0 | 134 KB |
Specifications
| Brand | Acorn-Sinks® |
| Material | Stainless Steel |
| Mounting | Drop-in |
| Minimum Cabinet Size | 36" |
| Accessibility | Not ADA |
| Compliance | UPC, ASME A112.19.3/CSA B45.4 |
| Number of Bowls | Double |
| Bowl Depth | 8" |
| Gauge | 18 |
| Drain Size | 3-1/2" |
| Bowl Dimensions | 14" (Side-to-Side) x 14" (Front-to-Back) |
| Overall Dimensions | 33" (Side-to-Side) x 20" (Front-to-Back) |
| Cutout Dimensions | 32-3/8" (Side-to-Side) x 21-3/8" (Front-to-Back) with 1-1/2" corner radius |
Options
Accessories
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | Suffix -0 (Acorn-Sinks®) | Option: Acorn-Sinks® No Faucet Punching on Deck | ||
 | Suffix -1 (Acorn-Sinks®) | Option: Acorn-Sinks® Single Faucet Punching, Center | ||
 | Suffix -2 (Acorn-Sinks®) | Option: Acorn-Sinks® Two Faucet Punchings, Center | ||
 | Suffix -2R (Acorn-Sinks®) | Option: Acorn-Sinks® Two Punchings, Center & Offset Right | ||
 | Suffix -3 (Acorn-Sinks®) | Option: Acorn-Sinks® Three Faucet Punchings, Center | ||
 | Suffix -4L (Acorn-Sinks®) | Option: Acorn-Sinks® Four Punchings, Center & Offset Left | ||
 | Suffix -4R (Acorn-Sinks®) | Option: Acorn-Sinks® Four Punchings, Center & Offset Right | ||
 | Suffix -5 (Acorn-Sinks®) | Option: Acorn-Sinks® Five Faucet Punchings, Center |
Models
Variations on this product specified by the faucet hole punching and bowl depth.
 | |
|---|---|
| Punching Details | 8" Bowl Depth (203 mm) |
| Blank, No Deck Punching | DD-3322-80-0 |
| Single Hole Centered | DD-3322-80-1 |
| Single Hole Centered with 2nd Hole 4" to Right | DD-3322-80-2R |
| 2 Holes on 4" Centers | DD-3322-80-2 |
| 3 Holes on 4" Centers | DD-3322-80-3 |
| 3 Holes on 4" Centers with 4th Hole 4" to Left | DD-3322-80-4L |
| 3 Holes on 4" Centers with 4th Hole 4" to Right | DD-3322-80-4R |
| 5 Holes on 4" Centers | DD-3322-80-5 |
Details
Acorn-Sinks® Product Number System
This is how our Acorn-Sinks products are numbered. The graphic below is an example. It does not necessarily reflect the product above.
Cross-References
DD-3322 is a direct cross-reference to the following products
DL2233A-J
JUST
DL2233A1-J
JUST
DL2233AMR2-J
JUST
DL2233A2-J
JUST
DL2233A3-J
JUST
DL2233A4-J
JUST
LR3322
Elkay
LR33221
Elkay
LR3322MR2
Elkay
LR33222
Elkay
LR33223
Elkay
LR33224
Elkay
LR33225
Elkay
