Model SD-1518
Acorn-Sinks® Stainless Steel Drop-In Sink, 15" x 18"

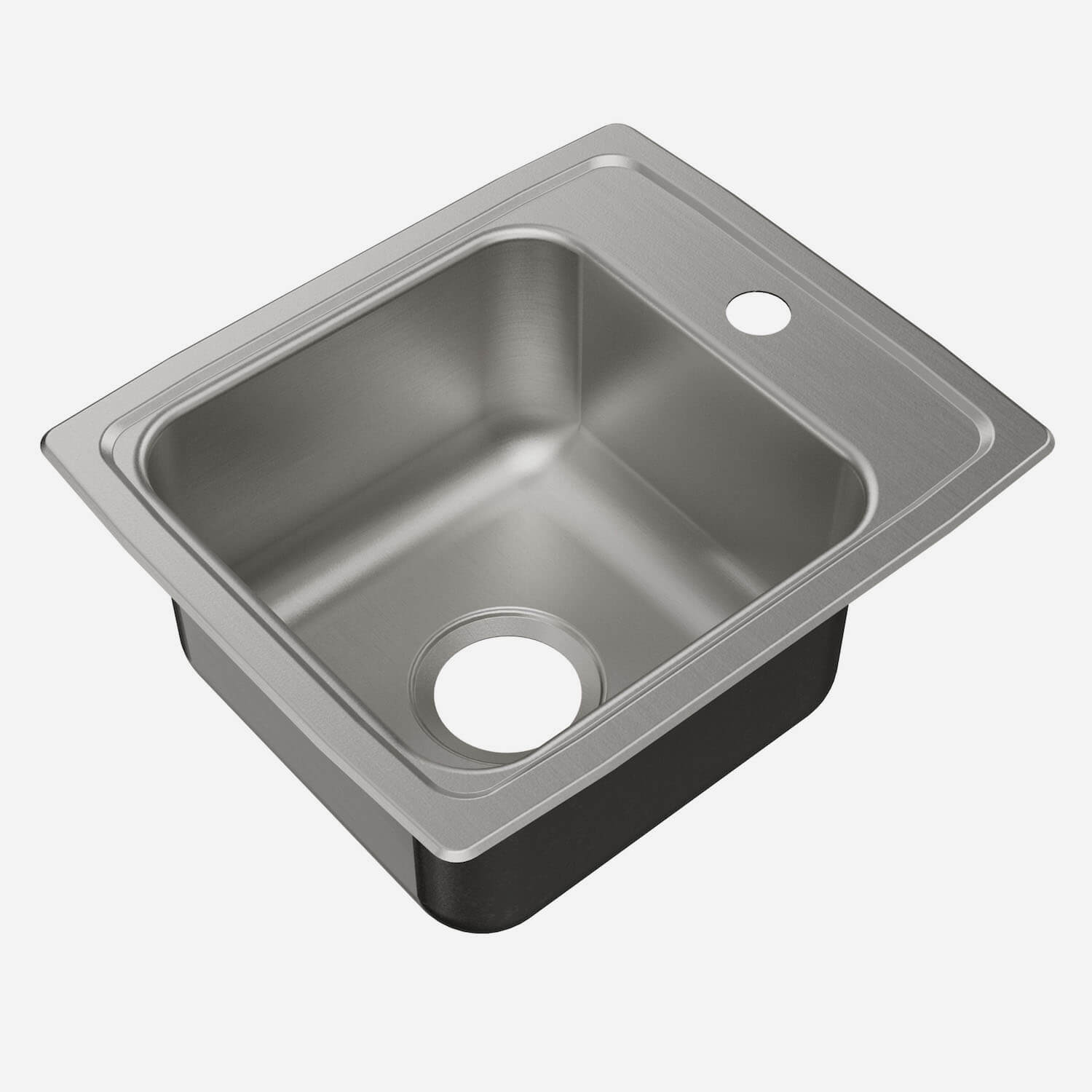

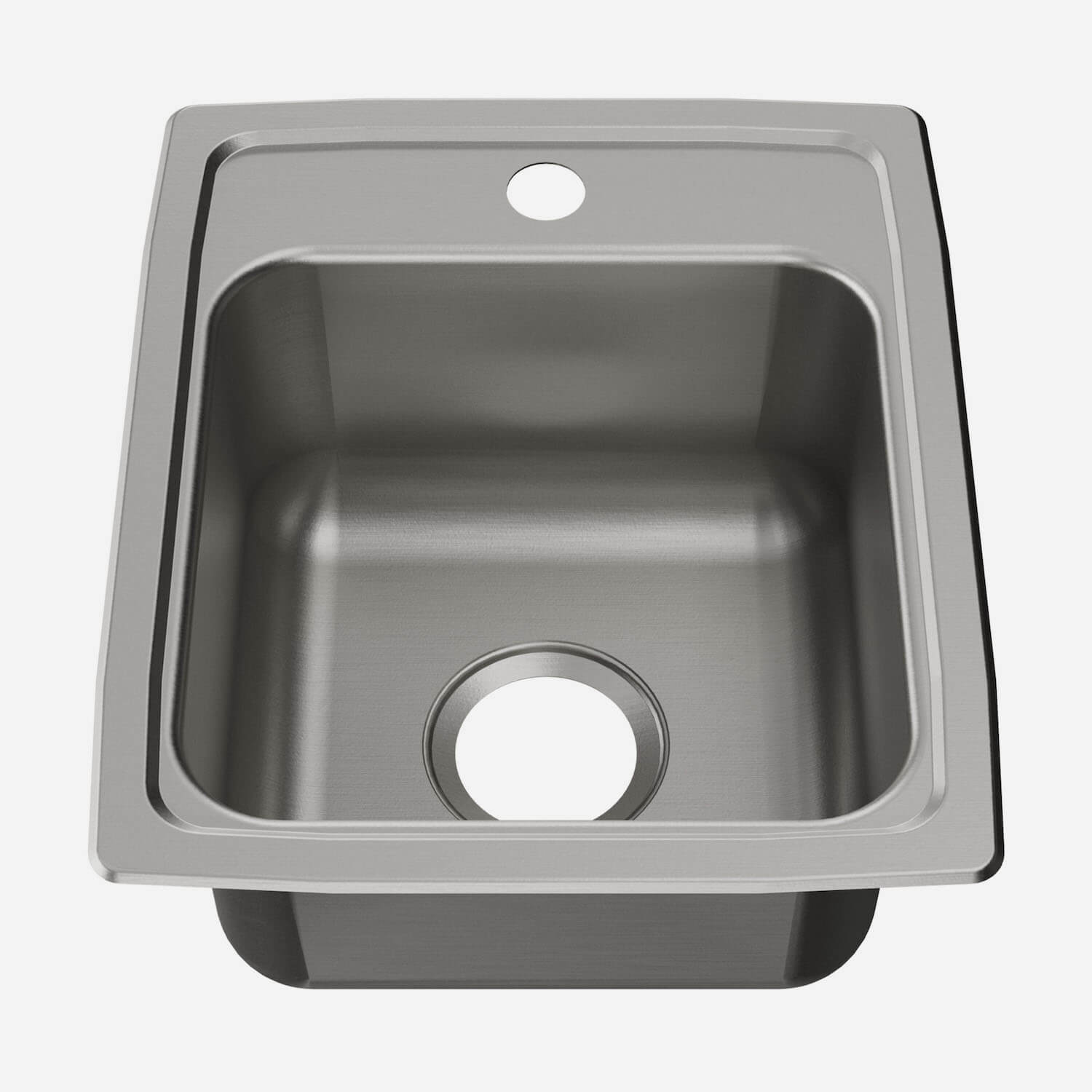

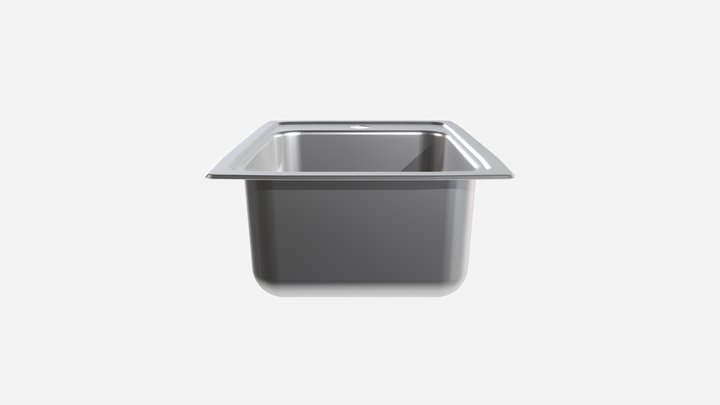

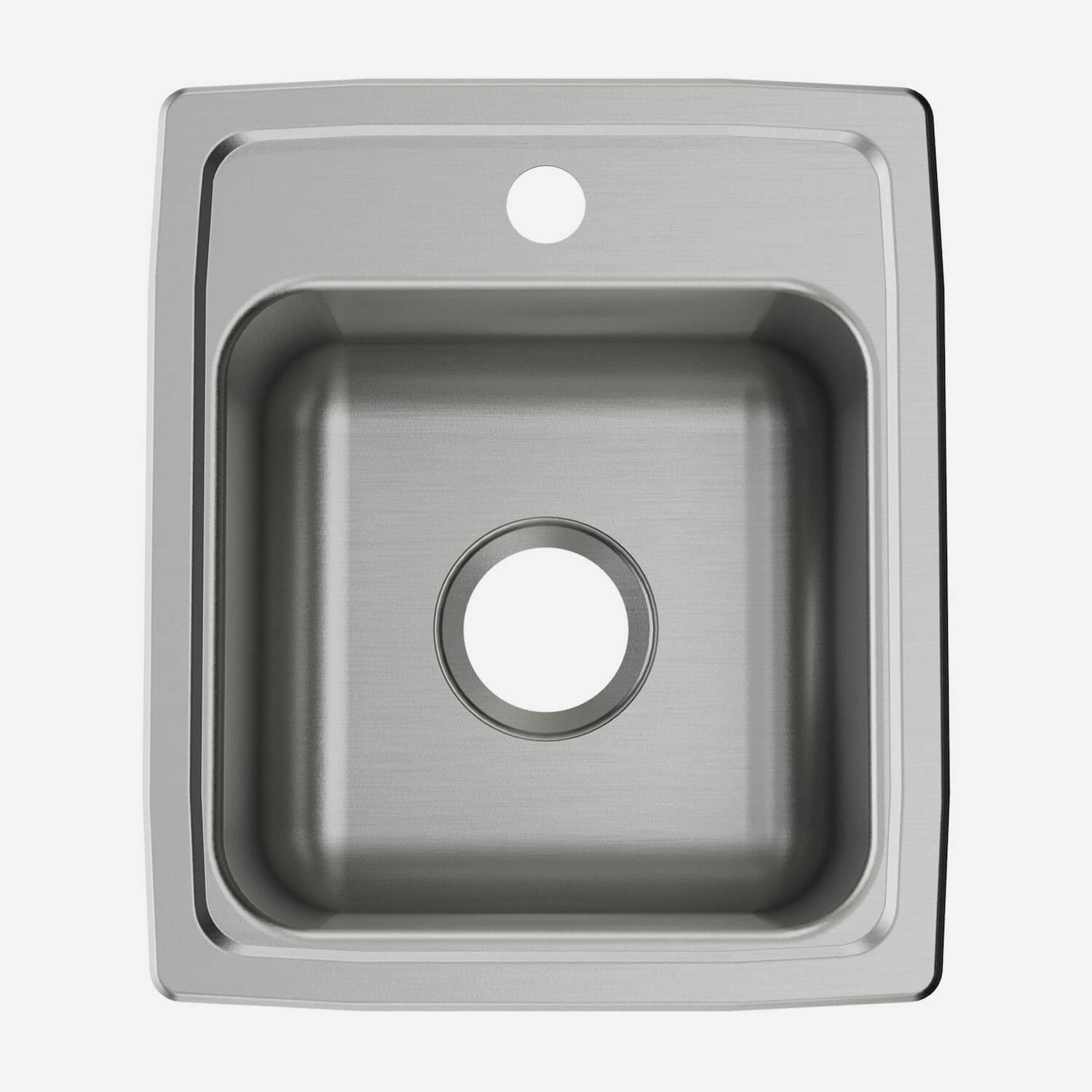

SD-1518 is a single bowl drop-in sink measuring 15" x 17-1/2" with a bowl size of 12" x 12". It has a centered drain and an 8" bowl depth. A minimum cabinet size of 18" is required.
Acorn-Sinks® Features & Benefits:
- Seamless, die-drawn construction of 18-gauge, type 304 stainless steel polished to a #4 satin finish
- Simple drop-in installation
- Sound deadening pads on the sink bottom for reduced noise
- Concealed U-channels with mounting hardware
- Vertical side walls feature a 1-3/4" internal radius for increased resistance to glass tipping and breakage
- Meticulous packaging that prevents shipping damage
- UPC, cUPC, and IPC compliant

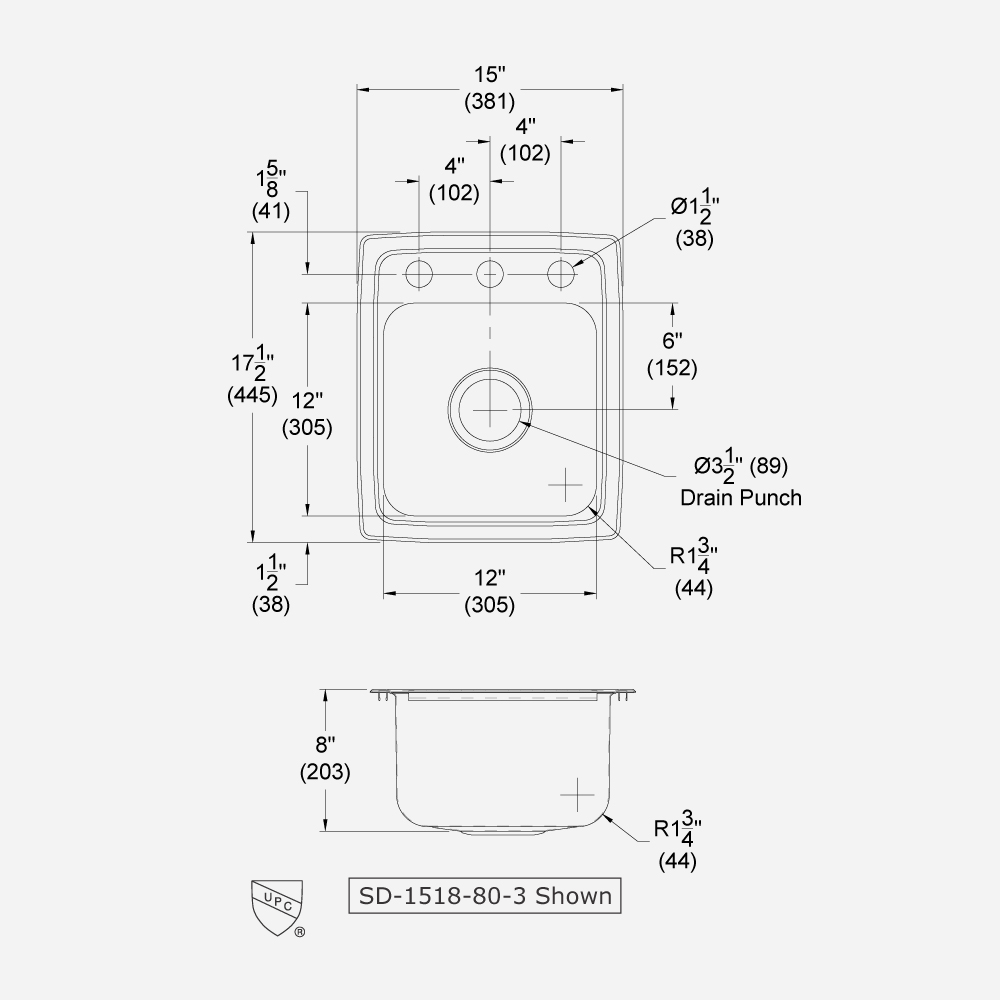

SD-1515-80 features an 8" (203 mm) deep x 12" (305 mm) front-to-back x 12" (305 mm) wide (side-to-side) with 1-3/4" (44 mm) radius corners. A 3-1/2" (89 mm) diameter drain is punched 6" (152 mm) from the back wall of the bowl. Overall dimensions are 15" (381 mm) side-to-side x 17-1/2" (445 mm) front-to-back.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Install Guide for Acorn-Sinks® - Commercial Stainless Steel Sinks - Drop-in [CD-2220, CD-2517, CD-3120, CDADA-2220, CDADA-2517, CDADA-3120, SDB-1515, DD-3320, DD-3322, DDADA-3320, DDADA-3322, SD-1518, SD-1716, SD-1722, SD-1918, SD-2019, et al] | 0 | 186 KB | ||
| | Acorn-Sinks® Stainless Steel Drop-In Sink - 15" x 18" Size - includes submittal, accessory spec sheet, faucet punching spec sheet, installation instruction | 0 | 453 KB | ||
 | | Acorn-Sinks® Stainless Steel Drop-In Sink - 15" x 18" Size - includes faucet configuration variations | 0 | 528 KB | ||
| | Acorn-Sinks® Stainless Steel Drop-In Sink - 15" x 18" Size - includes faucet configuration variations | 0 | 751 KB | ||
 | | Cutout Template for SDADA-1518, SD-1518 Acorn-Sink® Drop-In Sinks | 0 | 248 KB | ||
| | Acorn Engineering - Commercial Plumbing Fixtures | 0 | 473 KB | ||
 | | Acorn Engineering - Commercial Plumbing Fixtures | 0 | 771 KB | ||
| | Acorn Sinks Sales Brochure (pdf) | 0 | 4 MB | ||
| | Acorn Sinks Technical Brochure with Competitive Crosscover | 0 | 2 MB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB | ||
 | | Video - How to Install Acorn-Sink® Drop-in Sink | 0 | 134 KB |
Specifications
| Brand | Acorn-Sinks® |
| Material | Stainless Steel |
| Mounting | Drop-in |
| Minimum Cabinet Size | 18" |
| Accessibility | Not ADA |
| Compliance | ASME A112.19.3/CSA B45.4, UPC |
| Number of Bowls | Single |
| Bowl Depth | 8" |
| Gauge | 18 |
| Drain Size | 3-1/2" |
| Bowl Dimensions | 12" (Side-to-Side) x 12" (Front-to-Back) |
| Overall Dimensions | 15" (Side-to-Side) x 17-1/2" (Front-to-Back) |
| Cutout Dimensions | 14-3/8" (Side-to-Side) x 16-7/8" (Front-to-Back) with 1-1/2" corner radius |
Options
Accessories
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | Suffix -0 (Acorn-Sinks®) | Option: Acorn-Sinks® No Faucet Punching on Deck | ||
 | Suffix -1 (Acorn-Sinks®) | Option: Acorn-Sinks® Single Faucet Punching, Center | ||
 | Suffix -2 (Acorn-Sinks®) | Option: Acorn-Sinks® Two Faucet Punchings, Center | ||
 | Suffix -2R (Acorn-Sinks®) | Option: Acorn-Sinks® Two Punchings, Center & Offset Right | ||
 | Suffix -3 (Acorn-Sinks®) | Option: Acorn-Sinks® Three Faucet Punchings, Center |
Models
Variations on this product specified by the faucet hole punching and bowl depth.
 | |
|---|---|
| Punching Details | 8" Bowl Depth (203 mm) |
| Blank, No Deck Punching | SD-1518-80-0 |
| Single Hole Centered | SD-1518-80-1 |
| Single Hole Centered with 2nd Hole 4" to Right | SD-1518-80-2R |
| 2 Holes on 4" Centers | SD-1518-80-2 |
| 3 Holes on 4" Centers | SD-1518-80-3 |
Details
Acorn-Sinks® Product Number System
This is how our Acorn-Sinks products are numbered. The graphic below is an example. It does not necessarily reflect the product above.
Cross-References
SD-1518 is a direct cross-reference to the following products
SL1815A-J
JUST
SL1815A1-J
JUST
SL1815A2-J
JUST
SL1815A3-J
JUST
SL1815A4-J
JUST
LR1517
Elkay
LR1517-1
Elkay
LR1517-MR2
Elkay
LR1517-2
Elkay
LR1517-3
Elkay
