Model SD-3322

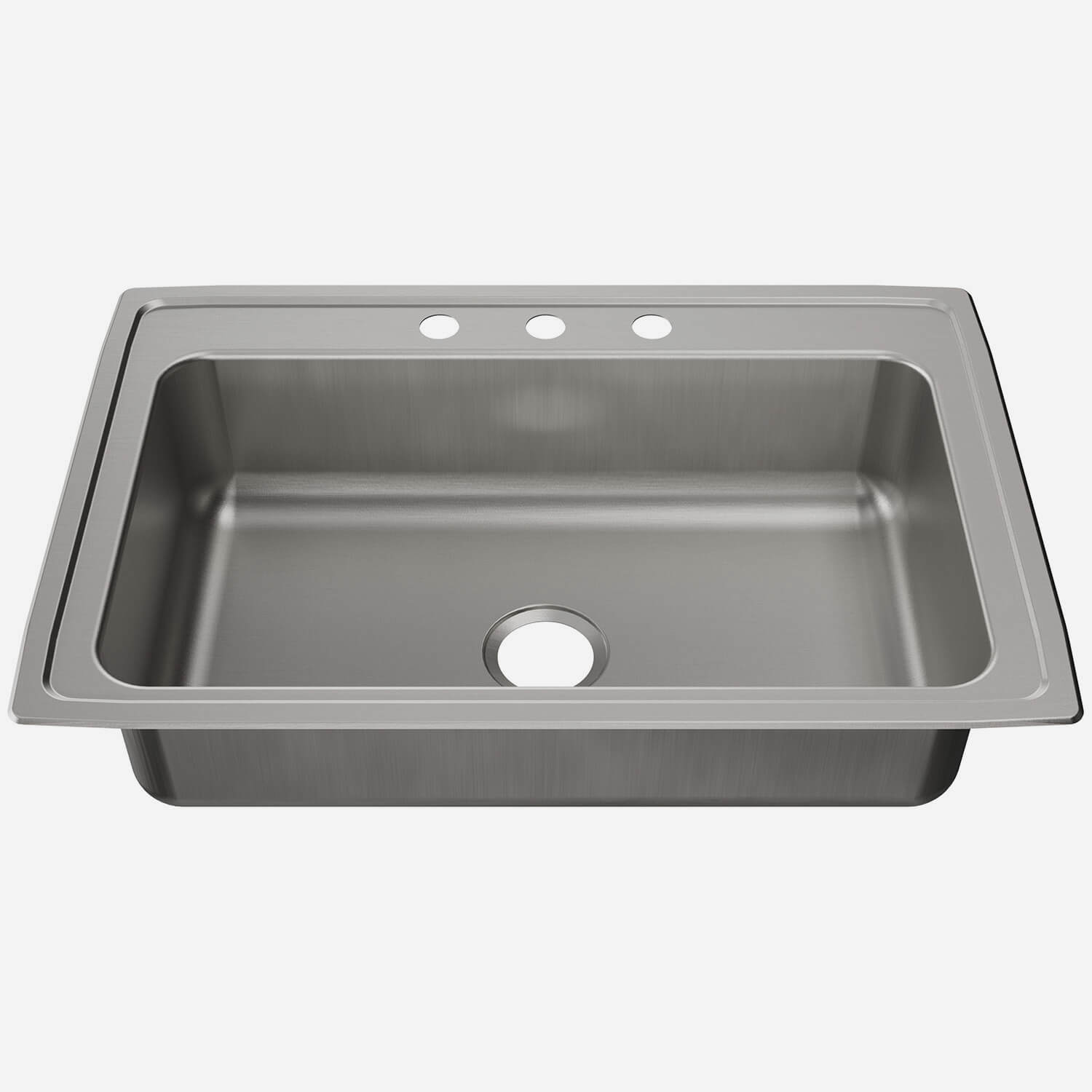

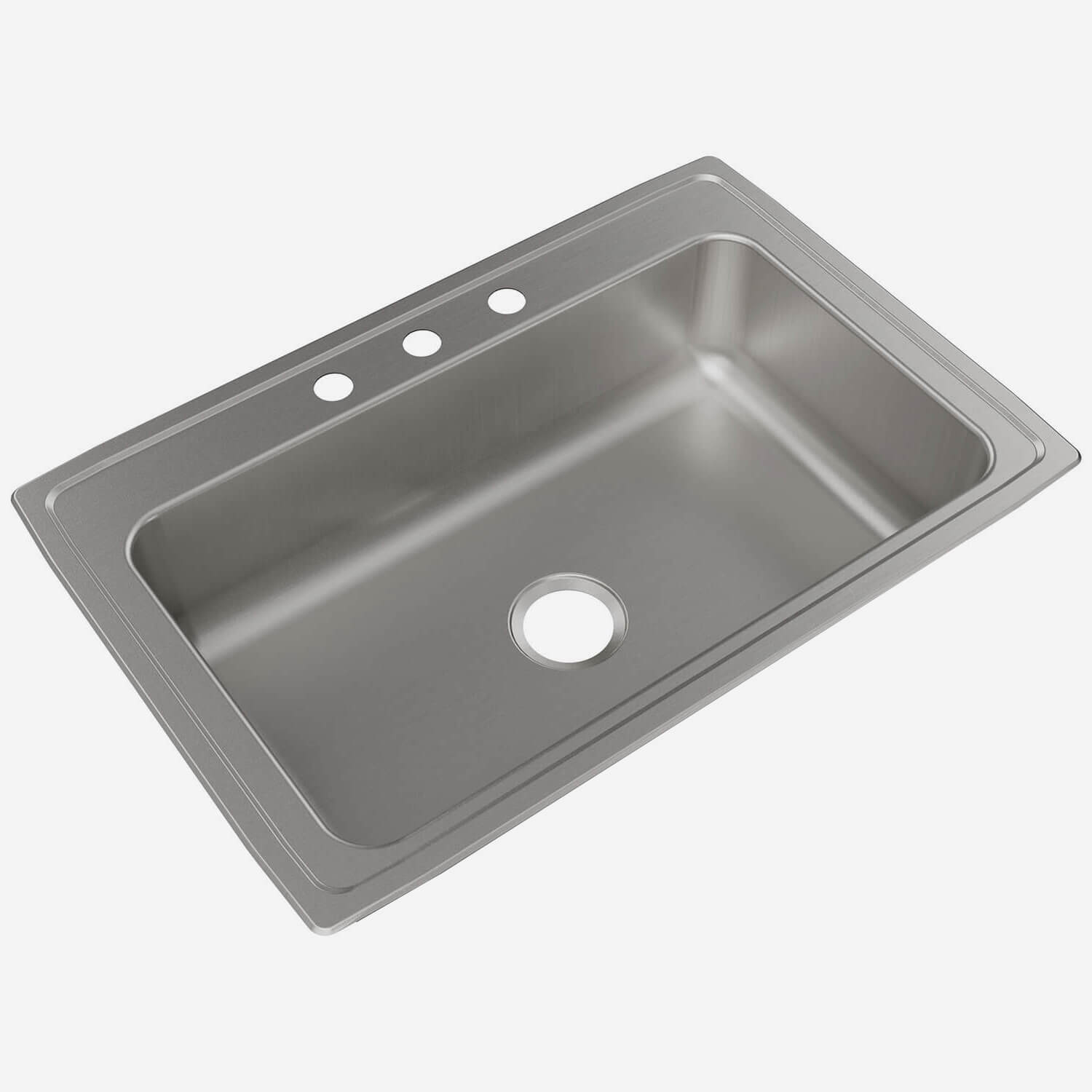

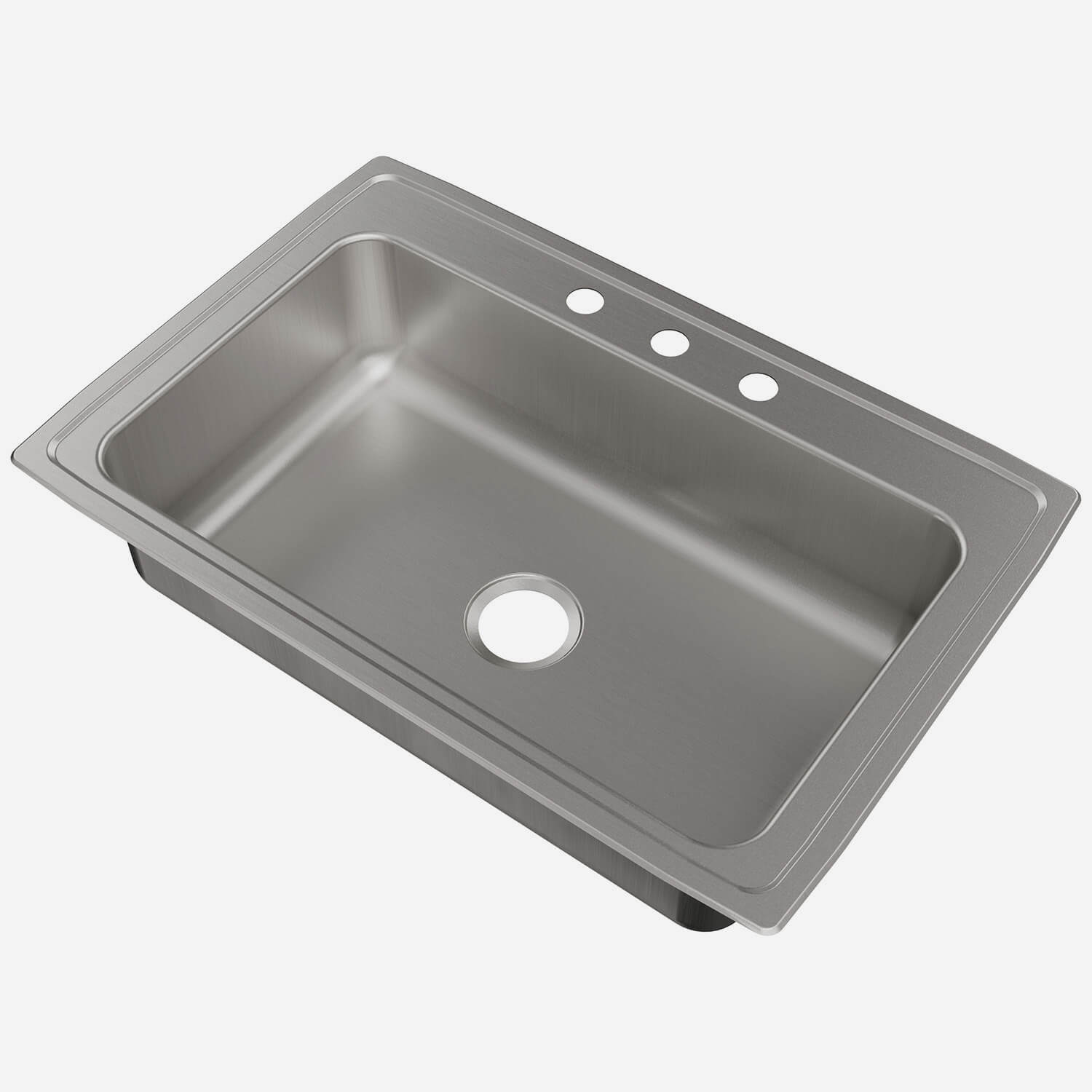

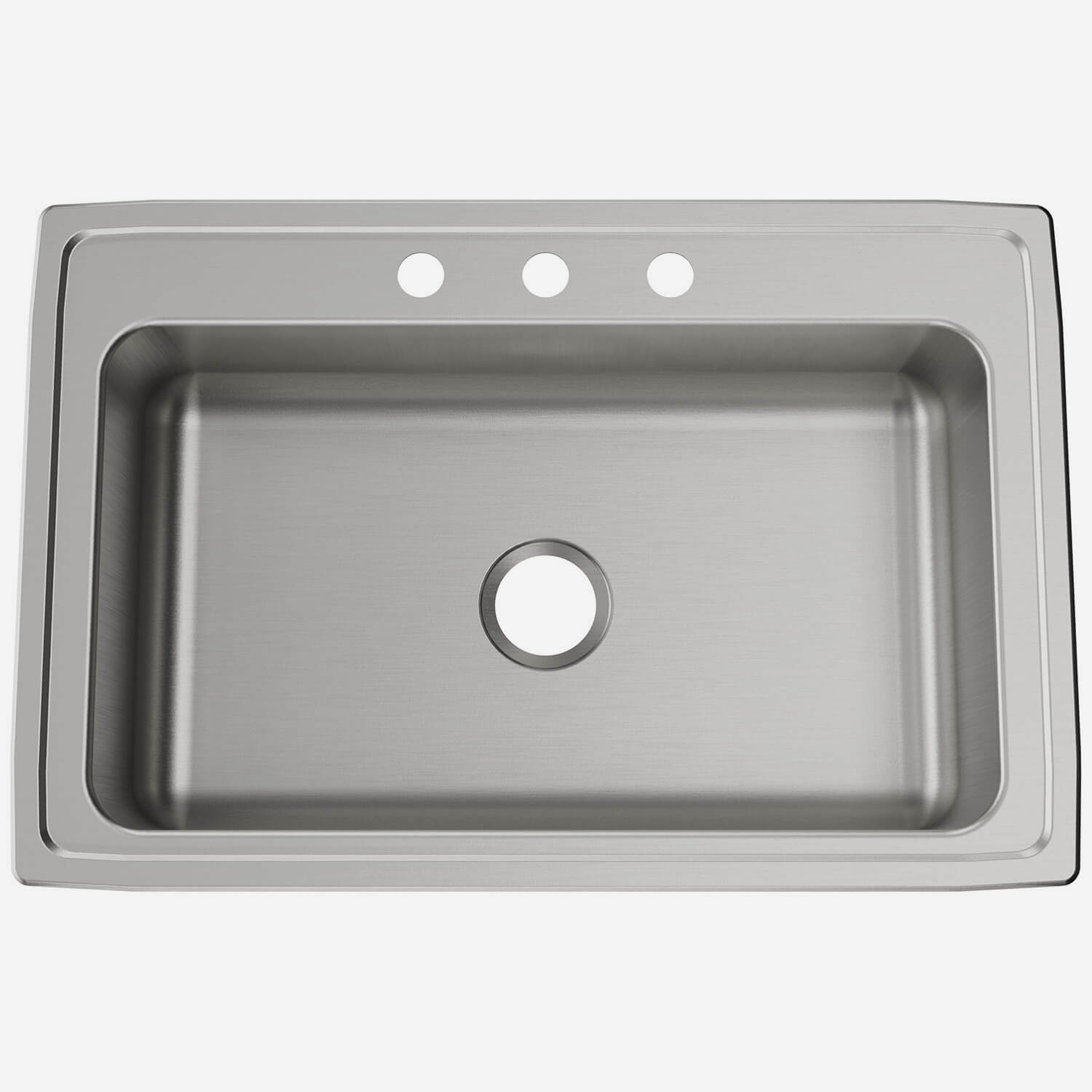

Acorn-Sinks® Stainless Steel Drop-In Sink, 33" x 22"
SD-3322 is a single-bowl drop-in sink measuring 33" x 22" with a bowl size of 28" x 16". It has a centered drain and 8" or 10" bowl depth. A minimum cabinet size of 36" is required.
Acorn-Sinks® Features & Benefits:
- Seamless, die-drawn construction of 18-gauge, type 304 stainless steel polished to a #4 satin finish
- Simple drop-in installation
- Sound-deadening pads on the sink bottom for reduced noise
- Concealed U-channels with mounting hardware
- Vertical side walls feature a 1-3/4" internal radius for increased resistance to glass tipping and breakage
- Meticulous packaging that prevents shipping damage
- UPC, cUPC, and IPC compliant

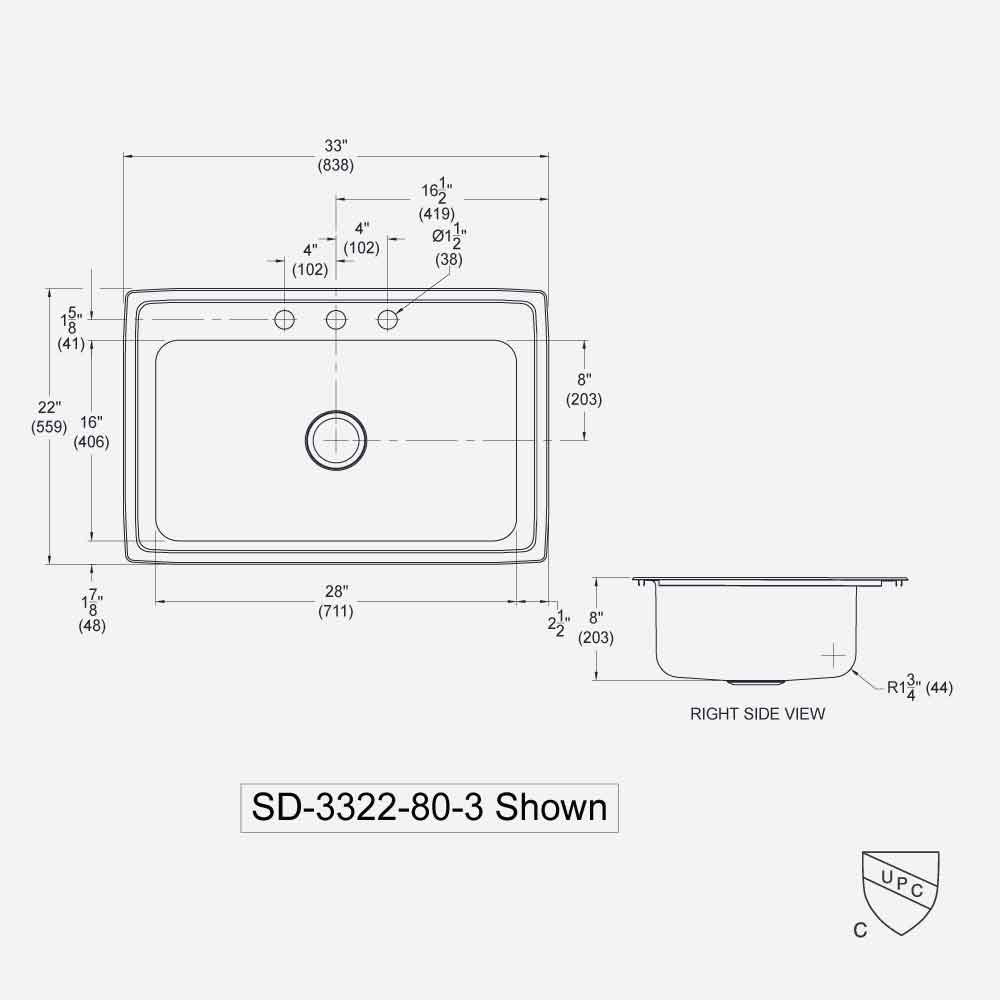

SD-3322-80 features an 8" (203 mm) deep x 16" (406 mm) front-to-back x 28" (711 mm) side-to-side) bowl with 1-3/4" (44 mm) radius corners. A 3-1/2" (89 mm) diameter drain is punched 8" (203 mm) from back wall of the bowl. Overall dimensions are 33" (838 mm) side-to-side x 22" (559 mm) front-to-back. PRICE: $1835
SD-3322-10 features 10" (254 mm) bowl depth. (Coming Soon). PRICE: $2198
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Install Guide for Acorn-Sinks® - Commercial Stainless Steel Sinks - Drop-in [CD-2220, CD-2517, CD-3120, CDADA-2220, CDADA-2517, CDADA-3120, SDB-1515, DD-3320, DD-3322, DDADA-3320, DDADA-3322, SD-1518, SD-1716, SD-1722, SD-1918, SD-2019, et al] | 0 | 186 KB | ||
| | Acorn-Sinks® Stainless Steel Drop-In Sink - 33" x 22" Size - includes submittal, accessory spec sheet, faucet punching spec sheet, installation instruction | 0 | 739 KB | ||
| | Acorn Engineering - Commercial Plumbing Fixtures | 0 | 473 KB | ||
 | | Acorn Engineering - Commercial Plumbing Fixtures | 0 | 771 KB | ||
| | Acorn Sinks Sales Brochure (pdf) | 0 | 4 MB | ||
| | Acorn Sinks Technical Brochure with Competitive Crosscover | 0 | 2 MB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB | ||
 | | Video - How to Install Acorn-Sink® Drop-in Sink | 0 | 134 KB |
Specifications
| Brand | Acorn-Sinks® |
| Material | Stainless Steel |
| Mounting | Drop-in |
| Minimum Cabinet Size | 36" |
| Accessibility | Not ADA |
| Compliance | ASME A112.19.3/CSA B45.4, UPC |
| Number of Bowls | Single |
| Bowl Depth | 8", 10" |
| Gauge | 18 |
| Drain Size | 3-1/2" |
| Bowl Dimensions | 28" (Side-to-Side) x 16" (Front-to-Back) |
| Overall Dimensions | 33" (Side-to-Side) x 22" (Front-to-Back) |
| Cutout Dimensions | 32-3/8" (Side-to-Side) x 21-3/8" (Front-to-Back) with 1-1/2" corner radius |
Options
Accessories
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | Suffix -0 (Acorn-Sinks®) | Option: Acorn-Sinks® No Faucet Punching on Deck | ||
 | Suffix -1 (Acorn-Sinks®) | Option: Acorn-Sinks® Single Faucet Punching, Center | ||
 | Suffix -2 (Acorn-Sinks®) | Option: Acorn-Sinks® Two Faucet Punchings, Center | ||
 | Suffix -2R (Acorn-Sinks®) | Option: Acorn-Sinks® Two Punchings, Center & Offset Right | ||
 | Suffix -3 (Acorn-Sinks®) | Option: Acorn-Sinks® Three Faucet Punchings, Center | ||
 | Suffix -4L (Acorn-Sinks®) | Option: Acorn-Sinks® Four Punchings, Center & Offset Left | ||
 | Suffix -4R (Acorn-Sinks®) | Option: Acorn-Sinks® Four Punchings, Center & Offset Right | ||
 | Suffix -5 (Acorn-Sinks®) | Option: Acorn-Sinks® Five Faucet Punchings, Center |
Models
Variations on this product specified by the faucet hole punching and bowl depth.
 |
 |
|
|---|---|---|
| Punching Details | 8" Bowl Depth (203 mm) |
10" Bowl Depth (254 mm) Coming Soon |
| List Price (US$) actual selling price may vary |
$1,835 | $2,198 |
| Blank, No Deck Punching | SD-3322-80-0 | SD-3322-10-0 |
| Single Hole Centered | SD-3322-80-1 | SD-3322-10-1 |
| Single Hole Centered with 2nd Hole 4" to Right | SD-3322-80-2R | SD-3322-10-2R |
| 2 Holes on 4" Centers | SD-3322-80-2 | SD-3322-10-2 |
| 3 Holes on 4" Centers | SD-3322-80-3 | SD-3322-10-3 |
| 3 Holes on 4" Centers with 4th Hole 4" to Left | SD-3322-80-4L | SD-3322-10-4L |
| 3 Holes on 4" Centers with 4th Hole 4" to Right | SD-3322-80-4R | SD-3322-10-4R |
| 5 Holes on 4" Centers | SD-3322-80-5 | SD-3322-10-5 |
