Model 2898

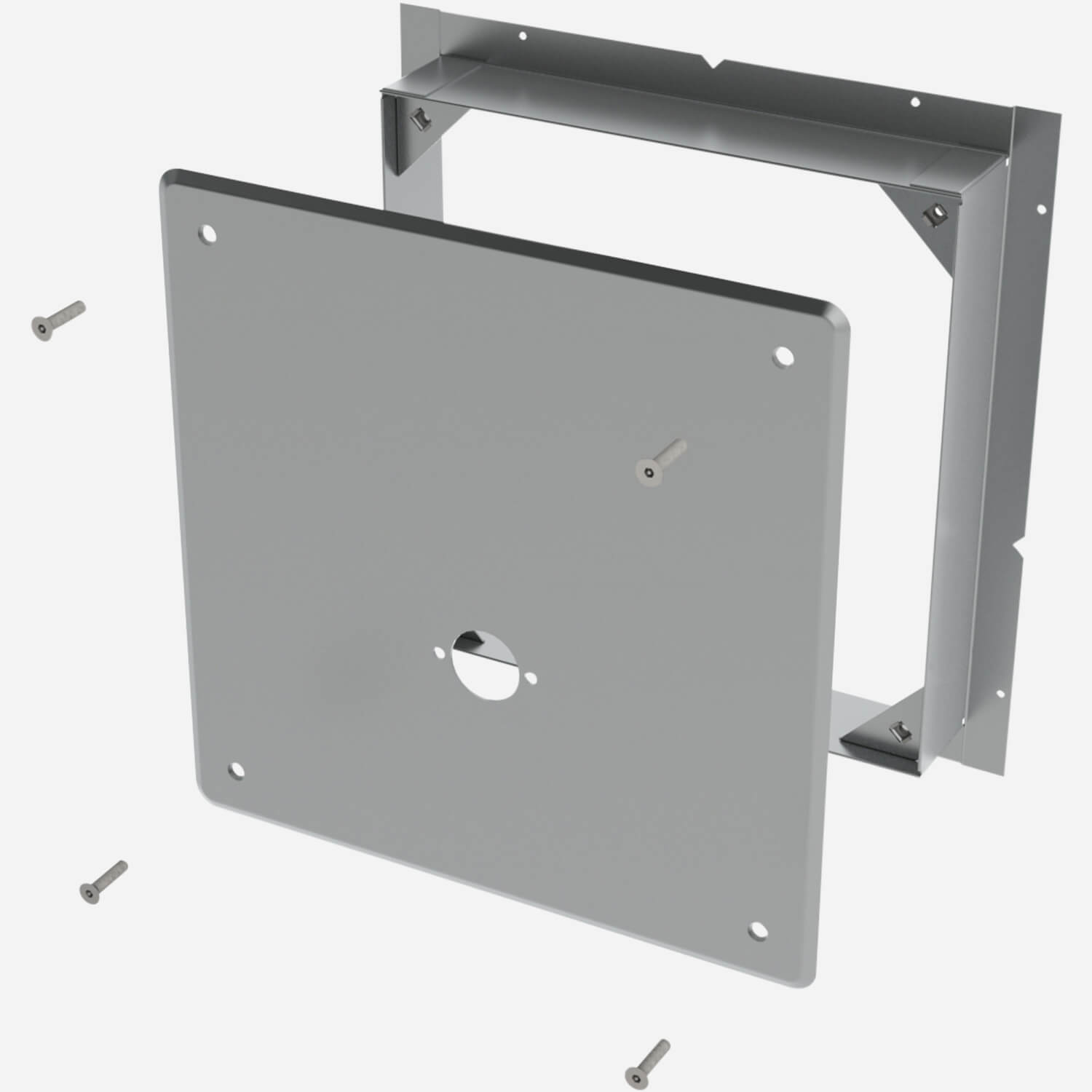

Stainless Steel Flush Valve Access Panel
The Flush Valve Access Panel design provides access to a concealed flush valve when no access is provided behind the wall. The mounting frame is fabricated of 20 gauge galvanized steel for walls 2” (50mm) minimum to 12” (305mm) maximum thick. A 14" 356 mm) square removable access panel cover is fabricated of 14 gauge type 304 stainless steel with a satin finish. 1-1/2" diameter hole is provided for a pushbutton assembly.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | 0 | 79 KB | |||
| | Stainless Steel Flush Valve Access Panel | 0 | 515 KB | ||
 | | Front Mount Accessories - including models 1811 mirror, 1813 mirror, 1817 mirror, 1824 shelf/clothes hook, 1826 shelf, 1828 clothes hook, 1830 clothes hook, 1840FA toilet paper holder, 2803-1, 2898 | 0 | 155 KB | ||
| | Enviro-Glaze Powdercoating Color Chart | 0 | 2 MB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
| | Stainless Steel Fixtures and Accessories for Parks | 0 | 1 MB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB |
Specifications
| Product Type | Flush Valve Access Panel |
| Brand | Dura-Ware® |
| Material | Stainless Steel |
| Vandal Resistant | Moderate |
| Institutional Applications | Correctional, Hospital & Treatment Centers, Educational Building, Train Station & Airports, Other Institutional Buildings |
| Commercial Applications | Stores & Shopping Centers, Warehouse, Office Building, Restaurant & Hospitality, Stadium & Arena |
| Park and Recreation Applications | Yes |
