Flush Valve and Stainless Steel Cover

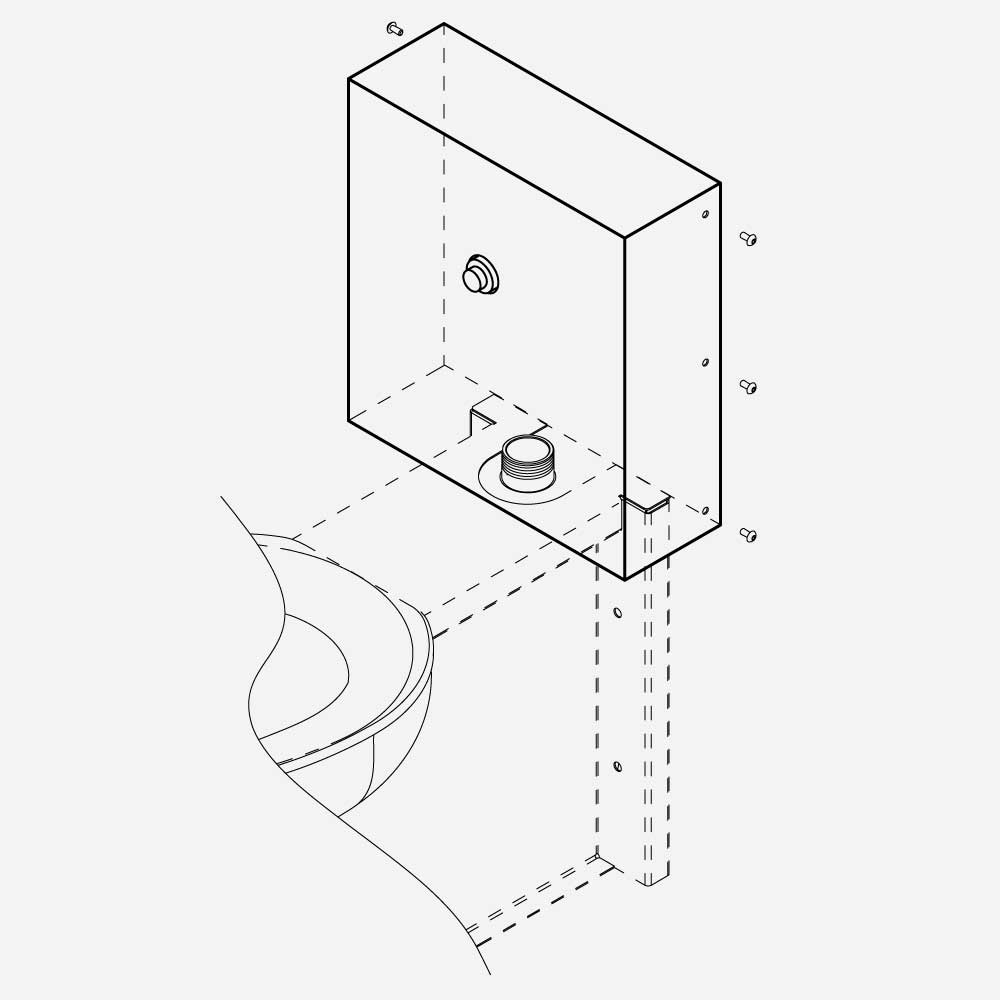

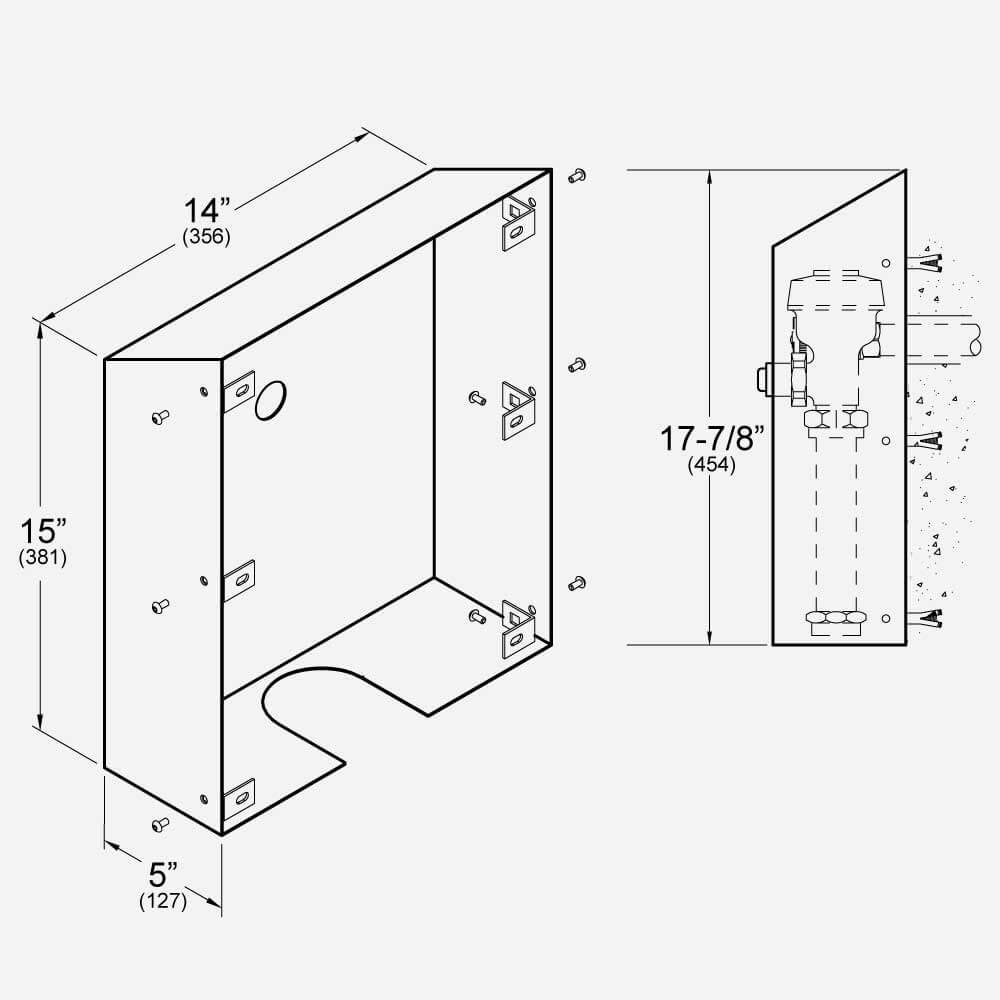

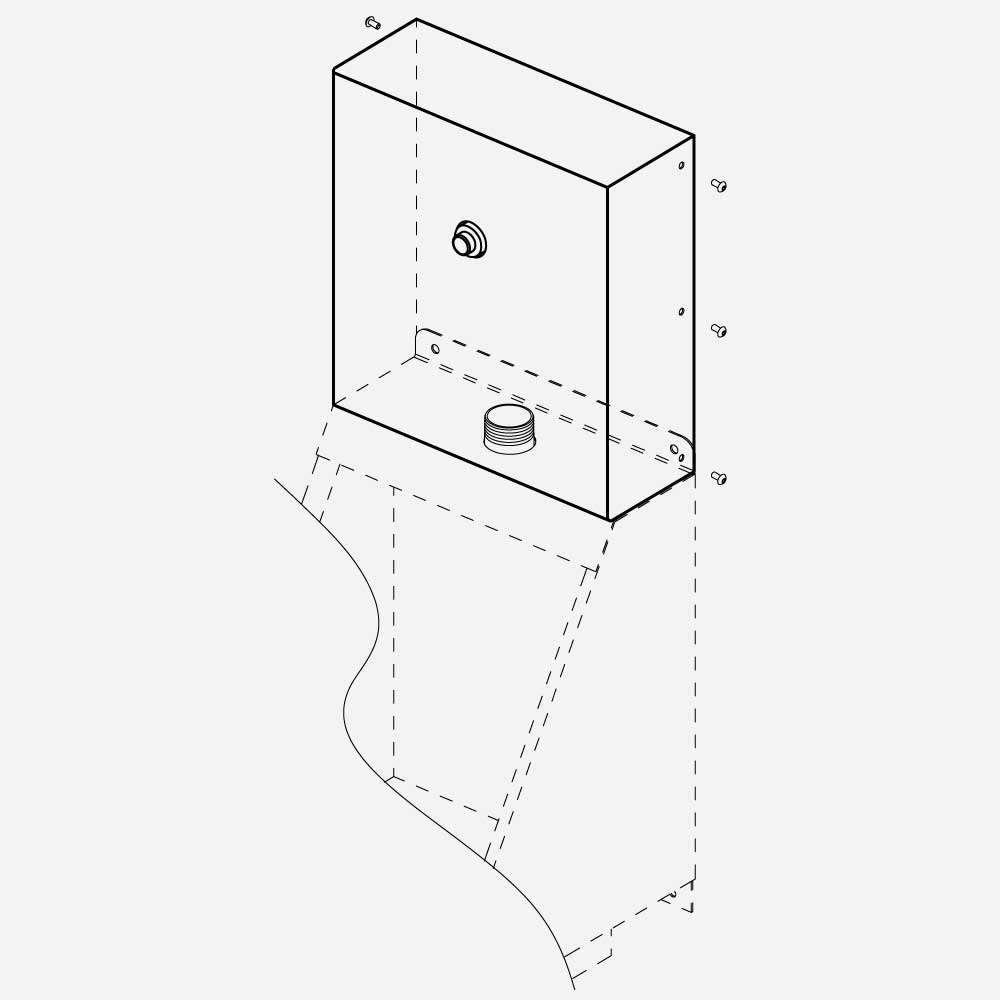

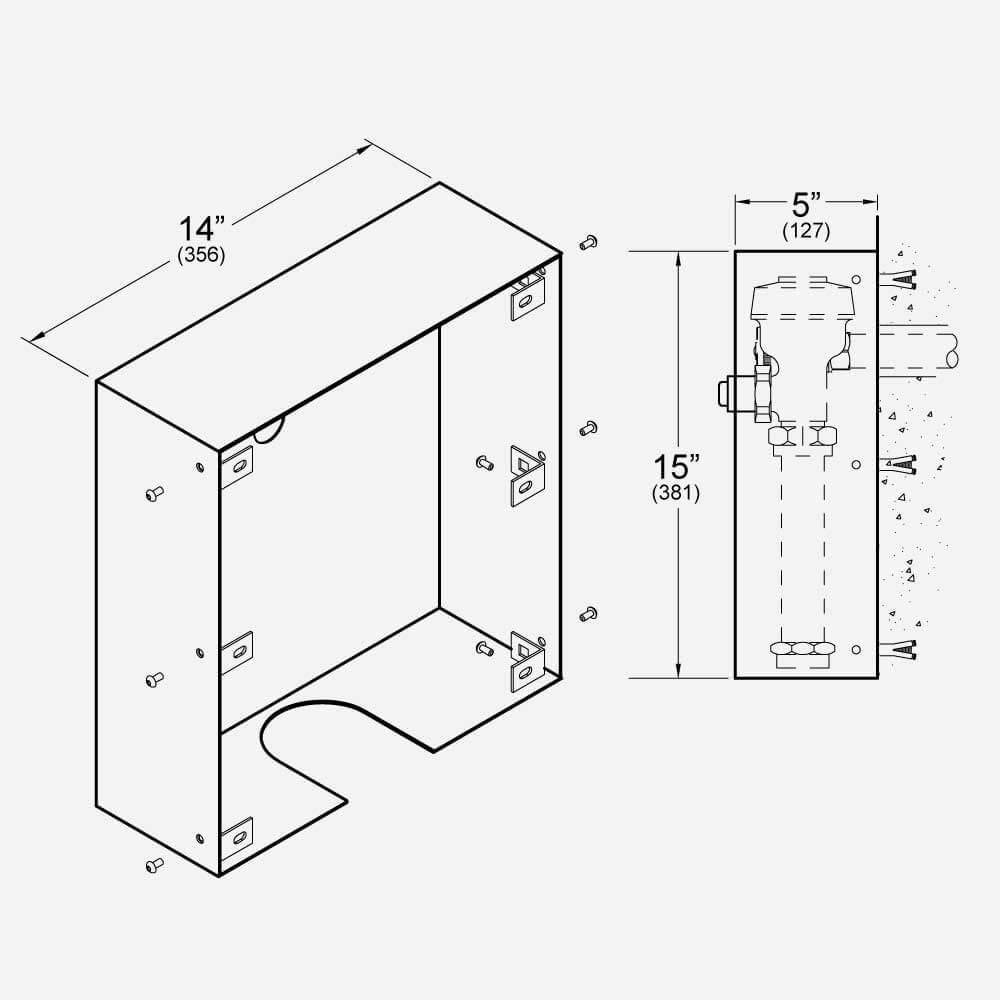

This flush valve and stainless steel cover are ideal for flushing conventional toilets, urinals and floor drains with top supply (exposed) flush valve connections in applications where vandal resistance is a concern. The flush valve is the exposed top spud type with a cast bronze body. The flush valve cover is fabricated of 16 gauge, type 304 stainless steel, and features a pushbutton activating the flush.

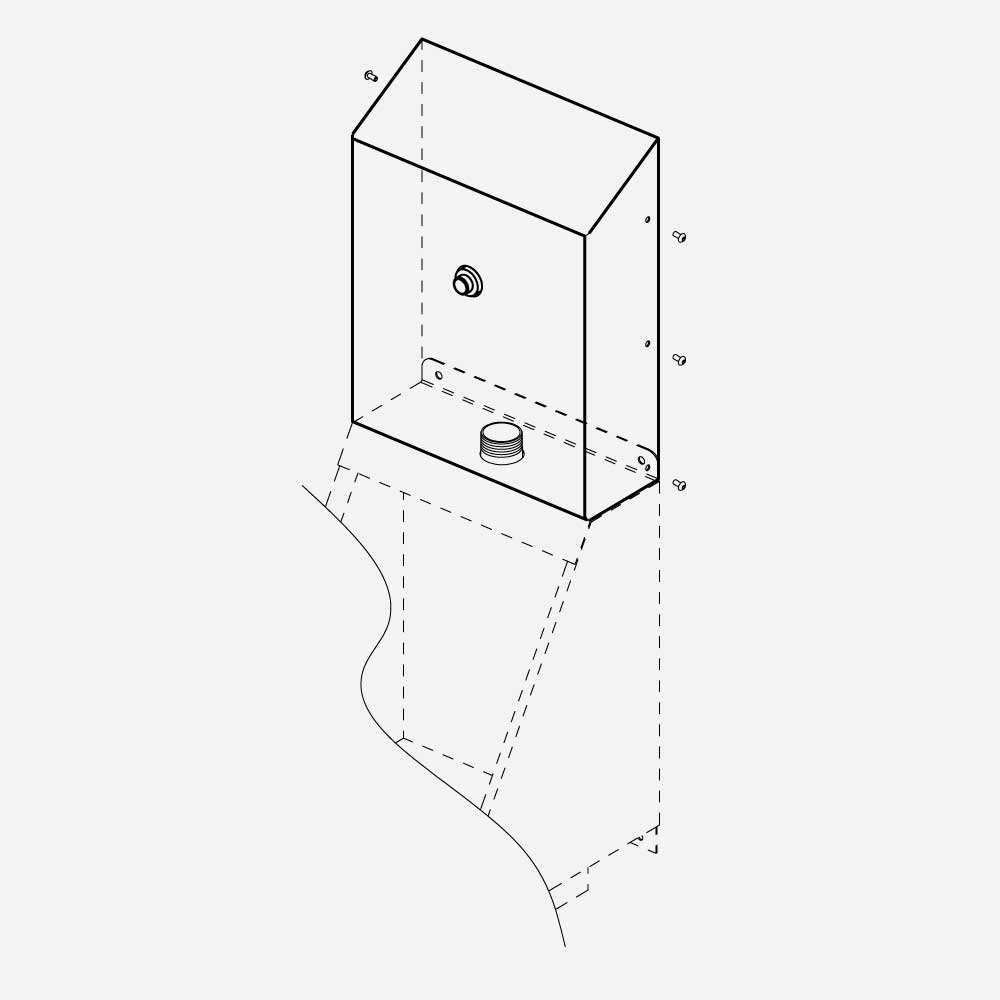

For ligature-resistant needs, Option -SLPT provides the cover to be shaped with sloped top limiting ligature points.
The product is designed to meet the needs of ligature resistance, water conservation, and the rigorous demands of security facilities.
DISCLAIMERS: This product is designed to decrease the probability that it may be utilized as an apparatus for ligature. It is not a replacement for professionals who are trained in the proper evaluation, management, and supervision of persons at risk of suicide. WaterSense recent advancements have allowed toilets to use 1.28 gallons (4.85 liters) per flush or less while still providing equal or superior performance. The WaterSense label is used on toilets that are independently certified to meet rigorous criteria for both performance and efficiency. Only water-saving toilets that complete the certification process can earn the WaterSense label. Must use optional HET valves to meet WaterSense label requirements.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Flush Valve and Stainless Steel Cover | 0 | 60 KB | ||
| | Flush Valve Cover (includes Flush Valve); Popular option for Ligature-Resistant -SLPT | 0 | 224 KB | ||
| | Flush Valve and Stainless Steel Cover with a Sloping Top providing ligature-resistance. | 0 | 77 KB | ||
| | Enviro-Glaze Powdercoating Color Chart | 0 | 2 MB | ||
 | | With Flush Valveand Left Side Toilet Paper Roll Holder | 0 | 74 KB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB |
Specifications
| Product Type | Flush Valve Box |
| Brand | Dura-Ware® |
| Material | Stainless Steel |
| Vandal Resistant | Moderate |
| Ligature Resistant | Option -SLPT Available |
| Institutional Applications | Hospital & Treatment Centers, Educational Building, Train Station & Airports, Other Institutional Buildings |
| Commercial Applications | Stores & Shopping Centers, Warehouse, Office Building, Restaurant & Hospitality, Stadium & Arena |
| Park and Recreation Applications | Yes |
Options
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | EG | Option: Enviro-Glaze® Powder Coating | ||
 | FV (Toilet) | Option: Flush Valve for Toilet | ||
 | FV (Urinal) | Option: Flush Valve For Urinal | ||
 | FVH | Option: Hydraulic Flush Valve | ||
 | HET | Option: High Efficiency Toilet Flush - 1.28 gallons (4.85 liters) per Flush | ||
 | HEU | Option: High Efficiency Urinal Flush - 0.125 gallon (0.47 liters) to 0.5 gallon (1.8 liters) per Flush | ||
 | MVCFV | Push Button Solenoid Flush Valve Application Time-Trol® | ||
 | PH | Option: Paper Holder | ||
 | SLPT (Flush Valve) | Option: Sloping Top | ||
 | TF | Option: Transformer for AC Power Valve | ||
 | ULF (Toilet) | Option: Ultra Low Toilet Flush - 1.6 gallon (6 liter) per Flush | ||
 | ULF (Urinal) | Option: Ultra Low Urinal Flush - 1.0 gallon (3.8 liter) per flush |
Models
The popular model numbers are shown

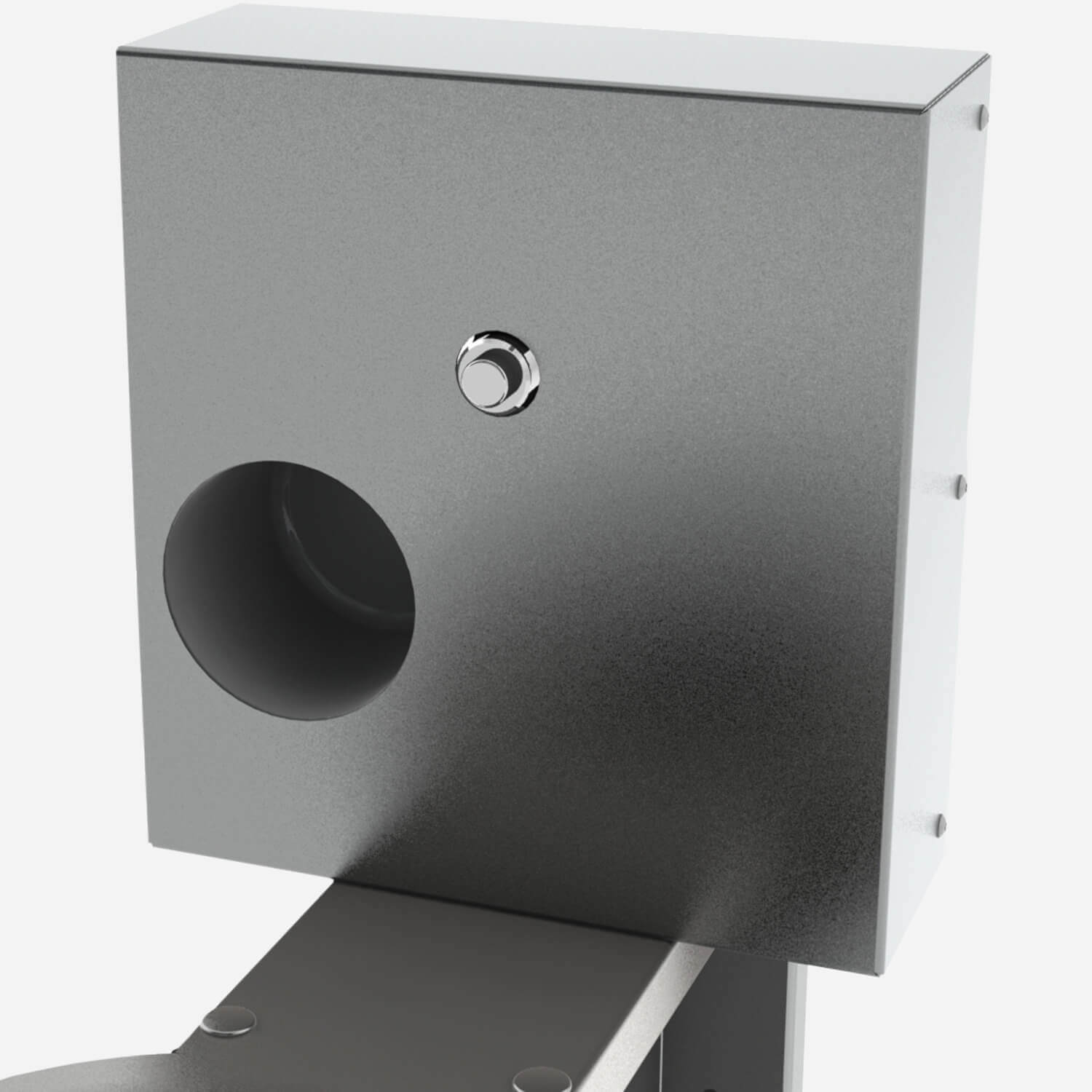

Model Number 2802-PH
Shown with Option -PH
[ install ]

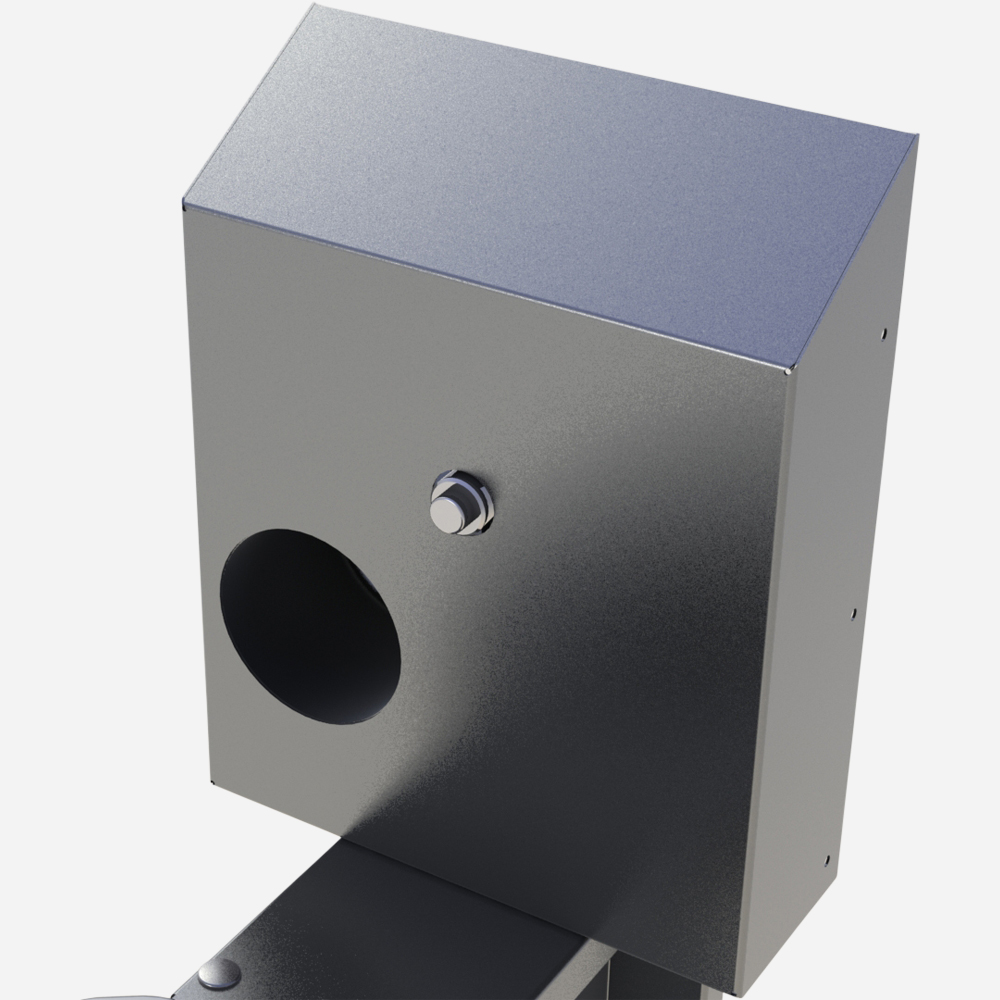

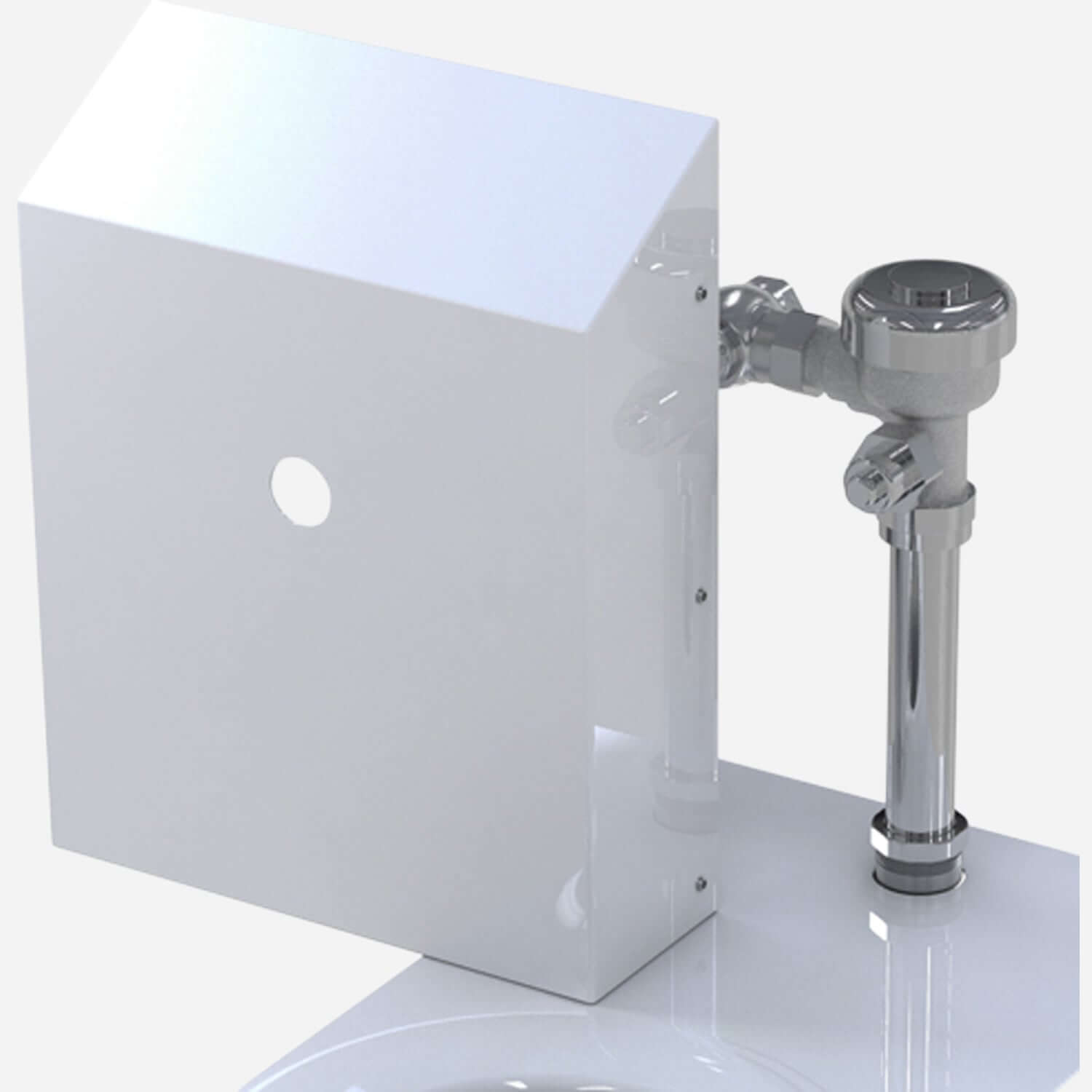

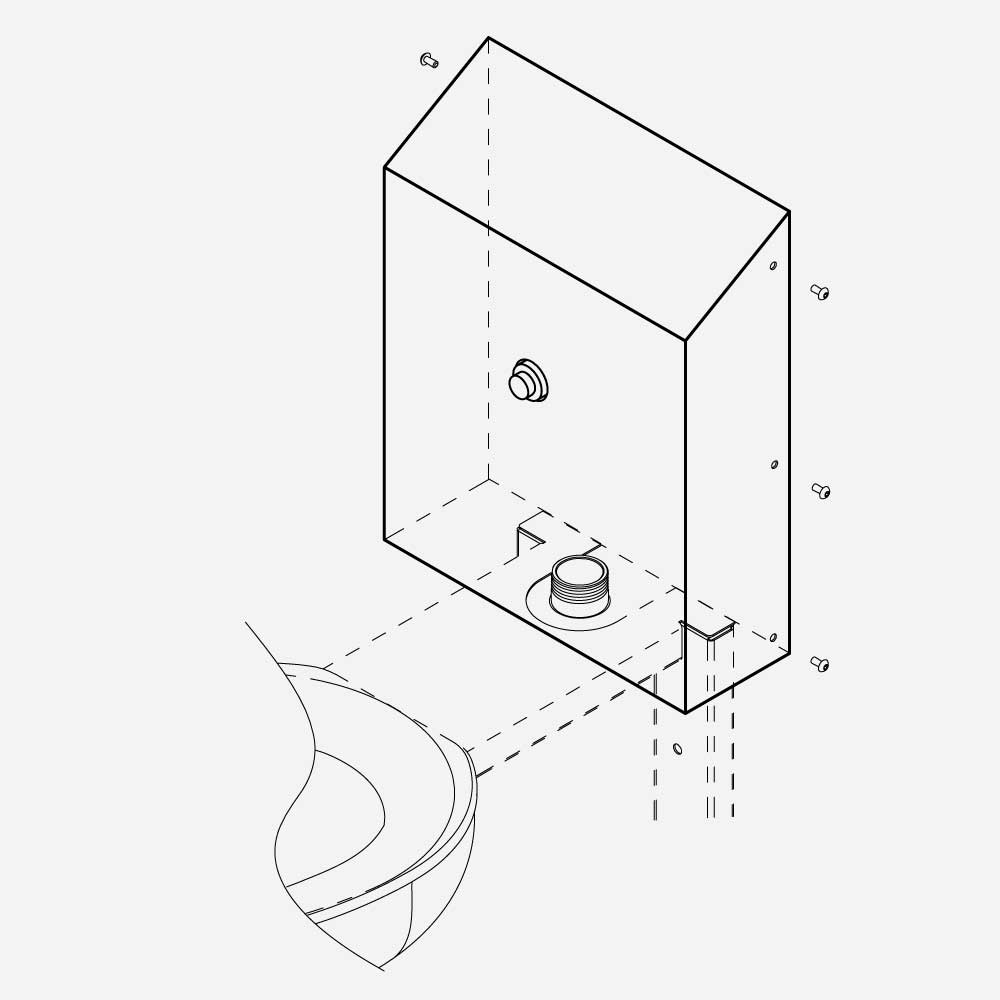

Model Number 2802-SLPT
Shown with Sloped Top
and Option -EG [ install ]
Specification of flush valve shall be required including
- for use on toilets or urinal
- supplied by Acorn or by others
- Standard Pushbutton Valve or Hydraulic Flush Valve
- Acorn Master-Trol, Master-Trol PLUS, or Time-Trol Electronic Valve type (if desired)
