Front Access, ADA Compliant Comby with Angled Toilet and Angled Rectangular Lavatory Bowl
Perfect for retrofits and new construction, this space-saving, ADA compliant, stainless steel, vandal-resistant comby comes in an angled left, right orientation. The fixture is configured with front access for installation and maintenance, where a typical security servicing chase is not available. It is available in an on-floor with wall waste outlet and an on-floor with floor waste outlet configurations.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Front Access, ADA Compliant Comby with Angled Toilet and Angled Rectangular Lavatory Bowl | 0 | 330 KB | ||
| | ADA Compliant, Toilet-Lavatory Comby with Angled Toilet, Angled Lavatory - Front Access | 0 | 132 KB | ||
| | Enviro-Glaze Powdercoating Color Chart | 0 | 2 MB | ||
| | Correctional Facility Fixtures HET Toilet/Acorn Vac | 0 | 816 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB | ||
| | Tools / Fasteners: Drivers and Bits | 0 | 51 KB | ||
| | Tools / Fasteners: Stainless Steel Security Screws | 0 | 138 KB |
Specifications
| Product Type | Comby |
| Configurations Available | On-Floor with Wall Waste Outlet (-2), On-Floor with Floor Waste Outlet (-3) |
| Brand | Penal-Ware® |
| Material | Stainless Steel |
| Mounting | Front Access - Security |
| Toilet Orientation | Angle Left (-AL), Angle Right (-AR) |
| Institutional Applications | Correctional |
| Bowl Shape | Rectangular |
| Compliance | WaterSense meets EPA Criteria - certified by IAPMO R&T, Federal Public Law 111-380, ADA Compliant |
Options
Accessories
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | 03-M | Option: Single Temperature Metering Air-Control™ Pneumatic Valve | ||
 | 04-M | Option: Hot & Cold Metering Air-Control® Pneumatic Valve | ||
 | 2 (Comby) | Option: On-Floor, Wall Outlet Comby | ||
 | 3 (Comby) | Option: On-Floor, Floor Outlet Comby | ||

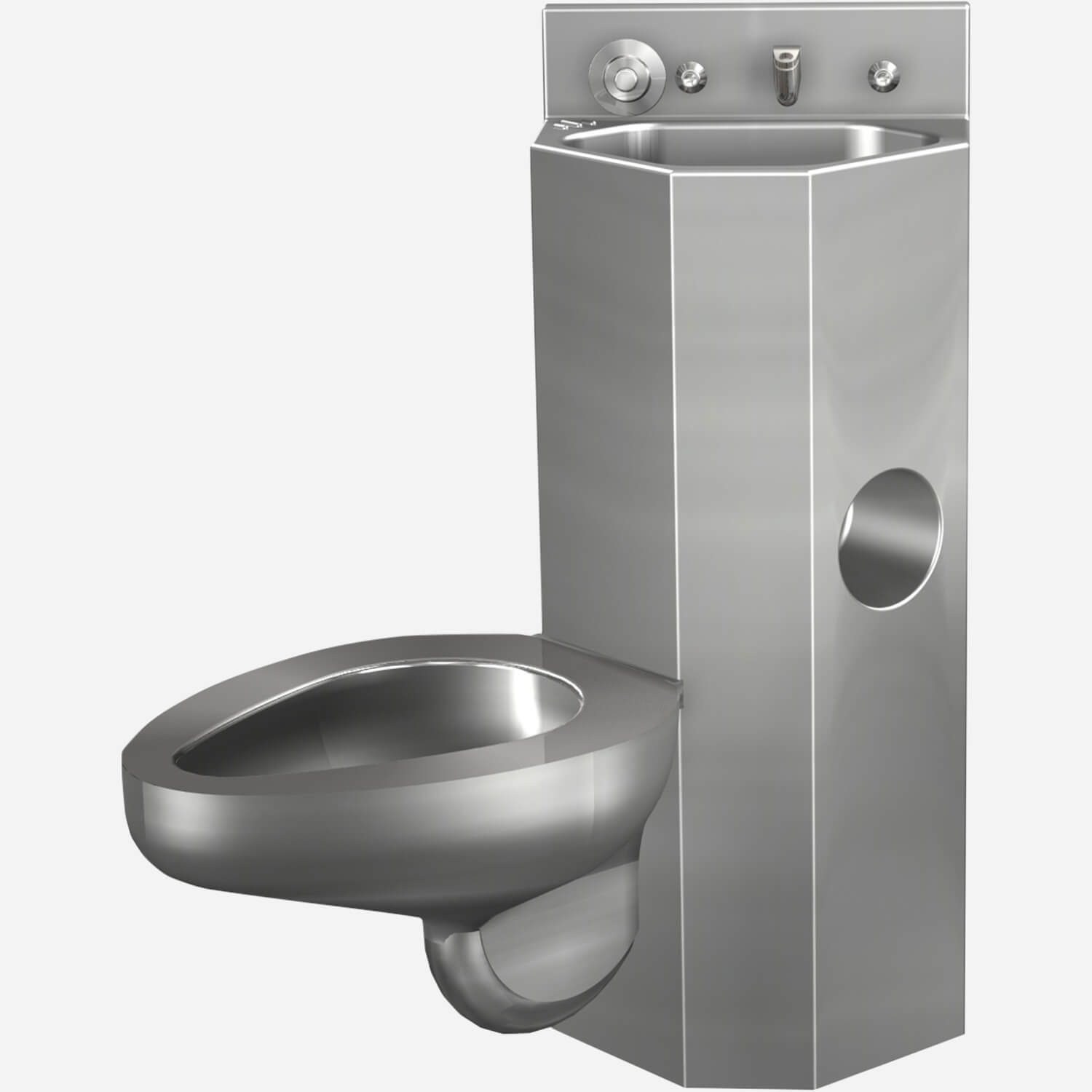

 | AL | Option: Angled Left Toilet Configuration for Toilet-Lav Comby | ||

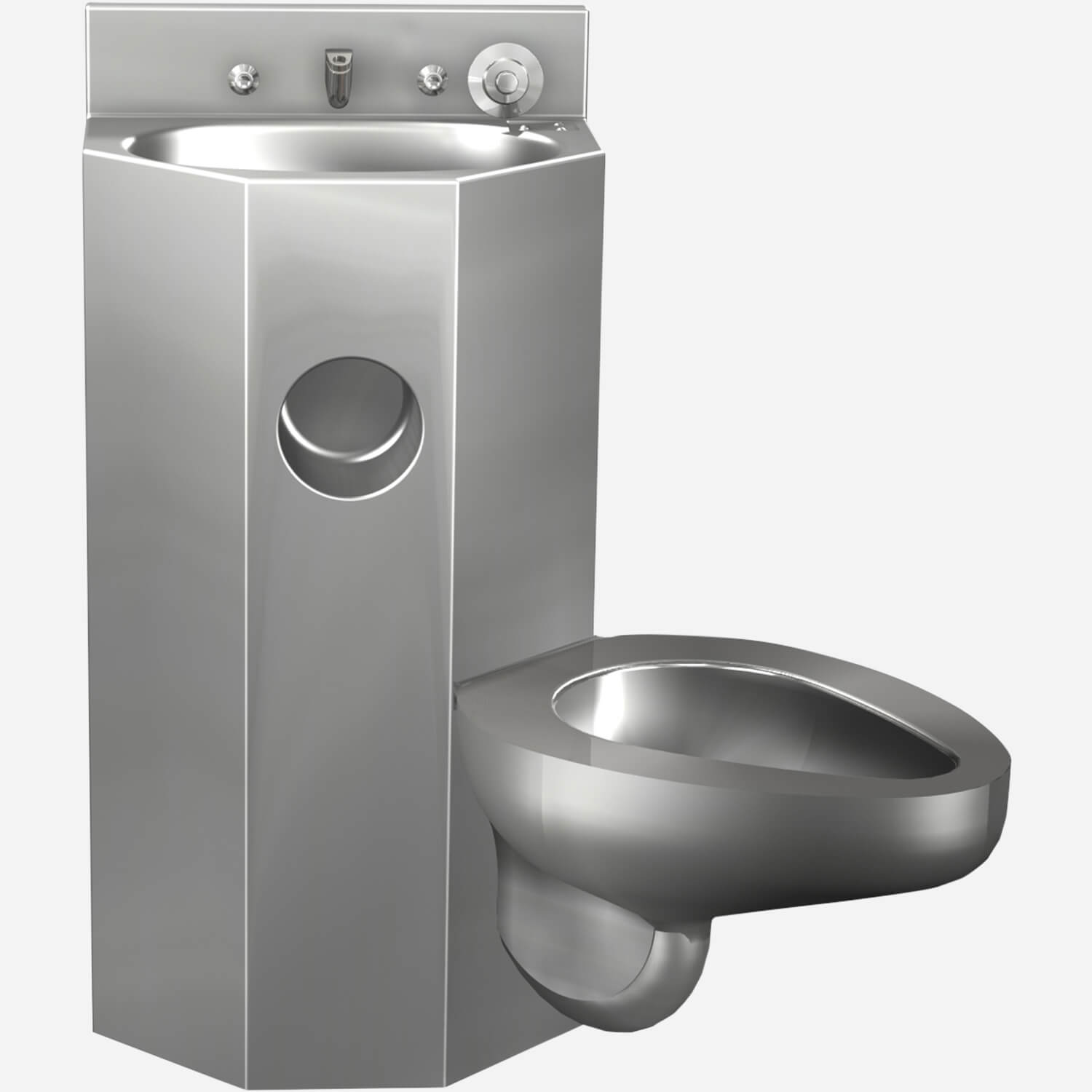

 | AR | Option: Angled Right Toilet Configuration for Toilet-Lav Comby | ||
 | BC | Option: Bubbler, Code | ||
 | BP | Option: Bubbler, Penal | ||
 | BPH | Option: Hemispherical Penal Bubbler | ||
 | CI | Option: Cycle Interrupt | ||
 | CW (Comby) | Option: Combined Waste (Comby) | ||
 | EG | Option: Enviro-Glaze® Powder Coating | ||
 | EVS1 | Option: Single Temperature Application Master-Trol® | ||
 | EVS2 | Option: Hot & Cold Application Master-Trol® | ||
 | EVSFV | Option: Flush Valve Application Master-Trol® | ||
 | EVSP1 | Option: Piezo Button Single Temperature Application Master-Trol® | ||
 | EVSP2 | Option: Piezo Button Hot & Cold Application Master-Trol® | ||
 | EVSPFV | Option: Piezo Button Flush Valve Application Master-Trol® | ||
 | FMT | Option: Fixture Mounted Trim | ||
 | FT | Option: Flood-Trol® Anti-Flood System for Manual Flush Valve | ||
 | FTA | Option: Flood-Trol® Anti-Flood System for Manual Flush Valve, Auto Reset | ||
 | FVBO | Option: Flush Valve by Others | ||
 | FVH | Option: Hydraulic Flush Valve | ||

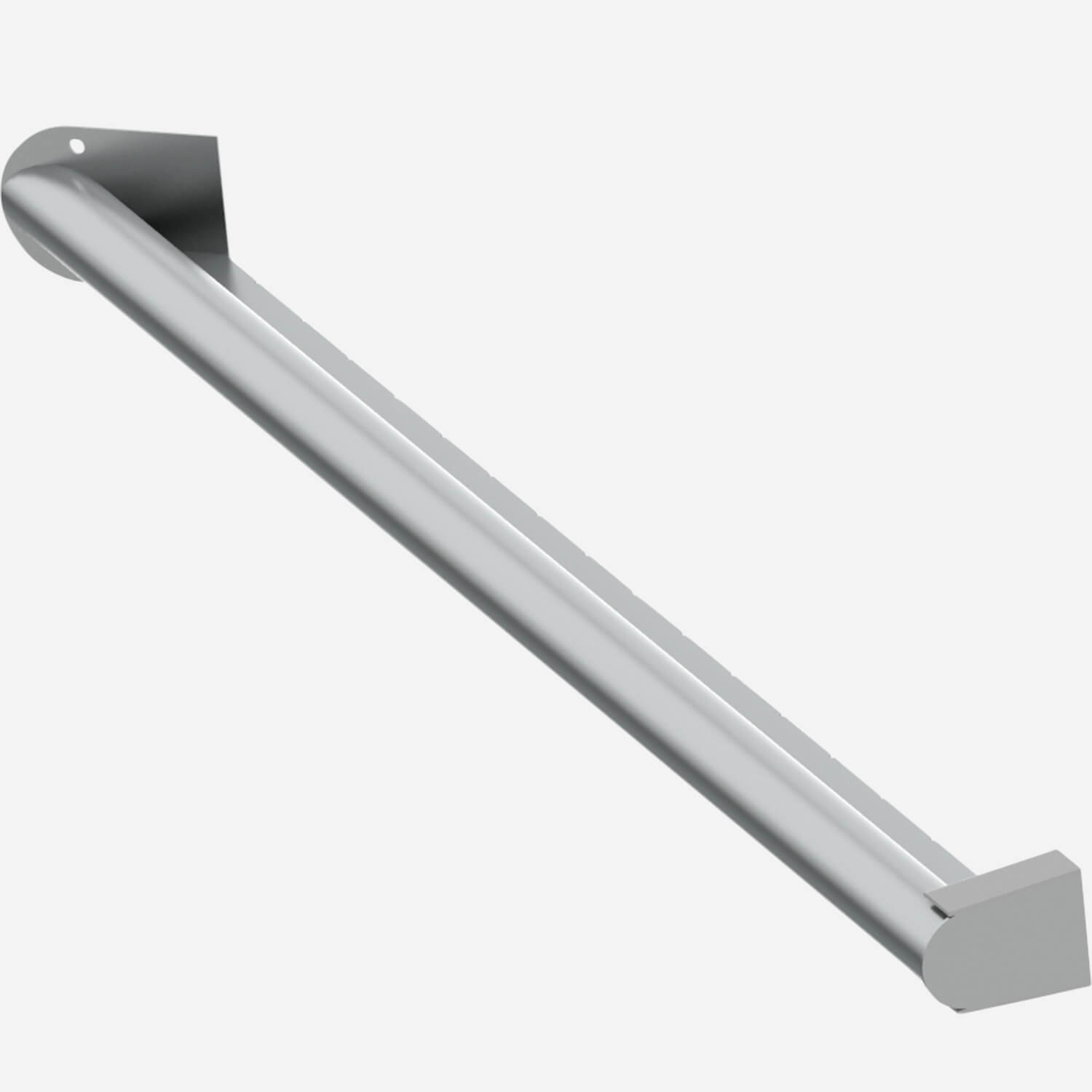

 | GBC | Option: Grab Bar Closure Plate | ||

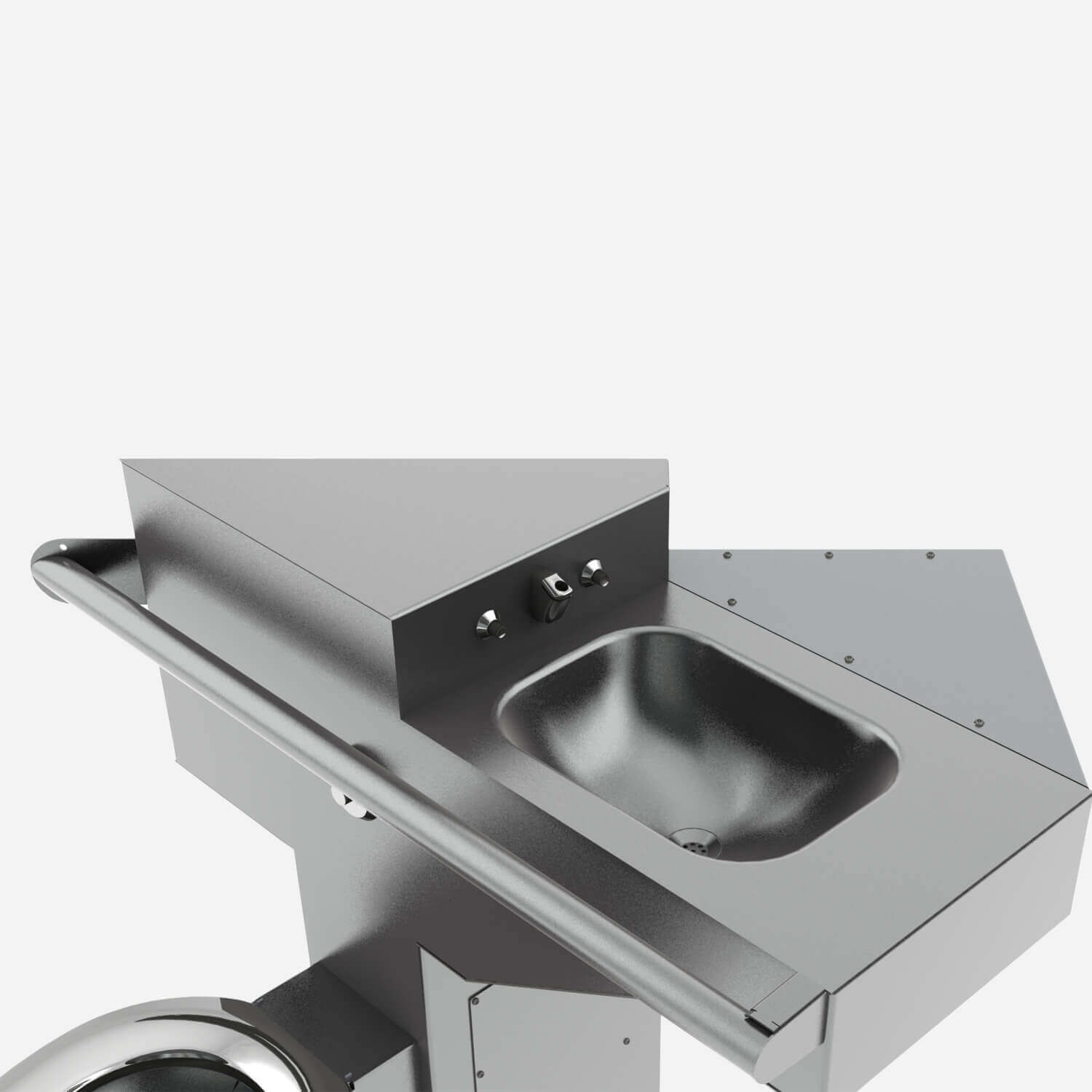

 | GBC2 | Option: Grab Bar & Lavy Closure Plate For 1432 | ||
 | HET | Option: High Efficiency Toilet Flush - 1.28 gallons (4.85 liters) per Flush | ||
 | HPS | Option: High Polish Seat #7 Finish | ||
 | HS | Option: Hinged Seat | ||
 | LF | Option: Lavatory Filler | ||
 | LGB (Comby) | Option: Less Grab Bar on Comby | ||
 | LPFV | Option: Less Punching For Flush Valve (For Remote Activation) | ||
 | LWE | Option: Lavy Waste Extended To Be Specified | ||
 | MTP1 | Option: Master-Trol® Plus Single Temperature Valve | ||
 | MTP2 | Option: Master-Trol® Plus Hot & Cold Valve | ||
 | MTPFV | Option: Master-Trol® Plus Flush Valve | ||
 | MTPP1 | Option: Master-Trol® Plus Single Temperature Piezo Button Valve | ||
 | MTPP2 | Option: Master-Trol® Plus Hot & Cold Piezo Button Valve | ||
 | MTPPFV | Option: Master-Trol® Plus Piezo Push Button Flush Valve | ||
 | MVC1 | Single Temperature Valve Application Time-Trol® | ||
 | MVC1-BAT | Single Temperature Application Battery Powered Time-Trol® Plus | ||
 | MVC2 | Option: Hot & Cold Valve Application Time-Trol® | ||
 | MVC2-BAT | Option: Hot & Cold Valve Application Battery Powered Time-Trol® Plus | ||
 | MVCFV | Push Button Solenoid Flush Valve Application Time-Trol® | ||
 | OF (Security Fixture) | Option: Security Lavatory Overflow | ||
 | PBH | Option: Pushbutton, Hemispherical | ||
 | PE | Option: Plain End Waste | ||

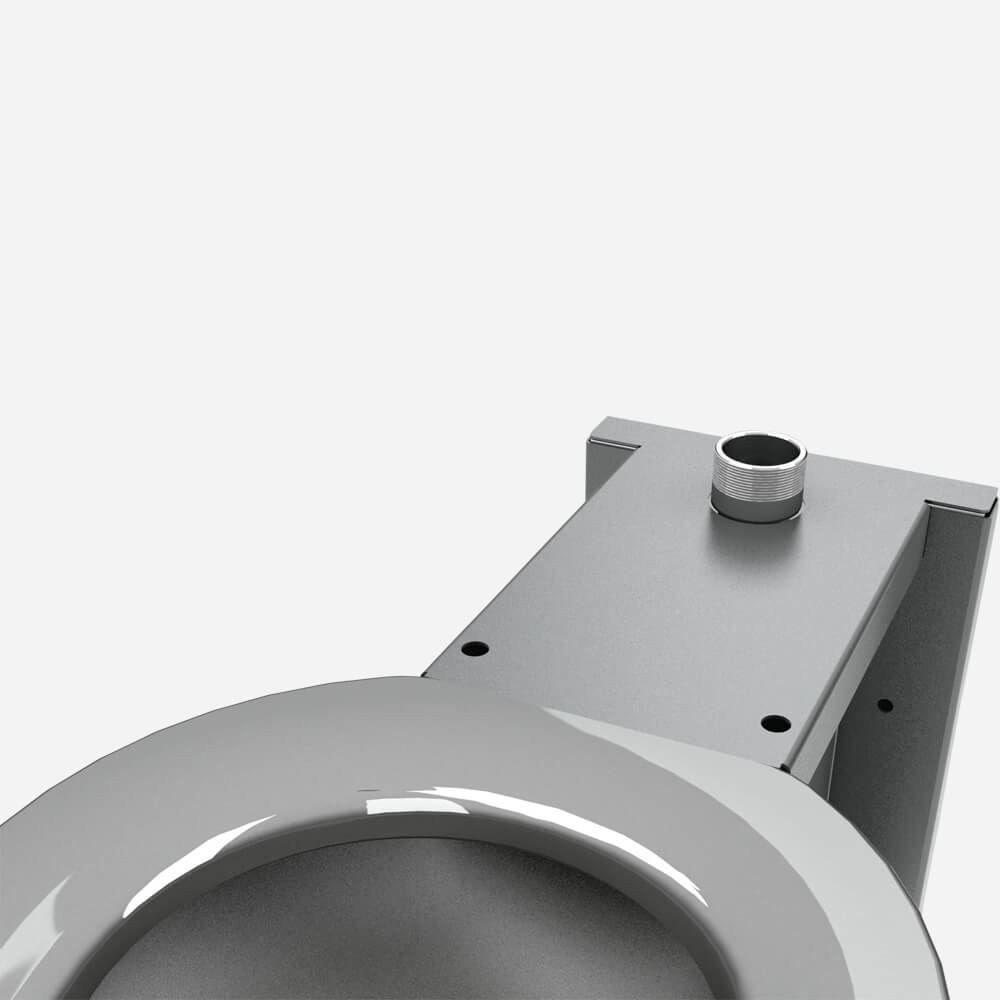

 | PFS | Option: Punch for Seat (By Others) | ||
 | PH | Option: Paper Holder | ||
 | SPS | Option: Ligature Resistant Skirt for Toilet | ||
 | TB | Option: Toothbrush Holder | ||
 | TF | Option: Transformer for AC Power Valve | ||
 | ULF (Toilet) | Option: Ultra Low Toilet Flush - 1.6 gallon (6 liter) per Flush |
Details
Product Function:
The comby is designed to meet water conservation. ADA 2010 compliancy and the rigorous demands of security facilities.
WaterSense® recent advancements have allowed toilets to use 1.28 gallons (4.85 liters) per flush or less while still providing equal or superior performance. The WaterSense label is used on toilets that are independently certified to meet rigorous criteria for both performance and efficiency. Only water-saving toilets that complete the certification process can earn the WaterSense label. Must use optional HET valves to meet WaterSense label requirements.
