Secur-Care® Ligature-Resistant, ADA Compliant Rear Mount Comby with Offset Toilet and D-Shaped Lavatory Bowl

Find A Representative
Model LR1449 Series
CSA B45
WaterSense meets EPA Criteria - certified by IAPMO R&T
UPC GREEN - Water Efficiency
Federal Public Law 111-380
ADA Compliant
Installation Instructions
Install Guide LR1449 Series Comby (pdf)
View
Submittal
Submittal LR1449 Series Comby (pdf)
View
Model LR1449 Series

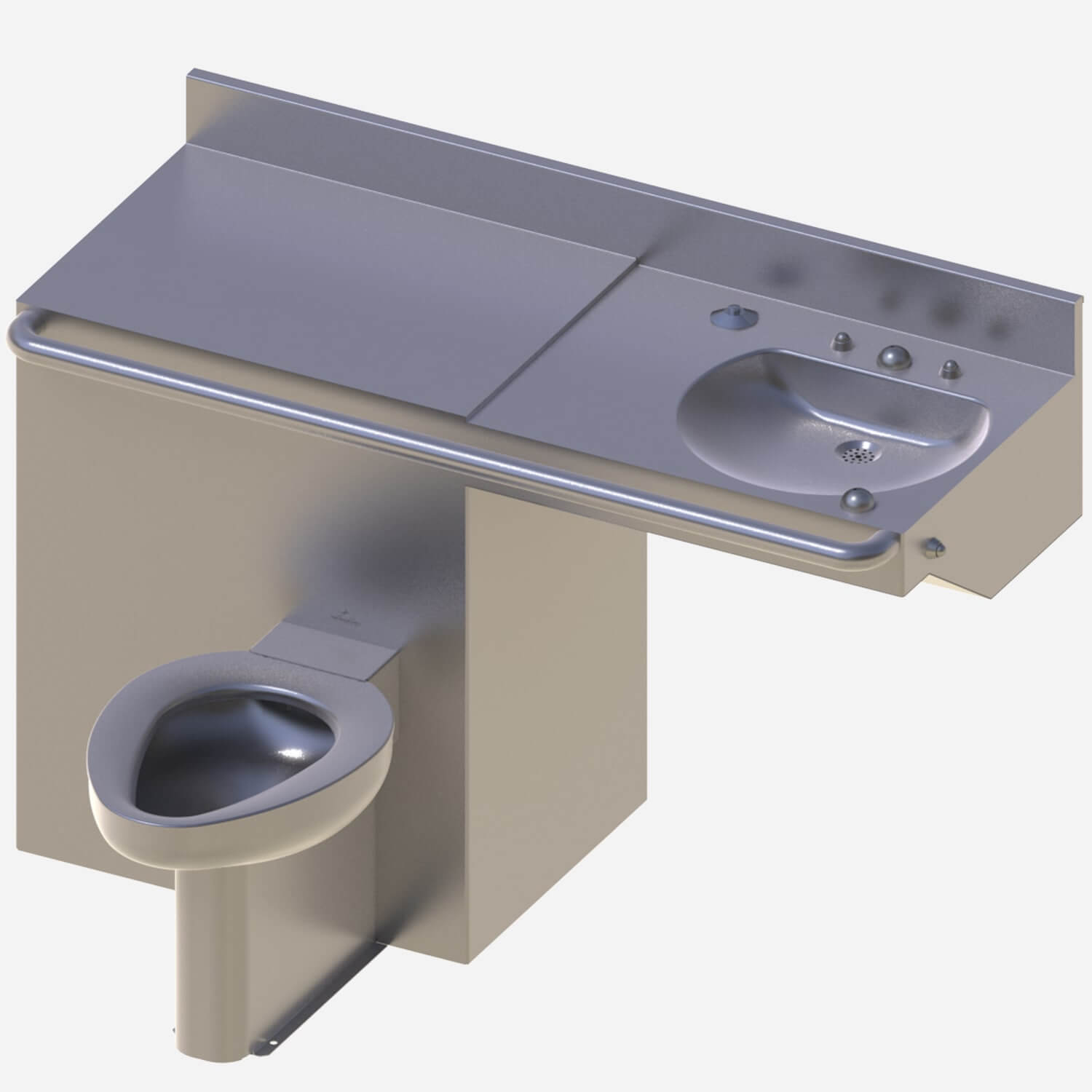

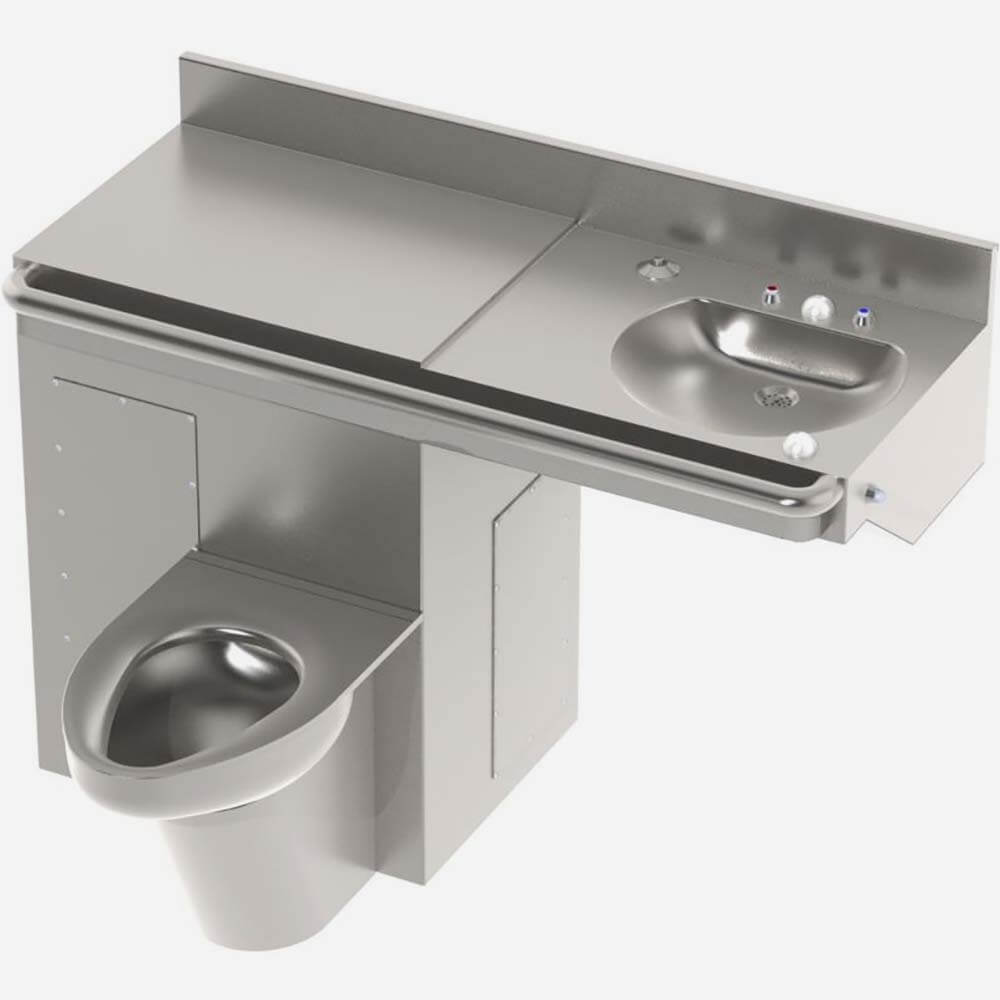

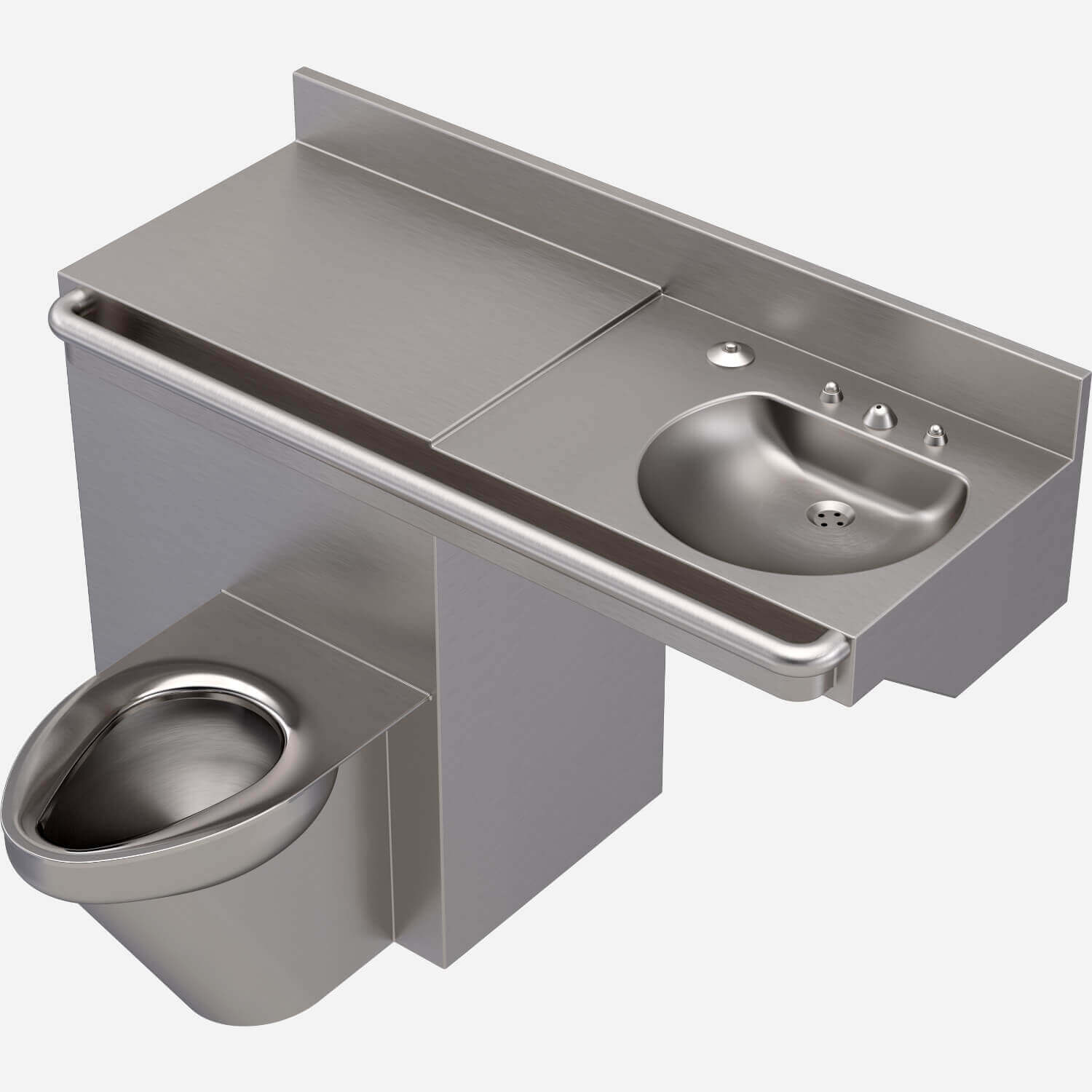

Secur-Care® Ligature-Resistant, ADA Compliant Rear Mount Comby with Offset Toilet and D-Shaped Lavatory Bowl

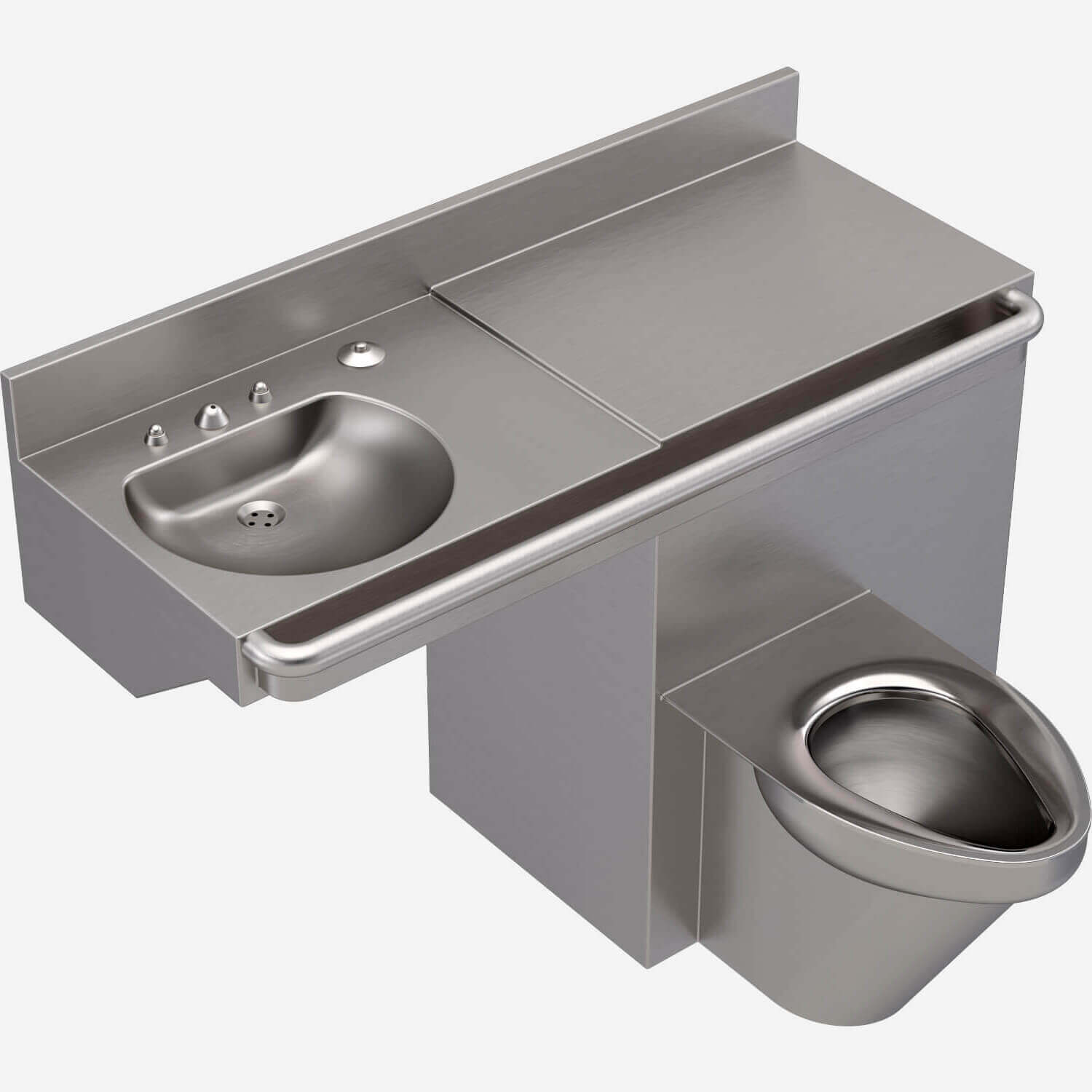

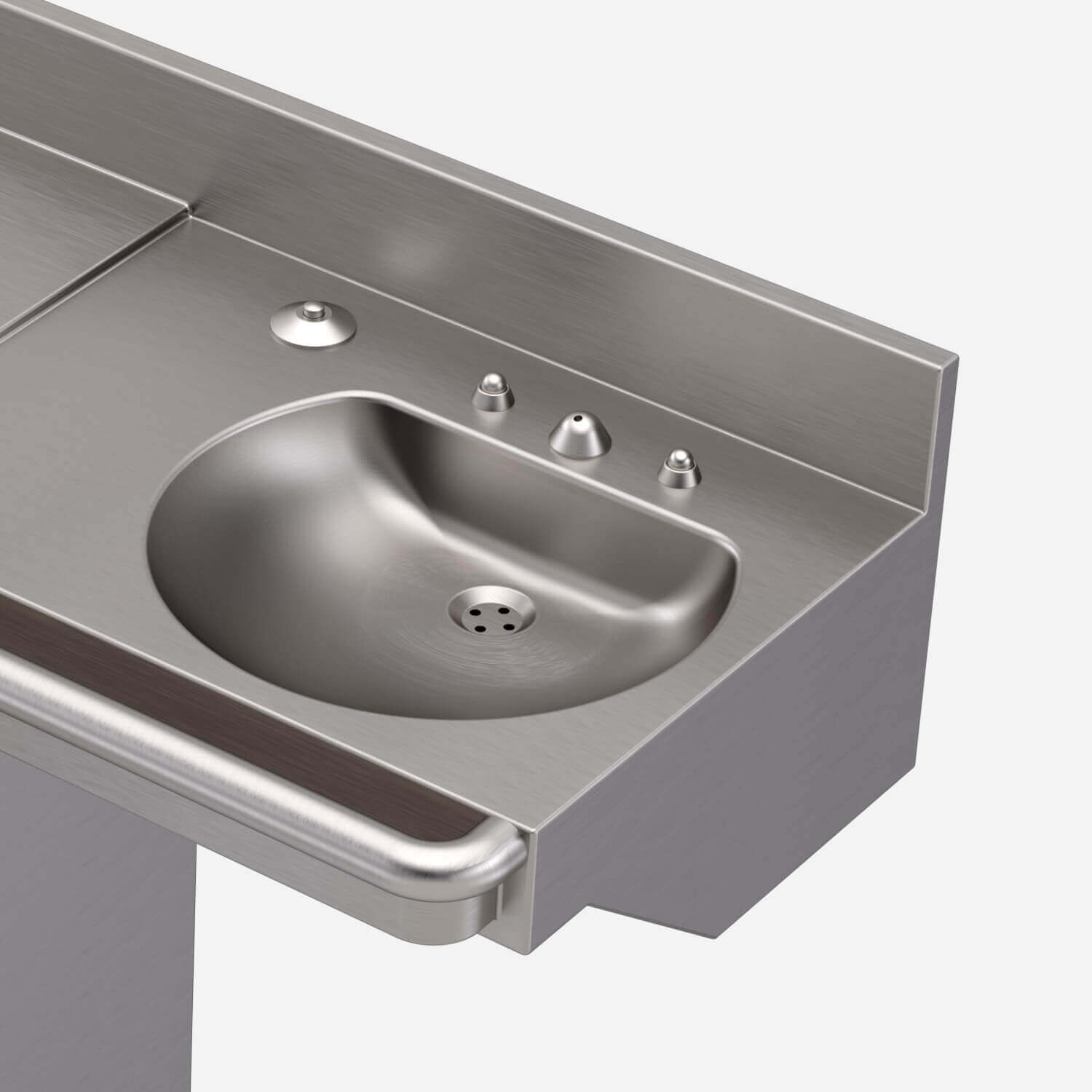

Perfect for retrofits and new construction, this stainless steel comby is space-saving, vandal and ligature resistant. The comby features a 49.25 inches (1,251 mm) deck with a D-shaped bowl. The toilet can be specified left offset or right offset. The bowl is on the opposite site configured for ADA compliance. The comby rests on the floor but is rear-mounted for chase application. It can be specified with a wall waste outlet or floor waste outlet. This is a Secur-Care® Ligature-Resistant version of the 1449 comby.

The toilet is designed to meet the needs for ligature resistance, ADA, water conservation, and the rigorous demands of security facilities in a chase (rear mount) application.

DISCLAIMERS: This product is designed to decrease the probability that it may be utilized as an apparatus for ligature. It is not a replacement for professionals who are trained in the proper evaluation, management, and supervision of persons at risk of suicide.

WaterSense® recent advancements have allowed toilets to use 1.28 gallons (4.85 liters) per flush or less while still providing equal or superior performance. The WaterSense label is used on toilets that are independently certified to meet rigorous criteria for both performance and efficiency. Only water-saving toilets that complete the certification process can earn the WaterSense label. Must use optional HET valves to meet WaterSense label requirements.

Please check with local ADA requirements. ADA compliance is subject to proper installation (including devices such as grab bars) and the interpretations of the local code authority. Not CBC Calif. Title 24 compliant.

IMPORTANT: For CBC California Title 24 Compliance refer to LR1452 comby.

Downloads

Resource Type
Title
Description
Answers
File Size
Action
PDF icon
Installation Instructions
PDF icon
Install Guide LR1449 Series Comby (pdf)
Ligature Resistant ADA Compliant Stainless Steel Lav-Toilet Comby - Offset Toilet0434 KB
PDF icon
Submittals
PDF icon
Submittal LR1449 Series Comby (pdf)
Ligature Resistant ADA Compliant Lav-Toilet Comby - Offset Toilet0342 KB
RFA icon
BIM/CAD/Revit
RFA icon
LR1449 Series Comby (dwg/zip)
Secur-Care® Ligature-Resistant, ADA Compliant Rear Mount Comby with Offset Toilet and D-Shaped Lavatory Bowl [Wall Waste LR1449-LO-2, -RO-2; Floor Waste LR1449-LO-3, -RO-3]01 MB
RFA icon
BIM/CAD/Revit
RFA icon
LR1449 Series Comby (rfa/zip)
Secur-Care® Ligature-Resistant, ADA Compliant Rear Mount Comby with Offset Toilet and D-Shaped Lavatory Bowl [Wall Waste LR1449-LO-2, -RO-2; Floor Waste LR1449-LO-3, -RO-3]04 MB
PDF icon
Literature/Brochures
PDF icon
Secur-Care® Ligature-Resistant Brochure (pdf)
Secur-Care® Ligature-Resistant Brochure (pdf)03 MB
PDF icon
Literature/Brochures
PDF icon
Secur-Care® Ligature-Resistant Flyer (pdf)
Secur-Care® Ligature-Resistant Flyer (pdf)0458 KB
PDF icon
Literature/Brochures
PDF icon
MGI Brands Flyer (pdf)
Overview of MGI Divisions0718 KB
PDF icon
Literature/Brochures
PDF icon
MGI Corporate Brochure (pdf)
Who we are, Our History, Morris Group International Today07 MB
PDF icon
Technical Data Sheets
PDF icon
Cleaning and Care Guide (pdf)
Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo01 MB

Specifications

BrandSecur-Care®
MaterialStainless Steel
Toilet OrientationLeft Offset (-LO), Right Offset (-RO)
Configurations AvailableOn-Floor with Wall Waste Outlet (-2), On-Floor with Floor Waste Outlet (-3)
MountingRear-Chase Mounted
Institutional ApplicationsCorrectional
Fixture Width49.25"
Product TypeComby
Bowl ShapeD-Shaped
ComplianceADA Compliant, Ligature-Resistant, CSA B45, WaterSense meets EPA Criteria - certified by IAPMO R&T, UPC GREEN - Water Efficiency, Federal Public Law 111-380

Options

Accessories

Model
Description
Downloads
Accessory: Wall Sleeve
SW
Accessory: Wall Sleeve

Miscellaneous

Model
Description
Downloads
Option: Single Temperature Metering Air-Control™  Pneumatic Valve
03-M
Option: Single Temperature Metering Air-Control™ Pneumatic Valve
Option: Hot & Cold Metering Air-Control®  Pneumatic Valve
04-M
Option: Hot & Cold Metering Air-Control® Pneumatic Valve
Option : Lead-Free Brass Body Valve
BRS
Option : Lead-Free Brass Body Valve
Option: Cleanout with O-Ring, Connecting to 4" No-Hub
CO1
Option: Cleanout with O-Ring, Connecting to 4" No-Hub

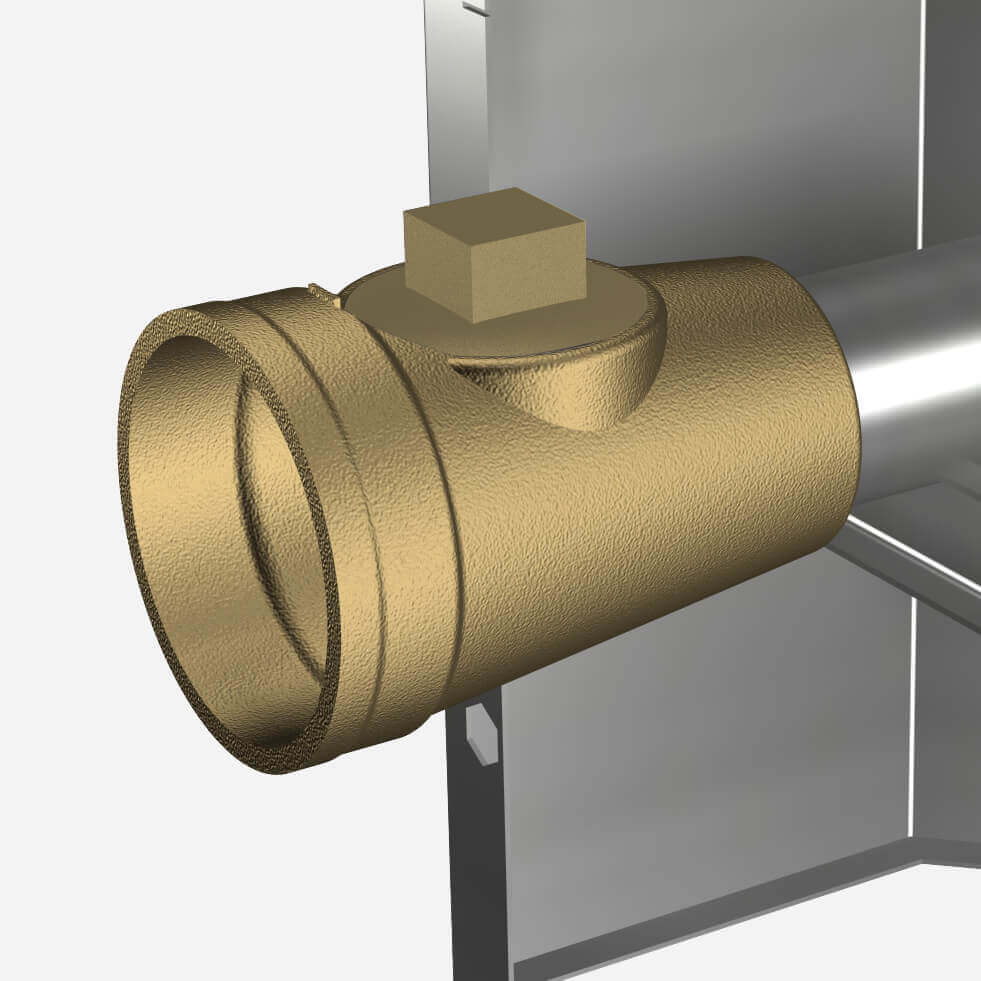

Option: Cleanout with O-Ring, Connecting to 3" No-Hub
CO1-3
Option: Cleanout with O-Ring, Connecting to 3" No-Hub

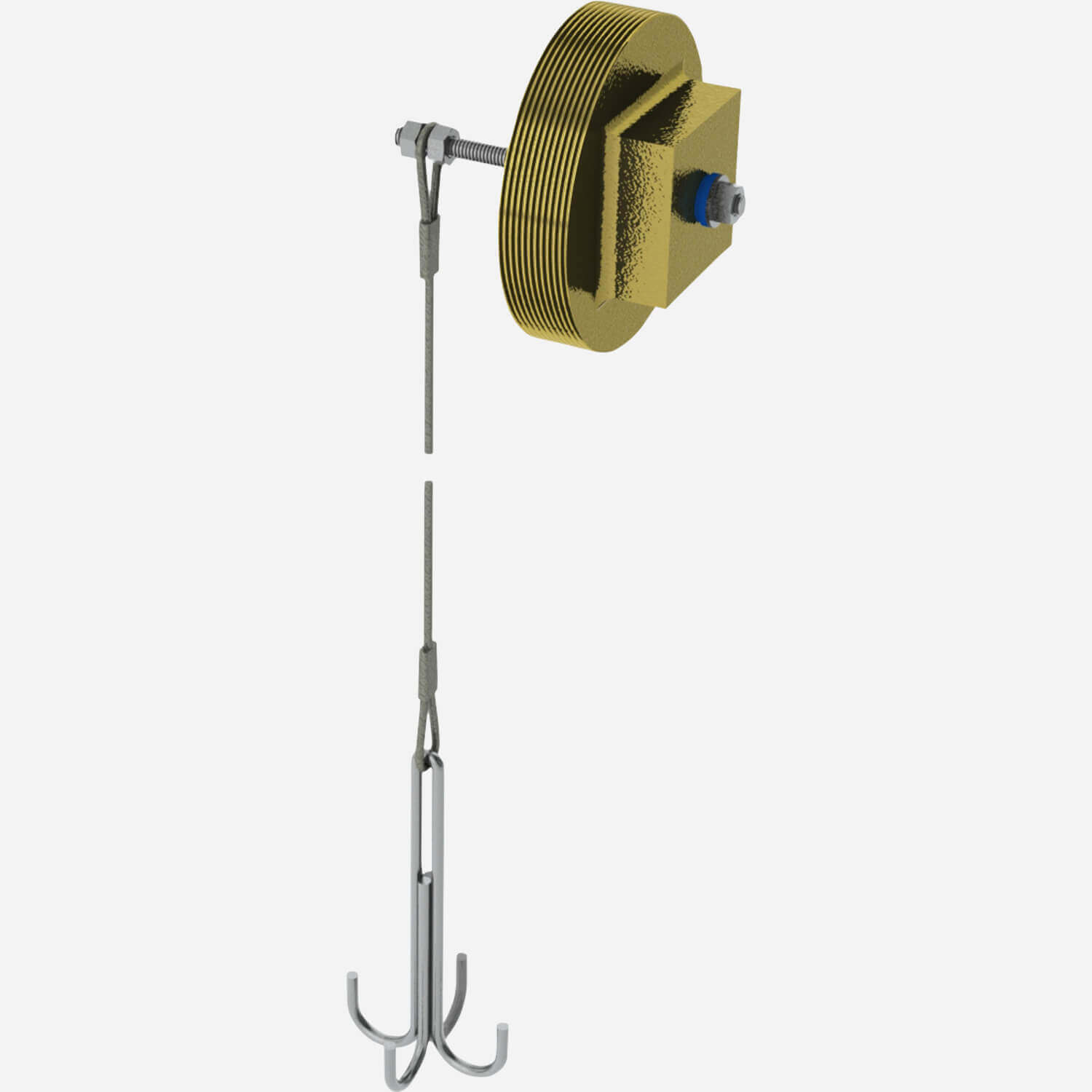

Option: Cleanout Treble Hook Assembly
COH
Option: Cleanout Treble Hook Assembly

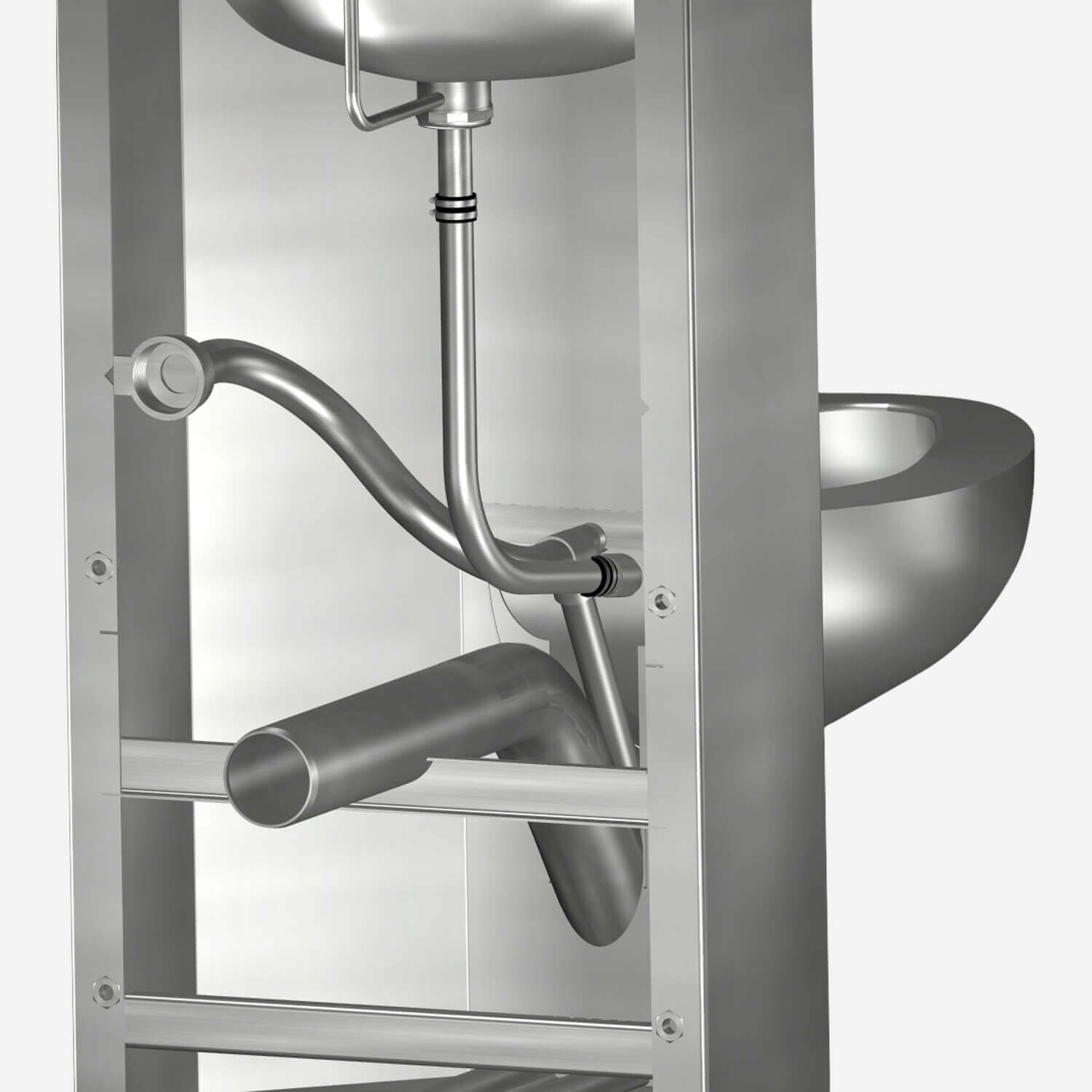

Option: Combined Waste (Comby)
CW (Comby)
Option: Combined Waste (Comby)
Option: Flush Valve Application Master-Trol®
EVSFV
Option: Flush Valve Application Master-Trol®
Option: Piezo Button Flush Valve Application Master-Trol®
EVSPFV
Option: Piezo Button Flush Valve Application Master-Trol®

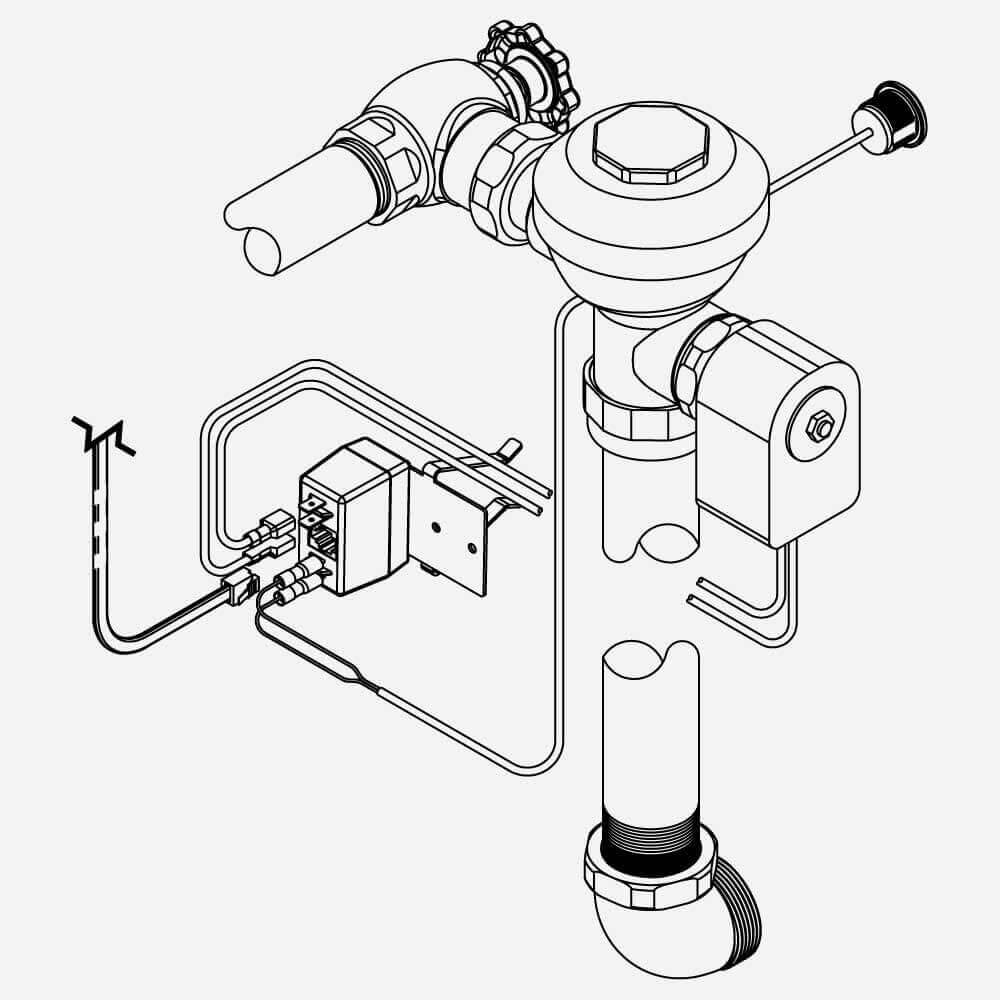

Option: Piezo Button Flush Valve with Flood-Trol® Anti-Flood System Application Master-Trol®
EVSPFV-FTE
Option: Piezo Button Flush Valve with Flood-Trol® Anti-Flood System Application Master-Trol®
Option: Fixture Mounted Trim
FMT
Option: Fixture Mounted Trim
Option: Flood-Trol® Anti-Flood System for Manual Flush Valve
FT
Option: Flood-Trol® Anti-Flood System for Manual Flush Valve

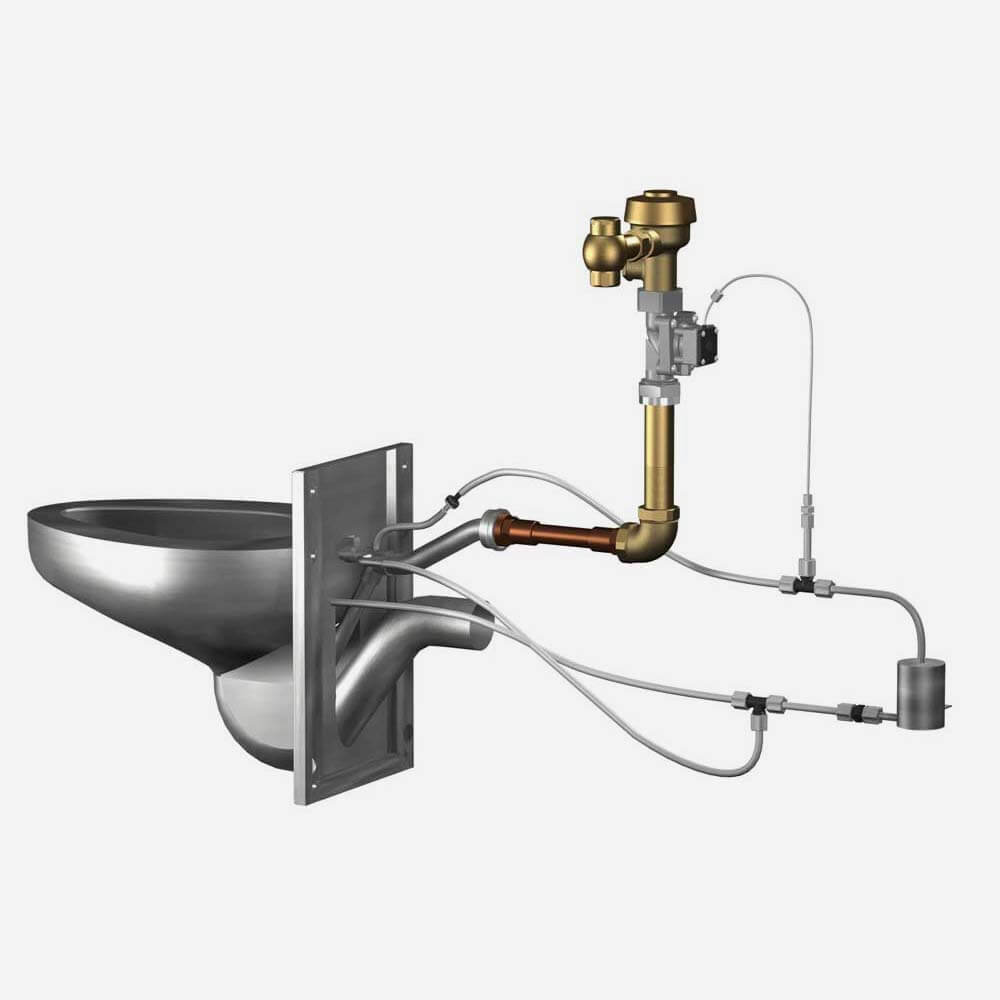

Option: Flood-Trol® Anti-Flood System for Manual Flush Valve, Auto Reset
FTA
Option: Flood-Trol® Anti-Flood System for Manual Flush Valve, Auto Reset

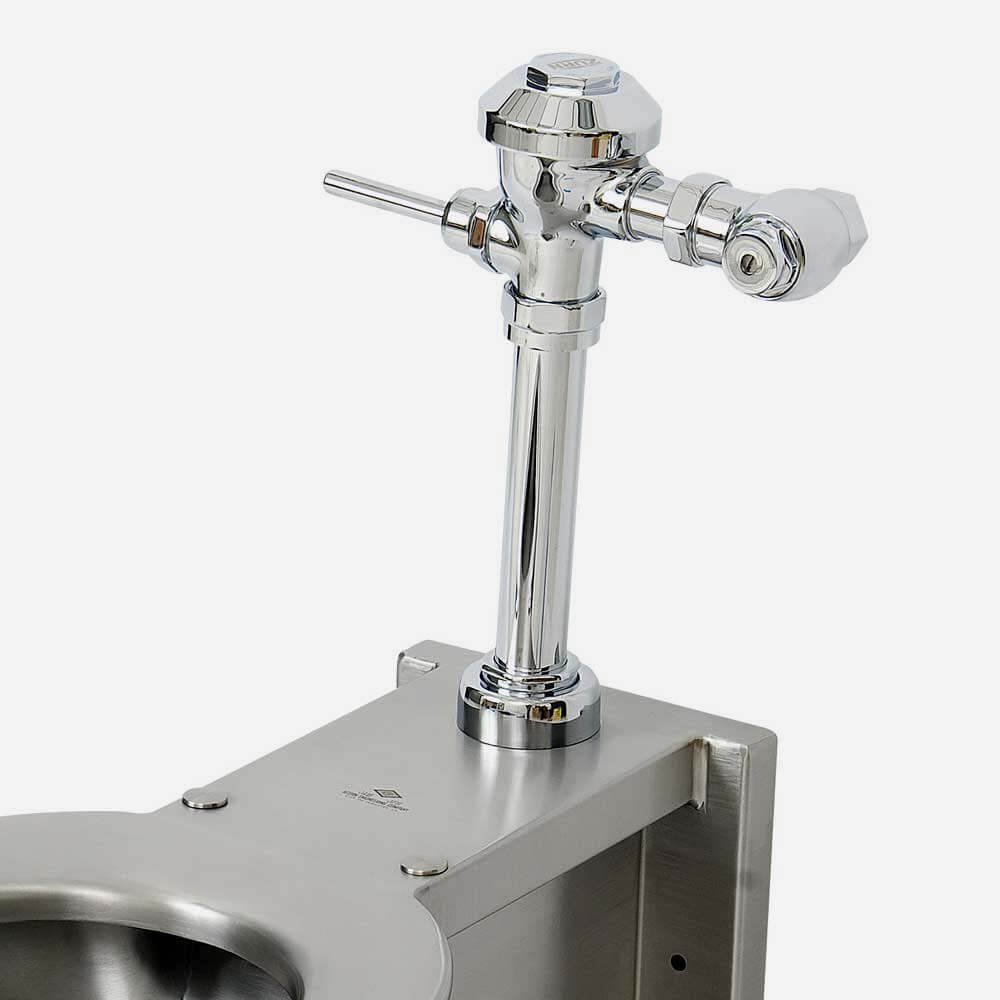

Option: Flush Valve for Toilet
FV (Toilet)
Option: Flush Valve for Toilet
Option: Flush Valve by Others
FVBO
Option: Flush Valve by Others
Option: Hydraulic Flush Valve
FVH
Option: Hydraulic Flush Valve
Option: Flush Valve Thru Wall Connection
FVT
Option: Flush Valve Thru Wall Connection
Option: Gasketed Waste
GW
Option: Gasketed Waste
Option: High Efficiency Toilet Flush - 1.28 gallons (4.85 liters) per Flush
HET
Option: High Efficiency Toilet Flush - 1.28 gallons (4.85 liters) per Flush

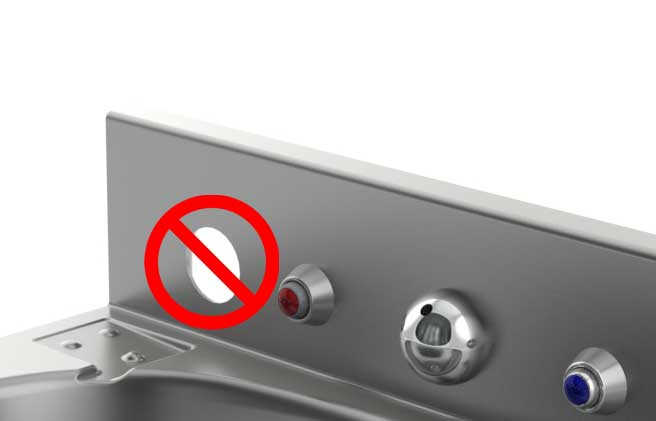

Option: Less Punching For Flush Valve (For Remote Activation)
LPFV
Option: Less Punching For Flush Valve (For Remote Activation)
Option: Manifolded Valves, 2 Set
MA2
Option: Manifolded Valves, 2 Set
Option: Metal Template
MT
Option: Metal Template
Option: Master-Trol® Plus Flush Valve
MTPFV
Option: Master-Trol® Plus Flush Valve

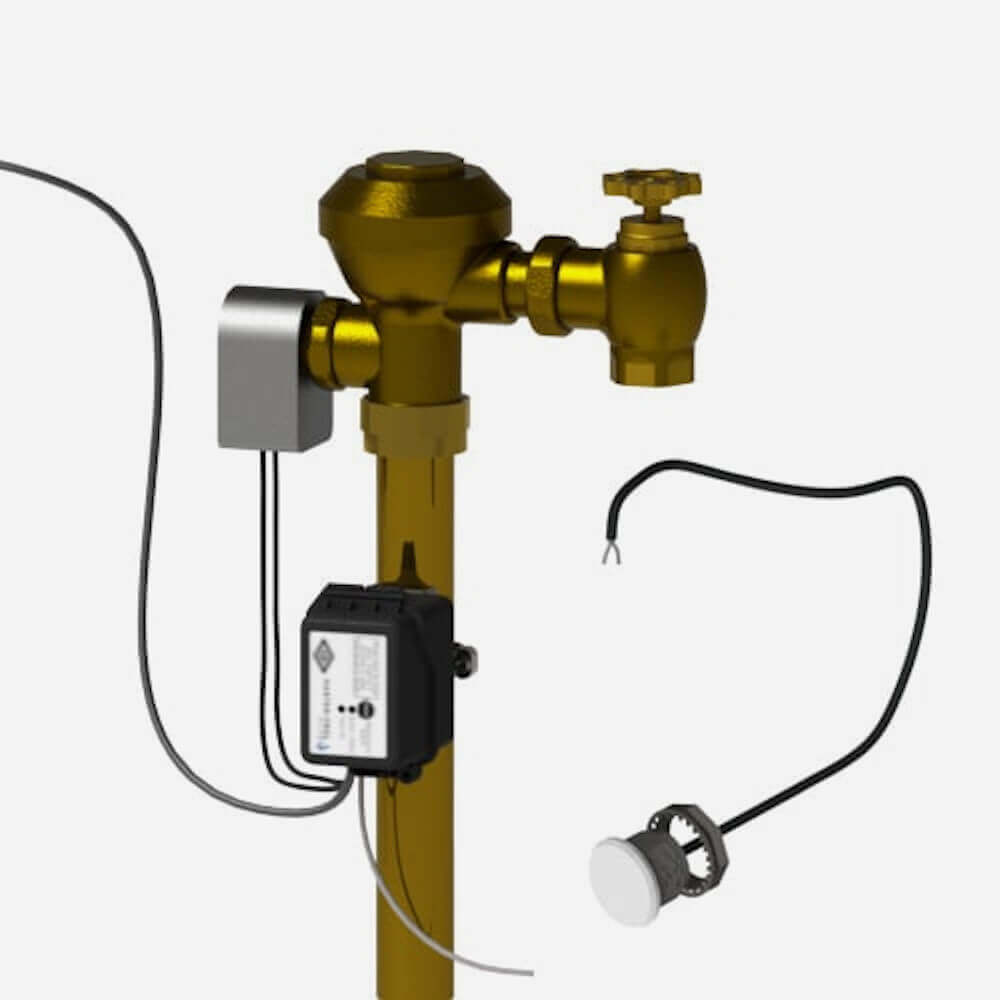

Option: Master-Trol® Plus Piezo Push Button Flush Valve
MTPPFV
Option: Master-Trol® Plus Piezo Push Button Flush Valve
Single Temperature Valve Application Time-Trol®
MVC1
Single Temperature Valve Application Time-Trol®
Single Temperature Application Battery Powered Time-Trol® Plus
MVC1-BAT
Single Temperature Application Battery Powered Time-Trol® Plus
Option: Single Temperature, Cycle Interrupt Valve Application Time-Trol®
MVC1-CI
Option: Single Temperature, Cycle Interrupt Valve Application Time-Trol®
Option: Hot & Cold Valve Application Time-Trol®
MVC2
Option: Hot & Cold Valve Application Time-Trol®
Option: Hot & Cold Valve Application Battery Powered Time-Trol® Plus
MVC2-BAT
Option: Hot & Cold Valve Application Battery Powered Time-Trol® Plus
Option: Hot & Cold, Cycle Interrupt Valve Application Time-Trol®
MVC2-CI
Option: Hot & Cold, Cycle Interrupt Valve Application Time-Trol®
Push Button Solenoid Flush Valve Application Time-Trol®
MVCFV
Push Button Solenoid Flush Valve Application Time-Trol®

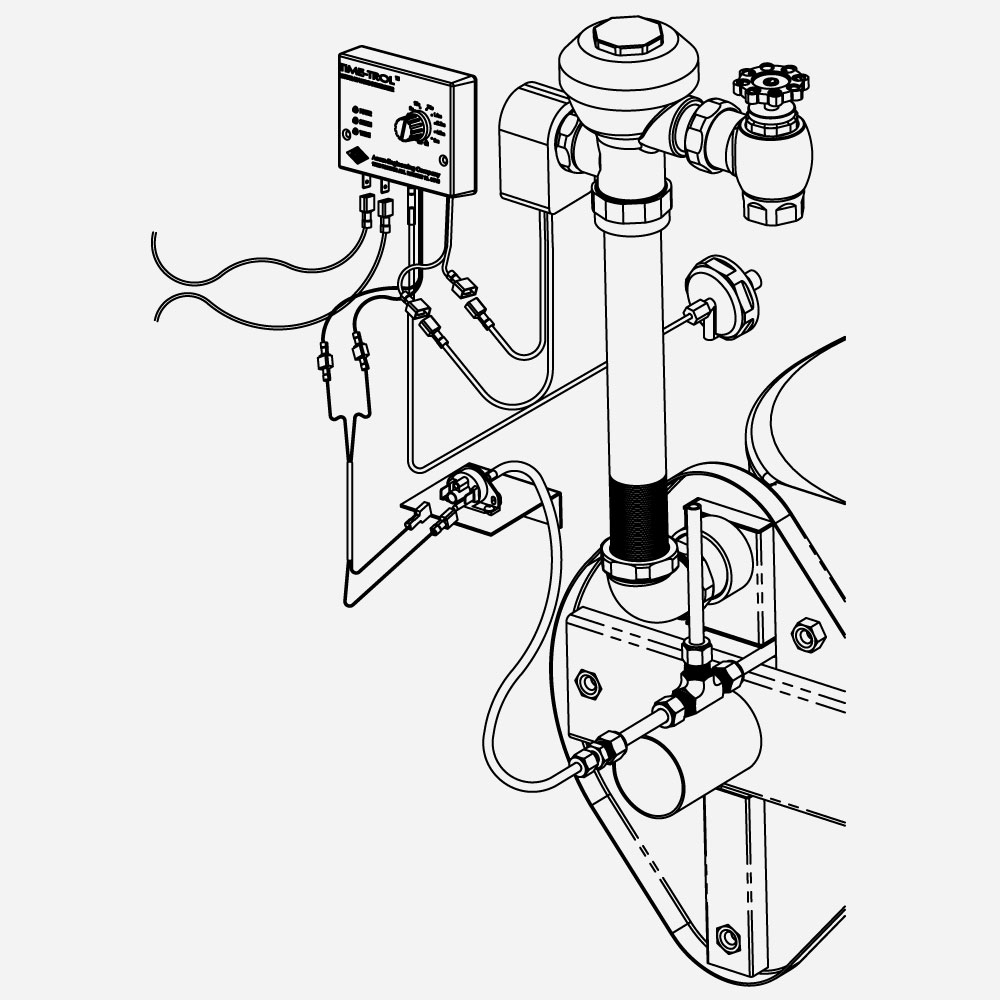

Push Button Solenoid Flush Valve Application Time-Trol® with Flood-Trol Anti-Flood System
MVCFV-FTE
Push Button Solenoid Flush Valve Application Time-Trol® with Flood-Trol Anti-Flood System

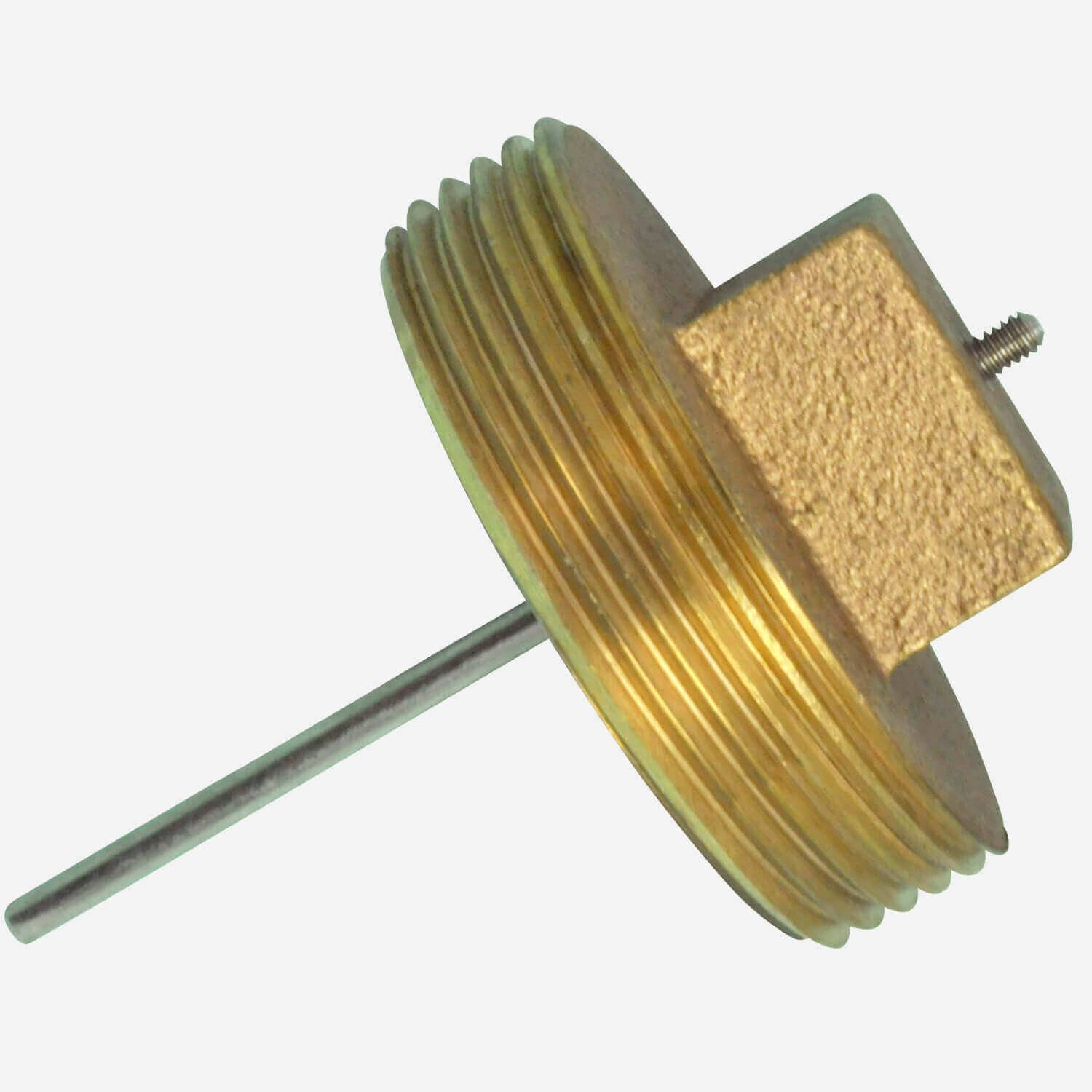

Option: Pinned Cleanout Plug
PC
Option: Pinned Cleanout Plug

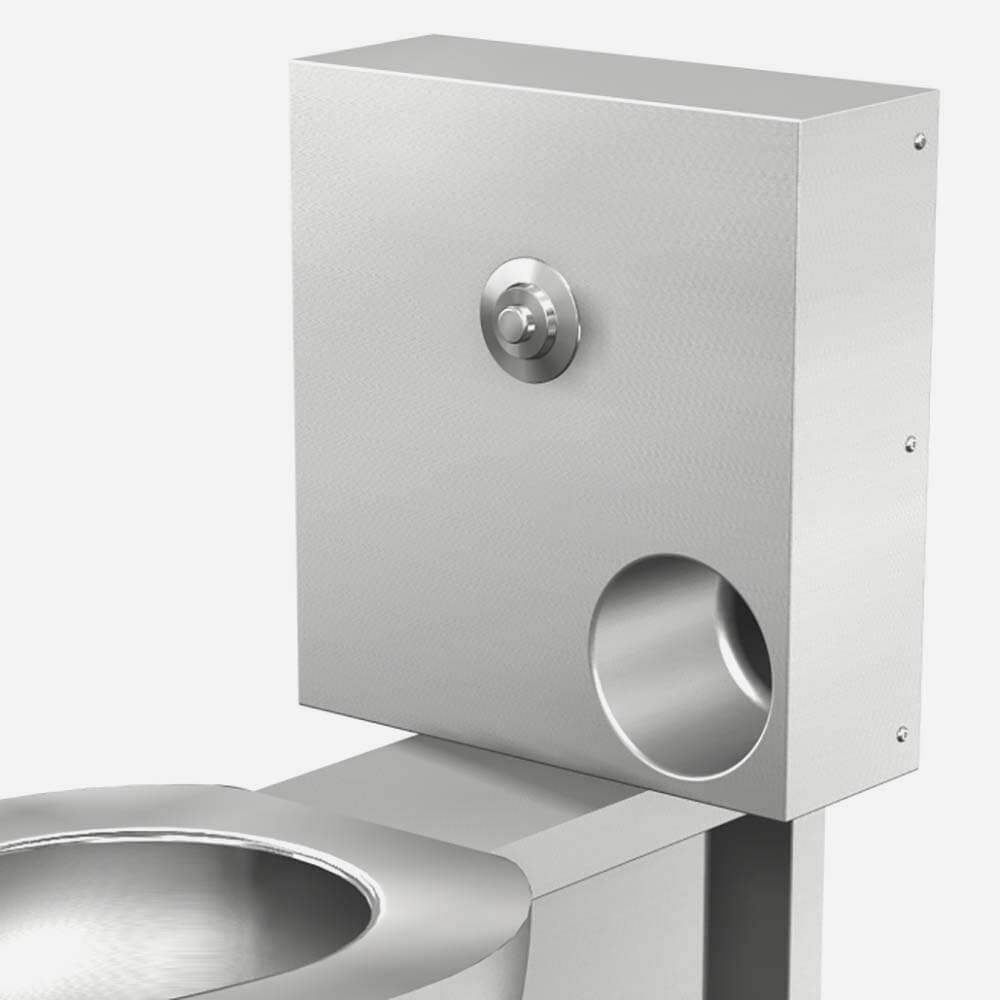

Option: Paper Holder
PH
Option: Paper Holder
Option: Programmable Piezo Button
PPZ
Option: Programmable Piezo Button
Option: Transformer for AC Power Valve
TF
Option: Transformer for AC Power Valve
Option Twelve Gauge Type 304 Stainless Steel
TG
Option Twelve Gauge Type 304 Stainless Steel
Option: Configuration for Vacuum Plumbing
VAC
Option: Configuration for Vacuum Plumbing
Option: 2-3/8 Inch P-Trap with 3 Inch Plain End Waste Outlet
WO3B
Option: 2-3/8 Inch P-Trap with 3 Inch Plain End Waste Outlet

Models

Main configurations available as rear (chase) mount fixtures

LR1449-LO-2 Left Offset Toilet, Right Side Lavy Bowl, Fixture is On-Floor, Wall Waste
LR1449-RO-2 Right Offset Toilet, Left Side Lavy Bowl, Fixture is On-Floor, Wall Waste
LR1449-LO-3 Left Offset Toilet, Right Side Lavy Bowl, Fixture is On-Floor, Floor Waste
LR1449-RO-3 Right Offset Toilet, Left Side Lavy Bowl, Fixture is On-Floor, Floor Waste
