Secur-Care® Ligature-Resistant, Rear Mount 15 Inch Comby with Toilet and Round Lavatory Bowl

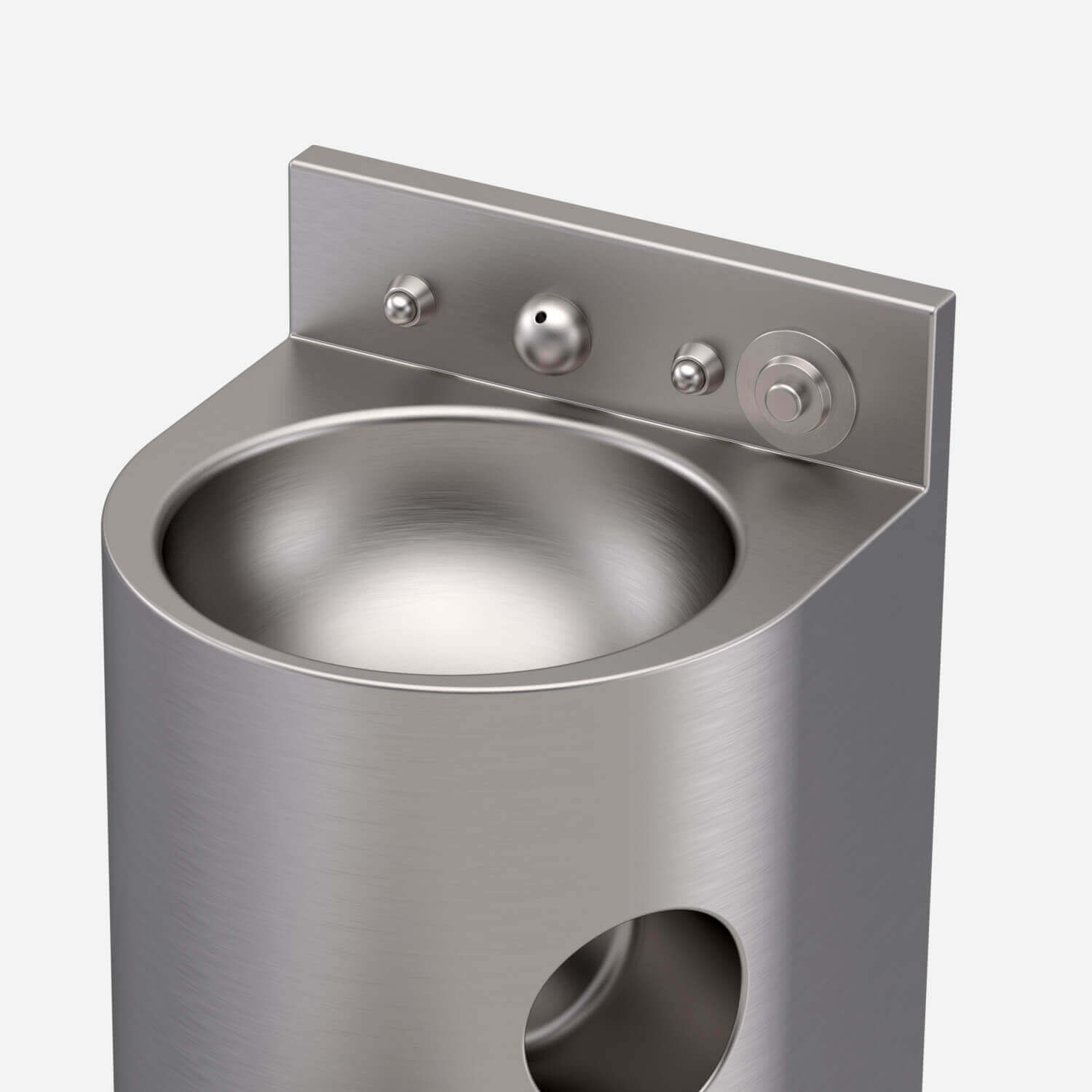

Perfect for retrofits and new construction, this stainless steel comby is space-saving, vandal and ligature resistant. The lavatory cabinet measures 15 inches (381 mm) and features a round bowl. The toilet can be specified angle left, angle right or centered. The comby rests on the floor but is rear-mounted for chase application. It can be specified with a wall waste outlet or floor waste outlet. This is a Secur-Care® Ligature-Resistant version of the 1415 comby.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Ligature Resistant 15" Stainless Steel Lav-Toilet Comby with Round Lavatory Bowl 15" Wide Security Fixtures Acorn Ligature Resistant | 0 | 542 KB | ||
| | Ligature Resistant 15" Wide Lav-Toilet Comby with Round Lavatory Bowl | 0 | 167 KB | ||
 | | Secur-Care® Ligature-Resistant, Rear Mount 15 Inch Comby with Toilet and Round Lavatory Bowl [Wall Waste LR1415-AL-2, -CT-2, -AR-2; LR1415-AL-3, -CT-3, -AR-3] | 0 | 3 MB | ||
| | Secur-Care® Ligature-Resistant, Rear Mount 15 Inch Comby with Toilet and Round Lavatory Bowl [Wall Waste LR1415-AL-2, -CT-2, -AR-2; LR1415-AL-3, -CT-3, -AR-3] | 0 | 2 MB | ||
| | Acorn Engineering - Toilet-Lavy Combination units, water closets, urinals, lavatories, drinking fountains, showers. electronic valve controls, service sinks. | 0 | 266 KB | ||
 | | Acorn Engineering - Toilet-Lavy Combination units, water closets, urinals, lavatories, drinking fountains, showers. electronic valve controls, service sinks. | 0 | 406 KB | ||
| | Secur-Care® Ligature-Resistant Brochure (pdf) | 0 | 3 MB | ||
| | Secur-Care® Ligature-Resistant Flyer (pdf) | 0 | 458 KB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB |
Specifications
| Brand | Secur-Care® |
| Material | Stainless Steel |
| Material Detail | 14-Gauge Stainless Steel, 7-Gauge Hot-Rolled Steel Mounting Angles |
| Toilet Orientation | Angle Left (-AL), Centered (-CT), Angle Right (-AR) |
| Mounting | Rear-Chase Mounted, On-Floor Mount |
| Institutional Applications | Correctional |
| Fixture Width | 15" |
| Product Type | Comby |
| Vandal Resistant | High |
| Configurations Available | On-Floor with Wall Waste Outlet (-2), On-Floor with Floor Waste Outlet (-3) |
| Lead-Free | Yes |
| Bowl Shape | Round |
| Compliance | WaterSense meets EPA Criteria - certified by IAPMO R&T, Ligature-Resistant |
| Overall Dimensions | 27.375" (Side-to-Side) x 32" (Front-to-Back) |
Options
Accessories
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | 03 | Option: Single Temperature Air-Control® Pneumatic Valve | ||
 | 03-M | Option: Single Temperature Metering Air-Control™ Pneumatic Valve | ||
 | 04 | Option: Hot & Cold Air-Control® Pneumatic Valve | ||
 | 04-M | Option: Hot & Cold Metering Air-Control® Pneumatic Valve | ||
 | 04-MH | Option: Hot (Metering) & Cold Air-Control® Pneumatic Valve | ||
 | BRS | Option : Lead-Free Brass Body Valve | ||
 | CO1 | Option: Cleanout with O-Ring, Connecting to 4" No-Hub | ||
 | CO1-3 | Option: Cleanout with O-Ring, Connecting to 3" No-Hub | ||
 | COH | Option: Cleanout Treble Hook Assembly | ||
 | CW (Comby) | Option: Combined Waste (Comby) | ||
 | FMT | Option: Fixture Mounted Trim | ||
 | FT | Option: Flood-Trol® Anti-Flood System for Manual Flush Valve | ||
 | FTA | Option: Flood-Trol® Anti-Flood System for Manual Flush Valve, Auto Reset | ||
 | FV (Toilet) | Option: Flush Valve for Toilet | ||
 | FVBO | Option: Flush Valve by Others | ||
 | FVH | Option: Hydraulic Flush Valve | ||
 | FVO | Option: Flush Valve Opposite Location (Comby) | ||
 | FVT | Option: Flush Valve Thru Wall Connection | ||
 | GW | Option: Gasketed Waste | ||
 | HET | Option: High Efficiency Toilet Flush - 1.28 gallons (4.85 liters) per Flush | ||
 | LPFV | Option: Less Punching For Flush Valve (For Remote Activation) | ||
 | MA2 | Option: Manifolded Valves, 2 Set | ||
 | MA3 | Option: Manifolded Valves, 3 Set | ||
 | MA4 | Option: Manifolded Valves, 4 Set | ||
 | MT | Option: Metal Template | ||
 | MTP1 | Option: Master-Trol® Plus Single Temperature Valve | ||
 | MTP2 | Option: Master-Trol® Plus Hot & Cold Valve | ||
 | MTPFV | Option: Master-Trol® Plus Flush Valve | ||
 | MTPP1 | Option: Master-Trol® Plus Single Temperature Piezo Button Valve | ||
 | MTPP2 | Option: Master-Trol® Plus Hot & Cold Piezo Button Valve | ||
 | MTPPFV | Option: Master-Trol® Plus Piezo Push Button Flush Valve | ||
 | MVC1 | Single Temperature Valve Application Time-Trol® | ||
 | MVC1-BAT | Single Temperature Application Battery Powered Time-Trol® Plus | ||
| MVC1-CI | Option: Single Temperature, Cycle Interrupt Valve Application Time-Trol® | ||
 | MVC2 | Option: Hot & Cold Valve Application Time-Trol® | ||
 | MVC2-BAT | Option: Hot & Cold Valve Application Battery Powered Time-Trol® Plus | ||
| MVC2-CI | Option: Hot & Cold, Cycle Interrupt Valve Application Time-Trol® | ||
 | MVCFV | Push Button Solenoid Flush Valve Application Time-Trol® | ||
 | MVCFV-FTE | Push Button Solenoid Flush Valve Application Time-Trol® with Flood-Trol Anti-Flood System | ||
 | PBP | Option: Push Rod Activated Pushbutton | ||
 | PC | Option: Pinned Cleanout Plug | ||
 | PFB | Option: Power Failure Bypass on Master-Trol® Plus | ||
 | PH | Option: Paper Holder | ||
 | PPZ | Option: Programmable Piezo Button | ||
 | TF | Option: Transformer for AC Power Valve | ||
 | TG | Option Twelve Gauge Type 304 Stainless Steel | ||
 | VAC | Option: Configuration for Vacuum Plumbing | ||
 | WO3B | Option: 2-3/8 Inch P-Trap with 3 Inch Plain End Waste Outlet |
Models
LR1415-AR-2 - Angle Right Toilet, Fixture is On-Floor, Wall Waste
LR1415-CT-2 - Centered Toilet, Fixture is On-Floor, Wall Waste
LR1415-AL-3 - Angle Left Toilet, Fixture is On-Floor, Floor Waste
LR1415-AR-3 - Angle Right Toilet, Fixture is On-Floor, Floor Waste
LR1415-CT-3 - Centered Toilet, Fixture is On-Floor, Floor Waste
Details
The toilet-lavatory comby is designed to meet the needs for ligature resistance, and water conservation, and rigorous demands of security facilities.
This product is designed to decrease the probability that it may be utilized as an apparatus for ligature. It is not a replacement for professionals who are trained in the proper evaluation, management, and supervision of persons at risk of suicide.
WaterSense® recent advancements have allowed toilets to use 1.28 gallons (4.85 liters) per flush or less while still providing equal or superior performance. The WaterSense label is used on toilets that are independently certified to meet rigorous criteria for both performance and efficiency. Only water-saving toilets that complete the certification process can earn the WaterSense label. Must use optional HET valves to meet WaterSense label requirements.
