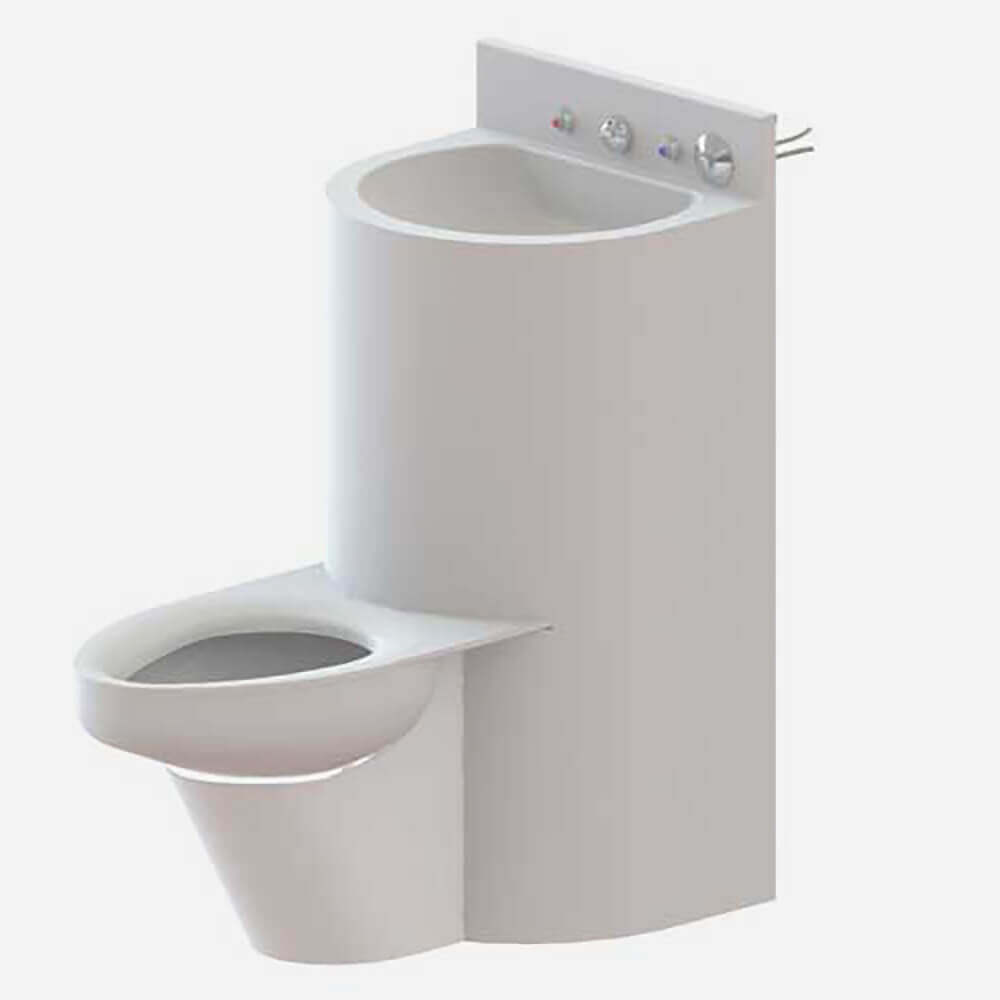

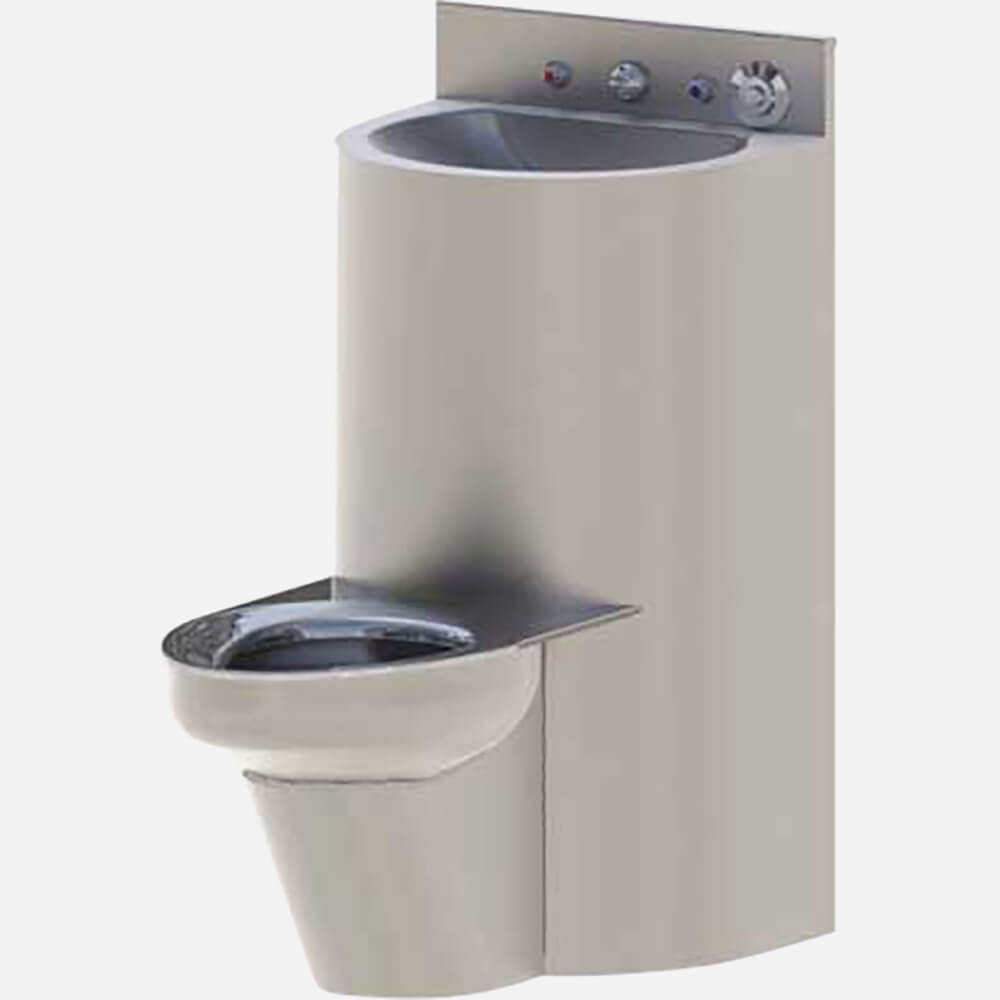

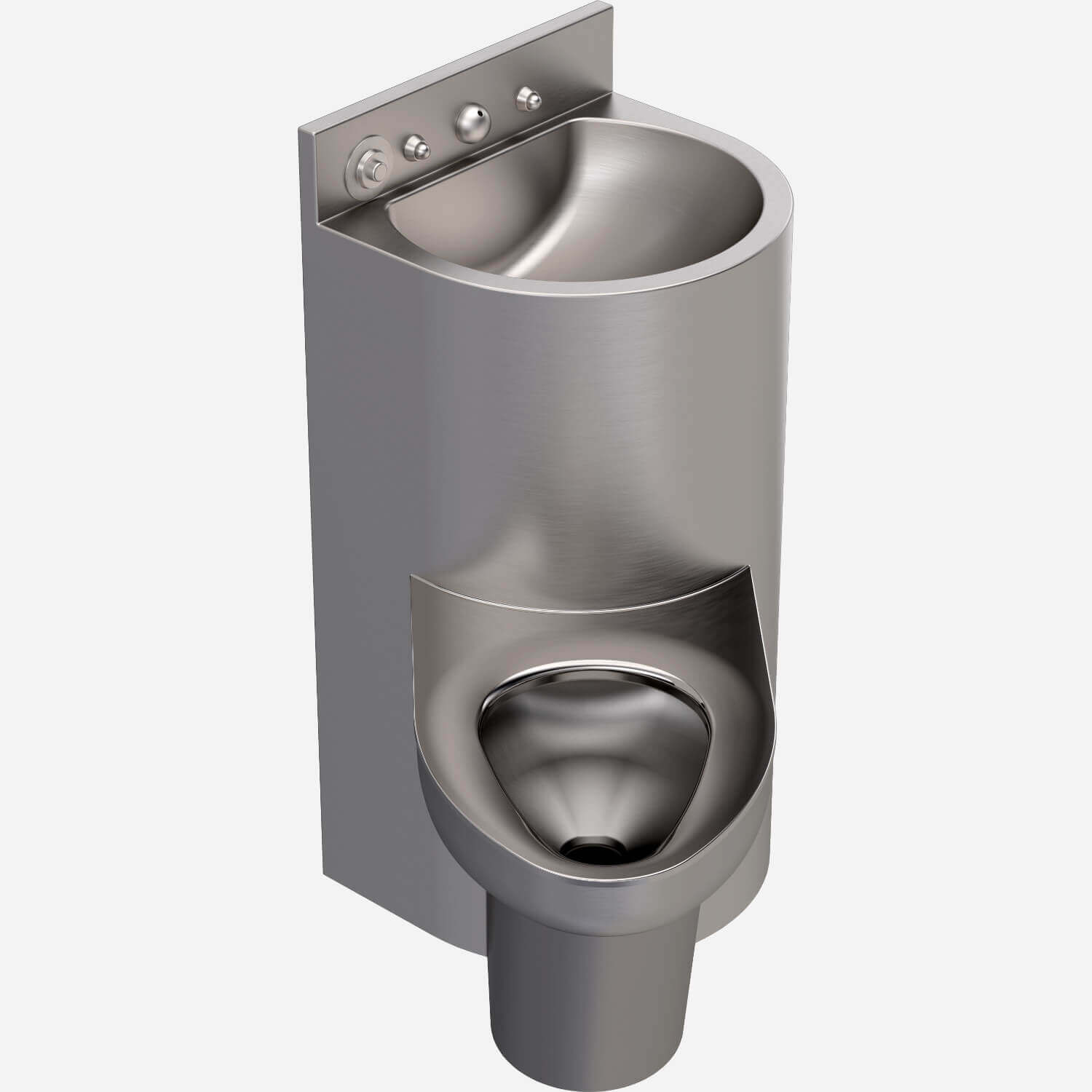

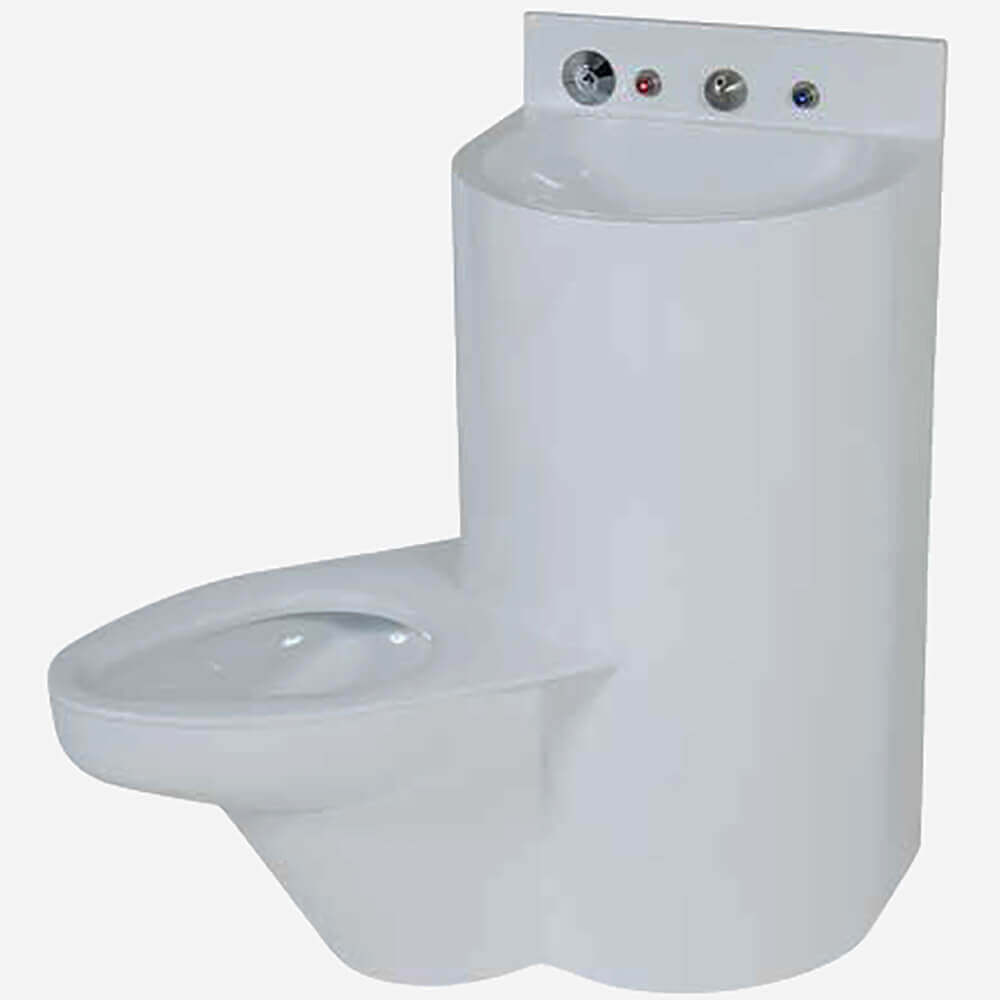

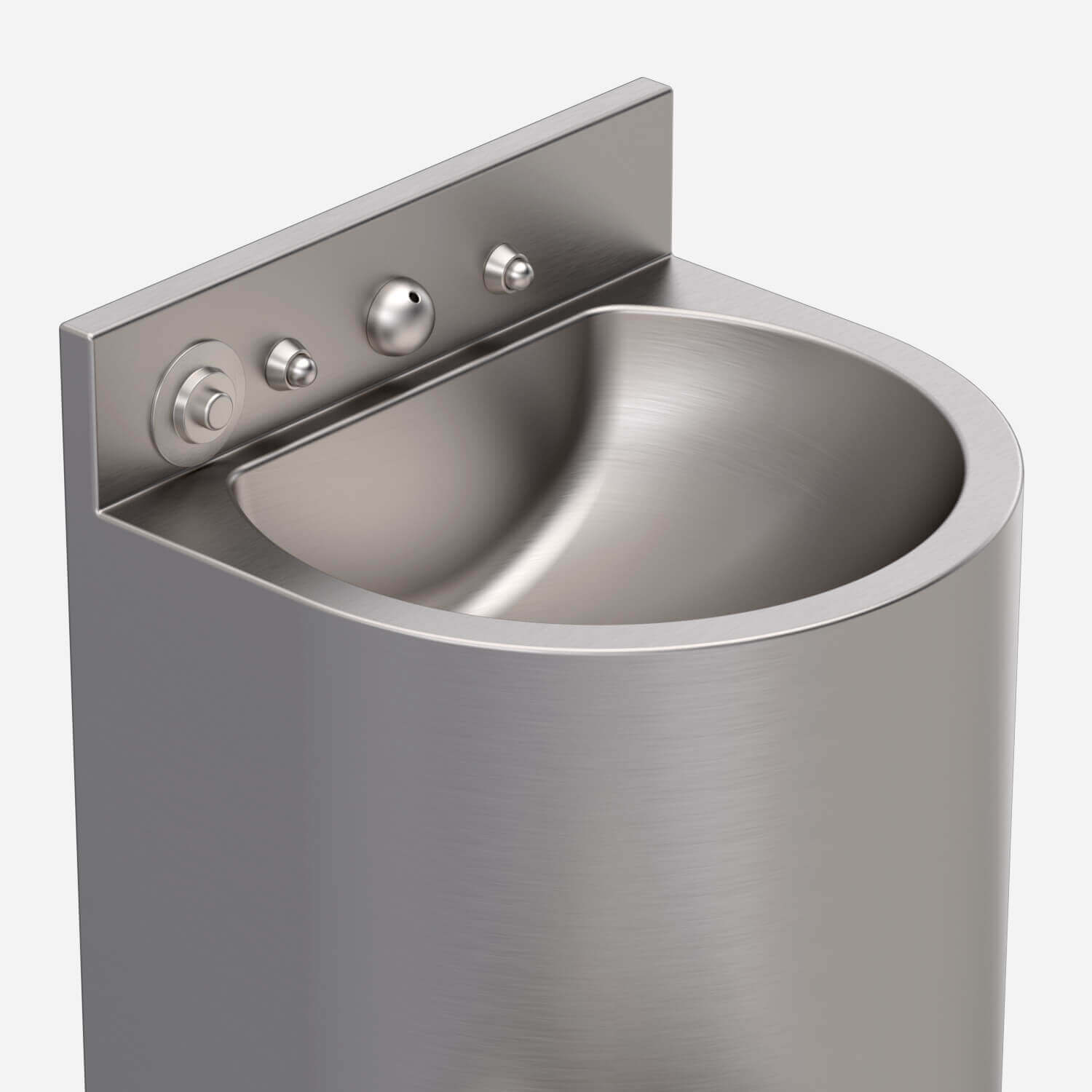

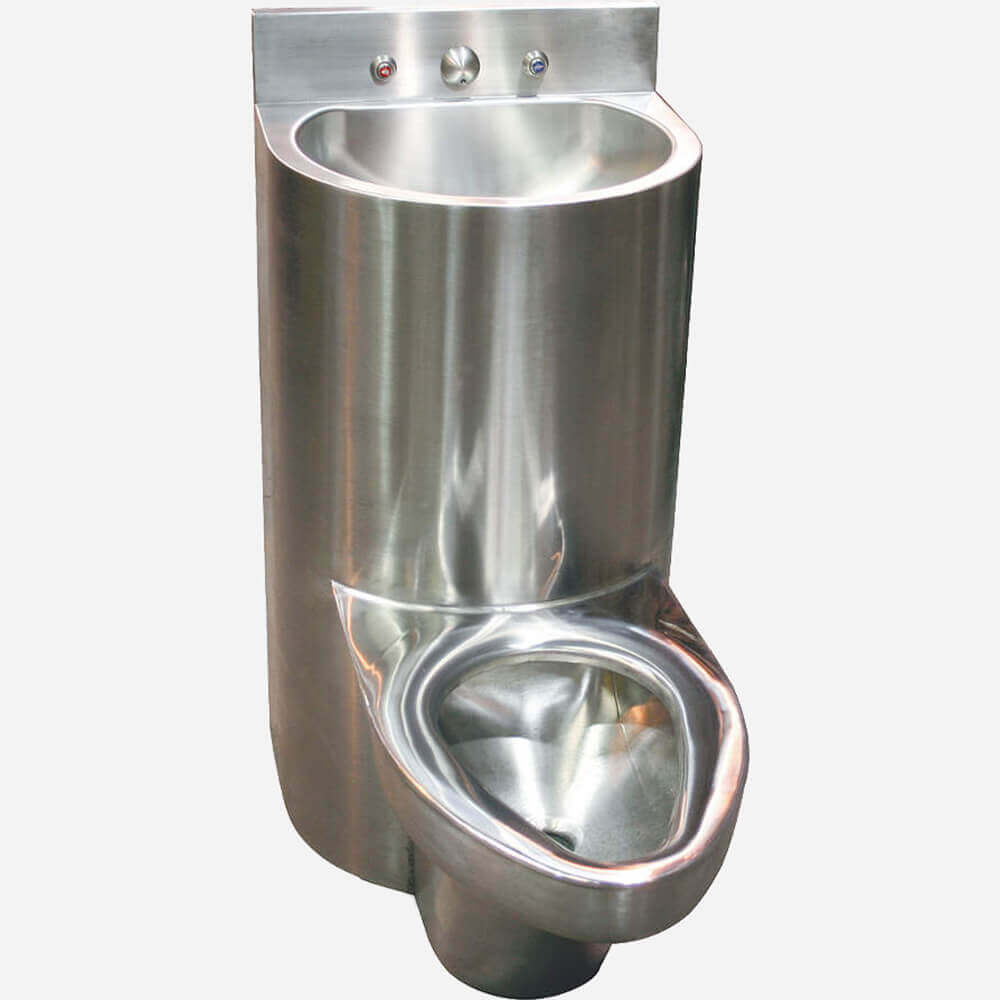

Secur-Care® Ligature-Resistant, Rear Mount 18 Inch Comby with Toilet and D-Shaped Lavatory Bowl
Perfect for retrofits and new construction, this stainless steel comby is space-saving, vandal and ligature resistant. The lavatory cabinet measures 18 inches (457 mm) and features a D-shaped bowl. The toilet can be specified angle left, angle right or centered. The comby rests on the floor but is rear-mounted for chase application. It can be specified with a wall waste outlet or floor waste outlet. This is a Secur-Care® Ligature-Resistant version of the 1440 comby.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Ligature Resistant 18" Stainless Steel Lav-Toilet Comby with D-Shaped Lavatory Bowl | 0 | 533 KB | ||
| | Ligature Resistant 18" Lav-Toilet Comby with D-Shaped Lavatory Bowl | 0 | 180 KB | ||
 | | Secur-Care® Ligature-Resistant, Rear Mount 18 Inch Comby with Toilet and D-Shaped Lavatory Bowl [Wall Waste LR1440-AL-2, -CT-2, -AR-2; Floor Waste LR1440-AL-3, -CT-3, -AR-3] | 0 | 3 MB | ||
| | Secur-Care® Ligature-Resistant, Rear Mount 18 Inch Comby with Toilet and D-Shaped Lavatory Bowl [Wall Waste LR1440-AL-2, -CT-2, -AR-2; Floor Waste LR1440-AL-3, -CT-3, -AR-3] | 0 | 2 MB | ||
| | Acorn Engineering - Toilet-Lavy Combination units, water closets, urinals, lavatories, drinking fountains, showers. electronic valve controls, service sinks. | 0 | 266 KB | ||
 | | Acorn Engineering - Toilet-Lavy Combination units, water closets, urinals, lavatories, drinking fountains, showers. electronic valve controls, service sinks. | 0 | 406 KB | ||
| | Secur-Care® Ligature-Resistant Brochure (pdf) | 0 | 3 MB | ||
| | Secur-Care® Ligature-Resistant Flyer (pdf) | 0 | 458 KB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB |
Specifications
| Brand | Secur-Care® |
| Toilet Orientation | Angle Left (-AL), Centered (-CT), Angle Right (-AR) |
| Configurations Available | On-Floor with Wall Waste Outlet (-2), On-Floor with Floor Waste Outlet (-3) |
| Mounting | Rear-Chase Mounted |
| Material | Stainless Steel |
| Material Detail | 14-Gauge Stainless Steel |
| Institutional Applications | Correctional |
| Fixture Width | 18" |
| Product Type | Comby |
| Lead-Free | Yes |
| Bowl Shape | D-Shaped |
| Compliance | WaterSense meets EPA Criteria - certified by IAPMO R&T, Ligature-Resistant |
Options
Accessories
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | 03 | Option: Single Temperature Air-Control® Pneumatic Valve | ||
 | 03-M | Option: Single Temperature Metering Air-Control™ Pneumatic Valve | ||
 | 04 | Option: Hot & Cold Air-Control® Pneumatic Valve | ||
 | 04-M | Option: Hot & Cold Metering Air-Control® Pneumatic Valve | ||
 | BRS | Option : Lead-Free Brass Body Valve | ||
 | CO1 | Option: Cleanout with O-Ring, Connecting to 4" No-Hub | ||
 | CO1-3 | Option: Cleanout with O-Ring, Connecting to 3" No-Hub | ||
 | COH | Option: Cleanout Treble Hook Assembly | ||
 | CW (Comby) | Option: Combined Waste (Comby) | ||
 | FMT | Option: Fixture Mounted Trim | ||
 | FT | Option: Flood-Trol® Anti-Flood System for Manual Flush Valve | ||
 | FTA | Option: Flood-Trol® Anti-Flood System for Manual Flush Valve, Auto Reset | ||
 | FV (Toilet) | Option: Flush Valve for Toilet | ||
 | FVBO | Option: Flush Valve by Others | ||
 | FVH | Option: Hydraulic Flush Valve | ||
 | FVO | Option: Flush Valve Opposite Location (Comby) | ||
 | FVT | Option: Flush Valve Thru Wall Connection | ||
 | GW | Option: Gasketed Waste | ||
 | HET | Option: High Efficiency Toilet Flush - 1.28 gallons (4.85 liters) per Flush | ||
 | LPFV | Option: Less Punching For Flush Valve (For Remote Activation) | ||
 | MA2 | Option: Manifolded Valves, 2 Set | ||
 | MA3 | Option: Manifolded Valves, 3 Set | ||
 | MA4 | Option: Manifolded Valves, 4 Set | ||
 | MH | Option: Metering, Hot Side Only | ||
 | MT | Option: Metal Template | ||
 | MVC1 | Single Temperature Valve Application Time-Trol® | ||
 | MVC1-BAT | Single Temperature Application Battery Powered Time-Trol® Plus | ||
| MVC1-CI | Option: Single Temperature, Cycle Interrupt Valve Application Time-Trol® | ||
 | MVC2 | Option: Hot & Cold Valve Application Time-Trol® | ||
 | MVC2-BAT | Option: Hot & Cold Valve Application Battery Powered Time-Trol® Plus | ||
| MVC2-CI | Option: Hot & Cold, Cycle Interrupt Valve Application Time-Trol® | ||
 | MVCFV | Push Button Solenoid Flush Valve Application Time-Trol® | ||
 | MVCFV-FTE | Push Button Solenoid Flush Valve Application Time-Trol® with Flood-Trol Anti-Flood System | ||
 | PBP | Option: Push Rod Activated Pushbutton | ||
 | PC | Option: Pinned Cleanout Plug | ||
 | PPZ | Option: Programmable Piezo Button | ||
 | TF | Option: Transformer for AC Power Valve | ||
 | TG | Option Twelve Gauge Type 304 Stainless Steel | ||
 | VAC | Option: Configuration for Vacuum Plumbing | ||
 | WO3B | Option: 2-3/8 Inch P-Trap with 3 Inch Plain End Waste Outlet |
Models
LR1440-AR-2 - Angle Right Toilet, Fixture is On-Floor, Wall Waste
LR1440-CT-2 - Centered Toilet, Fixture is On-Floor, Wall Waste
LR1440-AL-3 - Angle Left Toilet, Fixture is On-Floor, Floor Waste
LR1440-AR-3 - Angle Right Toilet, Fixture is On-Floor, Floor Waste
LR1440-CT-3 - Centered Toilet, Fixture is On-Floor, Floor Waste
Details
Product Function:
The toilet is design to meet the needs for ligature resistance, water conservation and the rigorous demands of security facilities in a chase (rear mount) application.
DISCLAIMERS: This product is designed to decrease the probability that it may be utilized as an apparatus for ligature. It is not a replacement for professionals who are trained in the proper evaluation, management and supervision of persons at risk of suicide.
WaterSense® recent advancements have allowed toilets to use 1.28 gallons (4.85 liters) per flush or less while still providing equal or superior performance. The WaterSense label is used on toilets that are independently certified to meet rigorous criteria for both performance and efficiency. Only water-saving toilets that complete the certification process can earn the WaterSense label. Must use optional HET valves to meet WaterSense label requirements.
