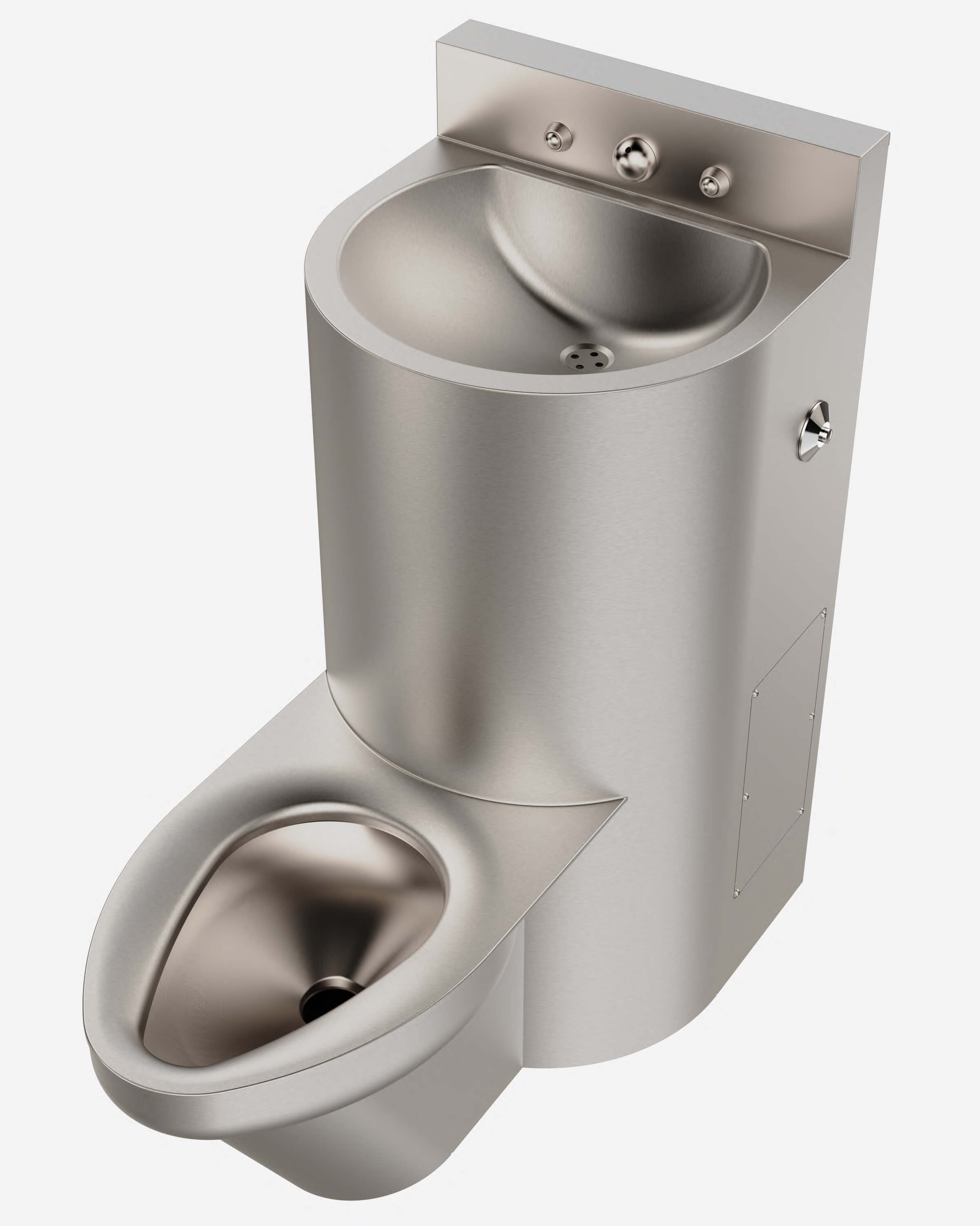

Secur-Care® Ligature-Resistant, Front Access 18 Inch Comby with Lavatory D-Shaped Bowl
Perfect for retrofits and new construction, this stainless steel comby is space-saving, vandal and ligature resistant. The lavatory cabinet measures 18 inches (457 mm) and features a D-shaped bowl. The toilet can be specified angle left, angle right or centered. The fixture is configured with front access for installation and maintenance, where a typical security servicing chase is not available. It can be specified with a wall waste outlet or floor waste outlet. This is a Secur-Care® Ligature-Resistant version of the 1440FA comby.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Secur-Care®,Ligature-Resistant Comby with Lavatory D-Shaped Bowl | 0 | 212 KB | ||
| | Secur-Care®,Ligature-Resistant Comby with Lavatory D-Shaped Bowl | 0 | 130 KB | ||
 | | Secur-Care® Ligature-Resistant, Front Access 18 Inch Comby with Lavatory D-Shaped Bowl, On-Floor [LR1440FA-AL-2, LR1440FA-AL-3, LR1440FA-AR-2, LR1440FA-AR-3, LR1440FA-CT-2, LR1440FA-CT-3] | 0 | 2 MB | ||
| | Secur-Care® Ligature-Resistant, Front Access 18 Inch Comby with Lavatory D-Shaped Bowl, On-Floor [LR1440FA-AL-2, LR1440FA-AL-3, LR1440FA-AR-2, LR1440FA-AR-3, LR1440FA-CT-2, LR1440FA-CT-3] | 0 | 5 MB | ||
| | Acorn Engineering - Toilet-Lavy Combination units, water closets, urinals, lavatories, drinking fountains, showers. electronic valve controls, service sinks. | 0 | 266 KB | ||
 | | Acorn Engineering - Toilet-Lavy Combination units, water closets, urinals, lavatories, drinking fountains, showers. electronic valve controls, service sinks. | 0 | 406 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Secur-Care® Ligature-Resistant Flyer (pdf) | 0 | 458 KB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
| | Secur-Care® Ligature-Resistant Brochure (pdf) | 0 | 3 MB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB |
Specifications
| Brand | Secur-Care® |
| Toilet Orientation | Angle Left (-AL), Angle Right (-AR), Centered (-CT) |
| Configurations Available | On-Floor with Floor Waste Outlet (-3), On-Floor with Wall Waste Outlet (-2) |
| Mounting | Front Access - Security |
| Industrial Applications | Correctional |
| Fixture Width | 18" |
| Product Type | Comby |
| Material | Stainless Steel |
| Material Detail | 14-Gauge Stainless Steel |
| Lead-Free | Yes |
| Bowl Shape | D-Shaped |
| Compliance | WaterSense meets EPA Criteria - certified by IAPMO R&T, Ligature-Resistant |
Options
Accessories
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | 03 | Option: Single Temperature Air-Control® Pneumatic Valve | ||
 | 03-M | Option: Single Temperature Metering Air-Control™ Pneumatic Valve | ||
 | 04 | Option: Hot & Cold Air-Control® Pneumatic Valve | ||
 | 04-M | Option: Hot & Cold Metering Air-Control® Pneumatic Valve | ||
 | 04-MH | Option: Hot (Metering) & Cold Air-Control® Pneumatic Valve | ||
 | 2 (Comby) | Option: On-Floor, Wall Outlet Comby | ||
 | 3 (Comby) | Option: On-Floor, Floor Outlet Comby | ||
 | AL | Option: Angled Left Toilet Configuration for Toilet-Lav Comby | ||
 | AR | Option: Angled Right Toilet Configuration for Toilet-Lav Comby | ||
 | BRS | Option : Lead-Free Brass Body Valve | ||
 | CI | Option: Cycle Interrupt | ||
 | CT | Option: Centered Toilet Configuration for Toilet-Lav Comby | ||
 | CW (Comby) | Option: Combined Waste (Comby) | ||
 | EG | Option: Enviro-Glaze® Powder Coating | ||
 | EVS1 | Option: Single Temperature Application Master-Trol® | ||
 | EVS2 | Option: Hot & Cold Application Master-Trol® | ||
 | EVSFV | Option: Flush Valve Application Master-Trol® | ||
 | EVSP1 | Option: Piezo Button Single Temperature Application Master-Trol® | ||
 | EVSP2 | Option: Piezo Button Hot & Cold Application Master-Trol® | ||
 | EVSPFV | Option: Piezo Button Flush Valve Application Master-Trol® | ||
 | FMT | Option: Fixture Mounted Trim | ||
 | FT | Option: Flood-Trol® Anti-Flood System for Manual Flush Valve | ||
 | FTA | Option: Flood-Trol® Anti-Flood System for Manual Flush Valve, Auto Reset | ||
 | FVBO | Option: Flush Valve by Others | ||
 | FVH | Option: Hydraulic Flush Valve | ||
 | HPS | Option: High Polish Seat #7 Finish | ||
 | LPFV | Option: Less Punching For Flush Valve (For Remote Activation) | ||
 | MT | Option: Metal Template | ||
 | MTP1 | Option: Master-Trol® Plus Single Temperature Valve | ||
 | MTP2 | Option: Master-Trol® Plus Hot & Cold Valve | ||
 | MTPFV | Option: Master-Trol® Plus Flush Valve | ||
 | MTPP1 | Option: Master-Trol® Plus Single Temperature Piezo Button Valve | ||
 | MTPP2 | Option: Master-Trol® Plus Hot & Cold Piezo Button Valve | ||
 | MTPPFV | Option: Master-Trol® Plus Piezo Push Button Flush Valve | ||
 | MVC1 | Single Temperature Valve Application Time-Trol® | ||
 | MVC1-BAT | Single Temperature Application Battery Powered Time-Trol® Plus | ||
 | MVC2 | Option: Hot & Cold Valve Application Time-Trol® | ||
 | MVC2-BAT | Option: Hot & Cold Valve Application Battery Powered Time-Trol® Plus | ||
 | MVCFV | Push Button Solenoid Flush Valve Application Time-Trol® | ||
 | PFB | Option: Power Failure Bypass on Master-Trol® Plus | ||
 | PH | Option: Paper Holder | ||
 | PPZ1 | Option: Single Temperature Programmable Piezo Button | ||
 | PPZ2 | Option: Hot & Cold Programmable Piezo Buttons | ||
 | TF | Option: Transformer for AC Power Valve | ||
 | TH | Option: Towel Hook | ||
 | TSC | Option: Toilet Shipping Cover | ||
 | VAC | Option: Configuration for Vacuum Plumbing |
Models
LR1440FA-AR-2 - Angle Right Toilet, Fixture is On-Floor, Wall Waste
LR1440FA-CT-2 - Centered Toilet, Fixture is On-Floor, Wall Waste
LR1440FA-AL-3 - Angle Left Toilet, Fixture is On-Floor, Floor Waste
LR1440FA-AR-3 - Angle Right Toilet, Fixture is On-Floor, Floor Waste
LR1440FA-CT-3 - Centered Toilet, Fixture is On-Floor, Floor Waste
Details
The comby is designed to meet water conservation and the rigorous demands of security facilities.
DISCLAIMERS: This product is designed to decrease the probability that it may be utilized as an apparatus for ligature. It is not a replacement for professionals who are trained in the proper evaluation, management and supervision of persons at risk of suicide.
WaterSense® recent advancements have allowed toilets to use 1.28 gallons (4.85 liters) per flush or less while still providing equal or superior performance. The WaterSense label is used on toilets that are independently certified to meet rigorous criteria for both performance and efficiency. Only water-saving toilets that complete the certification process can earn the WaterSense label. Must use optional HET valves to meet WaterSense label requirements.
