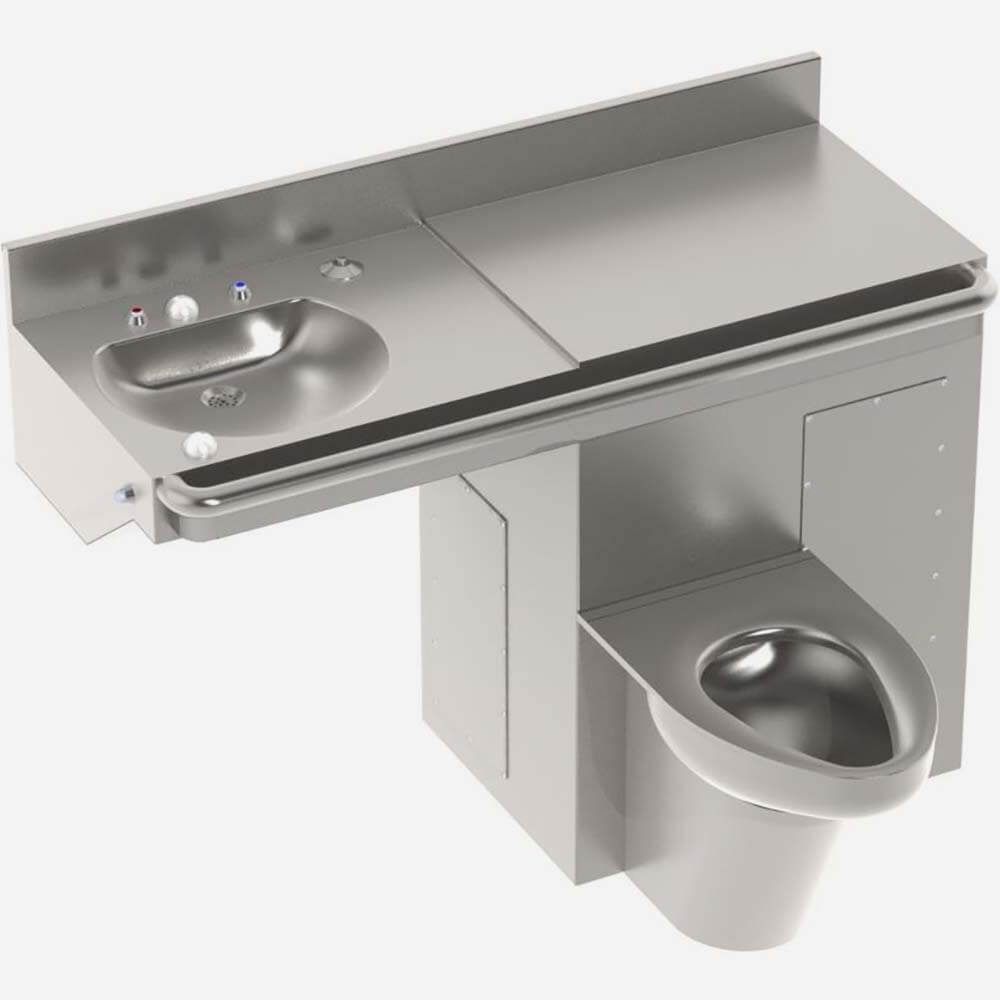

Secur-Care® Ligature-Resistant, ADA Compliant Front Access Comby with Offset Toilet and D-Shaped Lavatory Bowl

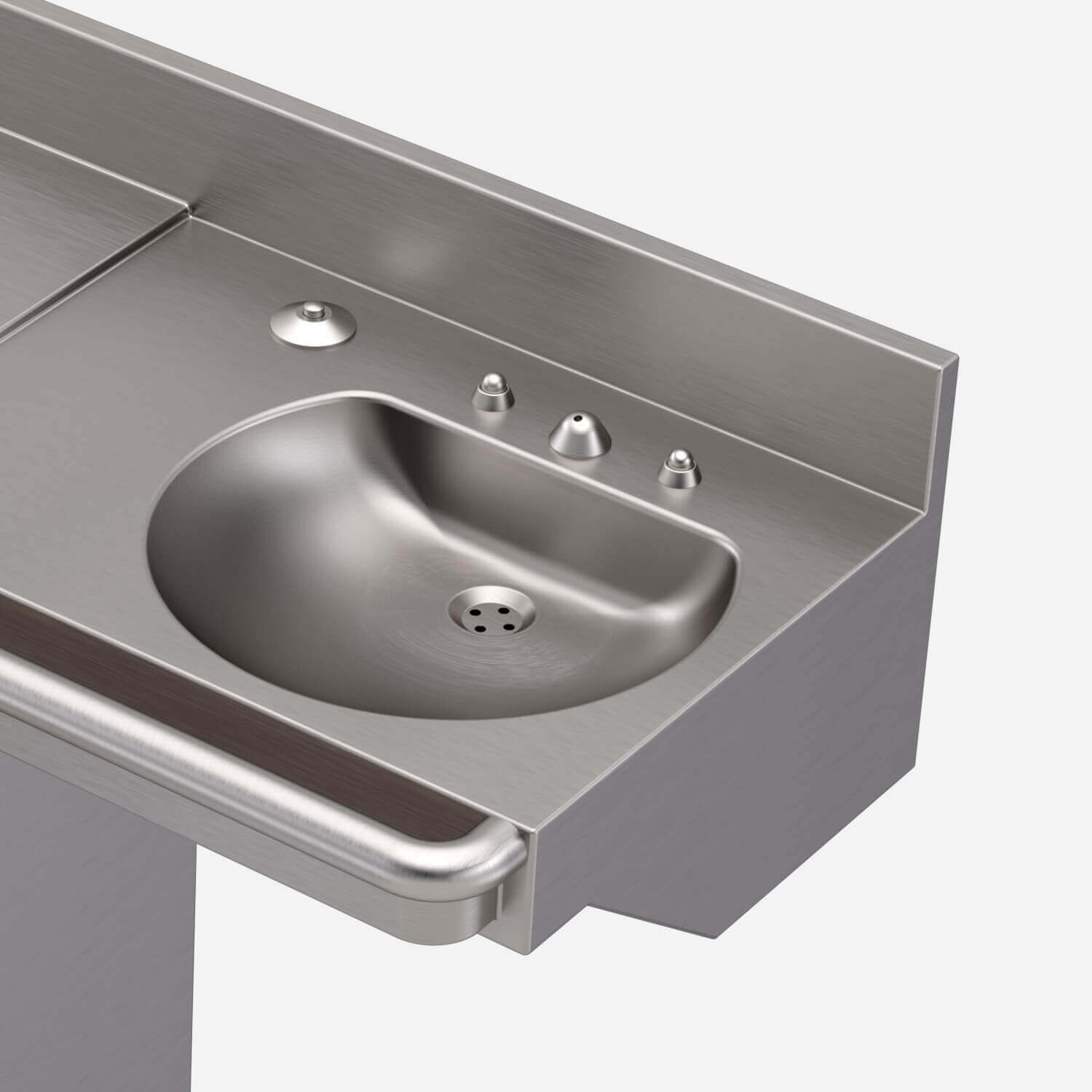

Perfect for retrofits and new construction, this stainless steel comby is space-saving, vandal. and ligature resistant. The comby features a 49.25 inches (1,251 mm) deck with a D-shaped lavatory bowl. The toilet can be specified left offset or right offset. The bowl is on the opposite site configured for ADA compliance. The comby rests on the floor but is mounted against the wall. The fixture is configured with front access for installation and maintenance, where a typical security servicing chase is not available. It can be specified with a wall waste outlet or floor waste outlet. This is a Secur-Care® Ligature-Resistant version of the 1449FA comby.
The lavatory-toilet comby is designed to meet the needs for ligature resistance, ADA, water conservation and the rigorous demands of security facilities.
DISCLAIMERS: This product is designed to decrease the probability that it may be utilized as an apparatus for ligature. It is not a replacement for professionals who are trained in the proper evaluation, management, and supervision of persons at risk of suicide.
WaterSense recent advancements have allowed toilets to use 1.28 gallons (4.85 liters) per flush or less while still providing equal or superior performance. The WaterSense label is used on toilets that are independently certified to meet rigorous criteria for both performance and efficiency. Only water-saving toilets that complete the certification process can earn the WaterSense label. Must use optional HET valves to meet WaterSense label requirements.
Please check with local ADA requirements. ADA compliance is subject to proper installation (including devices such as grab bars) and the interpretations of the local code authority. NOT CBC Calif. Title 24 compliant.
IMPORTANT: For CBC California Title 24 Compliance refer to LR1452FA Lavy-Toilet Comby.
Downloads
Specifications
| Brand | Secur-Care® |
| Product Type | Comby |
| Material | Stainless Steel |
| Material Detail | 14-Gauge Stainless Steel, 7-Gauge Hot-Rolled Steel Mounting Angles |
| Bowl Shape | D-Shaped |
| Toilet Orientation | Left Offset (-LO), Right Offset (-RO) |
| Configurations Available | On-Floor with Wall Waste Outlet (-2), On-Floor with Floor Waste Outlet (-3) |
| Compliance | ADA Compliant, CSA B45, WaterSense meets EPA Criteria - certified by IAPMO R&T, UPC GREEN - Water Efficiency, Federal Public Law 111-380, Ligature-Resistant |
| Mounting | Front Access - Security |
| Overall Dimensions | 49.25" (Side-to-Side) x 40" (Front-to-Back) |
Options
Accessories
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
![]() | 03-M | Option: Single Temperature Metering Air-Control™ Pneumatic Valve | ||
![]() | 04-M | Option: Hot & Cold Metering Air-Control® Pneumatic Valve | ||
![]() | 04-MH | Option: Hot (Metering) & Cold Air-Control® Pneumatic Valve | ||
![]() | 2 (Comby) | Option: On-Floor, Wall Outlet Comby | ||
![]() | 3 (Comby) | Option: On-Floor, Floor Outlet Comby | ||
![]() | BRS | Option : Lead-Free Brass Body Valve | ||
![]() | CW (Comby) | Option: Combined Waste (Comby) | ||
![]() | DMB-BPH | Option: Deck Mounted Bubbler, Hemispherical | ||
![]() | EVS1 | Option: Single Temperature Application Master-Trol® | ||
![]() | EVS2 | Option: Hot & Cold Application Master-Trol® | ||
![]() | EVSP1 | Option: Piezo Button Single Temperature Application Master-Trol® | ||
![]() | EVSP2 | Option: Piezo Button Hot & Cold Application Master-Trol® | ||
![]() | EVSPFV-FTE | Option: Piezo Button Flush Valve with Flood-Trol® Anti-Flood System Application Master-Trol® | ||
![]() | FMT | Option: Fixture Mounted Trim | ||
![]() | FT | Option: Flood-Trol® Anti-Flood System for Manual Flush Valve | ||
![]() | FTA | Option: Flood-Trol® Anti-Flood System for Manual Flush Valve, Auto Reset | ||
![]() | FV (Toilet) | Option: Flush Valve for Toilet | ||
![]() | FVBO | Option: Flush Valve by Others | ||
![]() | FVH | Option: Hydraulic Flush Valve | ||
![]() | HET | Option: High Efficiency Toilet Flush - 1.28 gallons (4.85 liters) per Flush | ||
![]() | HPS | Option: High Polish Seat #7 Finish | ||
![]() | LGB (Comby) | Option: Less Grab Bar on Comby | ||
![]() | LO | Option: Left Offset Toilet Configuration for Toilet-Lav Comby | ||
![]() | LPFV | Option: Less Punching For Flush Valve (For Remote Activation) | ||
![]() | MA2 | Option: Manifolded Valves, 2 Set | ||
![]() | MA3 | Option: Manifolded Valves, 3 Set | ||
![]() | MA4 | Option: Manifolded Valves, 4 Set | ||
![]() | MT | Option: Metal Template | ||
![]() | MTP1 | Option: Master-Trol® Plus Single Temperature Valve | ||
![]() | MTP2 | Option: Master-Trol® Plus Hot & Cold Valve | ||
![]() | MTPFV | Option: Master-Trol® Plus Flush Valve | ||
![]() | MTPP1 | Option: Master-Trol® Plus Single Temperature Piezo Button Valve | ||
![]() | MTPP2 | Option: Master-Trol® Plus Hot & Cold Piezo Button Valve | ||
![]() | MTPPFV | Option: Master-Trol® Plus Piezo Push Button Flush Valve | ||
![]() | MVC1 | Single Temperature Valve Application Time-Trol® | ||
![]() | MVC1-BAT | Single Temperature Application Battery Powered Time-Trol® Plus | ||
![]() | MVC1-CI | Option: Single Temperature, Cycle Interrupt Valve Application Time-Trol® | ||
![]() | MVC2 | Option: Hot & Cold Valve Application Time-Trol® | ||
![]() | MVC2-BAT | Option: Hot & Cold Valve Application Battery Powered Time-Trol® Plus | ||
![]() | MVC2-CI | Option: Hot & Cold, Cycle Interrupt Valve Application Time-Trol® | ||
![]() | MVCFV | Push Button Solenoid Flush Valve Application Time-Trol® | ||
![]() | MVCFV-FTE | Push Button Solenoid Flush Valve Application Time-Trol® with Flood-Trol Anti-Flood System | ||
![]() | PE | Option: Plain End Waste | ||
![]() | PFB | Option: Power Failure Bypass on Master-Trol® Plus | ||
![]() | PH | Option: Paper Holder | ||
![]() | PPZ1 | Option: Single Temperature Programmable Piezo Button | ||
![]() | PPZ2 | Option: Hot & Cold Programmable Piezo Buttons | ||
![]() | RO | Right Offset Toilet Configuration for Toilet-Lav Comby | ||
![]() | TF | Option: Transformer for AC Power Valve | ||
![]() | TG | Option Twelve Gauge Type 304 Stainless Steel | ||
![]() | TH | Option: Towel Hook | ||
![]() | TSC | Option: Toilet Shipping Cover | ||
![]() | TWE | Option: Toilet Waste Extended To Be Specified | ||
![]() | ULF (Toilet) | Option: Ultra Low Toilet Flush - 1.6 gallon (6 liter) per Flush | ||
![]() | VAC | Option: Configuration for Vacuum Plumbing | ||
![]() | WO3B | Option: 2-3/8 Inch P-Trap with 3 Inch Plain End Waste Outlet |
Models
Main configurations available as front access fixtures
LR1449FA-LO-2 | Left Offset Toilet, Right Side Lavy Bowl, Fixture is On-Floor, Wall Waste
LR1449FA-RO-2 | Right Offset Toilet, Left Side Lavy Bowl, Fixture is On-Floor, Wall Waste
LR1449FA-LO-3 | Left Offset Toilet, Right Side Lavy Bowl, Fixture is On-Floor, Floor Waste
LR1449FA-RO-3 | Right Offset Toilet, Left Side Lavy Bowl, Fixture is On-Floor, Floor Waste
