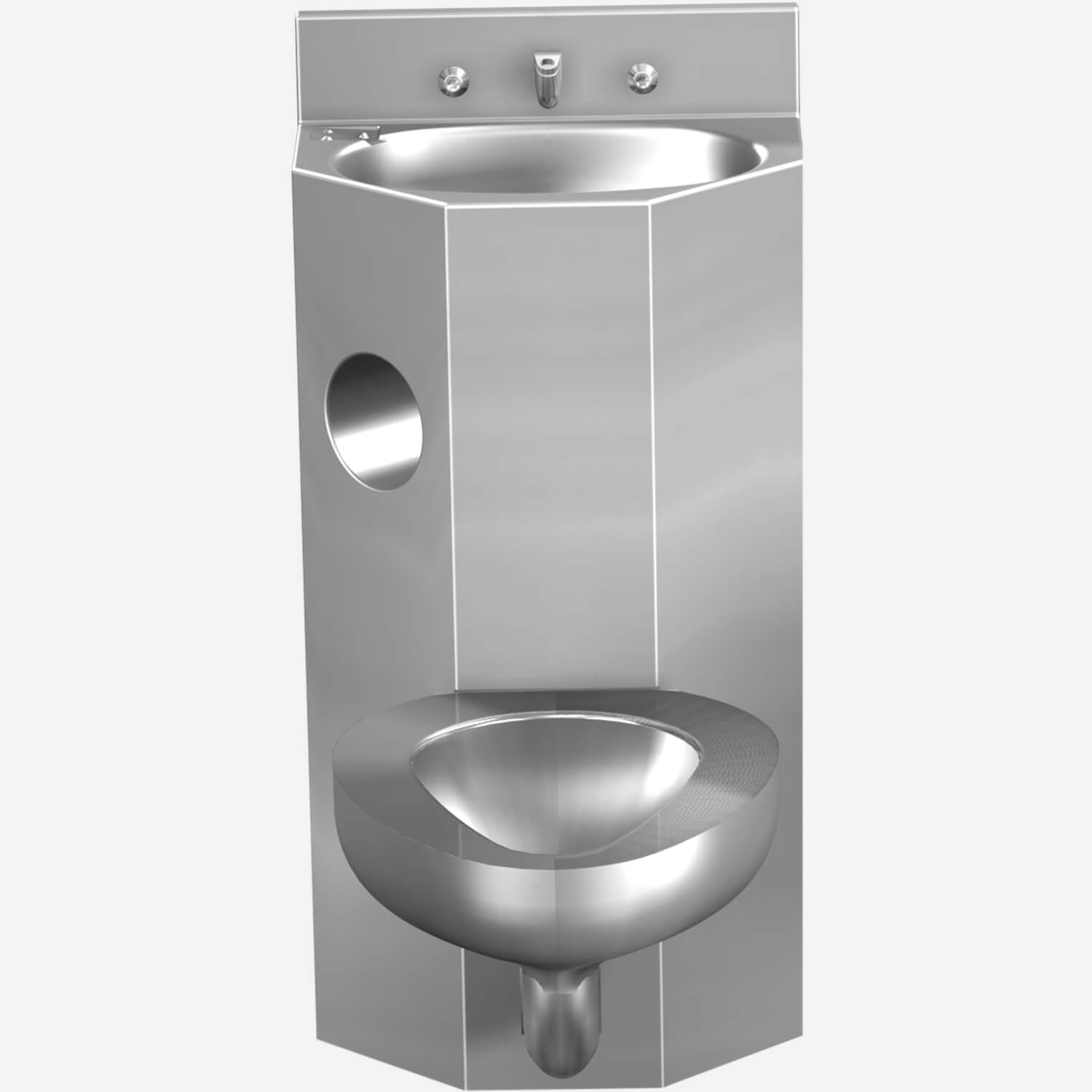

Replacement 18 Inch Comby with Toilet and Oval Lavatory Bowl
Perfect for retrofits and replacement of fixtures installed prior to the early 90s. This space saving 18 inch, stainless steel, vandal resistant comby comes in a left, right, or center orientation. It features a rear mount and is available in off-floor with wall waste outlet, on-floor with wall waste outlet, and on-floor with floor waste outlet configurations.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | 0 | 191 KB | |||
| | 18" Toilet-Lavatory Comby Replacement | 0 | 610 KB | ||
| | Enviro-Glaze Powdercoating Color Chart | 0 | 2 MB | ||
| | Correctional Facility Fixtures HET Toilet/Acorn Vac | 0 | 816 KB | ||
 | | Centered Toilet, On-Floor/Wall Waste with Hot & Cold Air-Control Vavles, Penal Bubbler, Toilet Paper Roll Holder | 0 | 210 KB | ||
| | Angle Left, On-Floor/Wall Waste Outlet, Penal Bubbler, Hot & Cold Pneumatic Lavy Buttons, Toilet Paper Roll Holder | 0 | 235 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB |
Specifications
| Product Type | Comby |
| Configurations Available | Off-Floor with Wall Waste Outlet (-1), On-Floor with Wall Waste Outlet (-2), On-Floor with Floor Waste Outlet (-3) |
| Brand | Replace-Ware® |
| Material | 14-Gauge Stainless Steel |
| Mounting | Rear-Chase Mounted |
| Toilet Orientation | Angle Left (-AL), Angle Right (-AR), Centered (-CT) |
| High-Efficiency (Water Use) | Option -HET, -VAC Available |
| Vandal Resistant | High |
| Product Features | Replacement |
| Institutional Applications | Correctional |
| Fixture Width | 18" |
| Lead-Free | Yes |
| Compliance | WaterSense meets EPA Criteria - certified by IAPMO R&T |
Options
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | -1 | Option: Off-Floor, Wall Outlet | ||
 | 03 | Option: Single Temperature Air-Control® Pneumatic Valve | ||
 | 03-M | Option: Single Temperature Metering Air-Control™ Pneumatic Valve | ||
 | 04 | Option: Hot & Cold Air-Control® Pneumatic Valve | ||
 | 04-M | Option: Hot & Cold Metering Air-Control® Pneumatic Valve | ||
 | 04-MH | Option: Hot (Metering) & Cold Air-Control® Pneumatic Valve | ||
 | 2 (Comby) | Option: On-Floor, Wall Outlet Comby | ||
 | 3 (Comby) | Option: On-Floor, Floor Outlet Comby | ||
 | AL | Option: Angled Left Toilet Configuration for Toilet-Lav Comby | ||
 | AR | Option: Angled Right Toilet Configuration for Toilet-Lav Comby | ||
 | BC | Option: Bubbler, Code | ||
 | BP | Option: Bubbler, Penal | ||
 | BPH | Option: Hemispherical Penal Bubbler | ||
 | CI | Option: Cycle Interrupt | ||
 | CO1 | Option: Cleanout with O-Ring, Connecting to 4" No-Hub | ||
 | CO1-3 | Option: Cleanout with O-Ring, Connecting to 3" No-Hub | ||
 | COH | Option: Cleanout Treble Hook Assembly | ||
 | CT | Option: Centered Toilet Configuration for Toilet-Lav Comby | ||
 | CW (Comby) | Option: Combined Waste (Comby) | ||
 | EG | Option: Enviro-Glaze® Powder Coating | ||
 | EVS1 | Option: Single Temperature Application Master-Trol® | ||
 | EVS2 | Option: Hot & Cold Application Master-Trol® | ||
 | EVSFV | Option: Flush Valve Application Master-Trol® | ||
 | FMT | Option: Fixture Mounted Trim | ||
 | FT | Option: Flood-Trol® Anti-Flood System for Manual Flush Valve | ||
 | FTA | Option: Flood-Trol® Anti-Flood System for Manual Flush Valve, Auto Reset | ||
 | FV (Toilet) | Option: Flush Valve for Toilet | ||
 | FVBO | Option: Flush Valve by Others | ||
 | FVH | Option: Hydraulic Flush Valve | ||
 | FVT | Option: Flush Valve Thru Wall Connection | ||
 | HET | Option: High Efficiency Toilet Flush - 1.28 gallons (4.85 liters) per Flush | ||
 | HPS | Option: High Polish Seat #7 Finish | ||
 | HS | Option: Hinged Seat | ||
 | IS | Option: Integral Shelf | ||
 | LF | Option: Lavatory Filler | ||
 | LW1 | Option: Lavy Waste Basin Waste Thru-Wall Connection With P-trap | ||
 | LWE | Option: Lavy Waste Extended To Be Specified | ||
 | MA2 | Option: Manifolded Valves, 2 Set | ||
 | MA3 | Option: Manifolded Valves, 3 Set | ||
 | MA4 | Option: Manifolded Valves, 4 Set | ||
 | MTP1 | Option: Master-Trol® Plus Single Temperature Valve | ||
 | MTP2 | Option: Master-Trol® Plus Hot & Cold Valve | ||
 | MTPFV | Option: Master-Trol® Plus Flush Valve | ||
 | MTPP1 | Option: Master-Trol® Plus Single Temperature Piezo Button Valve | ||
 | MTPP2 | Option: Master-Trol® Plus Hot & Cold Piezo Button Valve | ||
 | MTPPFV | Option: Master-Trol® Plus Piezo Push Button Flush Valve | ||
 | MVC1 | Single Temperature Valve Application Time-Trol® | ||
 | MVC2 | Option: Hot & Cold Valve Application Time-Trol® | ||
 | MVCFV | Push Button Solenoid Flush Valve Application Time-Trol® | ||
 | OF (Security Fixture) | Option: Security Lavatory Overflow | ||
 | PBH | Option: Pushbutton, Hemispherical | ||
 | PC | Option: Pinned Cleanout Plug | ||
 | PE | Option: Plain End Waste | ||
 | PFB | Option: Power Failure Bypass on Master-Trol® Plus | ||
 | PH | Option: Paper Holder | ||
 | PT | Option: P-Trap | ||
 | SPS | Option: Ligature Resistant Skirt for Toilet | ||
 | TB | Option: Toothbrush Holder | ||
 | ULF (Toilet) | Option: Ultra Low Toilet Flush - 1.6 gallon (6 liter) per Flush |
Details
Product Function:
This comby is available as replacement - the submittal sheet has a worksheet to accomodate customers specific existing rough-ins. The comby is designed to meet water conservation and the rigorous demands of security facilities.
WaterSense® recent advancements have allowed toilets to use 1.28 gallons (4.85 liters) per flush or less while still providing equal or superior performance. The WaterSense label is used on toilets that are independently certified to meet rigorous criteria for both performance and efficiency. Only water-saving toilets that complete the certification process can earn the WaterSense label. Must use optional HET valves to meet WaterSense label requirements.
