Model 1420

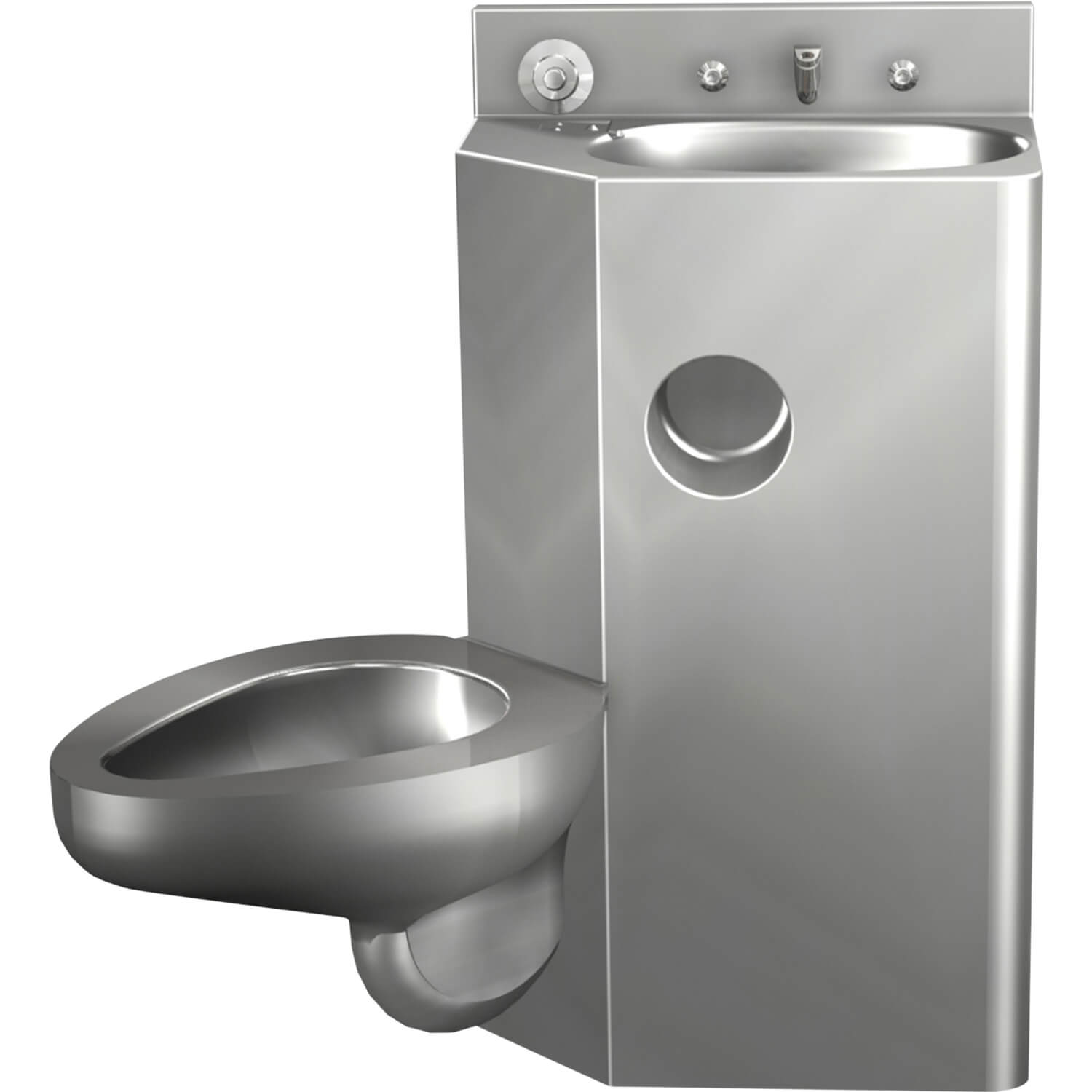

Rear Mount, 20 Inch Comby with Toilet and Oval Lavatory Bowl
Perfect for retrofits and new construction, this space saving 20 inch, stainless steel, vandal resistant comby comes in an angle left, right, or offset left, right orientation. It features a rear mount and is available in off-floor with wall waste outlet, on-floor with wall waste outlet, and on-floor with floor waste outlet configurations.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | 20" Toilet-Lavatory Comby | 0 | 946 KB | ||
| | 20 Inch Comby with Oval Lavatory with Angled or Offset Toilet | 0 | 220 KB | ||
 | | 20" Toilet-Lavatory Comby | 0 | 1 MB | ||
| | 20" Toilet-Lavatory Comby | 0 | 710 KB | ||
| | Acorn Engineering - Toilet-Lavy Combination units, water closets, urinals, lavatories, drinking fountains, showers. electronic valve controls, service sinks. | 0 | 266 KB | ||
 | | Acorn Engineering - Toilet-Lavy Combination units, water closets, urinals, lavatories, drinking fountains, showers. electronic valve controls, service sinks. | 0 | 406 KB | ||
| | Enviro-Glaze Powdercoating Color Chart | 0 | 2 MB | ||
| | Correctional Facility Fixtures HET Toilet/Acorn Vac | 0 | 816 KB | ||
 | | Left Offset Toilet, On-Floor/Wall Waste with Hot & Cold Air-Control Valves, Penal Bubbler, Toilet Paper Roll Holder | 0 | 206 KB | ||
| | Angle Left Toilet,On-Floor/Wall Waste Outlet, Penal Bubbler, Hot & Cold Pneumatic Lavy Buttons, Toilet Paper Roll Holder | 0 | 255 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB | ||
| | Valves: Air-Control™ Metering Servomotor Assembly | 0 | 124 KB | ||
| | Valves: Air-Control™ Non-Metering Servomotor Assembly | 0 | 142 KB | ||
| | Valves: Hot and Cold Air-Control™ Valve Body Assembly (-04) | 0 | 82 KB | ||
| | Stops: Plastic Air-Control® Check Stop Assembly | 0 | 74 KB | ||
| | Trims: Hot and Cold Penal Air-Trol Fixture Trim | 0 | 80 KB | ||
| | Trims: Suicide Resistant Fixture Trim | 0 | 124 KB | ||
| | Trims: Mounting Hardware, Penal FixtureS | 0 | 96 KB |
Specifications
| Product Type | Comby |
| Configurations Available | Off-Floor with Wall Waste Outlet (-1), On-Floor with Wall Waste Outlet (-2), On-Floor with Floor Waste Outlet (-3) |
| Brand | Penal-Ware® |
| Material | 14-Gauge Stainless Steel |
| Mounting | Rear-Chase Mounted |
| Toilet Orientation | Angle Left (-AL), Angle Right (-AR), Left Offset (-LO), Right Offset (-RO) |
| High-Efficiency (Water Use) | Option -HET, -VAC Available |
| Vandal Resistant | High |
| Fixture Width | 20" |
| Lead-Free | Yes |
| Bowl Shape | Oval |
| Compliance | WaterSense meets EPA Criteria - certified by IAPMO R&T |
Options
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | -1 | Option: Off-Floor, Wall Outlet | ||
 | 03 | Option: Single Temperature Air-Control® Pneumatic Valve | ||
 | 03-M | Option: Single Temperature Metering Air-Control™ Pneumatic Valve | ||
 | 04 | Option: Hot & Cold Air-Control® Pneumatic Valve | ||
 | 04-M | Option: Hot & Cold Metering Air-Control® Pneumatic Valve | ||
 | 2 (Comby) | Option: On-Floor, Wall Outlet Comby | ||
 | 3 (Comby) | Option: On-Floor, Floor Outlet Comby | ||
 | AL | Option: Angled Left Toilet Configuration for Toilet-Lav Comby | ||
 | AR | Option: Angled Right Toilet Configuration for Toilet-Lav Comby | ||
 | BC | Option: Bubbler, Code | ||
 | BP | Option: Bubbler, Penal | ||
 | BPH | Option: Hemispherical Penal Bubbler | ||
 | CI | Option: Cycle Interrupt | ||
 | CO1 | Option: Cleanout with O-Ring, Connecting to 4" No-Hub | ||
 | CO1-3 | Option: Cleanout with O-Ring, Connecting to 3" No-Hub | ||
 | COH | Option: Cleanout Treble Hook Assembly | ||
 | CW (Comby) | Option: Combined Waste (Comby) | ||
 | EG | Option: Enviro-Glaze® Powder Coating | ||
 | EVS1 | Option: Single Temperature Application Master-Trol® | ||
 | EVS2 | Option: Hot & Cold Application Master-Trol® | ||
 | EVSFV | Option: Flush Valve Application Master-Trol® | ||
 | EVSP1 | Option: Piezo Button Single Temperature Application Master-Trol® | ||
 | EVSP2 | Option: Piezo Button Hot & Cold Application Master-Trol® | ||
 | EVSPFV | Option: Piezo Button Flush Valve Application Master-Trol® | ||
 | FMT | Option: Fixture Mounted Trim | ||
 | FT | Option: Flood-Trol® Anti-Flood System for Manual Flush Valve | ||
 | FTA | Option: Flood-Trol® Anti-Flood System for Manual Flush Valve, Auto Reset | ||
 | FV (Toilet) | Option: Flush Valve for Toilet | ||
 | FVBO | Option: Flush Valve by Others | ||
 | FVH | Option: Hydraulic Flush Valve | ||
 | FVO | Option: Flush Valve Opposite Location (Comby) | ||
 | FVT | Option: Flush Valve Thru Wall Connection | ||
 | GW | Option: Gasketed Waste | ||
 | HET | Option: High Efficiency Toilet Flush - 1.28 gallons (4.85 liters) per Flush | ||
 | HPS | Option: High Polish Seat #7 Finish | ||
 | HS | Option: Hinged Seat | ||
 | IS | Option: Integral Shelf | ||
 | LF | Option: Lavatory Filler | ||
 | LO | Option: Left Offset Toilet Configuration for Toilet-Lav Comby | ||
 | LPFV | Option: Less Punching For Flush Valve (For Remote Activation) | ||
 | LW1 | Option: Lavy Waste Basin Waste Thru-Wall Connection With P-trap | ||
 | MA2 | Option: Manifolded Valves, 2 Set | ||
 | MA3 | Option: Manifolded Valves, 3 Set | ||
 | MA4 | Option: Manifolded Valves, 4 Set | ||
 | MTP1 | Option: Master-Trol® Plus Single Temperature Valve | ||
 | MTP2 | Option: Master-Trol® Plus Hot & Cold Valve | ||
 | MTPFV | Option: Master-Trol® Plus Flush Valve | ||
 | MTPP1 | Option: Master-Trol® Plus Single Temperature Piezo Button Valve | ||
 | MTPP2 | Option: Master-Trol® Plus Hot & Cold Piezo Button Valve | ||
 | MTPPFV | Option: Master-Trol® Plus Piezo Push Button Flush Valve | ||
 | MVC1 | Single Temperature Valve Application Time-Trol® | ||
 | MVC1-BAT | Single Temperature Application Battery Powered Time-Trol® Plus | ||
 | MVC2 | Option: Hot & Cold Valve Application Time-Trol® | ||
 | MVC2-BAT | Option: Hot & Cold Valve Application Battery Powered Time-Trol® Plus | ||
 | MVCFV | Push Button Solenoid Flush Valve Application Time-Trol® | ||
 | RO | Right Offset Toilet Configuration for Toilet-Lav Comby |
Details
Product Function:
The comby is designed to meet water conservation and the rigorous demands of security facilities.
WaterSense® recent advancements have allowed toilets to use 1.28 gallons (4.85 liters) per flush or less while still providing equal or superior performance. The WaterSense label is used on toilets that are independently certified to meet rigorous criteria for both performance and efficiency. Only water-saving toilets that complete the certification process can earn the WaterSense label. Must use optional HET valves to meet WaterSense label requirements.
Product Variations
Image | Model ID | Description |
|---|---|---|
 | 1420FA | Front Access, 20 Inch Comby with Toilet and Oval Lavatory Bowl |
 | 1420LRB | Rear Mount, 20 Inch Comby with Toilet and Rectangular Lavatory Bowl |
