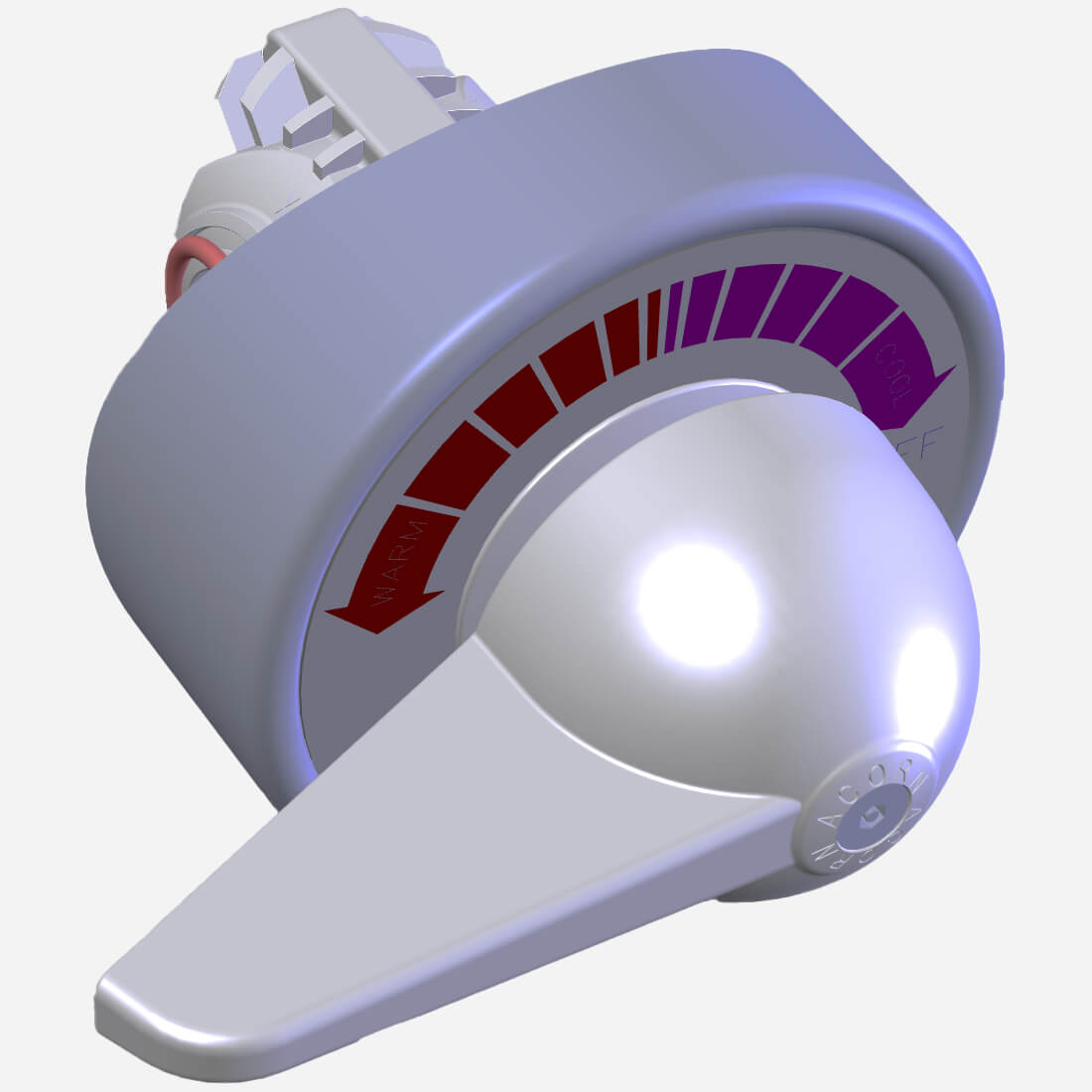

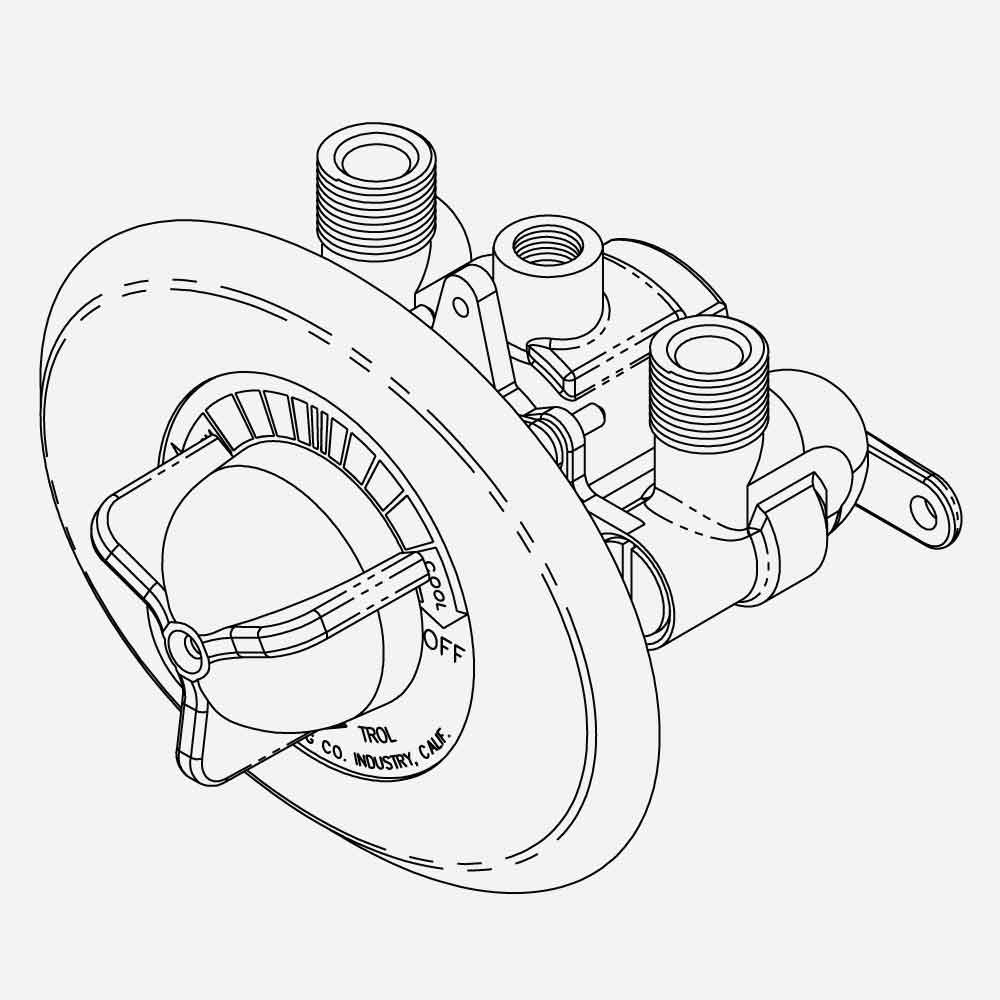

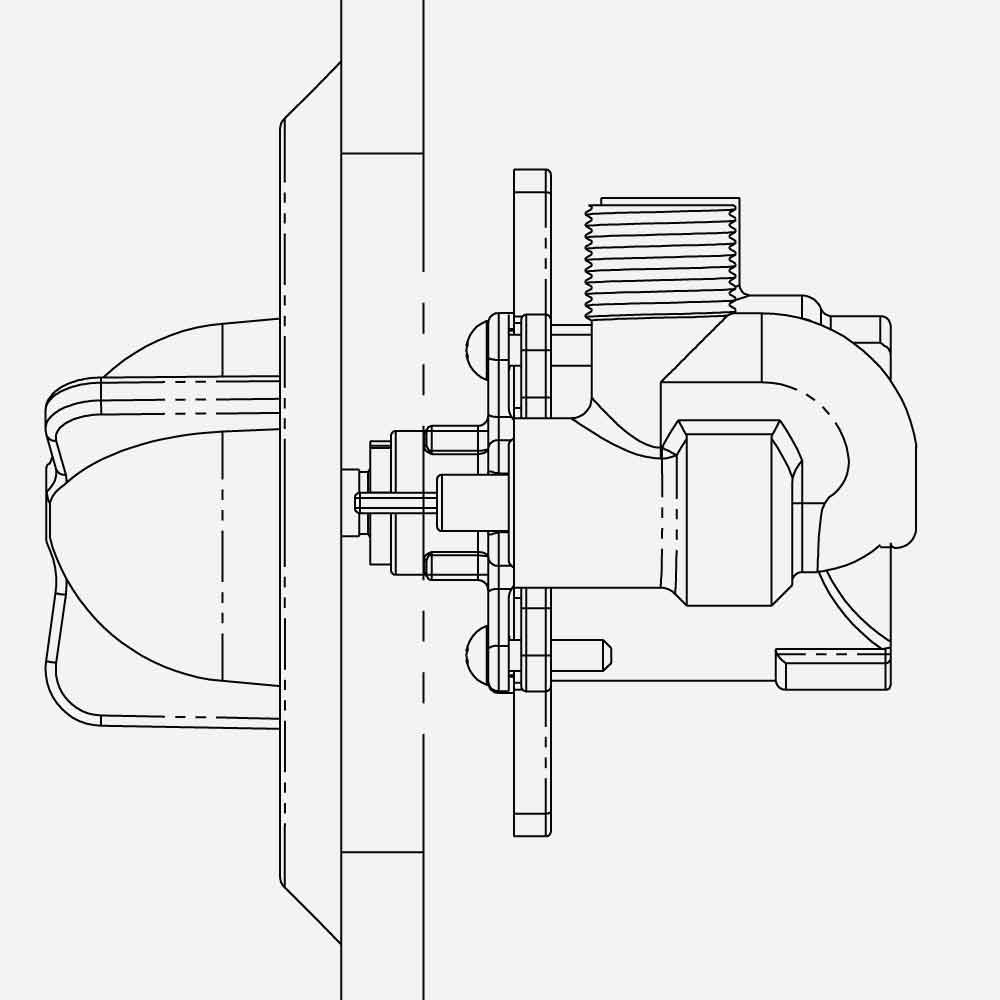

Safti-Trol Piston Operated Pressure Balancing Valve

The Safti-Trol Piston Operated Pressure balancing valve delivers constant temperate water regardless of line pressure variations that normally cause temperature changes. This reduces hot or cold water shock. Valve compensates for 50% drop in supply inlet pressure.

Featuring heavy, cast-brass construction and an adjustable brass to brass high temperature stop, self- containing cartridge, corrosion resistant internal components, and integral check stop. all parts of the valve are accessible from the front.

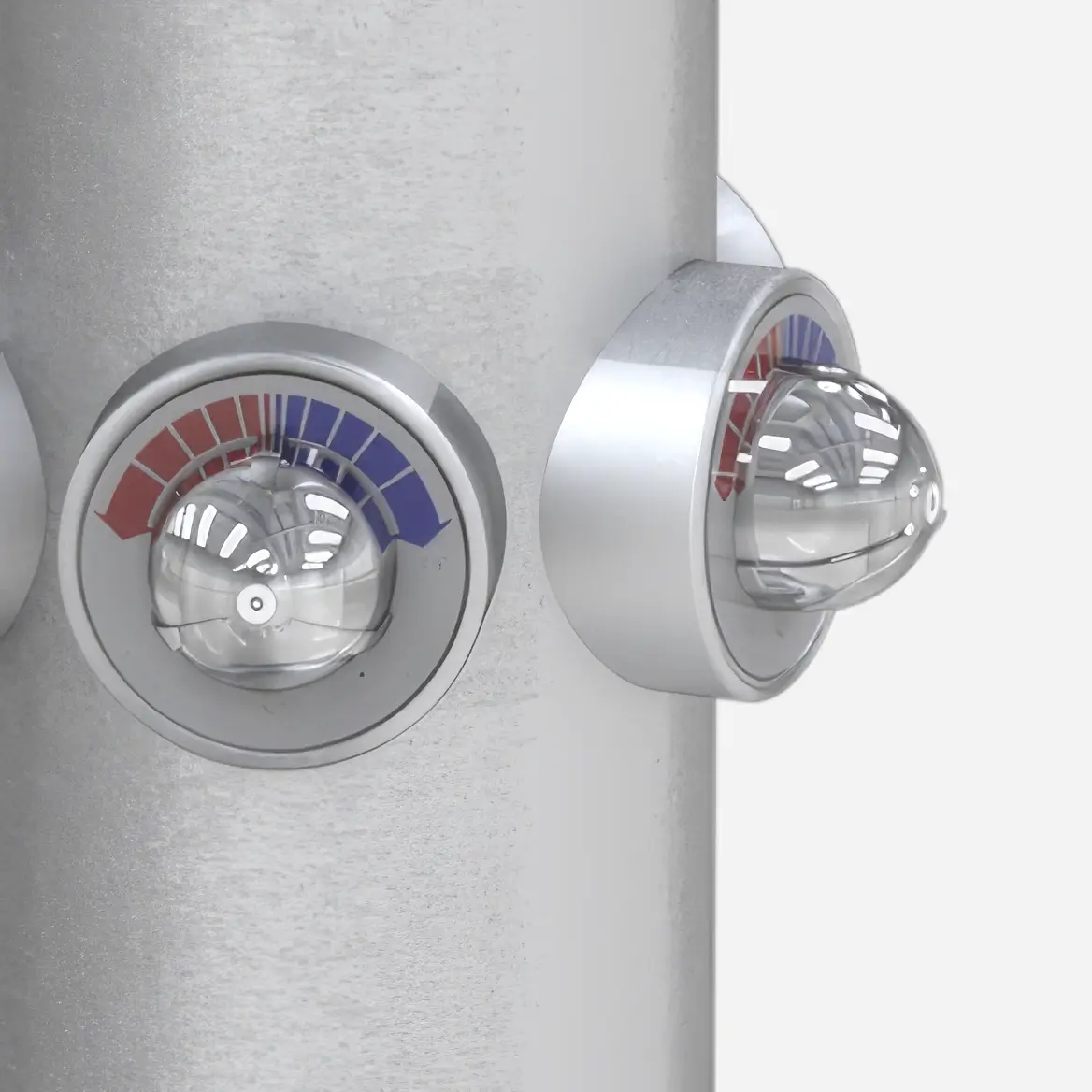

Used exclusively for 700 and 700HC Column Showers.

Valve Specifications:

• Construction | Combination mixinb valve with heavy cast bronze body and brass stem. Concealed adjustable high-temperature limit stop.
• Connection | 1/2" PTF-SAE Inlet
• Riser Connection | 1/2" NPTI
• Max. Water Temperature | 130°F (54°C)
• Min. Pressure  | 30 PSI (207kPa)
