Option: Master-Trol® Plus Hot & Cold Valve
This Hot & Cold valve is for use with the Master-Trol® Plus Valve Controller. The 24VAC solenoid, soft closing valve features pushbutton activation, is provided with a stainless steel strainer and integral checkstop. Valve conforms with the lead free requirements of NSF61, Section 9, 1997; Federal Public Law 111-380 and ADA requirements.
Pressing the "C(old)" button will dispense cold water; the "H(ot)" button will dispense tempered water.
Product Function: Providing a pushbutton activatated solenoid valve using the Master-Trol® Plus System for a lavatory or shower application.

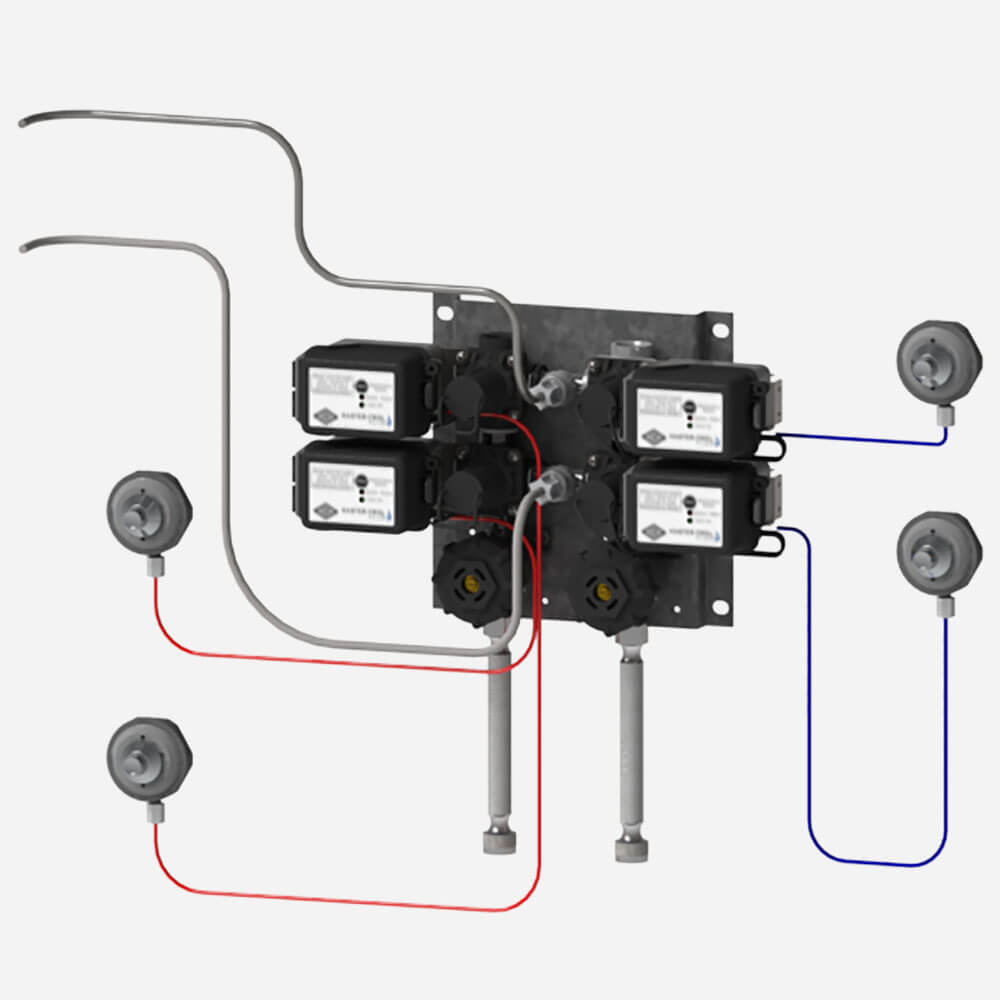

Regularly Furnished: Hot & Cold Pushbutton assembly; solenoid valves amd checkstops typically on a galvanize steel mounting plate
Valve Specifications Minimum Pressure: 30 Pounds per Square Inch (206.8 Kilopascal) Maximum Pressure: 100 Pounds per Square Inch (689.5 Kilopascal) Maximum Water Temperature: 130º F (54º C)
