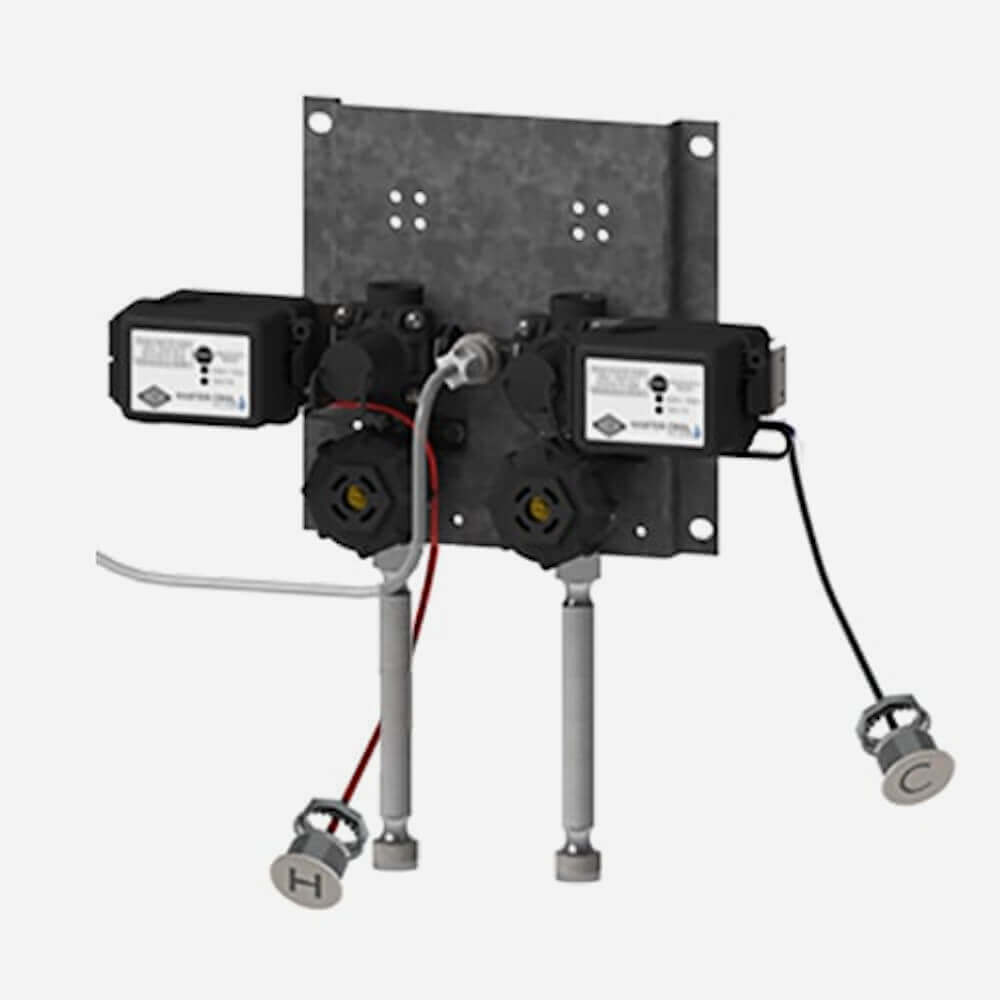

Option: Master-Trol® Plus Hot & Cold Piezo Button Valve
This hot & cold valve is for use with the Master-Trol Valve Controller. The 24VAC solenoid, soft closing valve feature piezo touch activation and is provided with a stainless steel strainer and integral checkstop. The Piezo buttons have no moving parts and are touch activated. When the Piezo buttons are touched this closes the circuit and activates the controller which activates the valve. Valve conforms with the lead free requirements of NSF61, Section 9, 1997; Federal Public Law 111-380 and ADA requirements.
Pressing the "C(old)" button will dispense cold water; the "H(ot)" button will dispense tempered water.
Product Function:
Providing hot and cold activating Piezo pushbutton solenoid valve for Master-Trol® Plus System
Valve Specifications:
Minimum Pressure: 30 Pounds per Square Inch (206.8 Kilopascal) Maximum Pressure: 100 Pounds per Square Inch (689.5 Kilopascal) Maximum Water Temperature: 130º F (54º C)
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Includes instructions for MTP1, MTP2, MTPFV, MTPP1, MTPP2, MTPPFV, and EZ-MTP Retrofit Packages | 0 | 7 MB | ||
| | Master-Trol® PLUS Water Management System | 0 | 848 KB | ||
 | | Master-Trol® Plus Components including Controller, Flush Valve Branch Box, Hot & Cold (MTP2) Valve, Flush Valve, Transformer, Piezo Single Temp Valve; Piezo Hot & Cold Temp Valve | 0 | 4 MB | ||
| | Master-Trol® Plus Components including Controller, Flush Valve Branch Box, Hot & Cold (MTP2) Valve, Flush Valve, Transformer, Piezo Single Temp Valve; Piezo Hot & Cold Temp Valve | 0 | 2 MB | ||
| | Master-Trol® Plus Hot & Cold Piezo Button Valve, Two Set of Valves on Manifold | 0 | 764 KB | ||
| | Master-Trol® Plus Hot & Cold Piezo Button Valve, Two Set of Valves on Manifold | 0 | 528 KB | ||
| | Master-Trol Plus Flyer (pdf) | 0 | 482 KB |
