Option: Master-Trol® Plus Single Temperature Valve
This single temperature valve is for use with the Master-Trol® Plus Valve Controller. The 24VAC solenoid, soft closing valve features pushbutton activation, is provided with a stainless steel strainer and integral checkstop. Valve conforms with the lead free requirements of NSF61, Section 9, 1997; Federal Public Law 111-380 and ADA requirements.

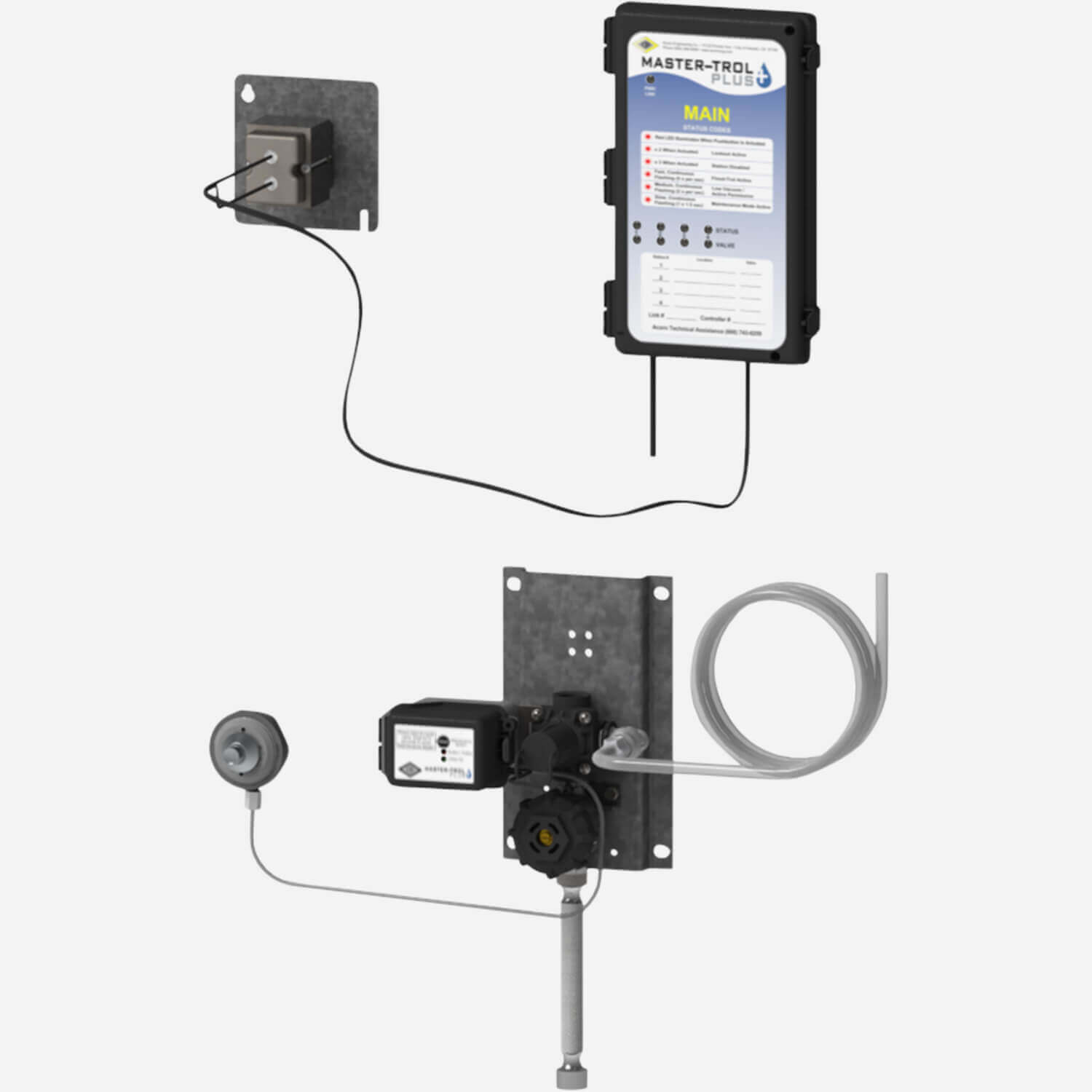

Regularly Furnished: Pushbutton assembly, Master-Trol® Plus branch box, solenoid valve & checkstop typically on a galvanized steel mounting plate
Valve Specifications: Minimum Pressure: 30 Pounds per Square Inch (206.8 Kilopascal) Maximum Pressure: 100 Pounds per Square Inch (689.5 Kilopascal) Maximum Water Temperature: 130º F (54º C)
Product Function: Providing a single temperature (can be tempered) pushbutton activated solenoid valve using the Master-Trol® Plus System for a lavatory, Acorn vandal-resistant drinking fountain, or shower application.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Includes instructions for MTP1, MTP2, MTPFV, MTPP1, MTPP2, MTPPFV, and EZ-MTP Retrofit Packages | 0 | 7 MB | ||
| | Master-Trol® PLUS Water Management System | 0 | 848 KB | ||
 | | Master-Trol® Plus Components including Controller, Flush Valve Branch Box, Hot & Cold (MTP2) Valve, Flush Valve, Transformer, Piezo Single Temp Valve; Piezo Hot & Cold Temp Valve | 0 | 4 MB | ||
| | Master-Trol® Plus Components including Controller, Flush Valve Branch Box, Hot & Cold (MTP2) Valve, Flush Valve, Transformer, Piezo Single Temp Valve; Piezo Hot & Cold Temp Valve | 0 | 2 MB | ||
| | Master-Trol Plus Flyer (pdf) | 0 | 482 KB |
