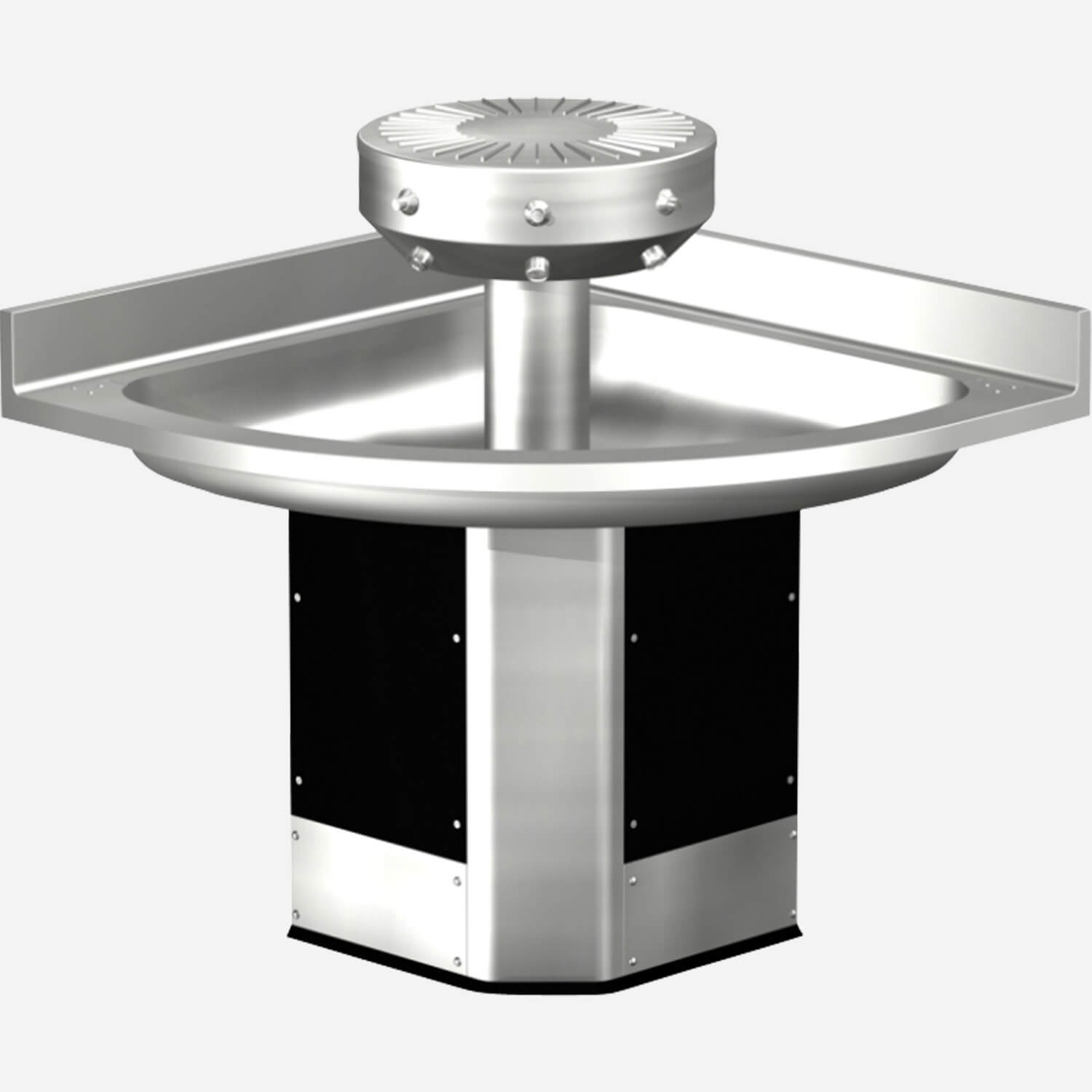

Three Station, ADA, Corner Wash Fountain
Perfect for high-traffic institutional, commercial, and public applications, this three-station hand washing fountain is made from durable stainless steel and features a wall-mount corner design. It’s available in off-floor and on-floor waste outlet configurations and is ADA compliant when installed properly.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | 0 | 2 MB | |||
| | ADA Three Station Corner Stainless Steel Washfountain [3443ADA Standard, 3443ESADA with Contour Base] | 0 | 826 KB | ||
| | Acorn Engineering - Circular wash fountains, Semicircular wash fountains, Corner wash fountains, Elliptical wash fountains, Linear wash fountains | 0 | 188 KB | ||
 | | Acorn Engineering - Circular wash fountains, Semicircular wash fountains, Corner wash fountains, Elliptical wash fountains, Linear wash fountains | 0 | 201 KB | ||
| | Enviro-Glaze Powdercoating Color Chart | 0 | 2 MB | ||
| | The best ways to stay healthy are also the simplest: hand washing with soap and water and staying hydrated. | 0 | 2 MB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
| | Take Students’ Safety Seriously with Acorn® Wash-Ware® Products. Schools often overlook one of the biggest dangers to student health: GERMS. | 0 | 850 KB | ||
| | The best ways to stay healthy are also the simplest: hand washing with soap and water and staying hydrated. | 0 | 3 MB | ||
| | Hand Washing Products Brochure (pdf) | 0 | 2 MB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB | ||
| | Tools / Fasteners: Wrenches | 0 | 62 KB | ||
| | Tools / Fasteners: Fasteners | 0 | 83 KB | ||
| | Washfountain Soap Equipment: PDM Metering Liquid Soap Tank -Washfountain | 0 | 81 KB | ||
| | Wash-Ware Nozzles: Wash-Ware Nozzle Assembly | 0 | 77 KB | ||
| | Wash-Ware Nozzles: Wash-Ware Nozzle Assembly | 0 | 81 KB |
Specifications
| Product Type | Wash Fountain |
| Configurations Available | Off-Floor with Wall Waste Outlet (-1) |
| Brand | Wash-Ware® |
| Material | Stainless Steel |
| Mounting | Wall Mounted |
| Vandal Resistant | Moderate |
| Institutional Applications | Hospital & Treatment Centers, Educational Building, Train Station & Airports, Other Institutional Buildings |
| Commercial Applications | Stores & Shopping Centers, Warehouse, Office Building, Restaurant & Hospitality, Stadium & Arena |
| Park and Recreation Applications | Yes |
| Bowl Shape | Corner |
| Compliance | ADA Compliant, Federal Public Law 111-380 |
| Overall Dimensions | 37" (Side-to-Side) x 37" (Front-to-Back) |
| Stations-Users | 3 |
Options
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | -VP | Option: Black Vinyl Clad Enclosure | ||
 | 1 (Hand Wash) | Option: Off-Floor, Wall Outlet Hand Wash Station | ||
 | 2 (Hand Wash) | Option: On-Floor, Wall Outlet Hand Wash Station | ||
 | CB | Option: Column Braced to Back Splash | ||
 | DV | Option: Liquid/Lotion Soap Dispenser | ||
 | EG | Option: Enviro-Glaze® Powder Coating | ||
 | H (Hand Wash) | Option: Hand Operation for Hand Wash Station | ||
 | HB (Hand Wash) | Option: Hose Bibb on Washfountain | ||
 | PCB | Option: Column Arranged to Receive 1-1/2" Pipe Brace | ||
 | PDM | Option: Metering Liquid Soap Dispenser | ||
 | PPZ | Option: Programmable Piezo Button | ||
 | SO | Option: (Hands-Free) Sensor Operation | ||
| SO-BAT | Option: (Hands-Free) Sensor Activated - Battery Powered | ||
 | SPX | Option: 16 Gage Stainless Steel Enclosure | ||
 | ST | Option: Single Temperature | ||
 | TM | Option: Multi-Fold Paper Towel Dispenser (Wash Fountain only) | ||
 | TS | Option: Single-Fold Paper Towel Dispenser (Wash Fountain only) |
Details
Regularly Furnished:
The wash fountain is manufactured with type 304 stainless steel and features a 37" (940 mm) radius quarter-circle wedge shape bowl with backsplash. To service three users, a three-spout spray head is provided, each with their own controls. An angular three-sided base covers the drain and waste connections in the wall.
3443ADA-1 Off-Floor
3443ADA-2 On-Floor
Product Function:
The wash fountain properly mounted at 34" (864 mm) rim height, is designed for ADA, ANSI, and UFAS compliancy. Compliance is subject to proper installation (including devices such as grab bars) and the interpretations of the local code authority.
