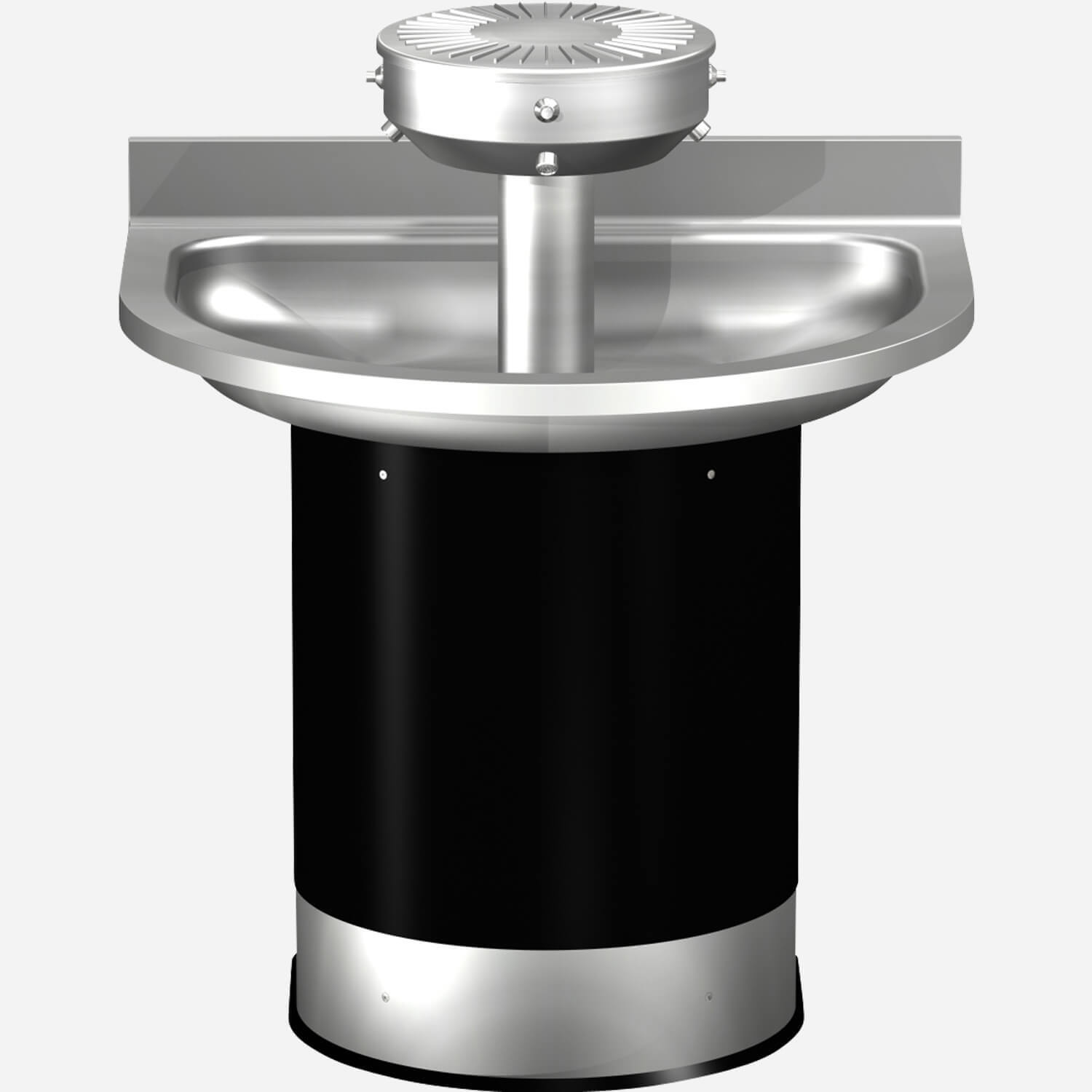

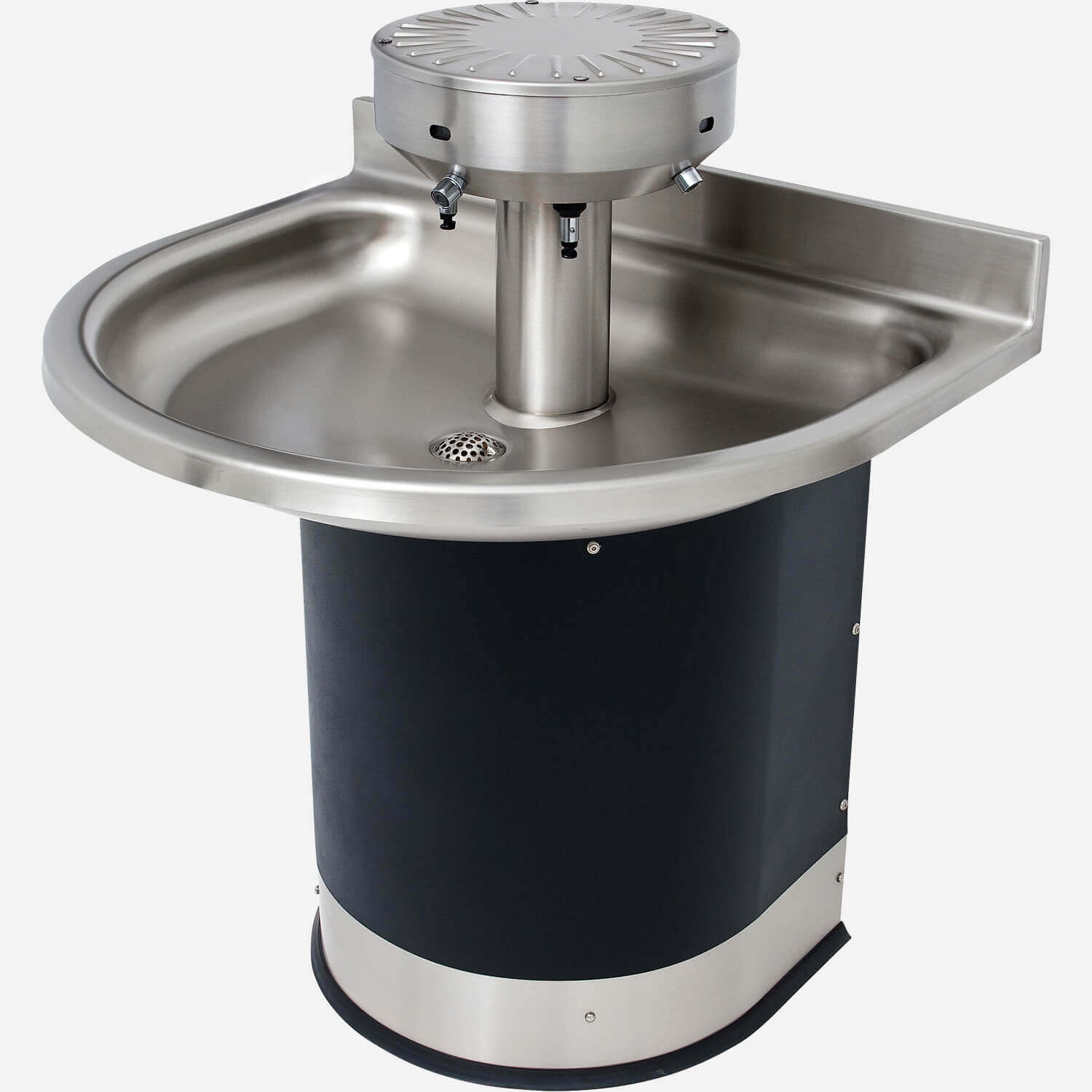

Three Station, On-Floor, Semi-Circular Wash Fountain
Perfect for high-traffic institutional, commercial, and public applications, this semi-circular hand-washing fountain is made from durable stainless steel and accommodates three users simultaneously. This on-floor, against-the-wall mounted unit can be configured with either a wall waste outlet (Option -2) or a floor waste outlet (Option -3). The activation is available with a hand pushbutton (Air-Control™ pneumatic valve), electronic flat Piezo pushbutton, electronic sensor activation, or a foot-pushbutton (Air-Control™ pneumatic valve).
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | On-Floor, Semi-Circular Wash Fountains [Model 3543 - Three Station, 3544 - Four Station; -DBS Option with 9" Deep Bowl] | 0 | 2 MB | ||
| | On-Floor Semi-Circular Stainless Steel Washfountain [3543 Three Station and 3544 Four Station; includes Options -H, -F, -PPZ, -SO] | 0 | 125 KB | ||
| | Acorn Engineering - Circular wash fountains, Semicircular wash fountains, Corner wash fountains, Elliptical wash fountains, Linear wash fountains | 0 | 188 KB | ||
 | | Acorn Engineering - Circular wash fountains, Semicircular wash fountains, Corner wash fountains, Elliptical wash fountains, Linear wash fountains | 0 | 201 KB | ||
| | Enviro-Glaze Powdercoating Color Chart | 0 | 2 MB | ||
 | | Three Station, On-Floor/Wall Waste, Hand Operation | 0 | 190 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
| | Take Students’ Safety Seriously with Acorn® Wash-Ware® Products. Schools often overlook one of the biggest dangers to student health: GERMS. | 0 | 850 KB | ||
| | The best ways to stay healthy are also the simplest: hand washing with soap and water and staying hydrated. | 0 | 3 MB | ||
| | Hand Washing Products Brochure (pdf) | 0 | 2 MB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB | ||
| | Tools / Fasteners: Wrenches | 0 | 62 KB | ||
| | Tools / Fasteners: Fasteners | 0 | 83 KB | ||
| | Washfountain Soap Equipment: PDM Metering Liquid Soap Tank -Washfountain | 0 | 81 KB | ||
| | Wash-Ware Nozzles: Wash-Ware Nozzle Assembly | 0 | 77 KB | ||
| | Wash-Ware Nozzles: Wash-Ware Nozzle Assembly | 0 | 81 KB |
Specifications
| Product Type | Wash Fountain |
| Configurations Available | On-Floor with Wall Waste Outlet (-2), On-Floor with Floor Waste Outlet (-3) |
| Brand | Wash-Ware® |
| Material | Stainless Steel |
| Mounting | Wall Mounted |
| Foot Valve | Foot Operation |
| Vandal Resistant | Moderate |
| Institutional Applications | Hospital & Treatment Centers, Educational Building, Train Station & Airports, Other Institutional Buildings |
| Commercial Applications | Stores & Shopping Centers, Warehouse, Office Building, Restaurant & Hospitality, Stadium & Arena |
| Park and Recreation Applications | Yes |
| Bowl Shape | Semi-Circular |
| Compliance | Federal Public Law 111-380 |
| Overall Dimensions | 38" (Side-to-Side) x 32" (Front-to-Back) |
| Stations-Users | 3 |
Options
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | -VP | Option: Black Vinyl Clad Enclosure | ||
 | 2 (Hand Wash) | Option: On-Floor, Wall Outlet Hand Wash Station | ||
 | BO | Option: Bottom Supply, Vent Off Drain | ||
 | BT | Option: Bottom Supply, Vent Thru Fixture | ||
 | CB | Option: Column Braced to Back Splash | ||
 | DV | Option: Liquid/Lotion Soap Dispenser | ||
 | EG | Option: Enviro-Glaze® Powder Coating | ||
 | F | Option: Foot Operation for Wash Fountain | ||
 | H (Hand Wash) | Option: Hand Operation for Hand Wash Station | ||
 | HB (Hand Wash) | Option: Hose Bibb on Washfountain | ||
 | LBS | Option: Less Backsplash | ||
 | PCB | Option: Column Arranged to Receive 1-1/2" Pipe Brace | ||
 | PDM | Option: Metering Liquid Soap Dispenser | ||
 | PPZ | Option: Programmable Piezo Button | ||
 | SO | Option: (Hands-Free) Sensor Operation | ||
| SO-BAT | Option: (Hands-Free) Sensor Activated - Battery Powered | ||
 | SPX | Option: 16 Gage Stainless Steel Enclosure | ||
 | ST | Option: Single Temperature | ||
 | TM | Option: Multi-Fold Paper Towel Dispenser (Wash Fountain only) | ||
 | TO | Option: Top Supply, Vent Off Drain | ||
 | TS | Option: Single-Fold Paper Towel Dispenser (Wash Fountain only) | ||
 | TT | Option: Top Supply, Vent thru Fixture |
Models
CONFIGURATION
3543-2 | On-Floor, Wall Outlet includes a 1-1/2" OD x 4" Long Waste Outlet Tailpiece
3543-3-BO | On-Floor, Floor Outlet; Bottom Supply; Vent Off Drain
3543-3-BT | On-Floor, Floor Outlet; Bottom Supply; Vent Thru-Fixture
3543-3-TO |On-Floor, Floor Outlet; Top Supply; Vent Off Drain
3543-3-TT | On-Floor, Floor Outlet; Top Supply; Vent Thru-Fixture
OPERATION
-H | Hand Operation with Air-Control™ Pneumatic Valve
-PZ | Electronic Piezo Operation
-SO | Electronic Sensor Operation
-SO-BAT | Battery-Powered Sensor Operation

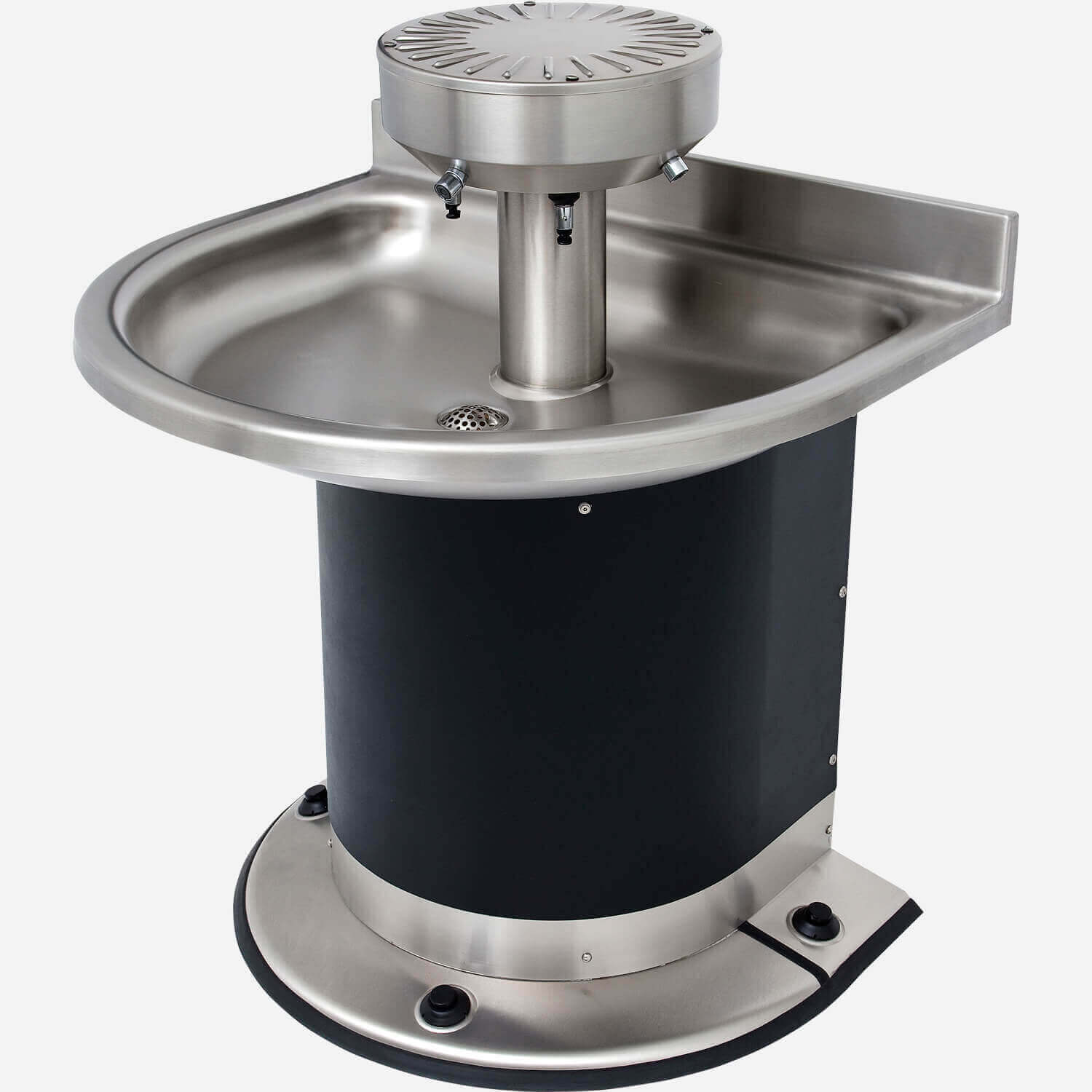

-F | Foot Operation with Air-Control™ Pneumatic Valve
Product Variations
Image | Model ID | Description |
|---|---|---|

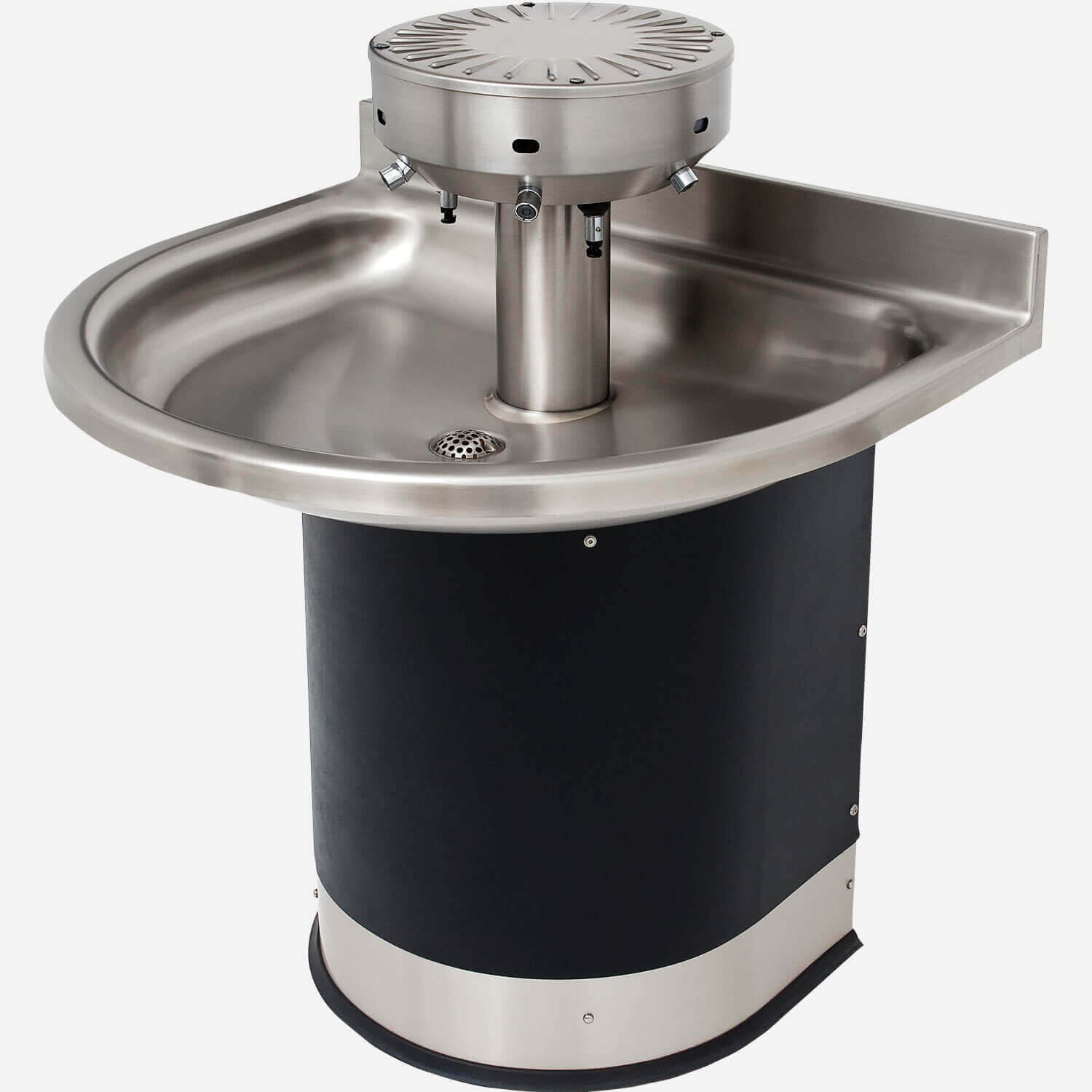

 | 3544 | Four Station, On-Floor, Semi-Circular Wash Fountain |
