Model 3772

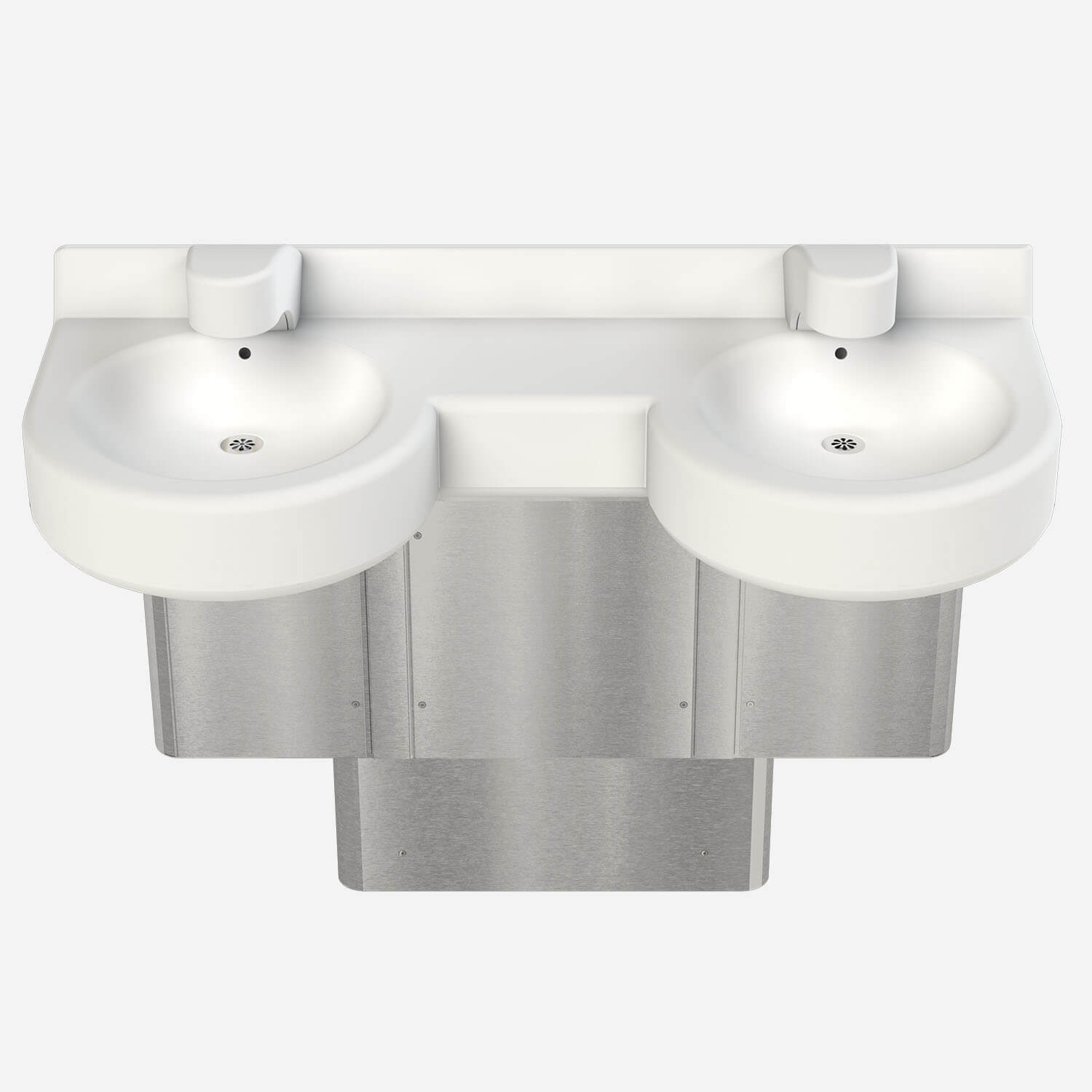

Two Station, Curve Front, Solid Surface Wash Basin
Perfect for high-traffic institutional, commercial and public applications, this curve-front two-station hand wash basin is made from Corterra ® solid surface, which also offers design flexibility and durability. It features a wall mount, off-floor or on-floor waste outlet configurations, and is ADA compliant when installed properly.
Mixing Valve delivers tempered water flow by compensating for pressure and temperature fluctuations and is ASSE 1070 compliant. Valve is to be field set to 105° Fahrenheit and includes Strainers and Integral Checks. Operating range is 30 PSI to 100 PSI.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Two Station Curved Front Cast Solid Surface (Corterra®) Wash Basin | 0 | 2 MB | ||
| | Two Station Curved Front Cast Solid Surface (Corterra®) Wash Basin [3772-1 | Off-Floor, Wall Waste; 3772-2 | On-Floor, Wall Waste] | 0 | 238 KB | ||
 | | Acorn Meridian Corterra Solid Surface Basins [3752-HLL, 3752-HLR, 3753-HLH, 3753-LHL, 3761, 3762, 3763, 3764,3771-1,3772-2-SES, 3773-3, 3791, 3792, 3793] | 0 | 408 KB | ||
 | | Off-Floor Two Station Curved Front Cast Solid Surface (Corterra®) Wash Basin | 0 | 284 KB | ||
| | Off-Floor Two Station Curved Front Cast Solid Surface (Corterra®) Wash Basin | 0 | 207 KB | ||
| | Enviro-Glaze Powdercoating Color Chart | 0 | 2 MB | ||
 | | Two Station, Off-Floor, Sensor Operation,Scalloped Enclosure | 0 | 190 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
| | The best ways to stay healthy are also the simplest: hand washing with soap and water and staying hydrated. | 0 | 3 MB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB | ||
| | Tools / Fasteners: Stainless Steel Security Screws | 0 | 138 KB | ||
| | Valves: Air-Control™ Metering Servomotor Assembly | 0 | 124 KB | ||
| | Stops: Plastic Air-Control® Check Stop Assembly | 0 | 74 KB | ||
| | Trims: Push Button Assembly | 0 | 103 KB | ||
| | Deck-Mounted Wash Basin Soap Equipment: Deck Mounted Soap Dispenser | 0 | 110 KB | ||
| | Shower-Ware - Cartridges: Pressure Balance Cartridge/Stem Assembly | 0 | 104 KB | ||
| | Wash-Ware - Valves: Thermostatic Mixing Valve, Washfountain -MXT | 0 | 90 KB | ||
| | Waste Connections and Thru-Wall Extensions: Waste Piping Detail for Meridian Curved Front Corterra Basins Models 3771, 3772, 3773 | 0 | 89 KB |
Specifications
| Product Type | Wash Basin |
| Configurations Available | Off-Floor with Wall Waste Outlet (-1), On-Floor with Wall Waste Outlet (-2) |
| Brand | Meridian, Acorn ConTrols® Inside |
| Material | Corterra® Solid Surface |
| Mounting | Wall Mounted |
| Institutional Applications | Hospital & Treatment Centers, Educational Building, Train Station & Airports, Other Institutional Buildings |
| Commercial Applications | Stores & Shopping Centers, Warehouse, Office Building, Restaurant & Hospitality, Stadium & Arena |
| Compliance | UL Greenguard, ADA Compliant, Federal Public Law 111-380 |
| Bowl Shape | Round |
| Overall Dimensions | 50" (Side-to-Side) x 21.5" (Front-to-Back) |
| Stations-Users | 2 |
Options
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | -VP | Option: Black Vinyl Clad Enclosure | ||
 | 1 (Hand Wash) | Option: Off-Floor, Wall Outlet Hand Wash Station | ||
 | 2 (Hand Wash) | Option: On-Floor, Wall Outlet Hand Wash Station | ||
 | CSG | Option: Centerset Gooseneck Spout | ||
 | ECL | Option: Extended Countertop Left Hand | ||
 | ECR | Option: Extended Countertop Right Hand | ||
 | H (Hand Wash) | Option: Hand Operation for Hand Wash Station | ||
 | H1 | Option: Single Hole Punch for Valve by Others | ||
 | H24 | Option: Two Hole Punch 4" Center for Valve by Others | ||
 | H34 | Option: Three Hole Punch 4" Centers for Valve by Others | ||
 | H38 | Option: Three Hole Punch 8" Center for Valve by Others | ||
 | LSA | Option: Left-Hand Side Apron | ||

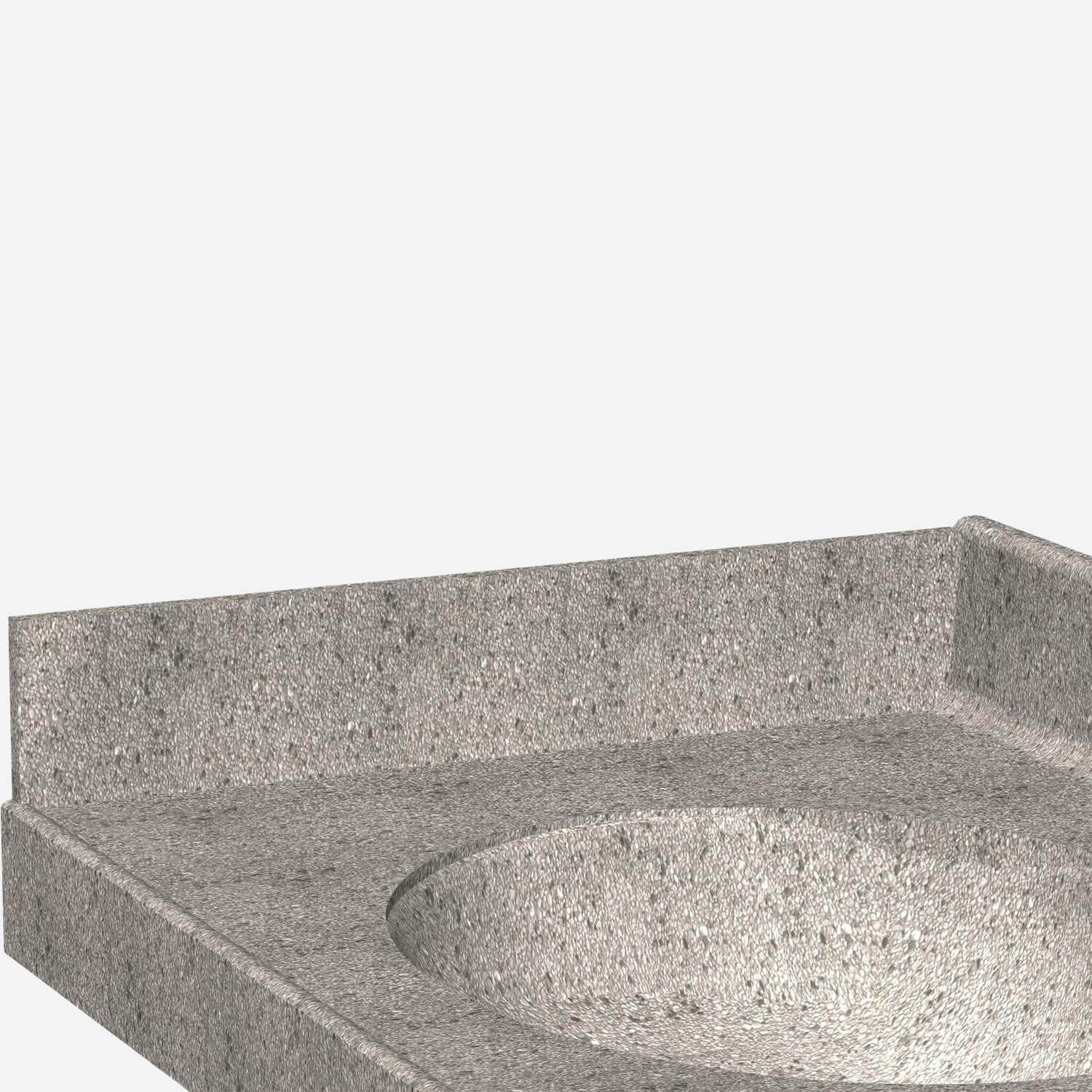

 | LSS | Option: Left-Hand Side Splash | ||
 | OCC | Option: Corterra® Solid Surface | ||
 | PDM | Option: Metering Liquid Soap Dispenser | ||
 | PPZ | Option: Programmable Piezo Button | ||

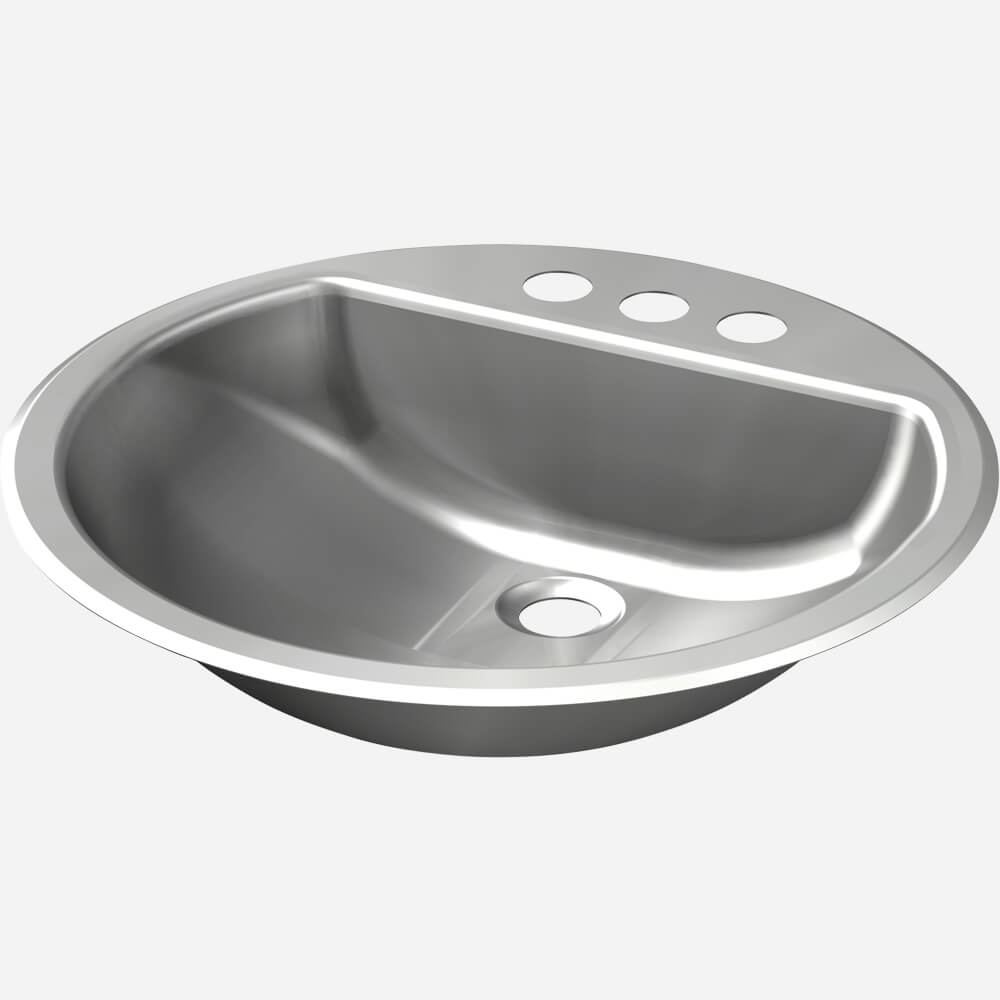

 | RLD | Option: "D" Shape Basin Less Valves | ||

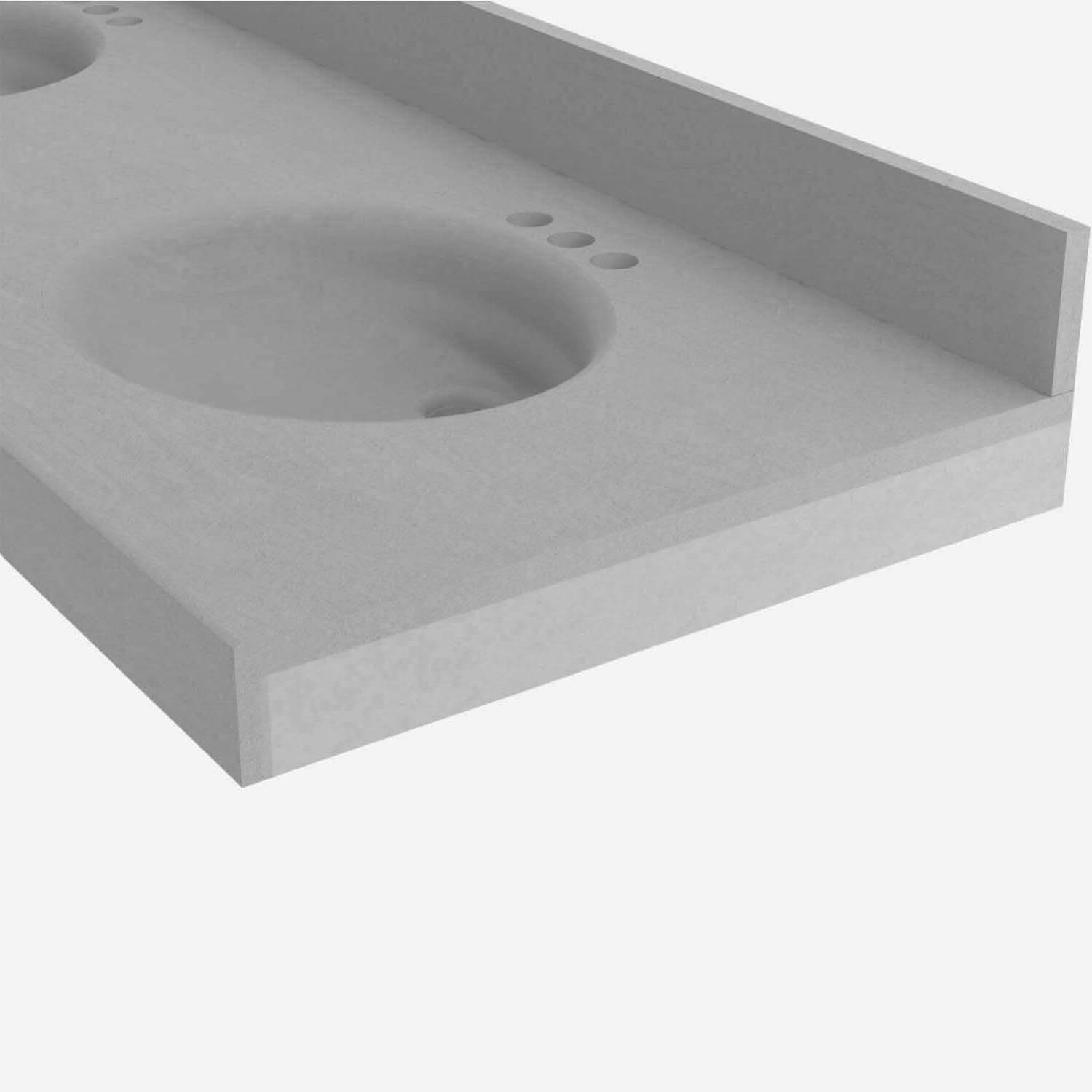

 | RSA | Option: Right-Hand Side Apron | ||

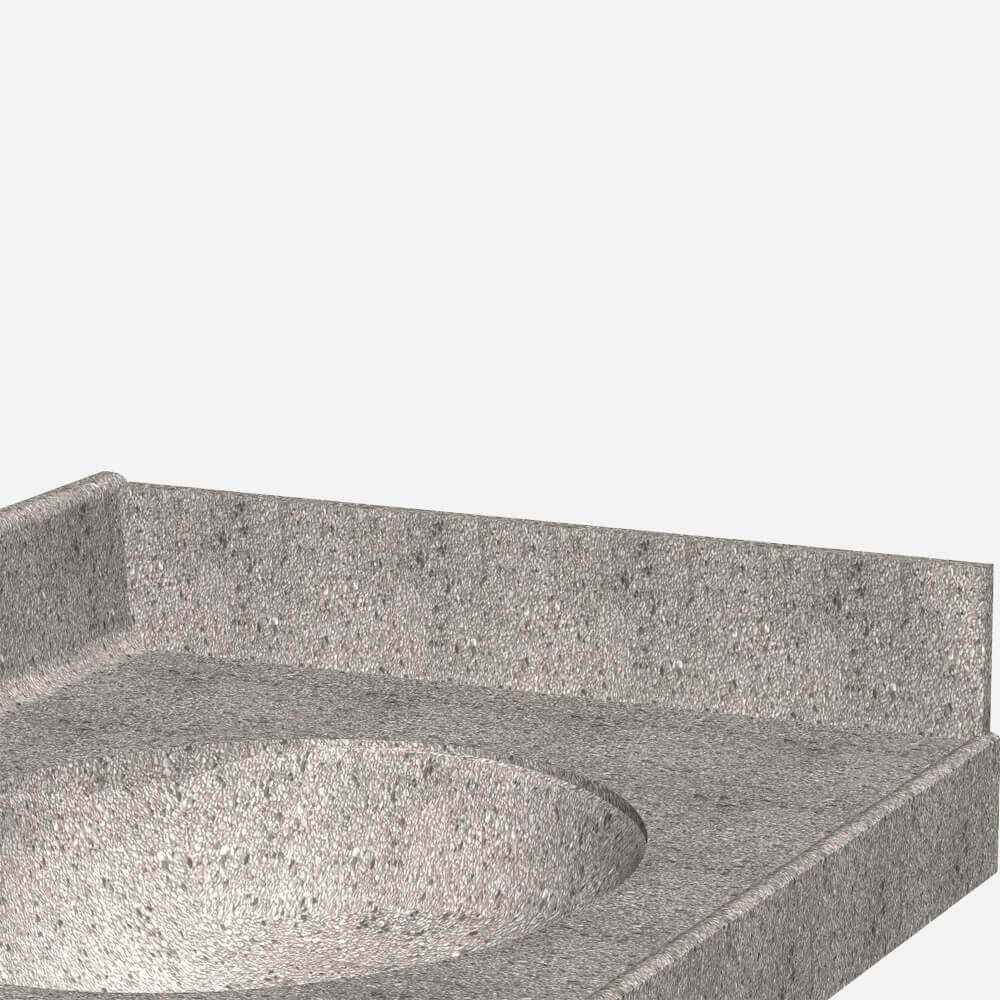

 | RSS | Option: Right-Hand Side Splash | ||

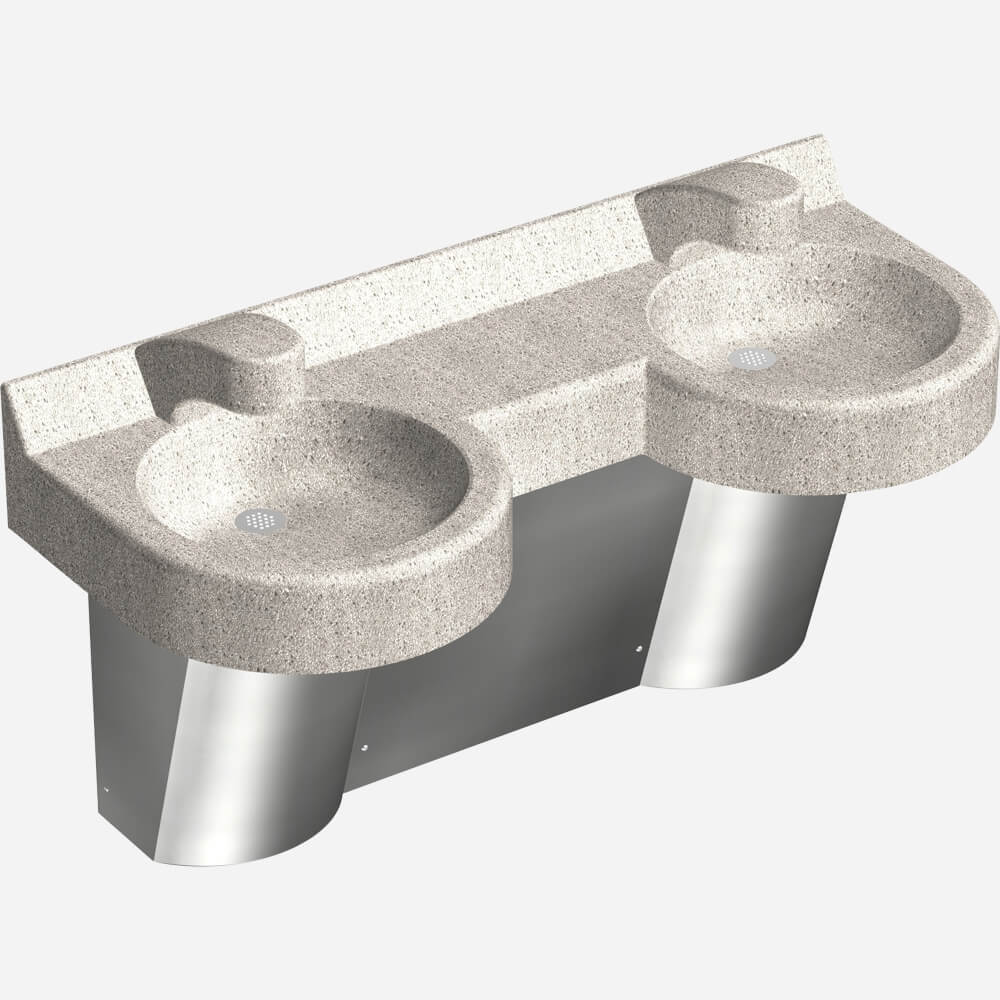

 | SES | Option: Scalloped Enclosured Style | ||
 | SO | Option: (Hands-Free) Sensor Operation | ||
| SO-BAT | Option: (Hands-Free) Sensor Activated - Battery Powered | ||
 | SPX | Option: 16 Gage Stainless Steel Enclosure | ||
 | ST | Option: Single Temperature |
Models
Sample configurations for 3772 Two Station

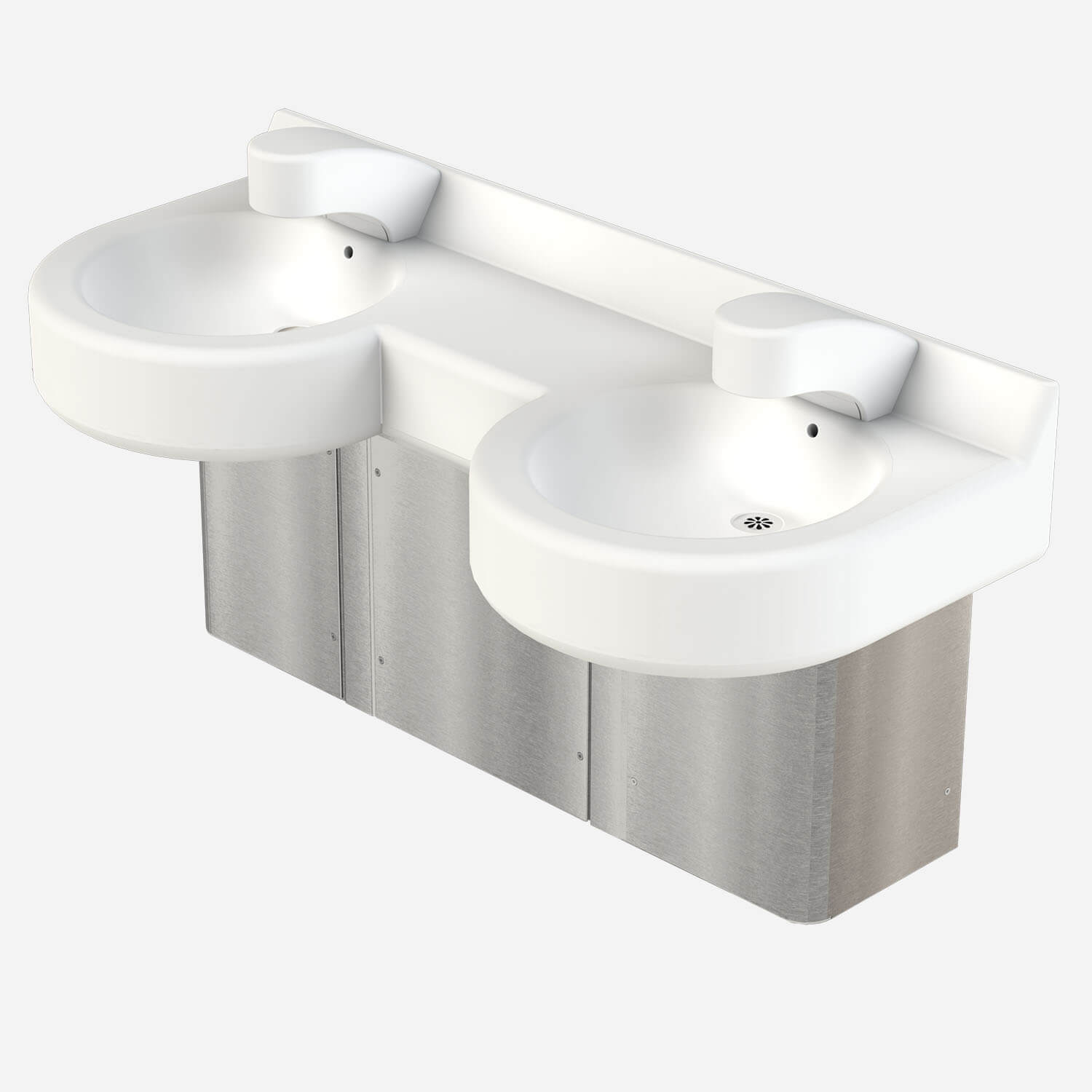

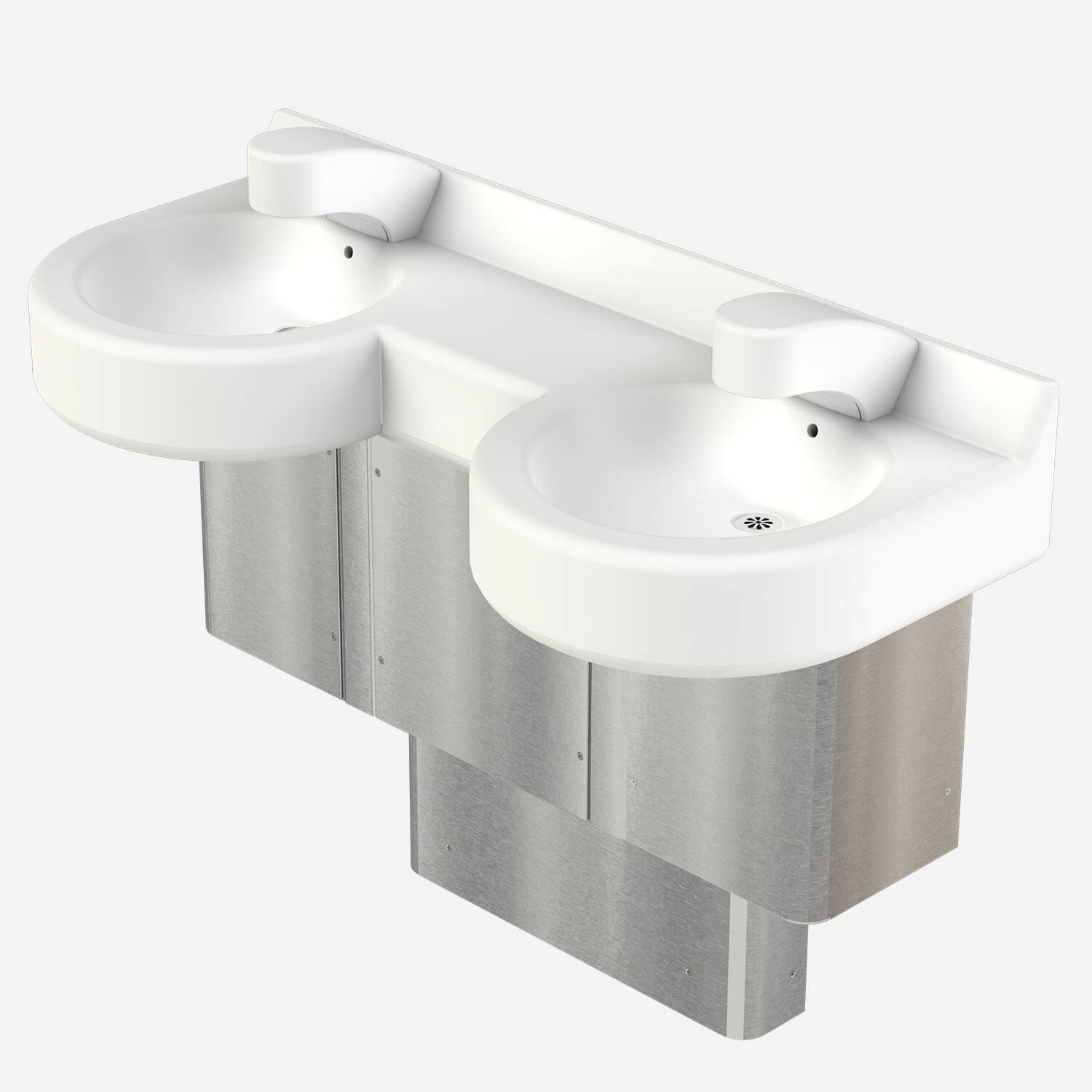

3772-1-SPX-OCC11M
Off-Floor, Wall Waste,
Stainless Steel Enclosure
Blanco Matte Corterra

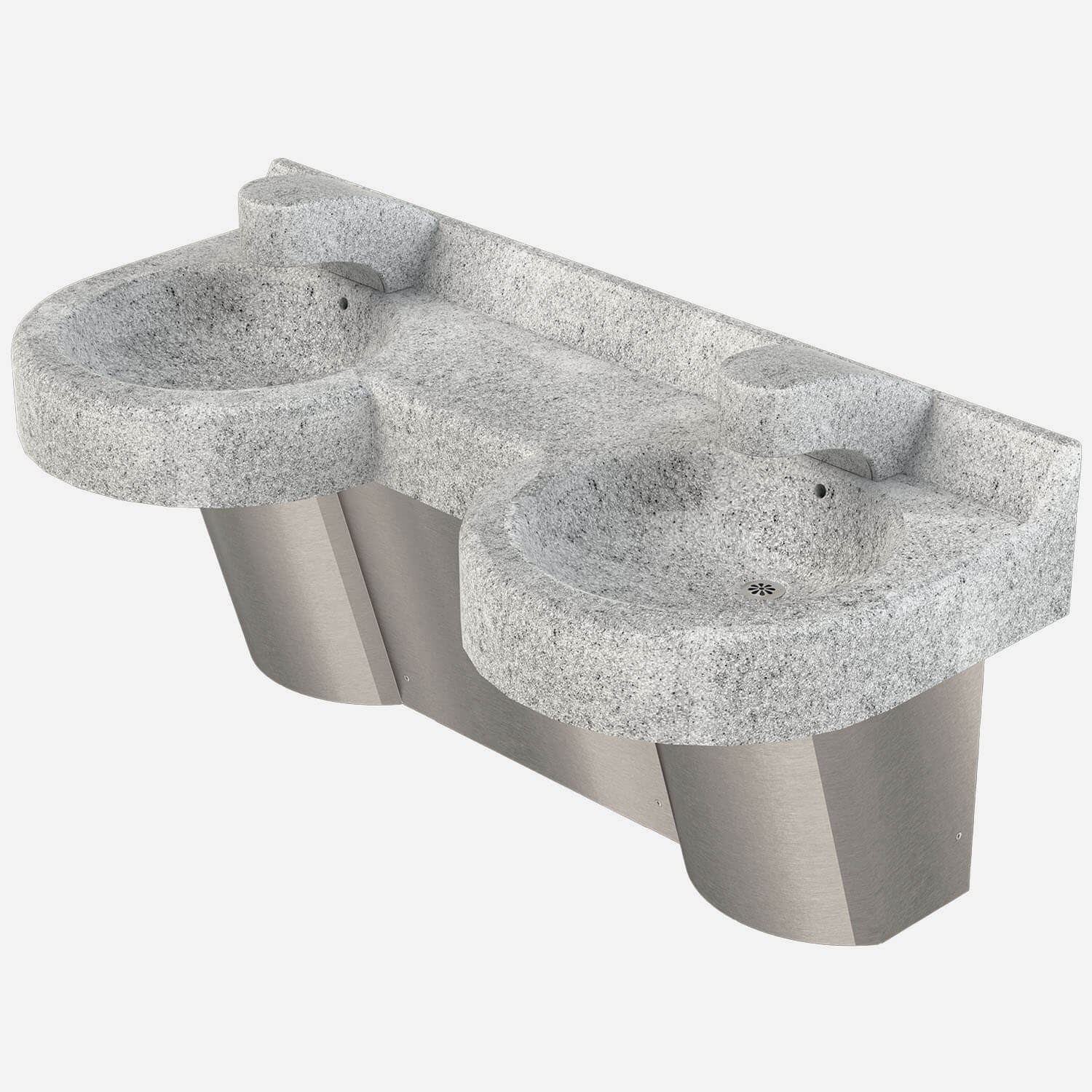

3772-1-SES-OCC1A
Off-Floor, Wall Waste
Scallopped Enclosure
Smokey Granite Corterra

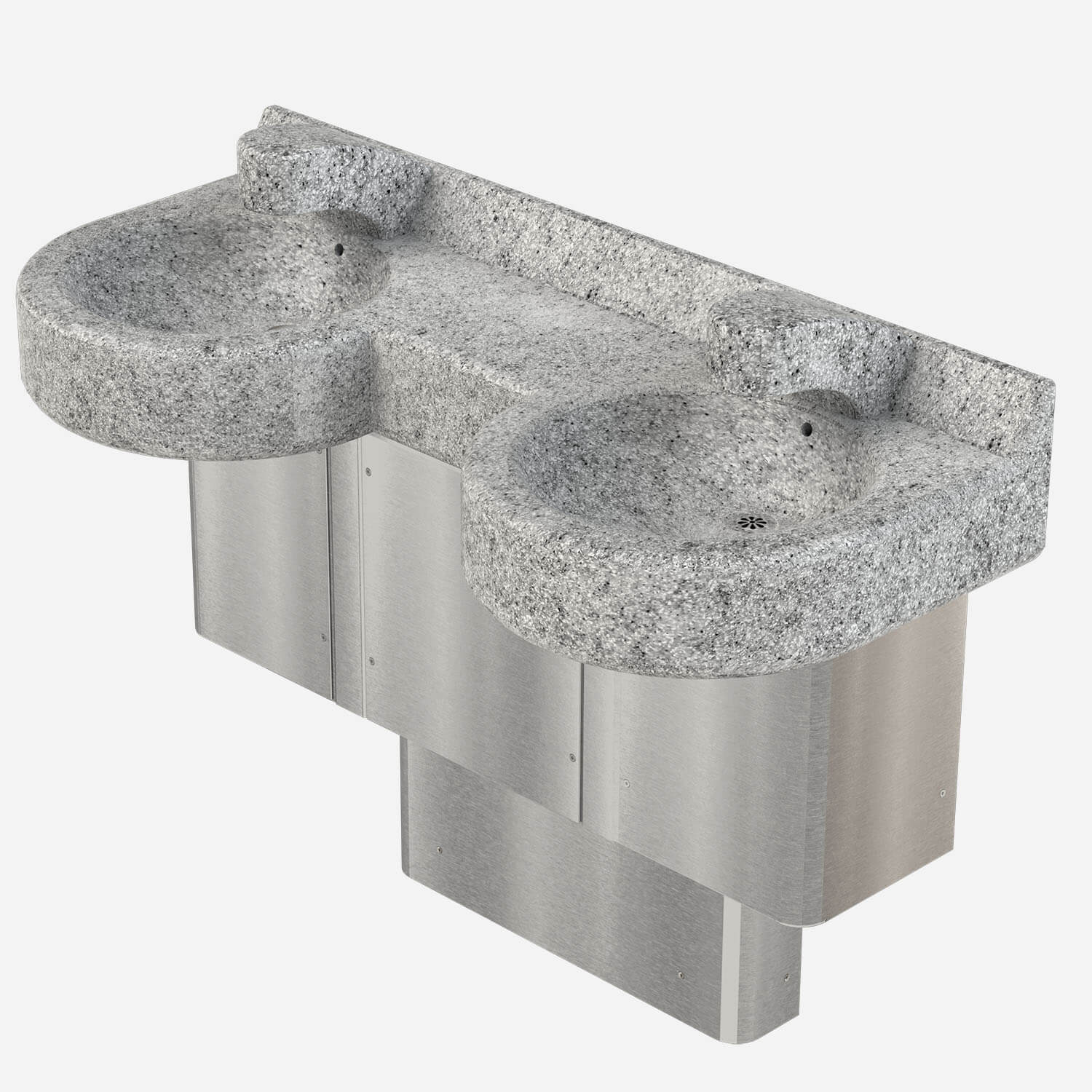

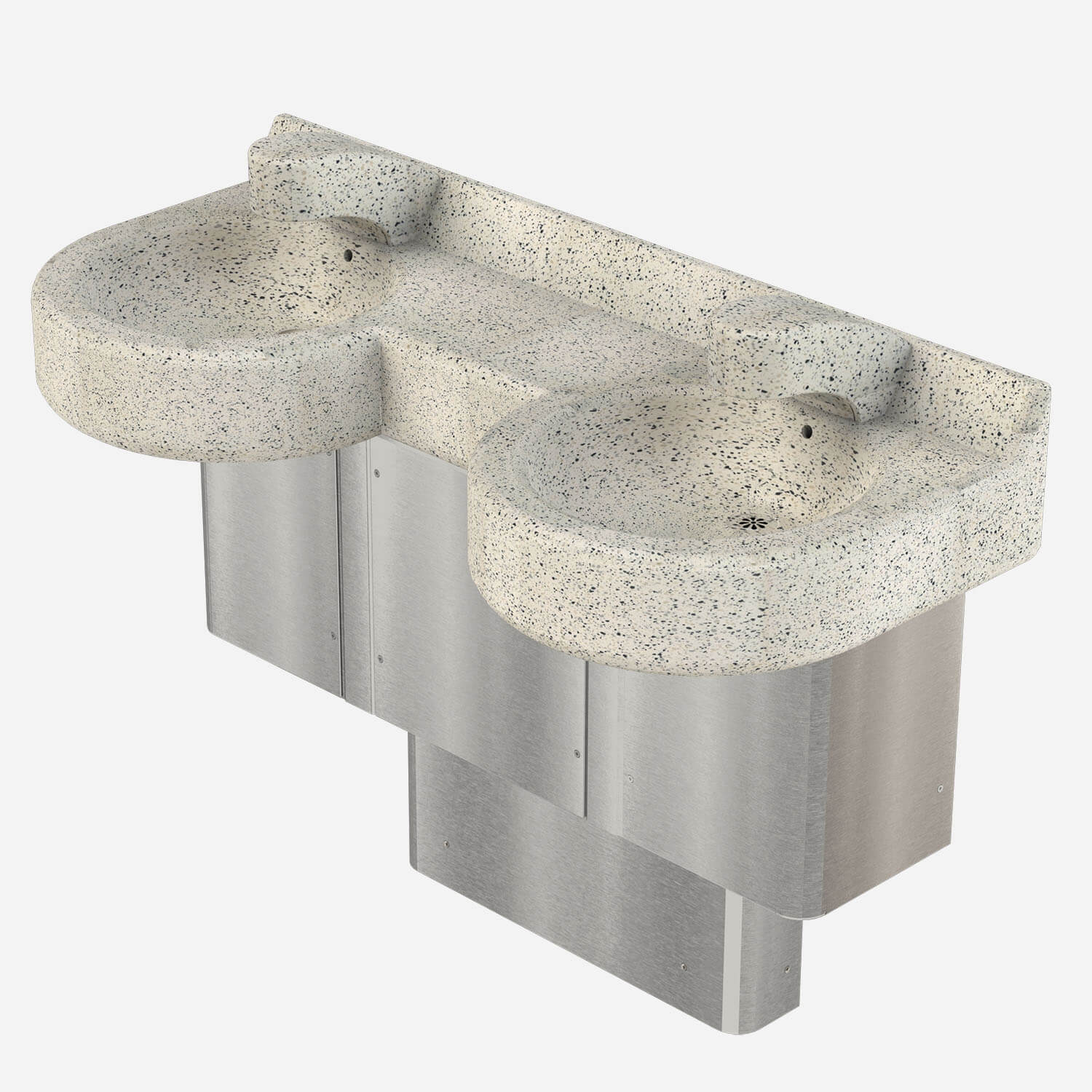

3772-2-SPX-OCC1A
On-Floor, Wall Waste
Stainless Steel Enclosure
Smokey Granite Corterra
3772-2-VP-OCC1A
On-Floor, Wall Waste
Gray Vinylclad Enclosure
Smokey Granite Corterra
