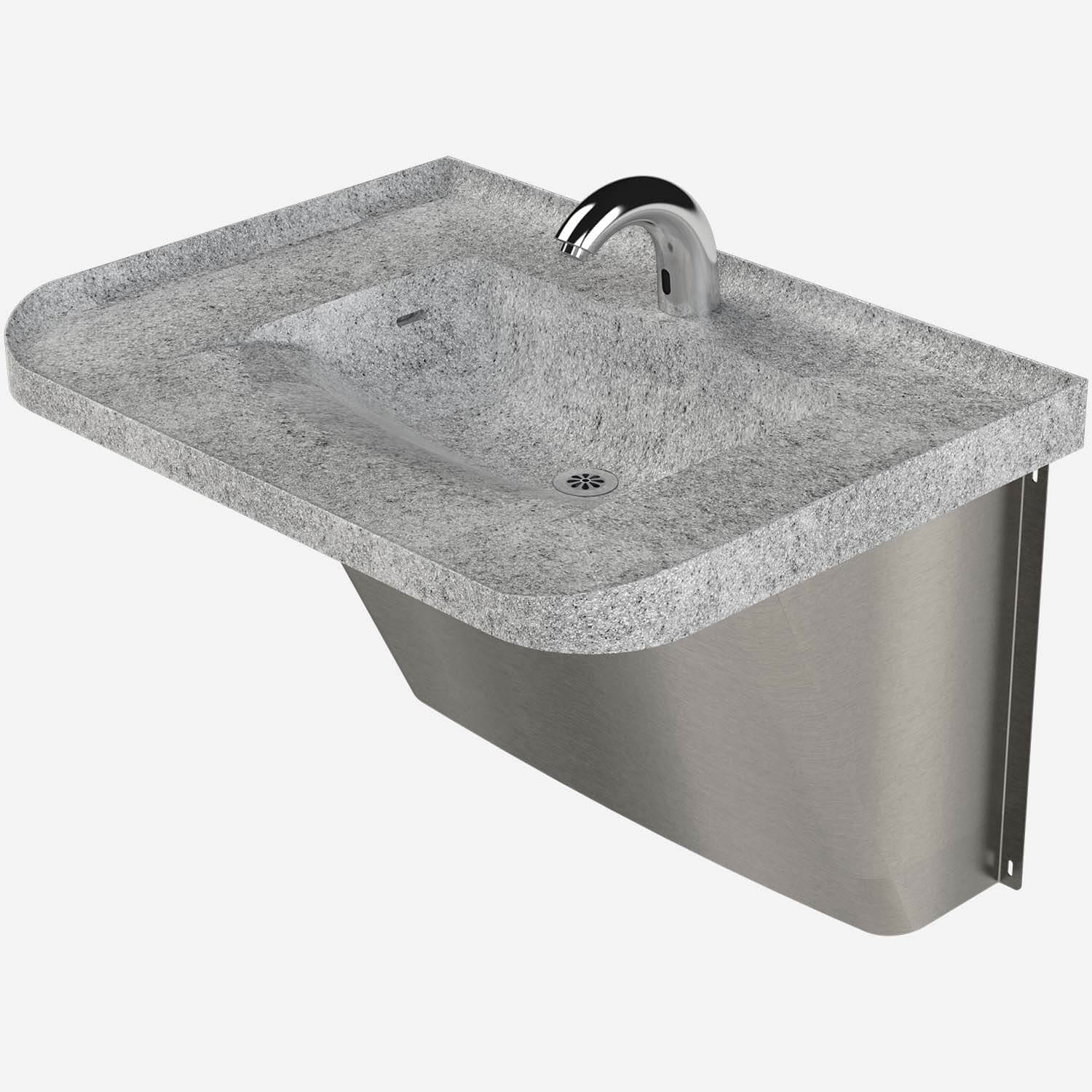

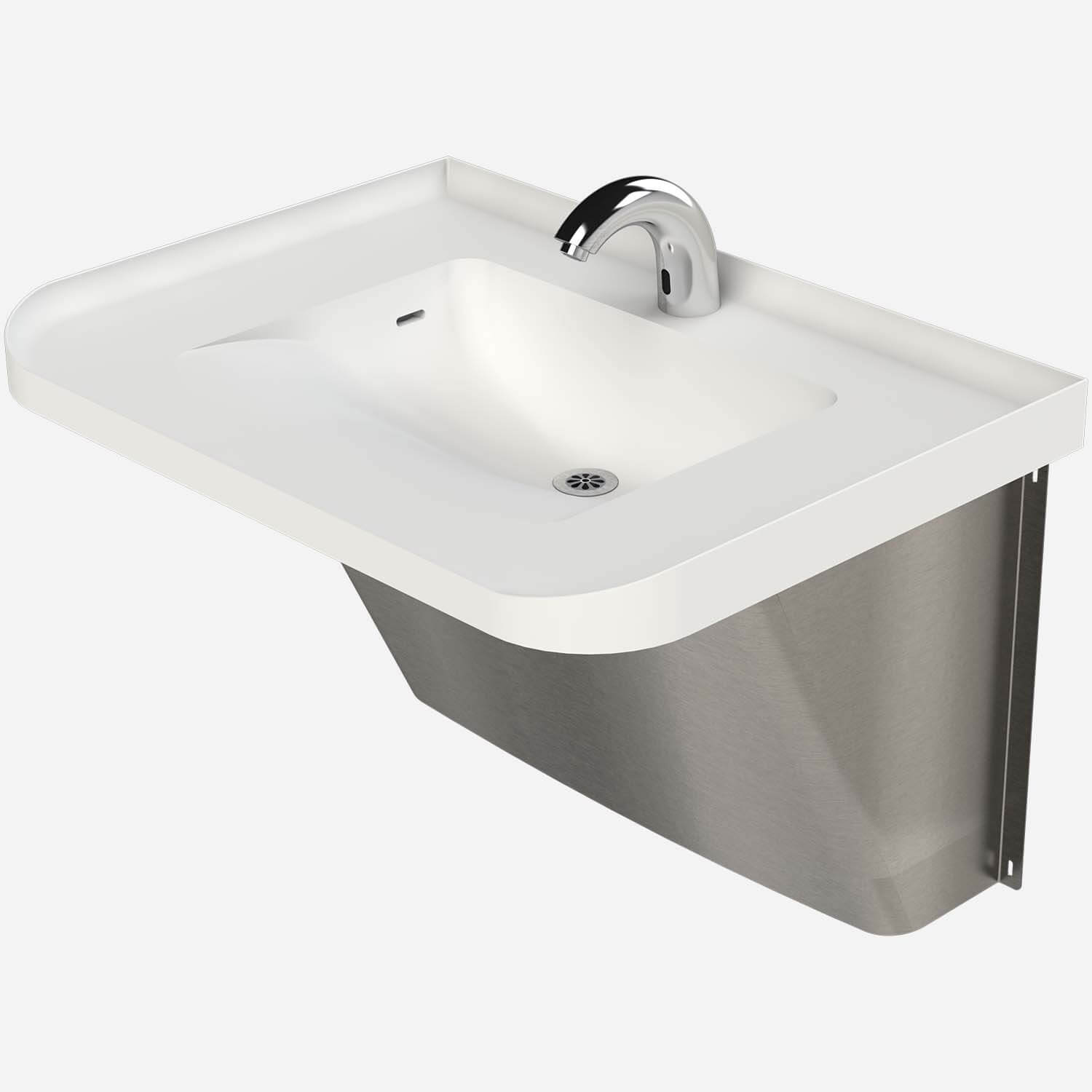

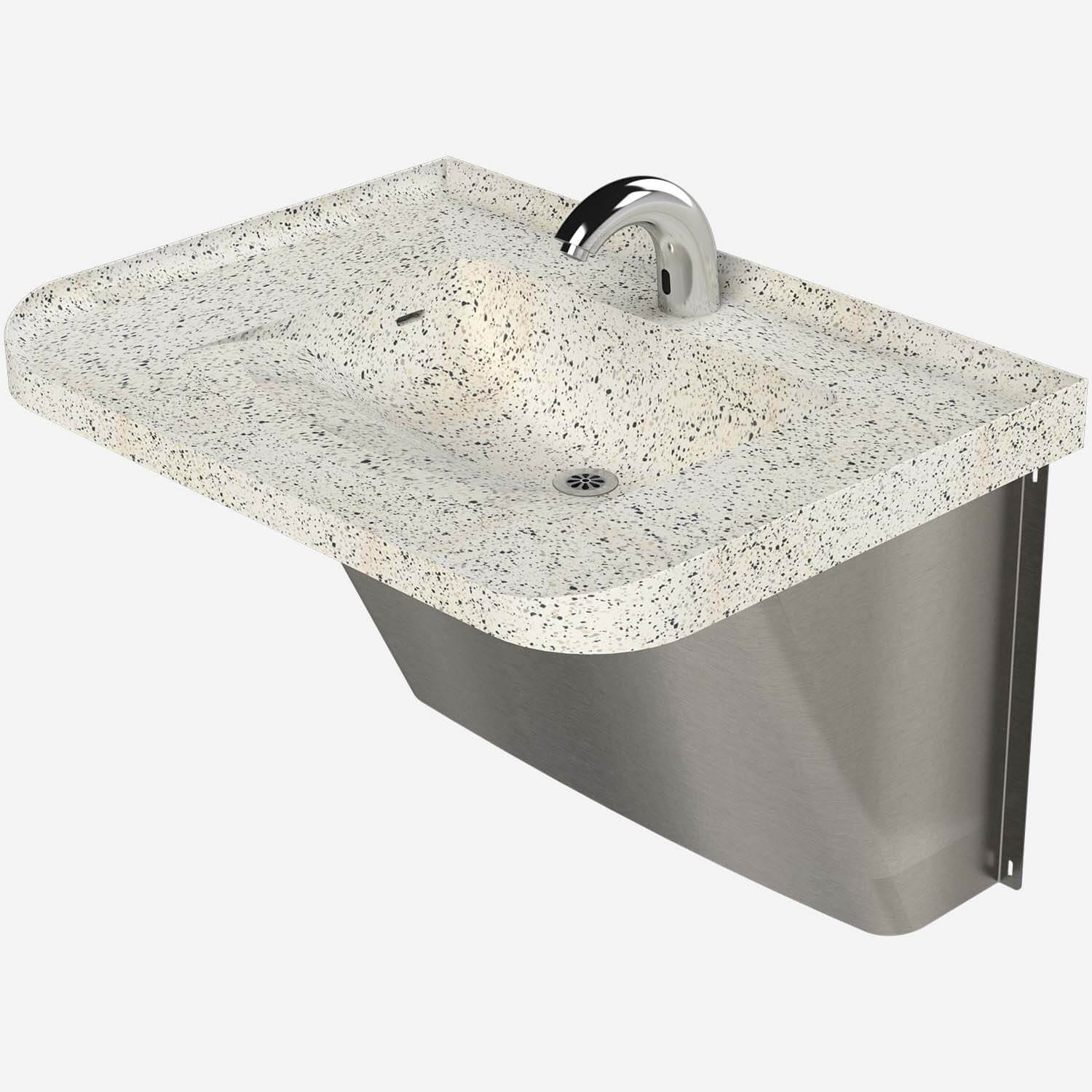

Model 3751
One-Station Solid Surface Hi-Lo™ Basin
Versatility and modern aesthetics make Meridian Hi-Lo™ washbasins ideal for any commercial or institutional environment. Designed with a Corterra ® solid surface top and integrated bowl, this space-saving wall mount single-station basin is code and ADA compliant when installed properly. This basin mimics the design of the Hi-Lo basins 3752 and 3753.
T/P Balancing Mixing Valve is ASSE 1070 compliant and delivers constant water flow by compensating for temperature and pressure fluctuations. Valve is to be field set to 105° Fahrenheit and includes Integral Checks and Screens to prevent cross-flow and contamination. Operating range is 30 PSI - 100 PSI.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | One Station Cast Solid Surface (Corterra®) Basin (Hi-Lo Style); includes repair parts drawings | 0 | 3 MB | ||
| | One Station Cast Solid Surface (Corterra®) Basin (Hi-Lo Style) | 0 | 602 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
| | The best ways to stay healthy are also the simplest: hand washing with soap and water and staying hydrated. | 0 | 3 MB | ||
| | Enviro-Glaze Powdercoating Color Chart | 0 | 2 MB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB |
Specifications
| Brand | Acorn ConTrols® Inside, Meridian |
| Material | Corterra® Solid Surface |
| Mounting | Wall Mounted |
| Product Type | Wash Basin |
| Commercial Applications | Restaurant & Hospitality, Office Building, Store & Shopping Center, Stadium & Arena, Warehouse |
| Institutional Applications | Hospital & Treatment Centers, Educational Building, Other Institutional Buildings, Train Station & Airport |
| Configurations Available | Off-Floor with Wall Waste Outlet (-1) |
| Overall Dimensions | 30" (Side-to-Side) x 22" (Front-to-Back) |
| Stations-Users | 1 |
| Bowl Shape | Rectangular |
| Compliance | UL Greenguard, ADA Compliant |
