Member of Morris Group International
Two-Station Solid Surface Hi-Lo™ Basin
Versatility and modern aesthetics make Meridian Hi-Lo™ wash basins ideal for any commercial or institutional environment. Designed with a Corterra® solid surface top and integrated bowl, this space-saving wall mount two-station basin is code-compliant and ADA compliant when installed properly.
T/P Balancing Mixing Valve is ASSE 1070 compliant and delivers constant water flow by compensating for temperature and pressure fluctuations. Valve is to be field set to 105° Fahrenheit and includes Integral Checks and Screens to prevent cross-flow and contamination. Operating range is 30 PSI - 100 PSI.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Two-Station Corterra® Cast Solid Surface Hi-Lo Basin [Model 3752-HLL | Left Side Hi; Model 3752-HLR | Right Side Hi]; includes repair parts drawings | 0 | 3 MB | ||
| | Two-Station Corterra® Cast Solid Surface Hi-Lo Basin [Model 3752-HLL | Left Side Hi; Model 3752-HLR | Right Side Hi] | 0 | 268 KB | ||
 | | Acorn Meridian Corterra Solid Surface Basins [3752-HLL, 3752-HLR, 3753-HLH, 3753-LHL, 3761, 3762, 3763, 3764,3771-1,3772-2-SES, 3773-3, 3791, 3792, 3793] | 0 | 408 KB | ||
 | | Corterra® Solid Surface Hi-Lo Basin [Two-Station 3752-1-HLL, 3752-1-HLR, and Three- Station 3753-1-LHL] | 0 | 899 KB | ||
| | Corterra® Solid Surface Hi-Lo Basin [Two-Station 3752-1-HLL, 3752-1-HLR, and Three- Station 3753-1-LHL] | 0 | 2 MB | ||
| | Enviro-Glaze Powdercoating Color Chart | 0 | 2 MB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
| | The best ways to stay healthy are also the simplest: hand washing with soap and water and staying hydrated. | 0 | 3 MB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB |
Specifications
| Product Type | Wash Basin |
| Configurations Available | Off-Floor with Wall Waste Outlet (-1) |
| Brand | Meridian, Acorn ConTrols® Inside |
| Material | Corterra® Solid Surface |
| Mounting | Wall Mounted |
| Institutional Applications | Hospital & Treatment Centers, Educational Building, Train Station & Airports, Other Institutional Buildings |
| Commercial Applications | Stores & Shopping Centers, Warehouse, Office Building, Restaurant & Hospitality, Stadium & Arena |
| Bowl Shape | Square |
| Compliance | UL Greenguard, ADA Compliant, Federal Public Law 111-380 |
| Overall Dimensions | 60" (Side-to-Side) x 22" (Front-to-Back) |
| Stations-Users | 2 |
Options
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | EG | Option: Enviro-Glaze® Powder Coating | ||
 | H (Hand Wash) | Option: Hand Operation for Hand Wash Station | ||
 | H1 | Option: Single Hole Punch for Valve by Others | ||
 | H24 | Option: Two Hole Punch 4" Center for Valve by Others | ||
 | H34 | Option: Three Hole Punch 4" Centers for Valve by Others | ||
 | HLL | Option: Hi-Lo Left Side Hi Configuration | ||

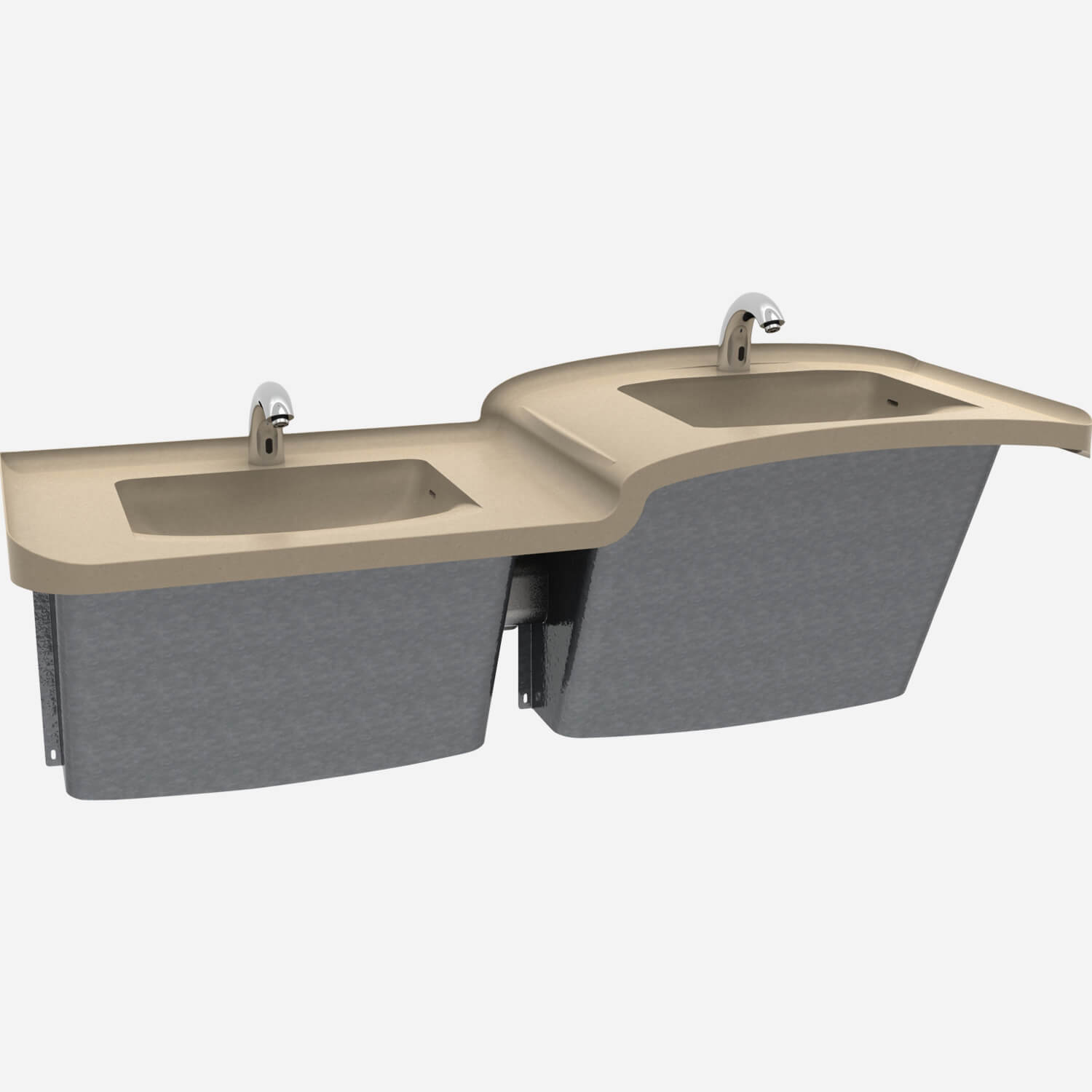

 | HLR | Option: Hi-Lo Right Side Hi Deck Configuration | ||
 | OCC | Option: Corterra® Solid Surface | ||
 | PDM | Option: Metering Liquid Soap Dispenser | ||
 | PPZ | Option: Programmable Piezo Button | ||
 | SO | Option: (Hands-Free) Sensor Operation | ||
| SO-BAT | Option: (Hands-Free) Sensor Activated - Battery Powered | ||
 | ST | Option: Single Temperature |
Models
The examples of model numbers are shown below.
Model Number
3752-1-HLL-OCC1A-SO
Left (user's view)
Station High shown
with Smokey Granite
(-OCC1A)
Corterra® Solid Surface,
Sensor Activated Faucet
(option -SO)
Model Number
3752-1-HLR-OCC1A-SO
Right
Station High shown
with Smokey Granite
(-OCC1A)
Corterra® Solid Surface,
Sensor Activated Faucet
(option -SO)
