Model ELPS2

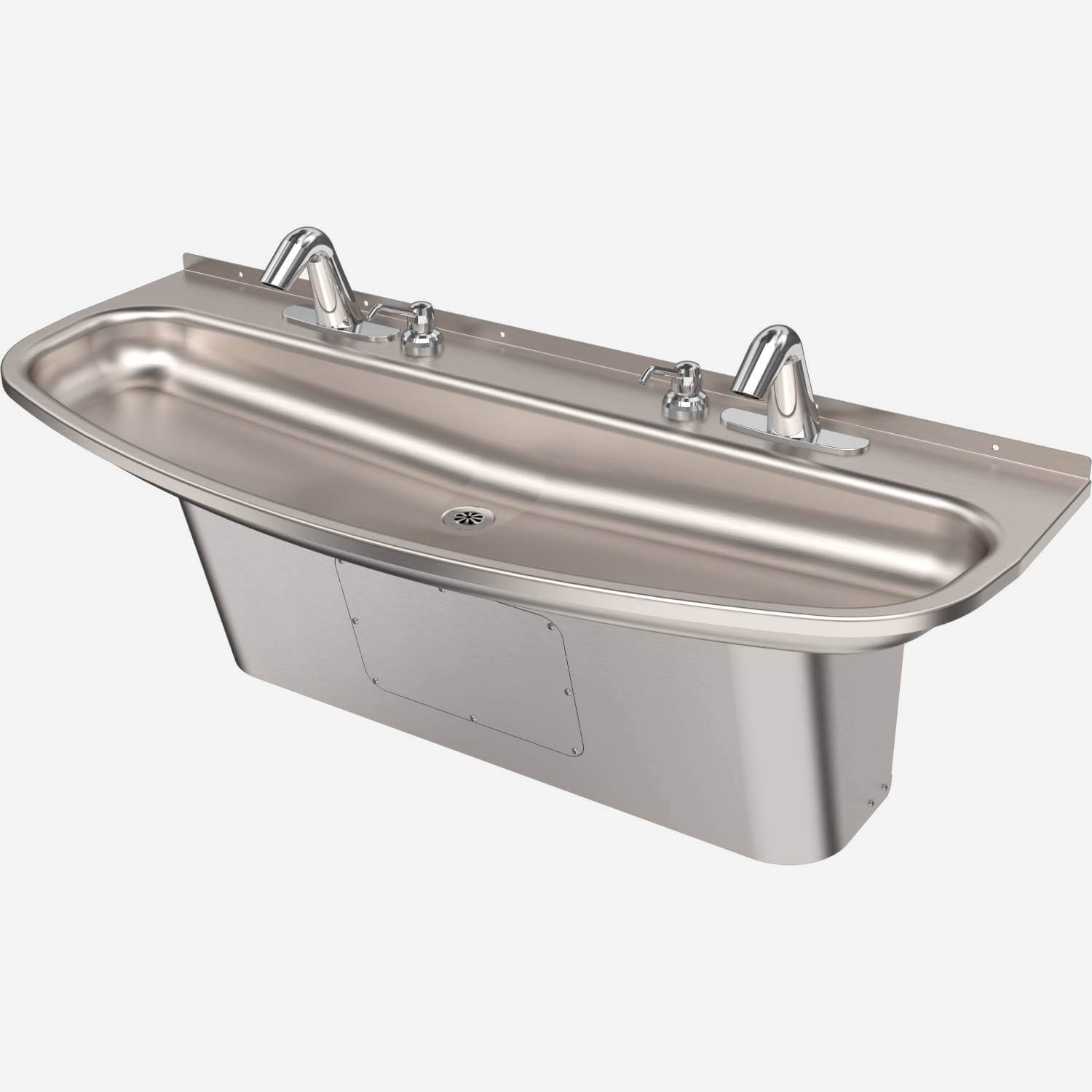

Ellipse™ Stainless Steel, Wall-Mounted Trough Sink, Two Stations
Acorn’s Ellipse™ stainless steel, wall-mounted trough sink is intended to assist with public safety. Its cost-effective, space-saving design is ideal for use in buildings of all types to expand hand washing capabilities. The unit conforms with ADA and OBC guidelines for accessibility.
Model no. ELPS2 measures 48"W (1,219 mm) and accommodates two users. Both basin and trap enclosure are fabricated from 16-gauge, type 304 stainless steel, polished to a #4 satin finish; Enviro-Glaze ® powder coating is optionally available.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Ellipse™ Wall Mounted Stainless Steel Hand Wash Basin [ELPS1 One Station 27.75" wide; ELPS2 Two Station 48" wide] | 0 | 272 KB | ||
| | Ellipse™ Wall Mounted Stainless Steel Hand Wash Basin [ELPS1 One Station 27.75" wide; ELPS2 Two Station 48" wide] | 0 | 168 KB | ||
 | | Stainless Steel Ellipse™ Wall Mounted Basin [ELPS1 One-Station 27-3/4"; ELPS2 Two-Station 48"] also SW000-F60 Faucet | 0 | 2 MB | ||
| | Stainless Steel Ellipse™ Wall Mounted Basin [ELPS1 One-Station 27-3/4"; ELPS2 Two-Station 48"] also SW000-F60 Faucet | 0 | 1 MB | ||
| | Acorn Engineering - Circular wash fountains, Semicircular wash fountains, Corner wash fountains, Elliptical wash fountains, Linear wash fountains | 0 | 188 KB | ||
 | | Acorn Engineering - Circular wash fountains, Semicircular wash fountains, Corner wash fountains, Elliptical wash fountains, Linear wash fountains | 0 | 201 KB | ||
| | Ellipse Sink Wash-Ware Hand Wash Basin Flyer (pdf) | 0 | 565 KB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB |
Specifications
| Product Type | Wash Basin |
| Brand | Ellipse™, Wash-Ware® |
| Material | Stainless Steel |
| Mounting | Wall Mounted |
| Bowl Shape | Elliptical |
| Compliance | ADA Compliant, Federal Public Law 111-380, OBC, UPC, ASME A112.19.3/CSA B45.4 |
| Overall Dimensions | 48" (Side-to-Side) x 19-5/8" (Front-to-Back) |
| Stations-Users | 2 |
| Patent | Pending |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | PS1000-PS | Accessory: Deck Mount Pump Soap Dispenser | ||
 | PS1000-SSO | Accessory: Sensor Operated Soap Dispenser | ||
 | SW000-F50 | Accessory: Faucet, Hot and Cold Wristblade Gooseneck | ||
 | SW000-F51 | Accessory: Faucet, Hot and Cold Wristblade | ||
 | SW000-F60 | Accessory: Single Temp Sensor Faucet with Stainless Steel Spout and Stainless Steel Deck Plate | ||
 | SW000-F70 | Accessory: Single Temp Push Button Metering Faucet with Plate |
