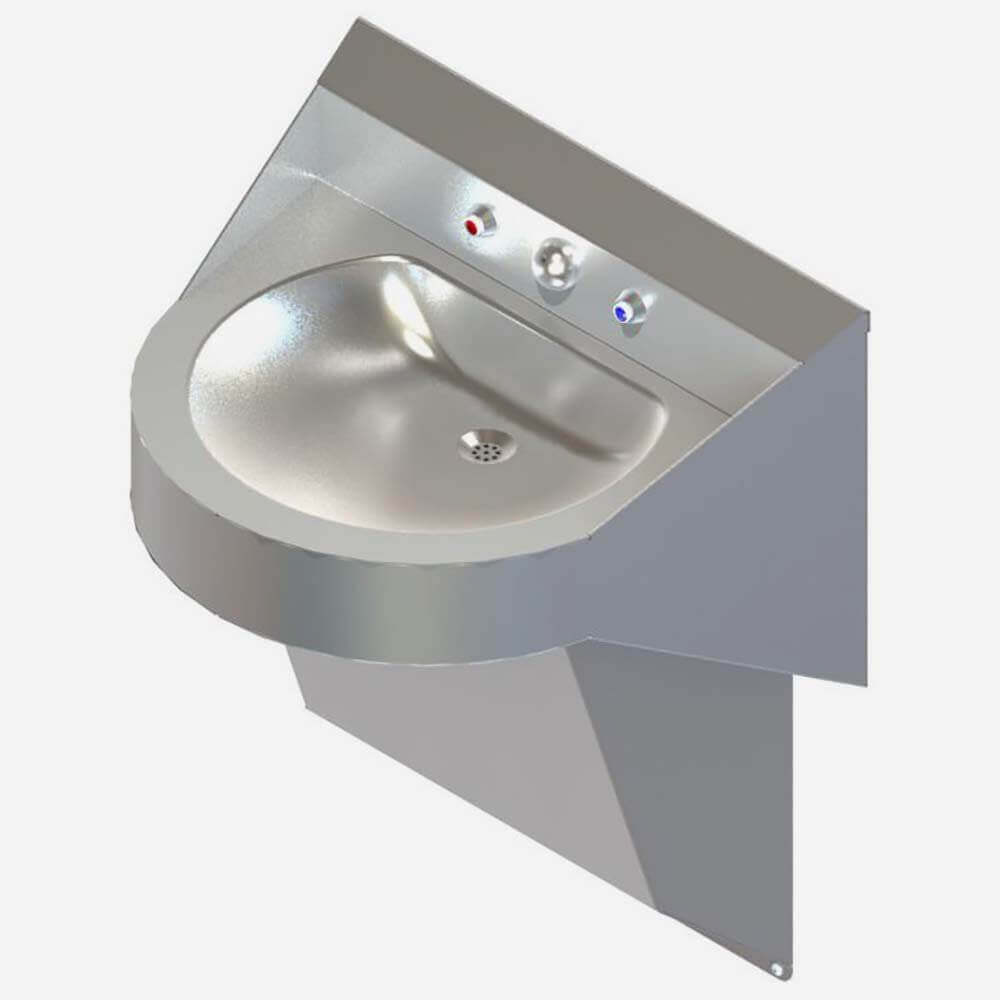

Secur-Care® Ligature-Resistant, ADA Compliant Front Access Stainless Steel Security Lavatory with D-Shaped Bowl
This 18" (457 mm) vandal-resistant, stainless steel security lavatory is designed with tapered side splashes and a sloped backsplash top. The tapered design reduces the risk of the fixture being used as a ligature device. It features a D-shaped bowl and self-draining soap dish.
The fixture is configured with front access for installation and maintenance, where a typical security servicing chase is not available. It mounts off-floor and has a wall waste outlet. When installed properly this lavatory is ADA compliant. A trap cover is provided to deter unauthorized access to the trap. This provides a front access version of the Secur-Care ® LR1653 stainless steel lavatory.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Secur-Care® Ligature-Resistant, ADA Compliant Front Access Stainless Steel Security Lavatory with D-Shaped Bowl | 0 | 727 KB | ||
| | Acorn® Secur-Care® Ligature-Resistant, ADA Compliant Stainless Steel Front-Access Security Lavatory with D-Shaped Bowl | 0 | 131 KB | ||
| | Secur-Care® Ligature-Resistant Flyer (pdf) | 0 | 458 KB | ||
| | Secur-Care® Ligature-Resistant Brochure (pdf) | 0 | 3 MB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB |
Specifications
| Brand | Secur-Care® |
| Product Type | Lavatory |
| Material | Stainless Steel |
| Material Detail | 14-Gauge Stainless Steel, 7-Gauge Hot-Rolled Steel Mounting Angles |
| Mounting | Front Access - Security |
| Bowl Shape | D-Shaped |
| Configurations Available | Off-Floor with Wall Waste Outlet (-1) |
| Compliance | CBC (Calif. Title 24), ADA Compliant, Federal Public Law 111-380, Ligature-Resistant |
| Patent | Pending |
| Overall Dimensions | 23" (Side-to-Side) x 18" (Front-to-Back) |
| Stations-Users | 1 |
Options
Accessories
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | 03-M | Option: Single Temperature Metering Air-Control™ Pneumatic Valve | ||
 | 04-M | Option: Hot & Cold Metering Air-Control® Pneumatic Valve | ||
 | BRS | Option : Lead-Free Brass Body Valve | ||
 | EG | Option: Enviro-Glaze® Powder Coating | ||
 | EVS1 | Option: Single Temperature Application Master-Trol® | ||
 | EVS2 | Option: Hot & Cold Application Master-Trol® | ||
 | EVSP1 | Option: Piezo Button Single Temperature Application Master-Trol® | ||
 | EVSP2 | Option: Piezo Button Hot & Cold Application Master-Trol® | ||
 | FMT | Option: Fixture Mounted Trim | ||
 | LWE | Option: Lavy Waste Extended To Be Specified | ||
 | MT | Option: Metal Template | ||
 | MTP1 | Option: Master-Trol® Plus Single Temperature Valve | ||
 | MTP2 | Option: Master-Trol® Plus Hot & Cold Valve | ||
 | MTPP1 | Option: Master-Trol® Plus Single Temperature Piezo Button Valve | ||
 | MTPP2 | Option: Master-Trol® Plus Hot & Cold Piezo Button Valve | ||
 | MVC1 | Single Temperature Valve Application Time-Trol® | ||
 | MVC1-BAT | Single Temperature Application Battery Powered Time-Trol® Plus | ||
| MVC1-CI | Option: Single Temperature, Cycle Interrupt Valve Application Time-Trol® | ||
 | MVC2 | Option: Hot & Cold Valve Application Time-Trol® | ||
 | MVC2-BAT | Option: Hot & Cold Valve Application Battery Powered Time-Trol® Plus | ||
| MVC2-CI | Option: Hot & Cold, Cycle Interrupt Valve Application Time-Trol® | ||
 | PFB | Option: Power Failure Bypass on Master-Trol® Plus | ||
 | PPZ1 | Option: Single Temperature Programmable Piezo Button | ||
 | PPZ2 | Option: Hot & Cold Programmable Piezo Buttons | ||
 | TF | Option: Transformer for AC Power Valve | ||
 | TG | Option Twelve Gauge Type 304 Stainless Steel | ||
 | TH | Option: Towel Hook | ||
 | VAC | Option: Configuration for Vacuum Plumbing |
Details
The lavatory is designed to meet the needs for ligature resistance, ADA, and the rigorous demands of security facilities.
DISCLAIMERS: This product is designed to decrease the probability that it may be utilized as an apparatus for ligature. It is not a replacement for professionals who are trained in the proper evaluation, management, and supervision of persons at risk of suicide.
ADA compliance is subject to proper installation (including devices such as grab bars) and the interpretations of the local code authority.
Product Variations
Image | Model ID | Description |
|---|---|---|
 | LR1653 | Secur-Care® Ligature-Resistant, ADA Compliant Rear Mount Stainless Steel Security Lavatory with D-Shaped Bowl |
