Model PS1030

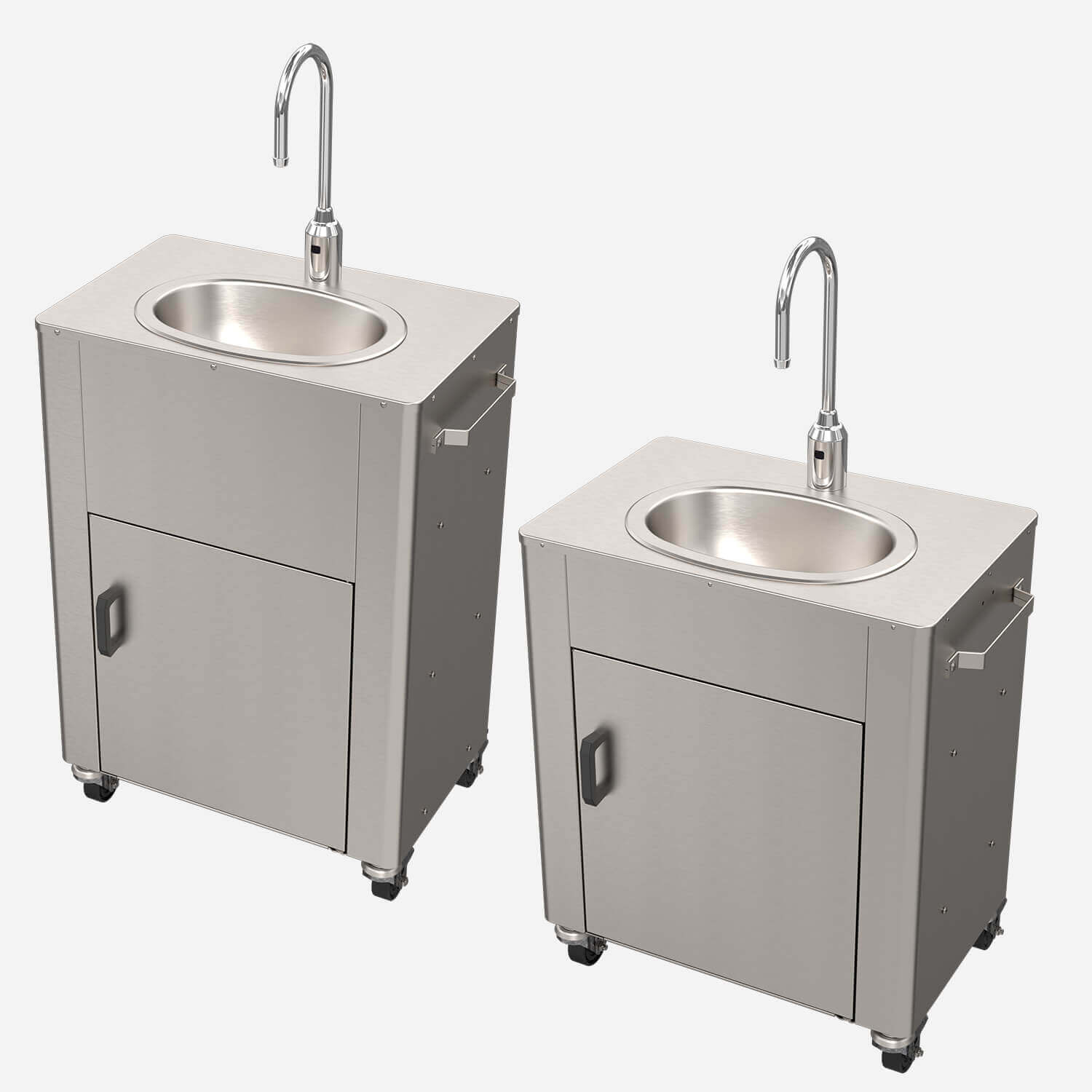

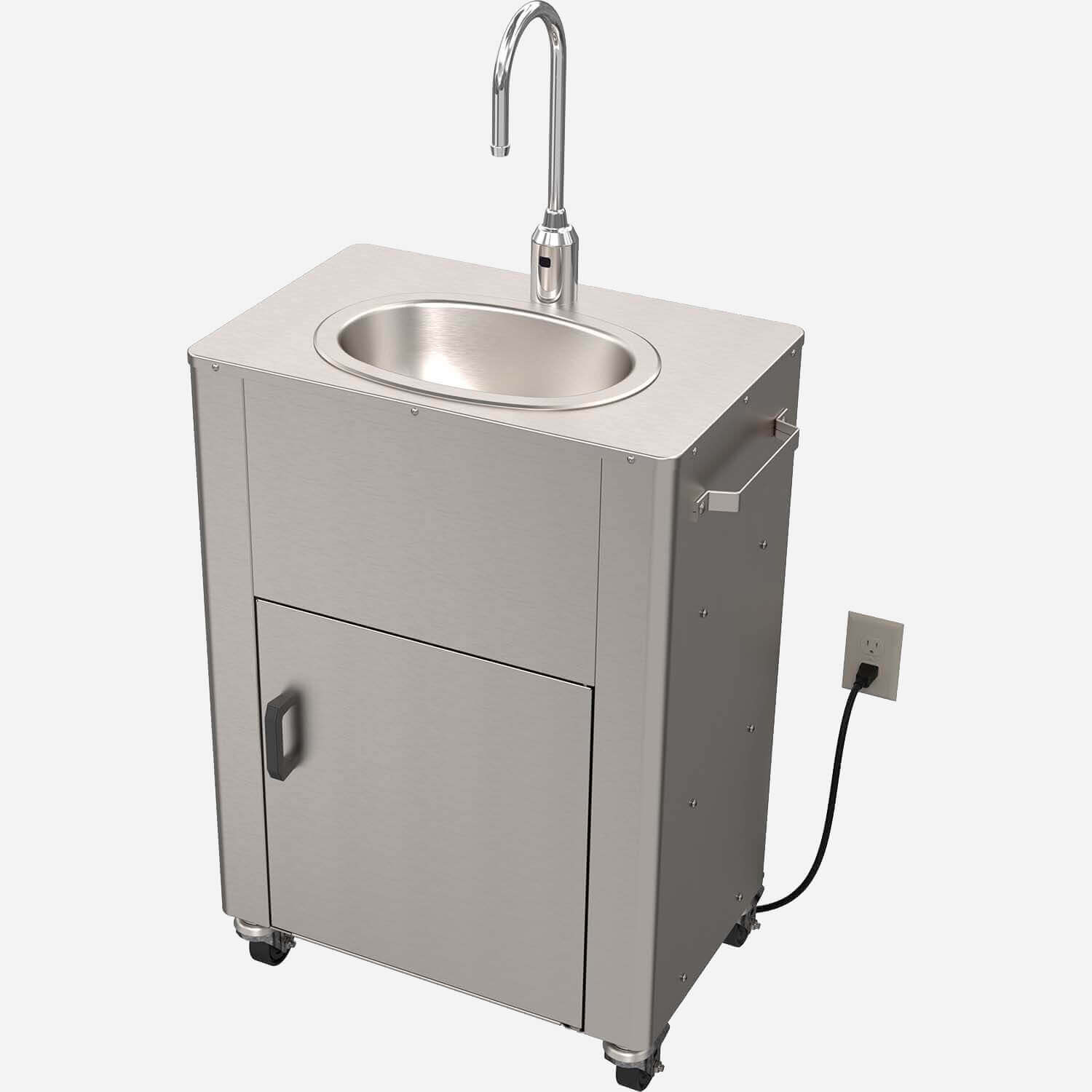

On-Demand Pump - Portable Wash-Ware® Hand Washing Station
Deluxe Stainless Steel Portable Sinks! Designed to provide hand washing capabilities in areas not normally equipped for it, Portable Wash-Ware hand sinks are quick to install and easy to move.
Fresh water is supplied via an onboard 5-gallon (19 liter) tank, and waste is collected in an onboard 6-gallon (22.7 liter) tank. A sensor faucet may be specified for hands-free operation. This model is operated by an on-demand electric pump and should not be used outdoors.
To accommodate young users, Model PS1030-JR is available with a shorter 31" (787 mm) rim height.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Portable Wash-Ware™ Handwash Station | 0 | 606 KB | ||
 | | Portable Wash-Ware® Hand Washing Station [PS1010 | With Foot Pump; PS1030 | On-Demand Pump; PS1042 | On-Demand Pump, Water Heater, Fresh Tank, Waste Hose; Options -JR, PS1000-F11, -F21, -F31, -F40 PS1000-PH3, PS1000-PS, PS1000-SSO PS1000-TR] | 0 | 2 MB | ||
| | Portable Wash-Ware clean hands anywhere! | 0 | 757 KB | ||
| | El Portable Wash-Ware de Acorn Engineering Company® - Manos Limpias en Cualquier Lugar - Serie PS1000 | 0 | 2 MB | ||
| | Take Students’ Safety Seriously with Acorn® Wash-Ware® Products. Schools often overlook one of the biggest dangers to student health: GERMS. | 0 | 850 KB | ||
| | Increase park safety with hand washing stations. | 0 | 2 MB | ||
| | The best ways to stay healthy are also the simplest: hand washing with soap and water and staying hydrated. | 0 | 3 MB | ||
| | Whether at the ranger station or out on the trail, Portable Wash-Ware sinks provide clean, running water. | 0 | 995 KB | ||
| | Whether at the ranger station or out on the trail, Portable Wash-Ware sinks provide clean, running water. | 0 | 2 MB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
| | Hand Washing Products Brochure (pdf) | 0 | 2 MB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB | ||
 | | Using a Funnel to Prime Tankless Water Heater for Select Portable Wash-Ware® Sinks | 0 | 132 KB | ||
| | How to Prime an Electric Tankless Water Heater Using the Foot Pedal for Portable Wash-Ware® Sinks | 0 | 132 KB | ||
| | This video contains an overview of the features of Acorn's Deluxe Portable Wash-Ware® Hand Washing Stations. | 0 | 132 KB | ||
| | This video contains an overview of the features and benefits of the PS1030 Deluxe Portable Sink from Acorn Engineering's line of Stainless Steel Wash-Ware® Hand Washing Stations. | 0 | 132 KB | ||
| | This video contains an overview of the accessories for Acorn's Deluxe Portable Wash-Ware® Hand Washing Stations. | 0 | 132 KB | ||
| | This video contains a step-by-step tutorial on installing the pump on EPS ECO Portables Sink by Acorn Engineering. | 0 | 133 KB | ||
| | This video contains a complete overview of the faucets available for Portable Wash-Ware® by Acorn Engineering Company®, including the Deluxe and Eco portable hand washing station lines. | 0 | 132 KB |
Specifications
| Brand | Deluxe Portable Wash-Ware® |
| Material | Stainless Steel |
| Product Type | Lavatory |
| Indoor/Outdoor Use | Indoor Use Only |
| Portable Sink Water Supply | Self-Contained |
| Patent | Pending |
| Bowl Shape | Oval |
| Faucet Operation | On-Demand Electric Pump |
| Overall Dimensions | 25" (Side-to-Side) x 16.5" (Front-to-Back) |
| Fresh Water Capacity | 5 gallon |
| Gray Water Capacity | 6 gallon |
| Stations-Users | 1 |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | PS1000-5GF | Accessory: Additional 5 Gallon Fresh Water Tank | ||
 | PS1000-6GW | Accessory: Additional 6 Gallon Waste Container for PS1000 Series Hand Wash | ||
 | PS1000-F31 | Accessory: Gooseneck Faucet with Battery Powered Sensor | ||
 | PS1000-F40 | Accessory: Gooseneck Faucet with Single Temp Lever Valve | ||

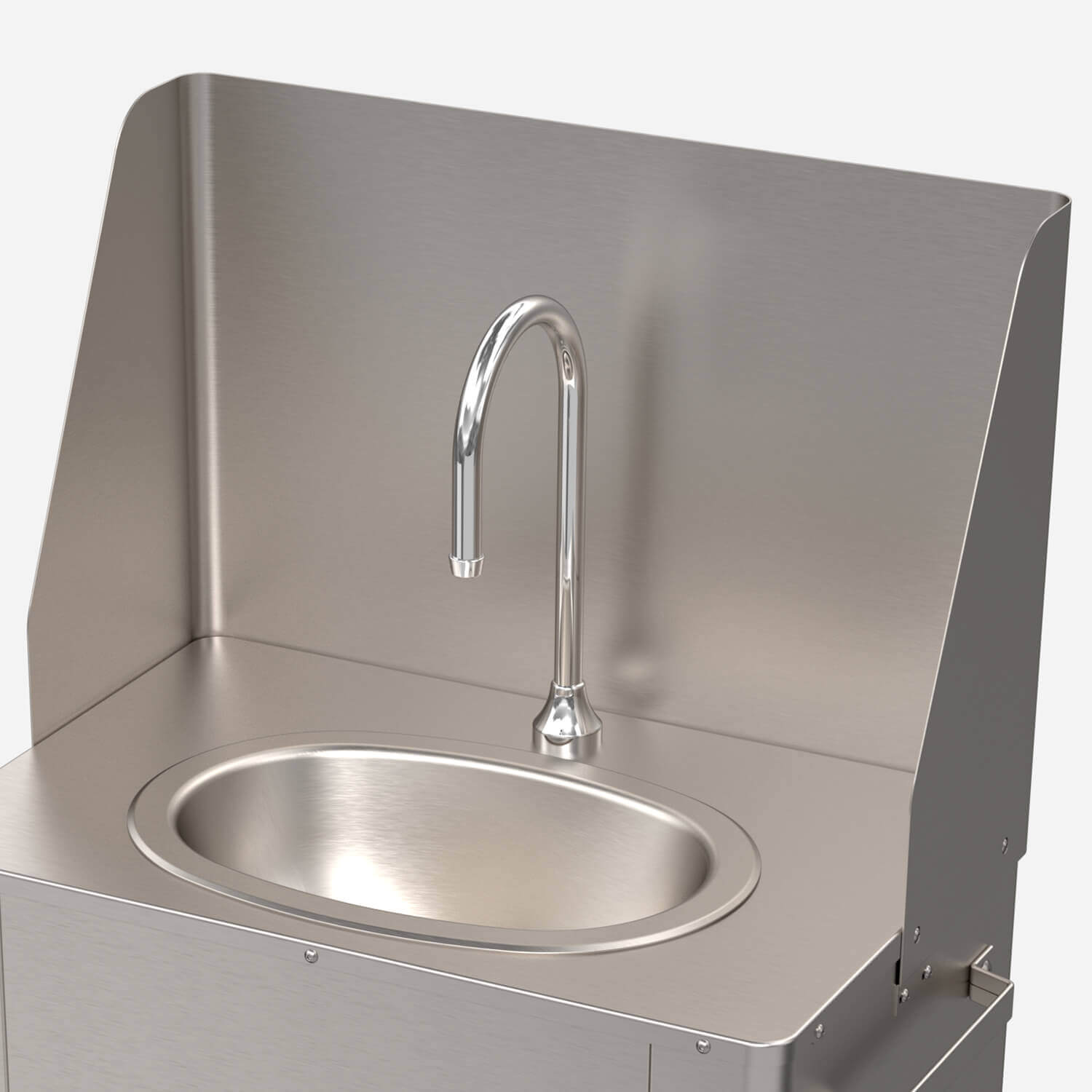

 | PS1000-SG | Accessory: Wrap-Around Splash Guard | ||

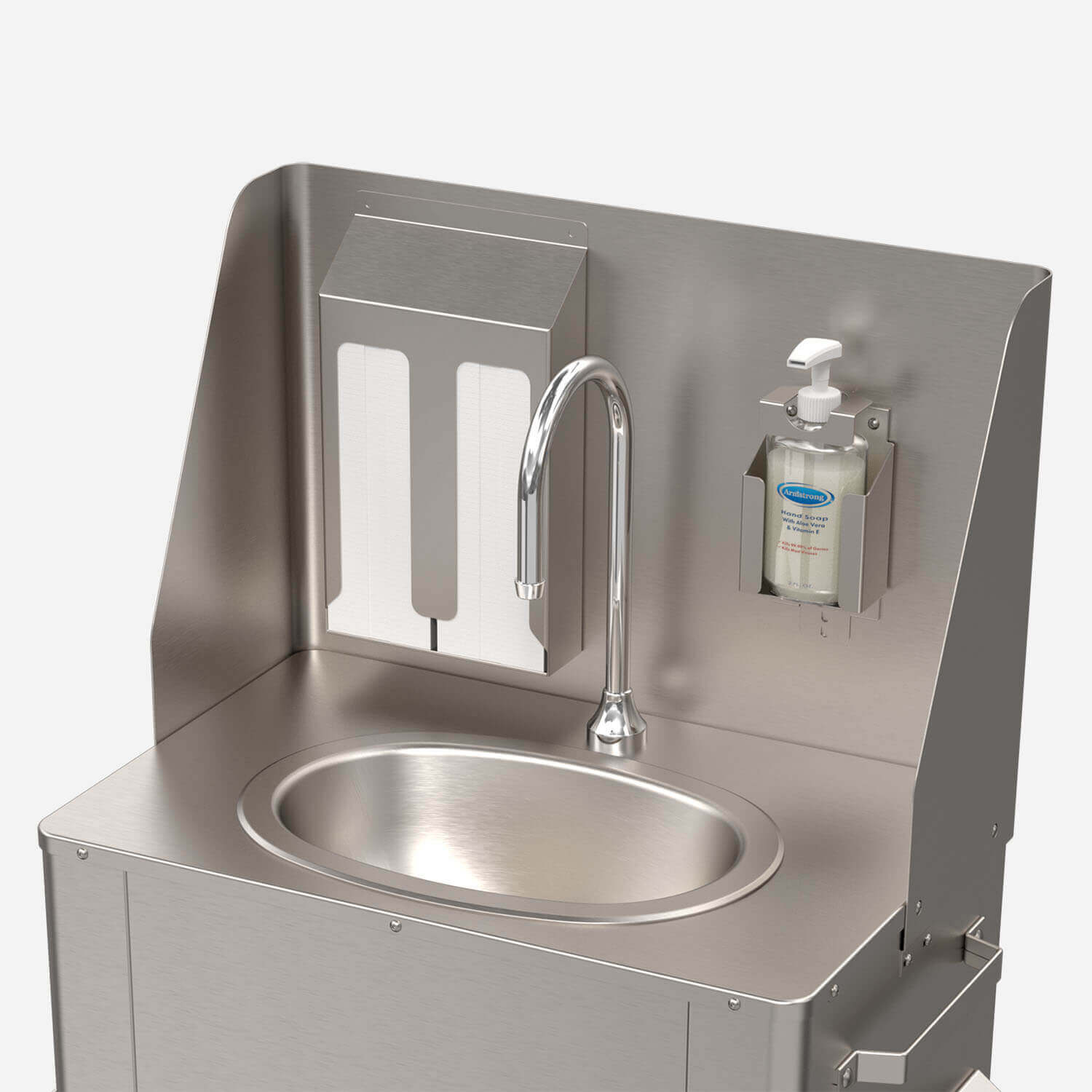

 | PS1000-SG1 | Accessory: Wrap Around Splash Guard with 2-Bay Paper Holder and Soap Holder | ||
 | PS1000-SSO | Accessory: Sensor Operated Soap Dispenser | ||
 | PS1000-TR | Accessory: Trash Receptacle for PS1000 Series |
Miscellaneous
Details
This portable sink is fabricated from 22-gauge stainless steel with a 14-gauge, 14-3/8"L x 9-5/8"W x 6"D (365 x 244 x 152 mm) oval drop-in bowl mounted on the deck. The unit is provided with four swivel casters (two locking, two standard), and a door is provided to conceal the plumbing connections and tanks. Various faucets are available from Acorn and sold separately. A battery-powered, sensor-activated faucet (PS1000-F31) can provide hands-free operation.
