Model 3762

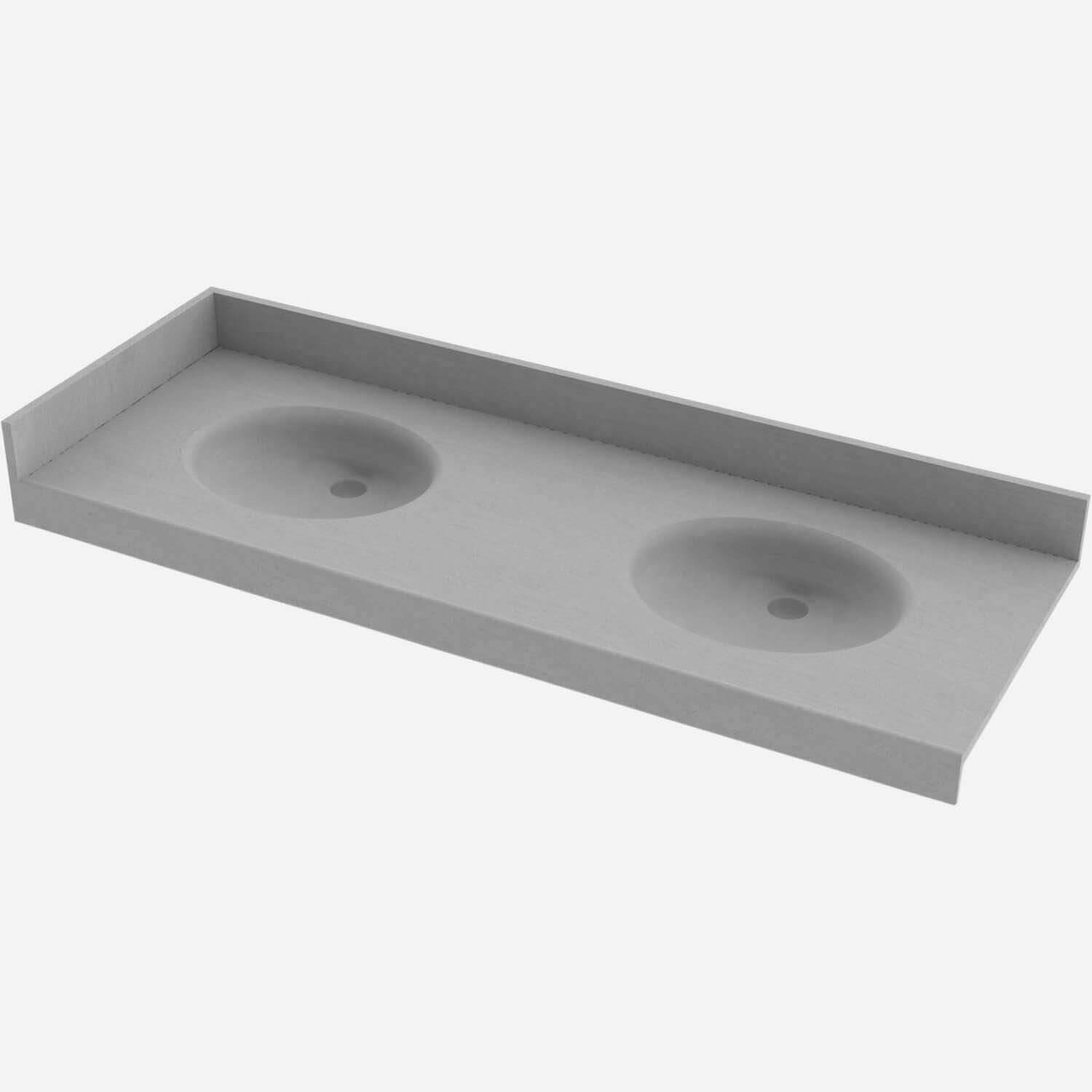

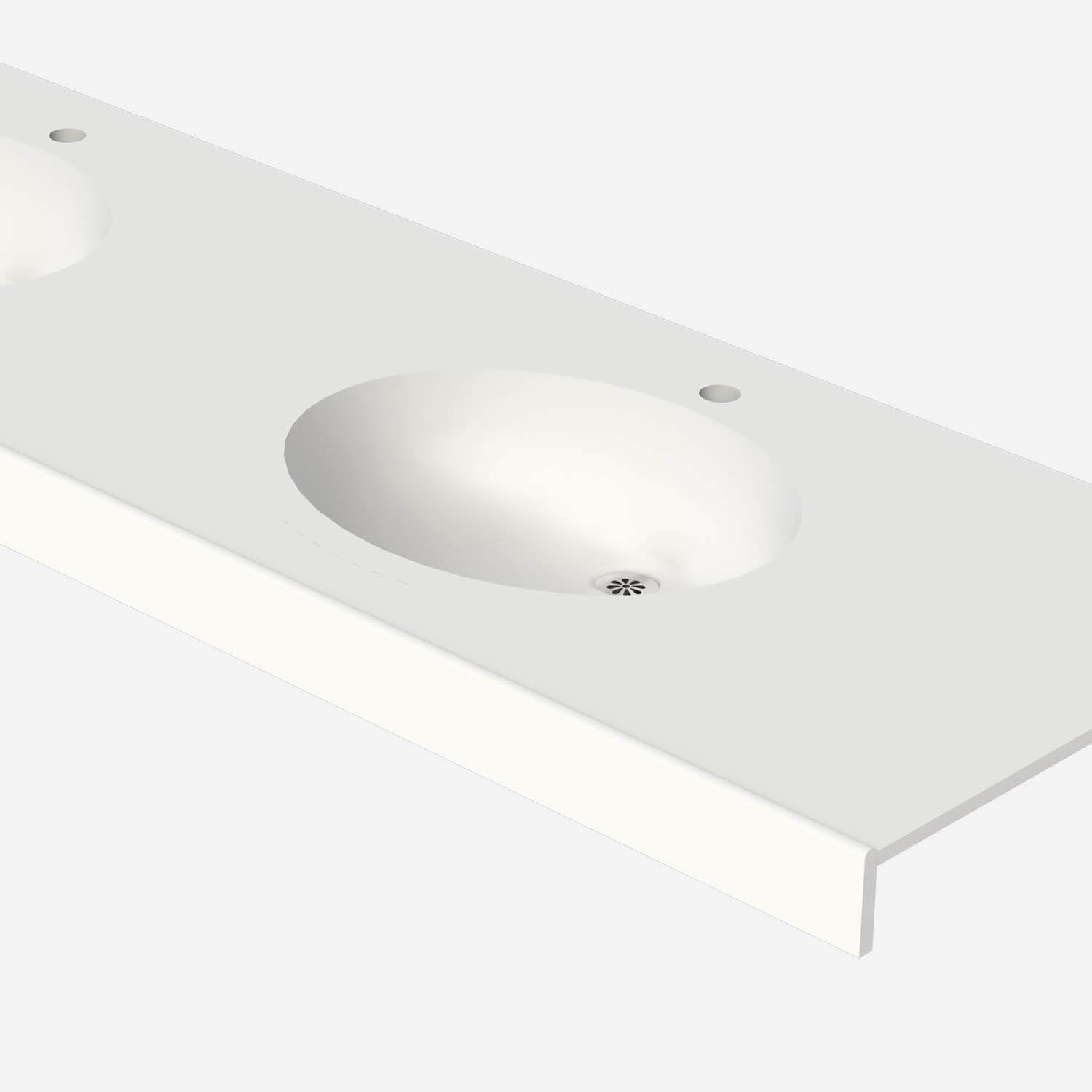

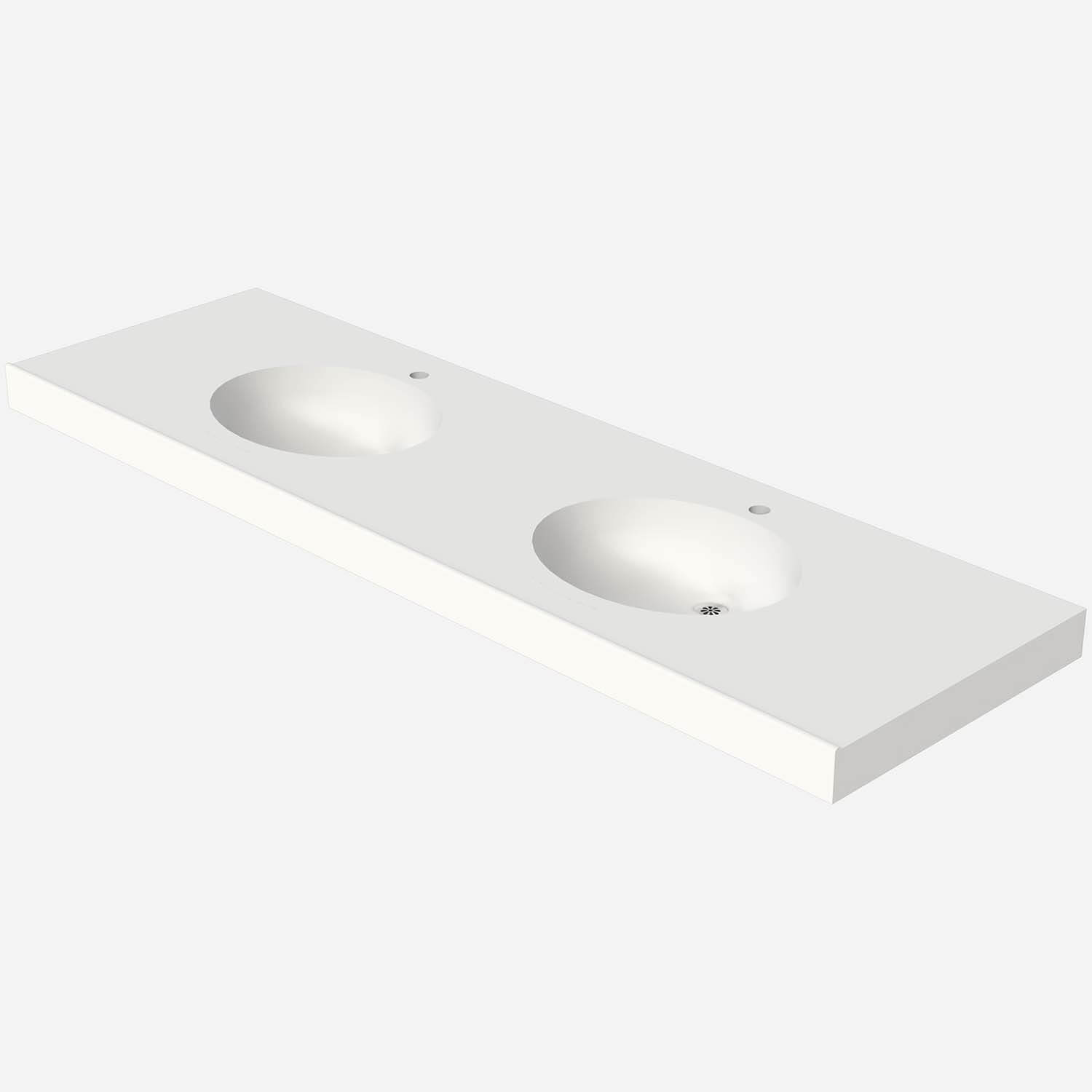

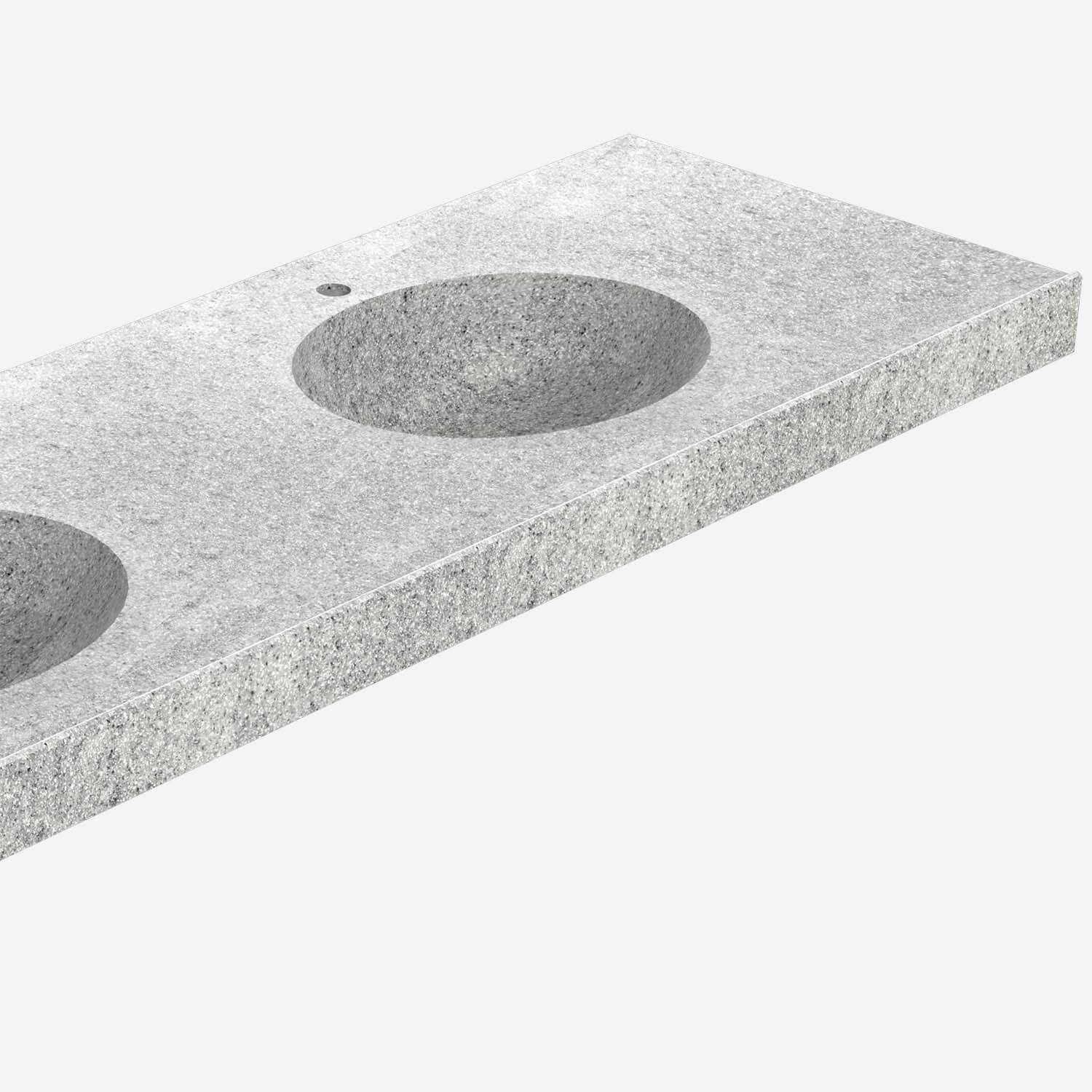

Two-Station Solid Surface Countertop with Sinks
Versatility and modern aesthetics make Meridian ® counter-lav wash basins ideal for any commercial or institutional environment. Constructed from Corterra ® solid surface and featuring an integrated bowl, this wall mount two-station basin makes installation and maintenance a breeze.
Mixing Valve and Spouts are optionally available to provide a metered, tempered water supply to each Basin. Spouts may be specified for Hand or Sensor operation and are intended for use with the optional Valve assemblies. Mixing Valve is ASSE 1070 compliant and includes Strainers and Integral Checks. Controls meet ANSI, UFAS and ADA requirements.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | General Information of Meridian® Corterra® Contourlavs [Models 3761, 3762, 3763, 3764] | 0 | 327 KB | ||
| | Two Station Cast Solid Surface (Corterra®) Counter-Lav | 0 | 250 KB | ||
 | | Acorn Meridian Corterra Solid Surface Basins [3752-HLL, 3752-HLR, 3753-HLH, 3753-LHL, 3761, 3762, 3763, 3764,3771-1,3772-2-SES, 3773-3, 3791, 3792, 3793] | 0 | 408 KB | ||
 | | Two Station | 0 | 232 KB | ||
| | Two Station | 0 | 140 KB | ||
| | Acorn Engineering - Circular wash fountains, Semicircular wash fountains, Corner wash fountains, Elliptical wash fountains, Linear wash fountains | 0 | 188 KB | ||
 | | Acorn Engineering - Circular wash fountains, Semicircular wash fountains, Corner wash fountains, Elliptical wash fountains, Linear wash fountains | 0 | 201 KB | ||
| | Two Station Cast Solid Surface (Corterra®) Counter-Lav | 0 | 495 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
| | The best ways to stay healthy are also the simplest: hand washing with soap and water and staying hydrated. | 0 | 3 MB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB | ||
| | Deck-Mounted Wash Basin Soap Equipment: Deck Mounted Soap Dispenser | 0 | 110 KB |
Specifications
| Product Type | Wash Basin |
| Brand | Meridian, Acorn ConTrols® Inside |
| Material | Corterra® Solid Surface |
| Mounting | Wall Mounted |
| Institutional Applications | Hospital & Treatment Centers, Educational Building, Train Station & Airports, Other Institutional Buildings |
| Commercial Applications | Stores & Shopping Centers, Warehouse, Office Building, Restaurant & Hospitality, Stadium & Arena |
| Compliance | Federal Public Law 111-380, UL Greenguard, ADA Compliant |
| Stations-Users | 2 |
| Overall Dimensions | 60" (Side-to-Side) x 21.75" (Front-to-Back) |
| Bowl Shape | Oval |
Options
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | CSG | Option: Centerset Gooseneck Spout | ||
 | CW (Basin) | Option: Combined Waste P-Trap Assembly (Multiple Basins) | ||
 | DMJ | Option: Deck Mounted "J" Spout | ||
 | DML | Option: Deck Mounted "L" Spout | ||
 | ECL | Option: Extended Countertop Left Hand | ||
 | ECR | Option: Extended Countertop Right Hand | ||
 | H (Hand Wash) | Option: Hand Operation for Hand Wash Station | ||
 | H1 | Option: Single Hole Punch for Valve by Others | ||
 | H24 | Option: Two Hole Punch 4" Center for Valve by Others | ||
 | H34 | Option: Three Hole Punch 4" Centers for Valve by Others | ||
 | H38 | Option: Three Hole Punch 8" Center for Valve by Others | ||
 | LBS | Option: Less Backsplash | ||
 | LC (Washbasin) | Option: Lavy Carrier Sleeves for Carrier by Others | ||
 | LSA | Option: Left-Hand Side Apron | ||
 | LSS | Option: Left-Hand Side Splash | ||
 | MF | Option: Mirror Finish Basin | ||
 | OCC | Option: Corterra® Solid Surface | ||
 | PDM | Option: Metering Liquid Soap Dispenser | ||
 | PPZ | Option: Programmable Piezo Button | ||
 | RLD | Option: "D" Shape Basin Less Valves | ||
 | RSA | Option: Right-Hand Side Apron | ||
 | RSS | Option: Right-Hand Side Splash | ||
 | SO | Option: (Hands-Free) Sensor Operation | ||
| SO-BAT | Option: (Hands-Free) Sensor Activated - Battery Powered | ||
 | ST | Option: Single Temperature | ||
 | TPT | Option: Tubular P-Trap |
Product Variations
Image | Model ID | Description |
|---|---|---|
 | 3761 | One-Station Solid Surface Countertop with Sink |
 | 3763 | Three-Station Solid Surface Countertop with Sinks |
 | 3764 | Four-Station Solid Surface Countertop with Sinks |
