Member of Morris Group International
Model 1640-FA

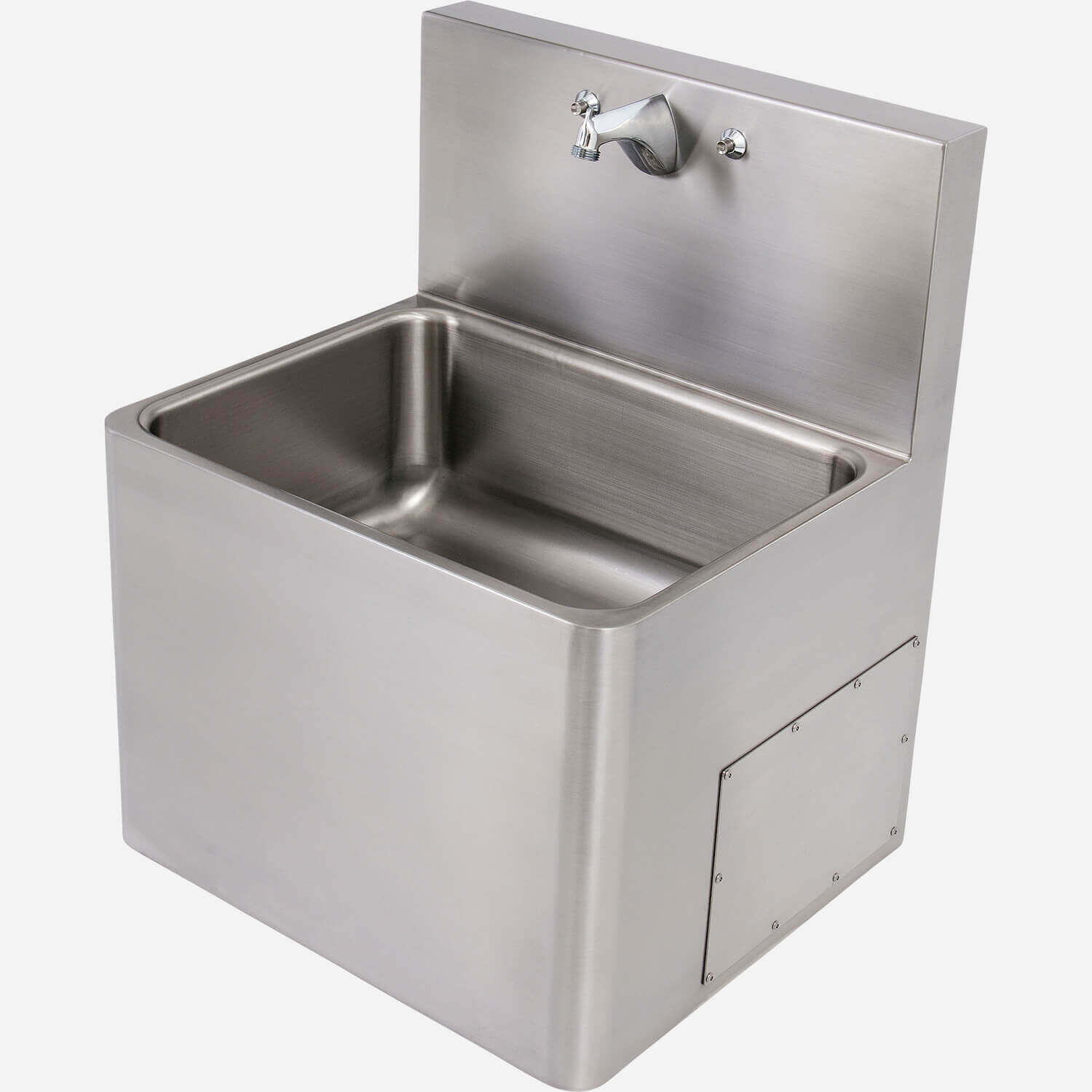

21" Wide Stainless Steel Security Mop/Service Sink, Front Access
Designed for front access applications, this service sink boasts no accessible voids or crevices where contraband can be concealed.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Stainless Steel Security Mop/Service Sink, Front Access, Wall Waste [1640-FA-1 | 21" Wide; Off-Floor; 1642-FA-1 | 24" Wide, Off-Floor] | 0 | 111 KB | ||
| | Stainless Steel Security Mop/Service Sink, Front Access, Wall Waste [1640-FA-1 | 21" Wide; Off-Floor; 1640-FA-2 | 21" Wide, On-Floor; 1642-FA-1 | 24" Wide, Off-Floor; 1642-FA-2 | 24" Wide, On-Floor] | 0 | 566 KB | ||
 | | 0 | 186 KB | |||
| | Stainless Steel Security Mop/Service Sink, Front Access, Wall Waste [1640-FA-2 | 21" Wide, On-Floor; 1642-FA-2 | 24" Wide, On-Floor] | 0 | 275 KB | ||
| | Enviro-Glaze Powdercoating Color Chart | 0 | 2 MB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
| | The best ways to stay healthy are also the simplest: hand washing with soap and water and staying hydrated. | 0 | 3 MB | ||
| | The best ways to stay healthy are also the simplest: hand washing with soap and water and staying hydrated. | 0 | 2 MB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB | ||
| | Valves: Air-Control™ Metering Servomotor Assembly | 0 | 124 KB | ||
| | Valves: Air-Control™ Non-Metering Servomotor Assembly | 0 | 142 KB | ||
| | Valves: Hot and Cold Air-Control™ Valve Body Assembly (-04) | 0 | 82 KB | ||
| | Valves: Single Temp Air-Control™ Valve Body Assembly (-03) | 0 | 56 KB | ||
| | Stops: Plastic Air-Control® Check Stop Assembly | 0 | 74 KB | ||
| | Trims: Hot and Cold Penal Air-Trol Fixture Trim | 0 | 80 KB | ||
| | Trims: Single Temp Air-Trol Fixture Trim | 0 | 115 KB | ||
| | Trims: Mounting Hardware, Penal FixtureS | 0 | 96 KB |
Specifications
| Product Type | Lavatory |
| Configurations Available | Off-Floor with Wall Waste Outlet (-1), On-Floor with Wall Waste Outlet (-2) |
| Brand | Penal-Ware® |
| Material | Stainless Steel |
| Mounting | Front Access - Security |
| Vandal Resistant | Moderate |
| Institutional Applications | Correctional, Hospital & Treatment Centers, Educational Building, Train Station & Airports, Other Institutional Buildings |
| Commercial Applications | Stores & Shopping Centers, Warehouse, Office Building, Restaurant & Hospitality, Stadium & Arena |
| Park and Recreation Applications | Yes |
| Overall Dimensions | 21" (Side-to-Side) x 21" (Front-to-Back) |
| Stations-Users | 1 |
Options
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | 03 | Option: Single Temperature Air-Control® Pneumatic Valve | ||
 | 03-M | Option: Single Temperature Metering Air-Control™ Pneumatic Valve | ||
 | 04 | Option: Hot & Cold Air-Control® Pneumatic Valve | ||
 | 04-M | Option: Hot & Cold Metering Air-Control® Pneumatic Valve | ||
 | 04-MH | Option: Hot (Metering) & Cold Air-Control® Pneumatic Valve | ||
 | CI | Option: Cycle Interrupt | ||
 | D | Option: Soap Dish | ||
 | EG | Option: Enviro-Glaze® Powder Coating | ||
 | EVS1 | Option: Single Temperature Application Master-Trol® | ||
 | EVS2 | Option: Hot & Cold Application Master-Trol® | ||
 | EVSP1 | Option: Piezo Button Single Temperature Application Master-Trol® | ||
 | EVSP2 | Option: Piezo Button Hot & Cold Application Master-Trol® | ||
 | FMT | Option: Fixture Mounted Trim | ||
 | IS | Option: Integral Shelf | ||
 | MT | Option: Metal Template | ||
 | MVC1 | Single Temperature Valve Application Time-Trol® | ||
 | MVC1-BAT | Single Temperature Application Battery Powered Time-Trol® Plus | ||
 | MVC2 | Option: Hot & Cold Valve Application Time-Trol® | ||
 | MVC2-BAT | Option: Hot & Cold Valve Application Battery Powered Time-Trol® Plus | ||
 | PBH | Option: Pushbutton, Hemispherical | ||
 | SE | Option: Spout with Plain End | ||
 | SH | Option: Spout with Hose End | ||
 | TF | Option: Transformer for AC Power Valve | ||
 | TG | Option Twelve Gauge Type 304 Stainless Steel | ||
 | TH | Option: Towel Hook | ||
 | VAC | Option: Configuration for Vacuum Plumbing | ||
 | VB | Option: Vacuum Breaker |
Models
Typical models are shown below
1640FA-1-04-SE
On-Floor, Wall Waste
Shown with Hot and Cold
Pneumatic Pushbutton Valves
and Spout with Plain End
install guide
1640FA-2-04-SE
On-Floor, Wall Waste
Shown with Hot and Cold
Pneumatic Pushbutton Valves
and Spout with Plain End
install guide
