Model 3703
Three-Station Stainless Steel Bathroom Countertop with Sinks, Curved Front
Contemporary aesthetics and practical durability make Meridian® stainless steel wash basins ideal systems for schools, stadiums, restaurants and other commercial applications. This three-station wash basin features a wall mount, curved front design, waste outlet configuration options, and is ADA compliant when properly installed.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Three Station Curved Front Stainless Steel Wash Basin Off-Floor Model 3703-1 | 0 | 2 MB | ||
| | Three Station, Curve Front Wash Basin [3703-1 is Off-Floor Wall Mount Version; 3703-2 is On-Floor, Wall Waste Outlet Version] | 0 | 563 KB | ||
 | | Round Front Stainless Steel Basins (1, 2, 3, 4 Staions) | 0 | 1 MB | ||
| | Round Front Stainless Steel Basins (1, 2, 3, 4 Staions) | 0 | 1007 KB | ||
| | Acorn Engineering - Circular wash fountains, Semicircular wash fountains, Corner wash fountains, Elliptical wash fountains, Linear wash fountains | 0 | 188 KB | ||
 | | Acorn Engineering - Circular wash fountains, Semicircular wash fountains, Corner wash fountains, Elliptical wash fountains, Linear wash fountains | 0 | 201 KB | ||
| | Three Station, Curve Front Wash Basin On-Floor, Wall Waste Outlet Model 3703-2 | 0 | 1 MB | ||
| | Enviro-Glaze Powdercoating Color Chart | 0 | 2 MB | ||
 | | Off-Floor, Hand Operation, Three Station, Curved Front | 0 | 32 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
| | The best ways to stay healthy are also the simplest: hand washing with soap and water and staying hydrated. | 0 | 3 MB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB | ||
| | Tools / Fasteners: Stainless Steel Security Screws | 0 | 138 KB | ||
| | Valves: Air-Control™ Metering Servomotor Assembly | 0 | 124 KB | ||
| | Stops: Plastic Air-Control® Check Stop Assembly | 0 | 74 KB | ||
| | Trims: Push Button Assembly | 0 | 103 KB | ||
| | Trims: Deck Mounted "L" Spout Assembly | 0 | 80 KB | ||
| | Trims: Deck Mounted "J" Spout Assembly | 0 | 80 KB | ||
| | Trims: Backspash Mounted Spout Assembly | 0 | 76 KB | ||
| | Waste Connections and Thru-Wall Extensions: Waste Piping Detail for Meridian Curved Front Stainless Steel Basins Models 3701, 3702, 3703,3704 | 0 | 132 KB |
Specifications
| Product Type | Wash Basin |
| Configurations Available | Off-Floor with Wall Waste Outlet (-1), On-Floor with Wall Waste Outlet (-2) |
| Brand | Meridian |
| Material | Stainless Steel |
| Mounting | Wall Mounted |
| Vandal Resistant | Moderate |
| Institutional Applications | Hospital & Treatment Centers, Educational Building, Train Station & Airports, Other Institutional Buildings |
| Commercial Applications | Stores & Shopping Centers, Office Building, Restaurant & Hospitality, Stadium & Arena |
| Park and Recreation Applications | Yes |
| Bowl Shape | Round |
| Compliance | ADA Compliant, Federal Public Law 111-380 |
| Overall Dimensions | 79" (Side-to-Side) x 21.5" (Front-to-Back) |
| Stations-Users | 3 |
Options
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | -OF (Commercial Basin) | Option: Commercial Basin Overflow | ||
 | 1 (Hand Wash) | Option: Off-Floor, Wall Outlet Hand Wash Station | ||
 | 2 (Hand Wash) | Option: On-Floor, Wall Outlet Hand Wash Station | ||
 | CSG | Option: Centerset Gooseneck Spout | ||
 | DMJ | Option: Deck Mounted "J" Spout | ||
 | DML | Option: Deck Mounted "L" Spout | ||
 | DMP | Option: Deck Mounted Pushbutton | ||
 | EB | Option: Enclosed Bottom | ||
 | ECL | Option: Extended Countertop Left Hand | ||
 | ECR | Option: Extended Countertop Right Hand | ||
 | EG | Option: Enviro-Glaze® Powder Coating | ||
 | H (Hand Wash) | Option: Hand Operation for Hand Wash Station | ||
 | H1 | Option: Single Hole Punch for Valve by Others | ||
 | H24 | Option: Two Hole Punch 4" Center for Valve by Others | ||
 | H34 | Option: Three Hole Punch 4" Centers for Valve by Others | ||
 | IB | Option: Integrated Bowl | ||
 | LE | Option: Less Waste Enclosure | ||
 | MF | Option: Mirror Finish Basin | ||
 | PDM | Option: Metering Liquid Soap Dispenser | ||
 | PPZ | Option: Programmable Piezo Button | ||
 | RLD | Option: "D" Shape Basin Less Valves | ||
 | SES | Option: Scalloped Enclosured Style | ||
 | SO | Option: (Hands-Free) Sensor Operation | ||
| SO-BAT | Option: (Hands-Free) Sensor Activated - Battery Powered | ||
 | SSN | Option: Stainless Steel Narrow Apron 2-1/2" High | ||
 | ST | Option: Single Temperature |
Models
Model 3703 is available in 2 main models.

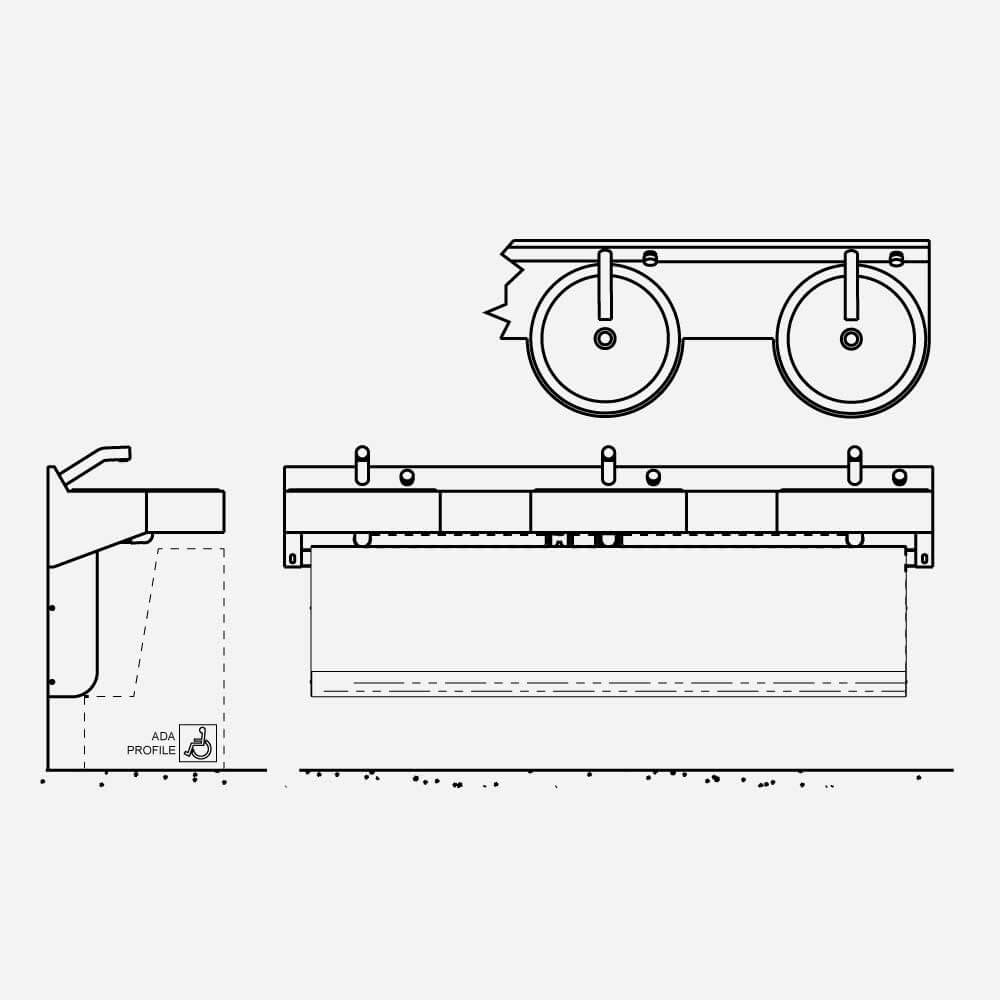

3703-1
Off-Floor, Wall Waste

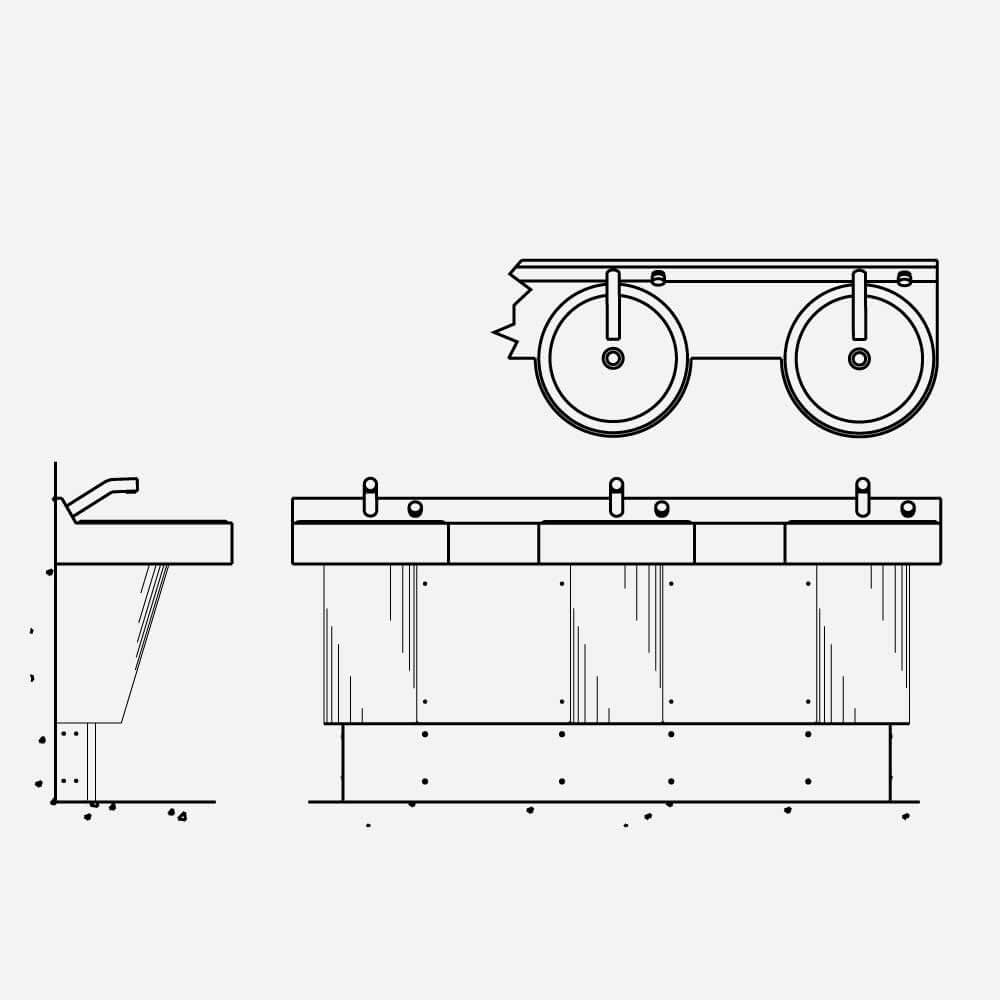

3703-2
On-Floor, Wall Waste Outlet
Additional Off-Floor models are available with the 8980 Series (select 8980-3 for three-station) including:
8980-3
model with no backsplash
8980-3-IS
model with integral shelf and
sensor-activated downward spout
