Model WD-3
Three User, Stainless Steel Wudu Ablution Sink

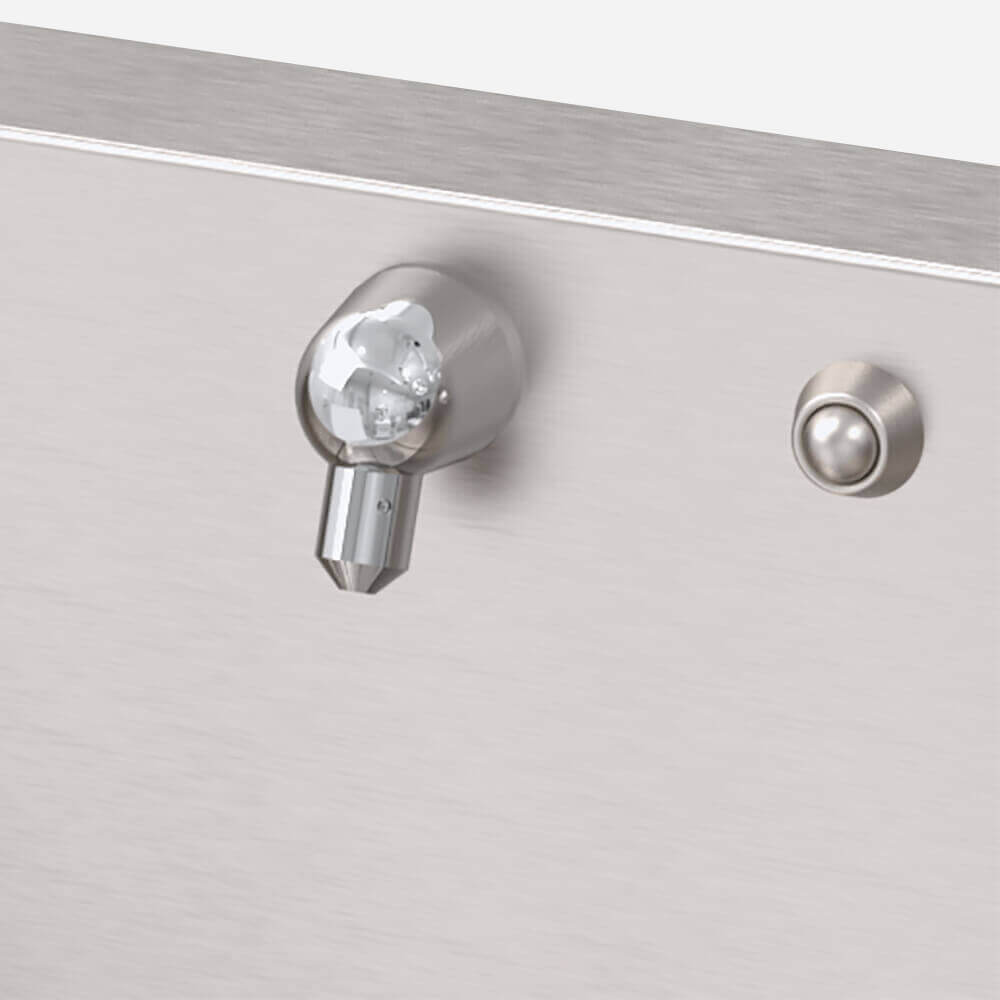

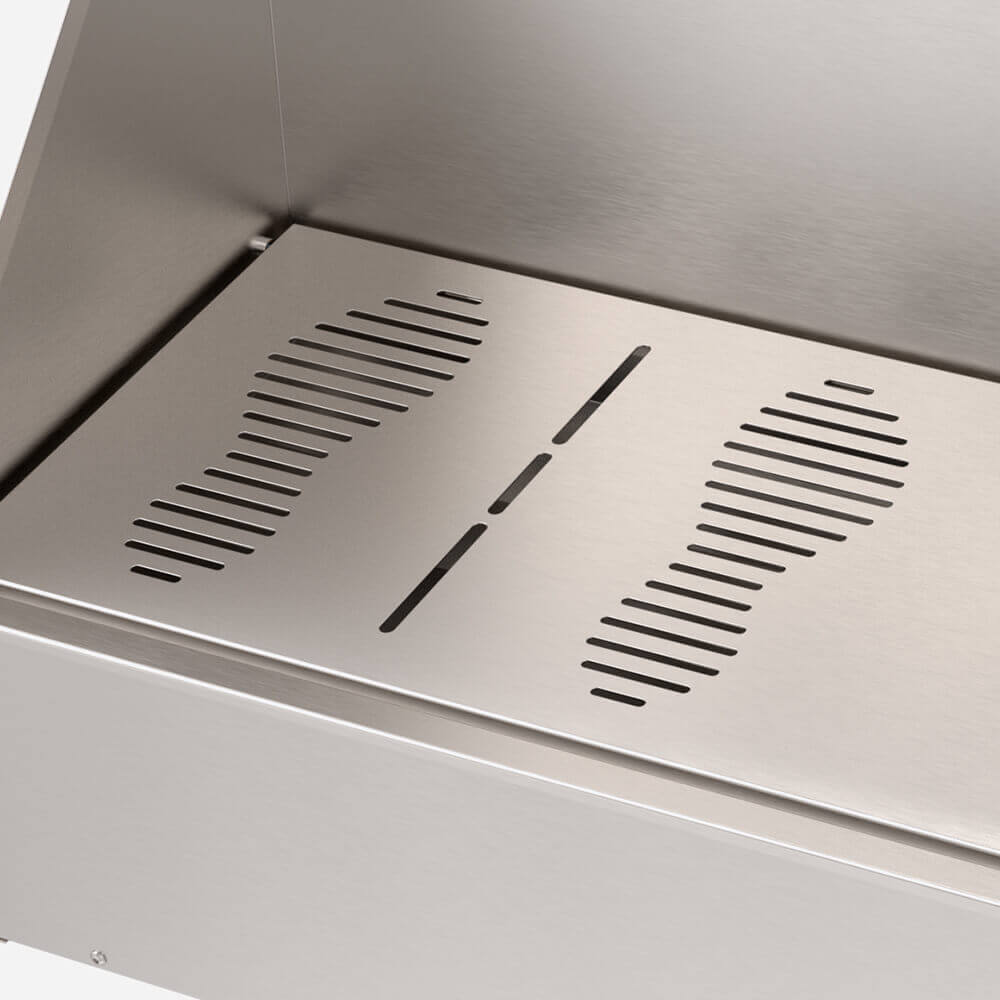

Acorn's Wudu Wash Station provides an ideal solution for washing in preparation for ritual prayer, making them ideal for places of worship. The Wudu station is fabricated of stainless steel to ensure durability and features a hinged grate assembly to facilitate cleaning and an adjustable spray nozzle. A metering valve is provided and cycle time is adjustable up to 60 seconds.
This trough wash station is 70-3/4" (1,797 mm) wide servicing three users. The overall height is 31-1/2" (800 mm); the base platform is 10-5/8" (269.88 mm) high. The front to back dimension is 19-5/8" (498.48 mm).
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Three User Wudu Stainless Steel Trough Wash Station | 0 | 531 KB | ||
| | Wudu Stainless Steel Trough Wash Station [WD-1 | One-Station; WD-2 | Two-Station; WD-3 | Three-Station] | 0 | 256 KB | ||
 | | Acorn Wudu Stainless Steel Wash Station [WD-1 One-station 23.625" wide unit; WD-2 Two-station 47.25" wide unit; WD-3 Three-station 70.75" wide unit] | 0 | 750 KB | ||
| | Acorn Wudu Stainless Steel Wash Station [WD-1 One-station 23.625" wide unit; WD-2 Two-station 47.25" wide unit; WD-3 Three-station 70.75" wide unit; Accessory WDS Stainless steel stool] | 0 | 4 MB | ||
| | 0 | 522 KB | |||
| | Hand Washing Products Brochure (pdf) | 0 | 2 MB |
Specifications
| Material | Stainless Steel |
| Configurations Available | On-Floor with Wall Waste Outlet (-2) |
| Compliance | UPC |
| Overall Dimensions | 70.75" (Side-to-Side) x 19.625" (Front-to-Back) |
| Stations-Users | 3 |
Options
Product Variations
Image | Model ID | Description |
|---|---|---|
 | WD-1 | Single User, Stainless Steel Wudu Ablution Sink |
 | WD-2 | Two User, Stainless Steel Wudu Ablution Sink |
