Model 8125-LF
Bent Nose Hose Valve

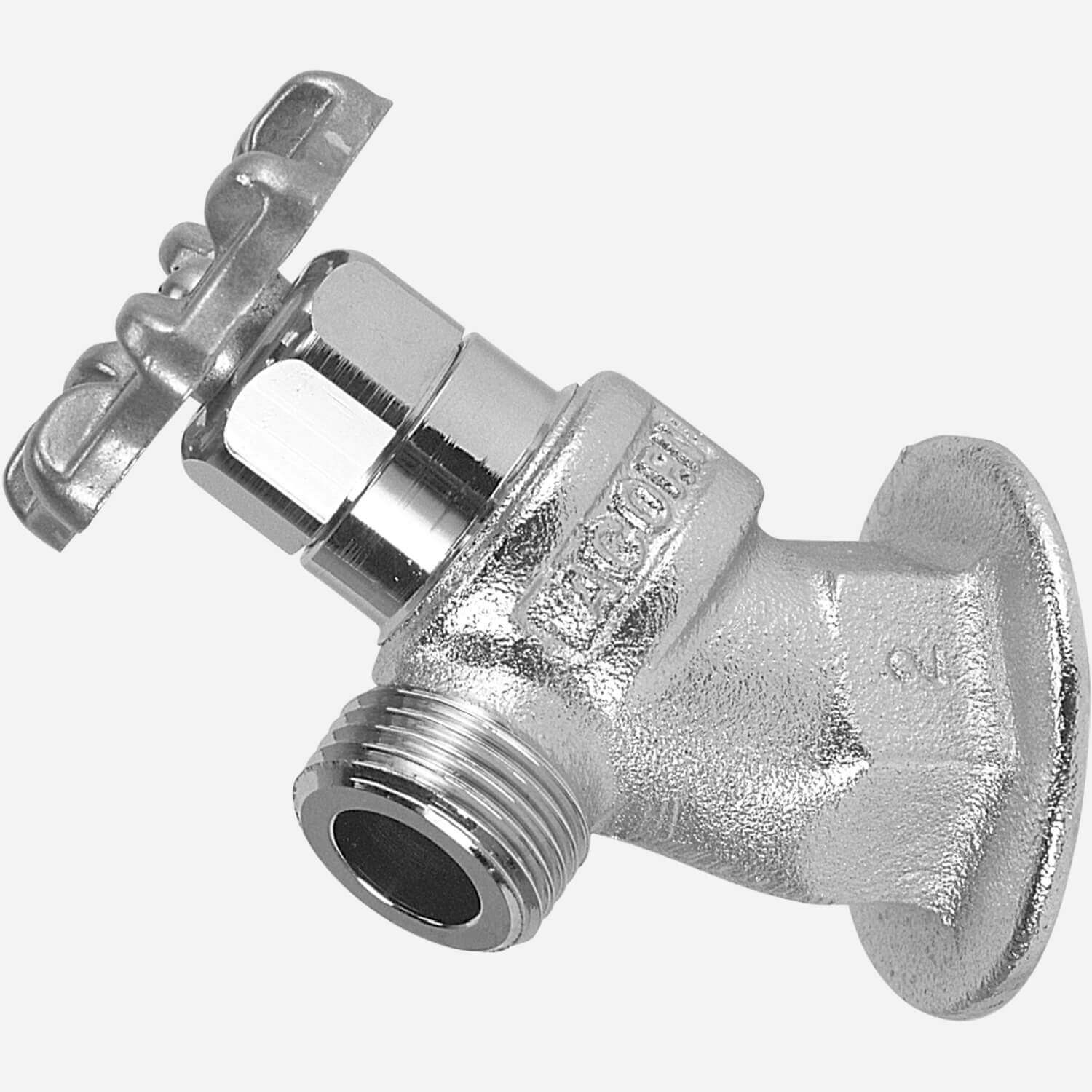

The 8125-LF bent nose hose valve with wall flange features a heavy rough brass body optionally available in chrome-plated or rough chrome finish. This vertically-supplied valve is normally used in outdoor planting areas. It is cartridge-operated and features a lockshield bonnet and removable loose key wheel handle.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Lead-Free Bent Nose Hose Valve [8125-LF | no vacuum breaker; 8126-LF | with vacuum breaker] | 0 | 70 KB | ||
| | Bent Nose Hose Valve [8120-LF | with wall flange; 8121-LF | with wall flange and vacuum breaker; 8125-LF | no wall flange; 8126-LF | with vacuum breaker, no wall flange] | 0 | 181 KB | ||
 | | Bent Nose Hose Valve [8120-LF | with wall flange; 8121-LF | with wall flange and vacuum breaker; 8125-LF | no wall flange; 8126-LF | with vacuum breaker, no wall flange] | 0 | 1 MB | ||
 | | Bent Nose, No Vacuum Breaker, Hose Valves | 0 | 33 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB | ||
| | Hose and Supply Boxes - Hose Bibbs: 3/4" Bent Nose Hose Valve Assembly (8125-LF/8126-LF) | 0 | 66 KB | ||
| | Hose and Supply Boxes - Hose Bibbs: Lockshield Cartridge Assembly (for obsolete 8120 thru 8936 and current 8120-LF thru 8126-LF models) | 0 | 76 KB |
Specifications
| Product Type | Hose Bibb |
| Material | Brass |
| Product Features | Bent Nose |
| Institutional Applications | Correctional, Hospital & Treatment Centers, Educational Building, Train Station & Airports, Other Institutional Buildings |
| Commercial Applications | Stores & Shopping Centers, Warehouse, Office Building, Restaurant & Hospitality, Stadium & Arena |
| Park and Recreation Applications | Yes |
| Lead-Free | Yes |
Options
Details
Additional Info:
Product Function:
8125-LF vertically standpipe valves are normally used in outdoor planting areas and often provided in a rough brass finish.
Regularly Furnished:
Hose valves include a heavy rough brass body, furnished with a lockshield bonnet and removable loose key wheel handle. Valves close with the water pressure and feature a replaceable cartridge which contains all wearing parts including the seat. Inlet is 3/4" NPTI, outlet is 3/4" NPSH.Product Function:
8125-LF vertically standpipe valves are normally used in outdoor planting areas and often provided in a rough brass finish.
