Single Temp Hose Box with Non-Skid Top
These Acorn Recessed Hose Boxes are CUPC® by IAPMO certified for U.S. and Canada. Boxes are designed for attractive service in both interior and exterior floors not subject to freezing. Ideal for installation in markets and similar commercial buildings in foot traffic locations or where wall box cannot be used.
Hose Box is seamless construction, fabricated from 18 gauge, type 304 stainless steel and is furnished with four stainless steel clips for anchoring to the floor.

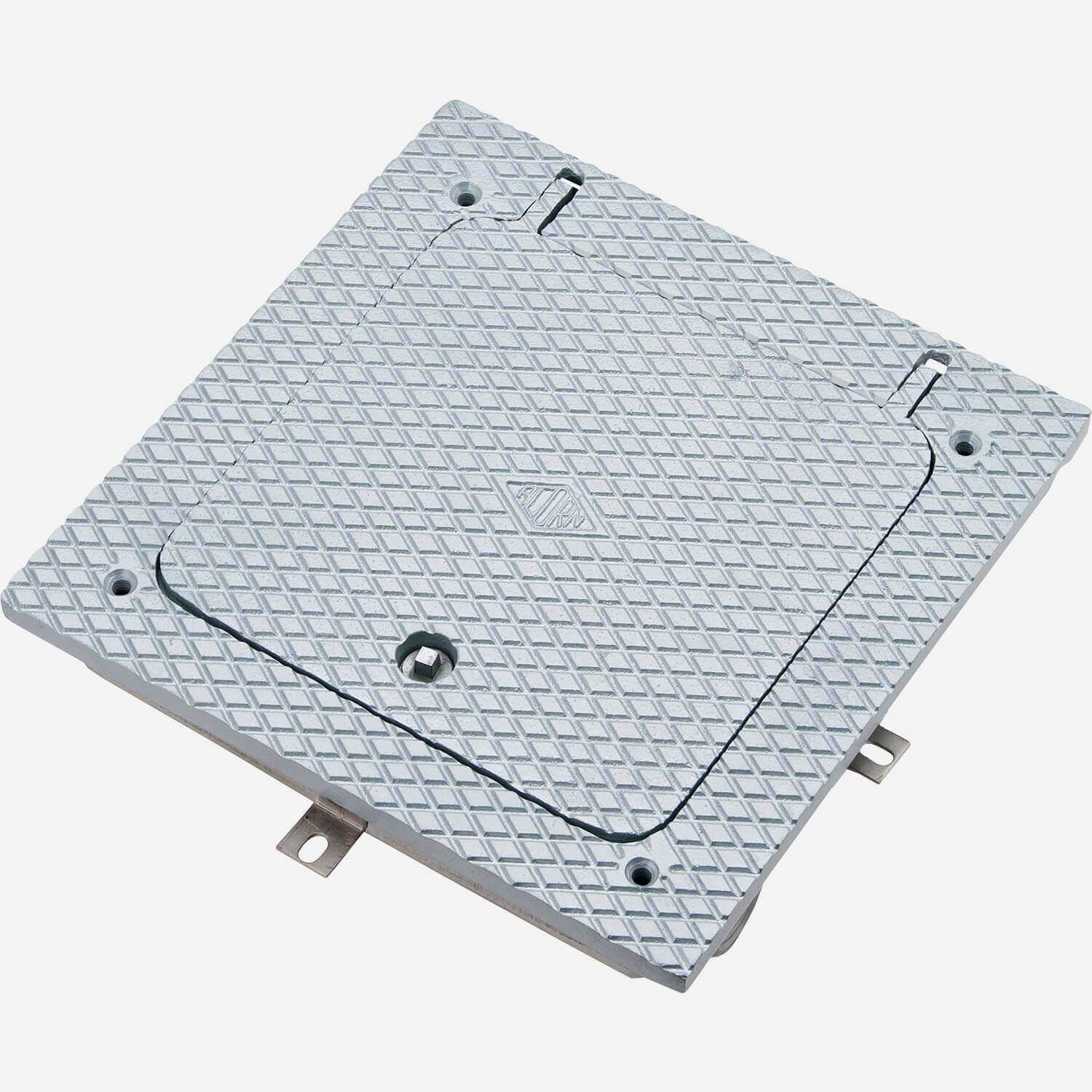

Frame and Door are cast Lumaloy and have a diamond tread non-skid surface. Frame is furnished with four tamper-resistant bolts for anchoring to box. Door is hinged and has a recessed cam latch which is operable with a loose key by others or the removable wheel handle on the valve.
-SSLF Valve and Stop Body are stainless steel, lead free design and provide a rough finish, cast stainless steel valve body, stainless steel stop assembly, stainless steel lockshield cartridge to meet the lead-free requirements where the wetted surfaces contain less than 0.25% lead. Valve and Stop feature tamper-resistant lockshield bonnets and replaceable cartridges containing all wearing parts including the seat. The value and stop body casting is gasketed where it joins the box and is securely anchored with stainless steel tamper-resistant screws. Supply inlet is 3/4" NPT female. Outlet is 3/4" male hose thread.
Screwdriver Stop in supply permits servicing the control valve without shutting down the water supply.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Hose Box with Non-Skid Top [8170-SSLF | Single Temp; 8171-SSLF | Single Temp with Vacuum Breaker; 8175-SSLF | Dual Temp; 8176-SSLF | Dual Temp with Vacuum Breaker] | 0 | 117 KB | ||
| | Hose Box with Non-Skid Top [8170-SSLF | Single Temp; 8171-SSLF | Single Temp with Vacuum Breaker; 8175-SSLF | Dual Temp; 8176-SSLF | Dual Temp with Vacuum Breaker] | 0 | 171 KB | ||
 | | 0 | 625 KB | |||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB | ||
| | Tools / Fasteners: Drivers and Bits | 0 | 51 KB | ||
| | Hose and Supply Boxes - Hose Boxes: Hot and Cold Hose Box w/ Non-Skid Top | 0 | 289 KB |
Specifications
| Product Type | Hose Box |
| Material | Cast Aluminum, Stainless Steel |
| Material Detail | Cast Aluminum Door and Frame, Stainless Steel Valve and Stop Body |
| Product Features | Single Temperature, Door limiting unauthorized use |
| Mounting | Floor Mount |
| Compliance | Federal Public Law 111-380, UPC |
Product Variations
Image | Model ID | Description |
|---|---|---|
 | 8171-SSLF | Single Temp Hose Box with Vacuum Breaker and Non-Skid Top |
 | 8175-SSLF | Dual Temp Hose Box with Non-Skid Top |
 | 8176-SSLF | Dual Temp Hose Box with Vacuum Breaker and Non-Skid Top |
