Model DSW130

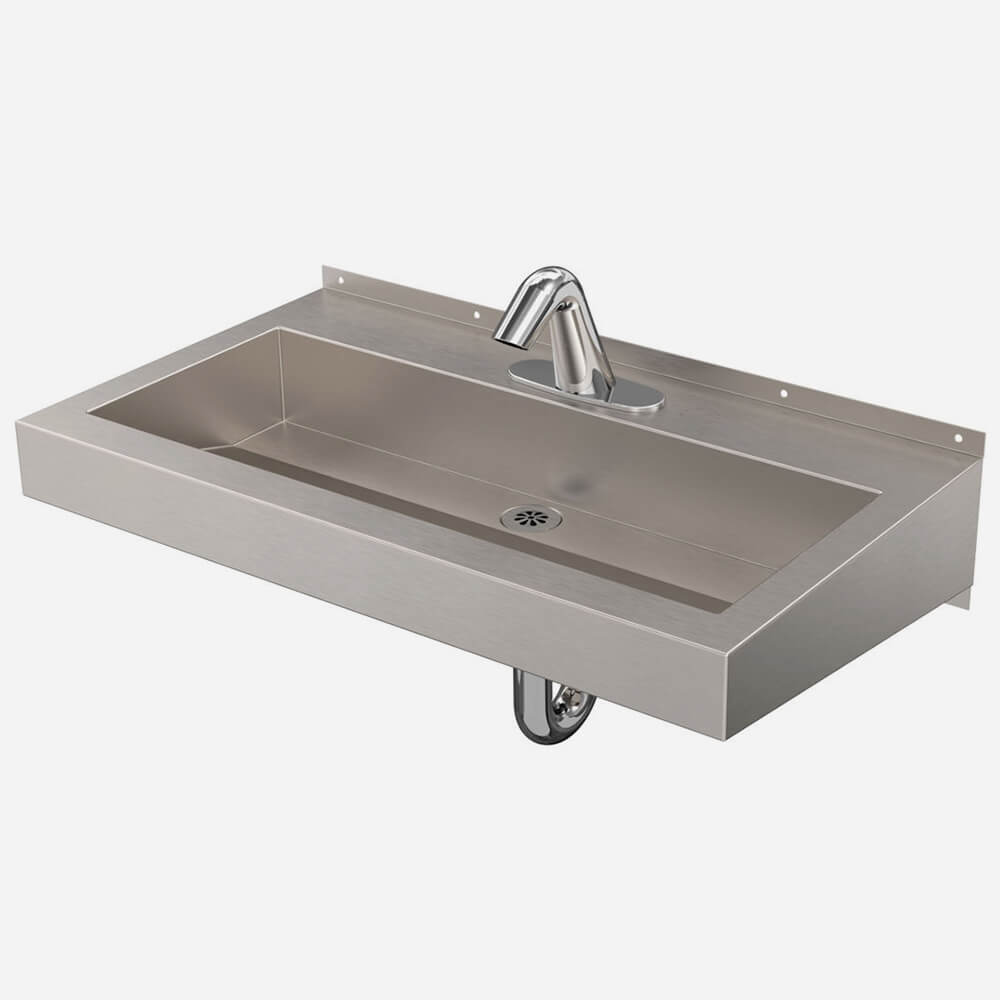

One-Station Deluxe Stainless Steel Trough Sink
Deluxe Trough Wash-Ware ® are convenient, space-saving stainless steel trough sinks that can be equipped with hand washing stations. The compact design allows for hand washing capabilities even in small spaces, and the units are suitable for both indoor and outdoor use.
This barrier-free, ADA-compliant model is one station, measuring 30" (762 mm) wide. Faucets are available with manual or sensor activation.
Features
- One station, 30" (762 mm) wide
- 16-gauge, type 304 stainless steel with an easy-to-clean satin finish
- Choice of faucet; manual and touchless sensor operation available

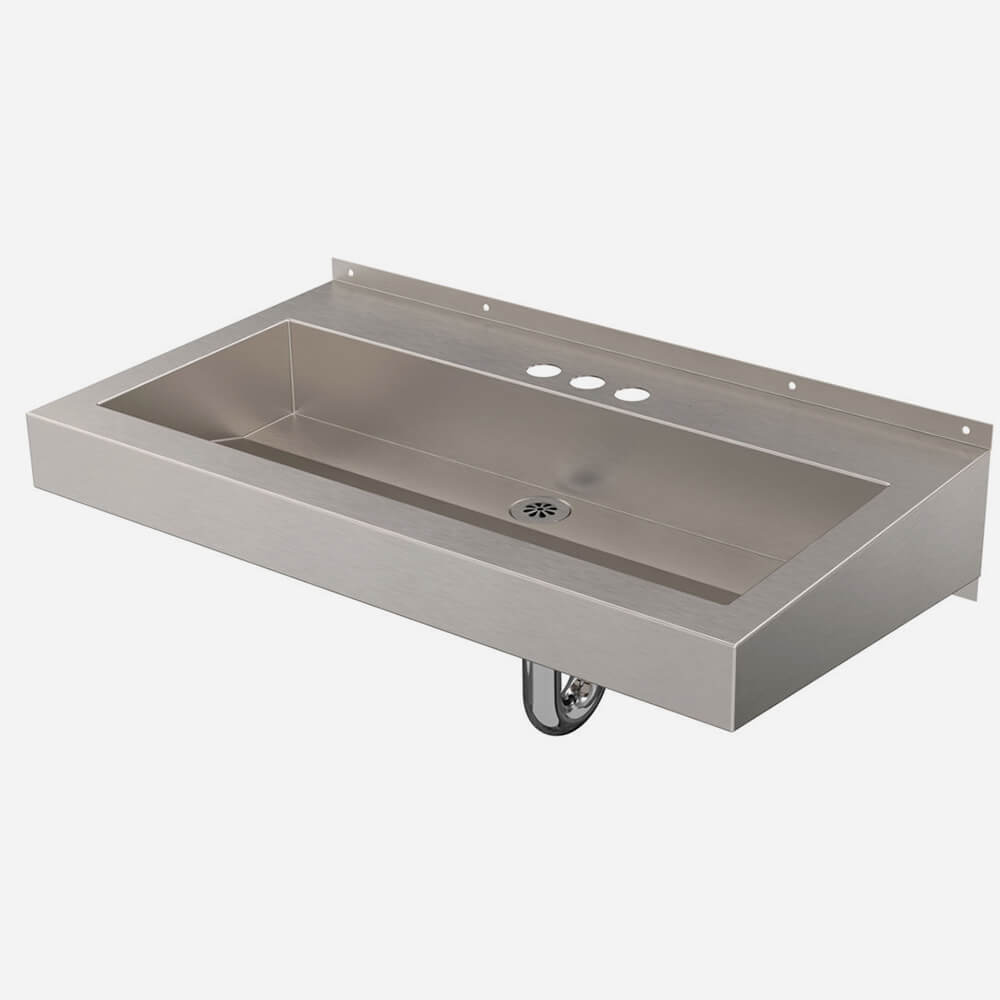

- Pre-drilled for a 4" (102 mm) centerset faucet; multiple faucet styles available
- Pre-drilled backsplash return provided for mounting the unit to a reinforced wall
- Basin is punched to accept a 1-1/2" drain assembly
- Complies with UPC/cUPC and ASME A112.19.3
- ADA compliant

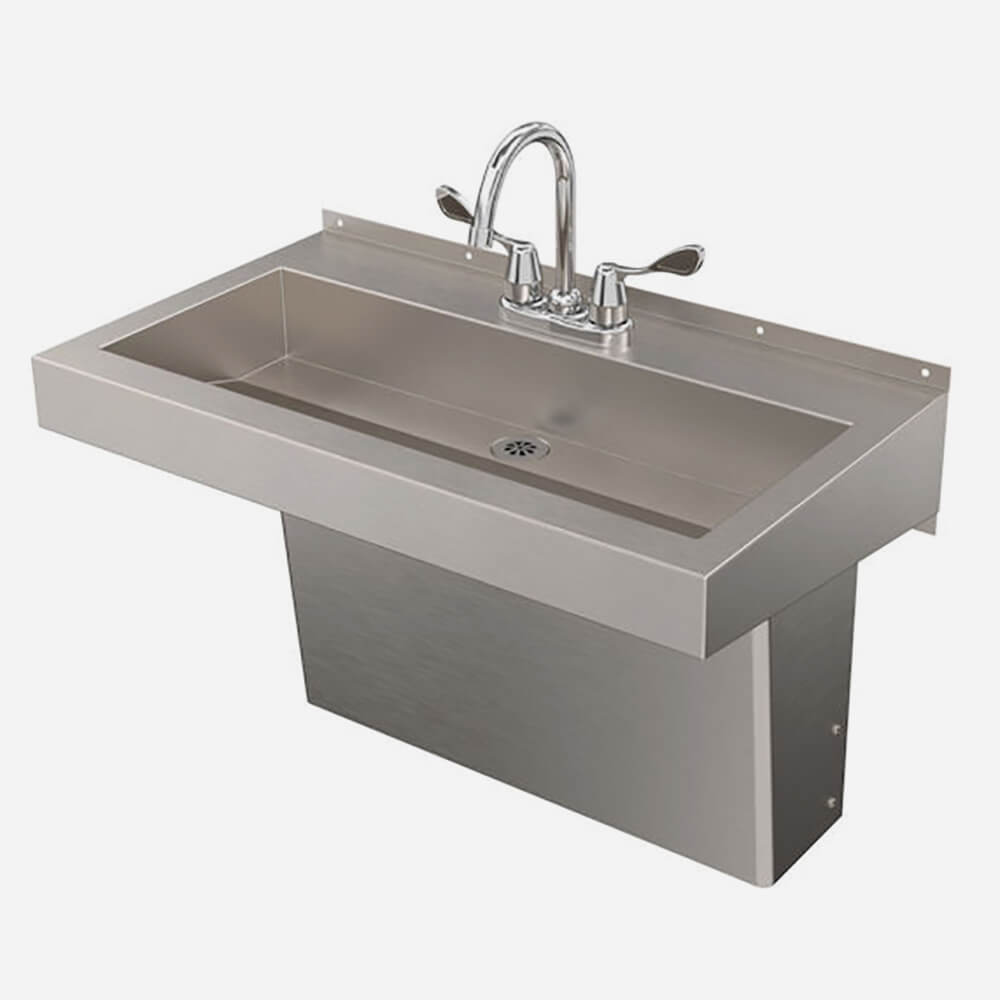

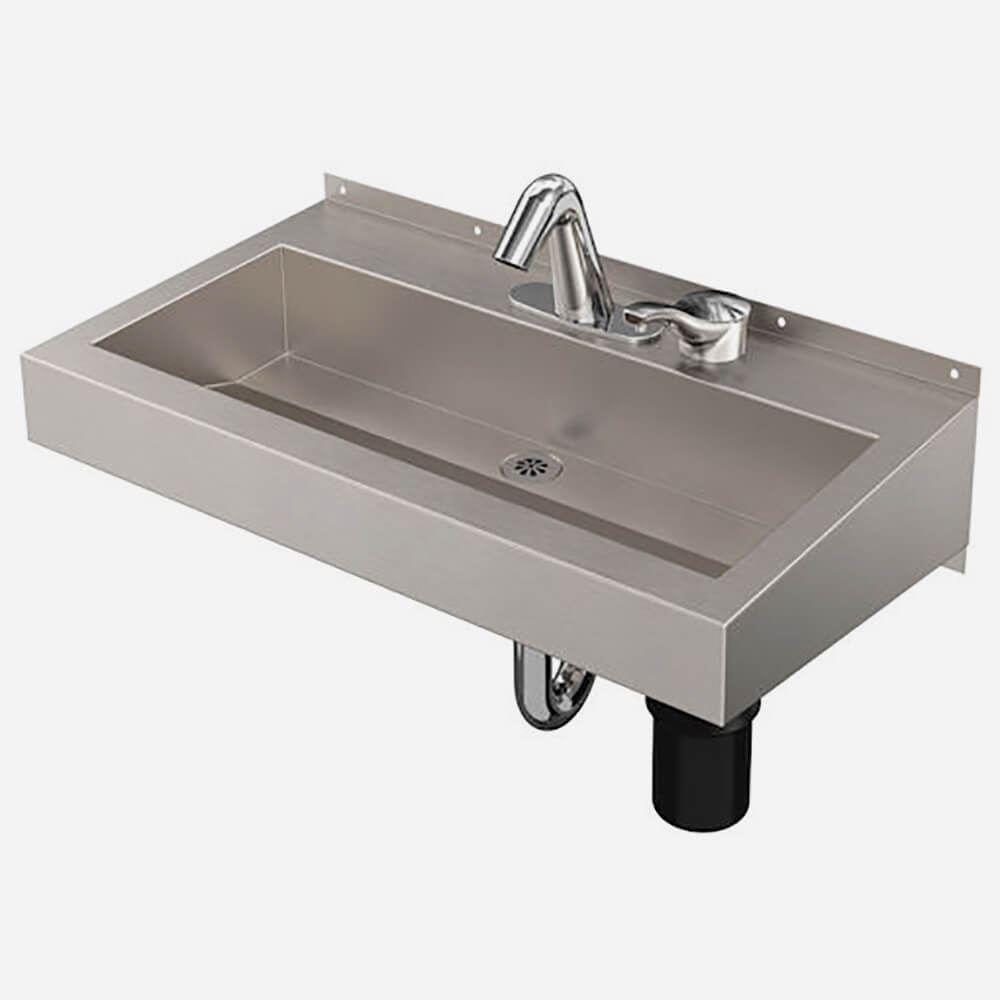

- Options: Soap dispenser, stainless steel trap enclosure (24" wide), Enviro-Glaze® powder coated color
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | One User, 30" Wide, Deluxe Stainless Steel Wall Mount Hand Wash and Bottle Filler Trough | 0 | 233 KB | ||
| | Deluxe Stainless Steel Wall Mount Hand Wash and Bottle Filler Trough [DSW000 Series: 1 station 30" - DSW130; 2 station 60" - DSW260; 3 station 90" - DSW390; 4 station 120" - DSW4120] | 0 | 214 KB | ||
 | | Deluxe Stainless Steel Trough Sink & Bottle Filler [DSW130 One-Station 30" wide; DSW260 Two-Station 60" wide; DSW390 Three-Station 90" wide; DSW4120 Four-Station 120" wide] | 0 | 1 MB | ||
| | Deluxe Stainless Steel Trough Sink & Bottle Filler [DSW130 One-Station 30" wide; DSW260 Two-Station 60" wide; DSW390 Three-Station 90" wide; DSW4120 Four-Station 120" wide] | 0 | 1 MB | ||
| | Acorn Engineering - Circular wash fountains, Semicircular wash fountains, Corner wash fountains, Elliptical wash fountains, Linear wash fountains | 0 | 188 KB | ||
 | | Acorn Engineering - Circular wash fountains, Semicircular wash fountains, Corner wash fountains, Elliptical wash fountains, Linear wash fountains | 0 | 201 KB | ||
| | Deluxe Trough Wash-Ware® Flyer (pdf) | 0 | 527 KB | ||
| | Hand Washing Products Brochure (pdf) | 0 | 2 MB | ||
| | Stainless Steel Fixtures and Accessories for Parks | 0 | 1 MB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB |
Specifications
| Brand | Deluxe Trough Wash-Ware® |
| Product Type | Lavatory |
| Material | Stainless Steel |
| Material Detail | 16-Gauge Stainless Steel, 7-Gauge Hot-Rolled Steel Mounting Angles |
| Mounting | Wall Mounted |
| Indoor/Outdoor Use | Suitable for Outdoor Use |
| Bowl Shape | Rectangular |
| Patent | Pending |
| Compliance | ADA Compliant, UPC |
| Overall Dimensions | 30" (Side-to-Side) x 17" (Front-to-Back) |
| Stations-Users | 1 |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | DSW000-TC1 | Accessory: Single 24" Wide Trap Enclosure for Deluxe Trough Sink | ||
 | PS1000-PS | Accessory: Deck Mount Pump Soap Dispenser | ||
 | PS1000-SSO | Accessory: Sensor Operated Soap Dispenser | ||
 | SW000-F50 | Accessory: Faucet, Hot and Cold Wristblade Gooseneck | ||
 | SW000-F51 | Accessory: Faucet, Hot and Cold Wristblade | ||
 | SW000-F60 | Accessory: Single Temp Sensor Faucet with Stainless Steel Spout and Stainless Steel Deck Plate | ||
 | SW000-F70 | Accessory: Single Temp Push Button Metering Faucet with Plate | ||
 | SW000-PT | Accessory: Daisy Strainer with Tailpiece and 1-1/2” P-Trap | ||
 | SW000-PTC | Accessory: Chrome Plated Brass Daisy Strainer and 1-1/2" P-Trap |
Miscellaneous
Details
Acorn-Sinks® Product Number System
This is how our Acorn-Sinks products are numbered. The graphic below is an example. It does not necessarily reflect the product above.
