Option: Remote Electronic Flush Valve Pushbutton - Chase Wall

Electronic Flush Valve styles only. Intended for use with a Lav-Toilet Combination or Toilet Fixture to allow remote actuation of the Toilet Flush Valve by the Staff. No Flush Control shall be accessible to the Cell Occupant. Remote Pushbutton Control prevents the flushing of evidence or contraband and reduces the potential for intentional clogging of the Toilet Fixture to create a flood condition.

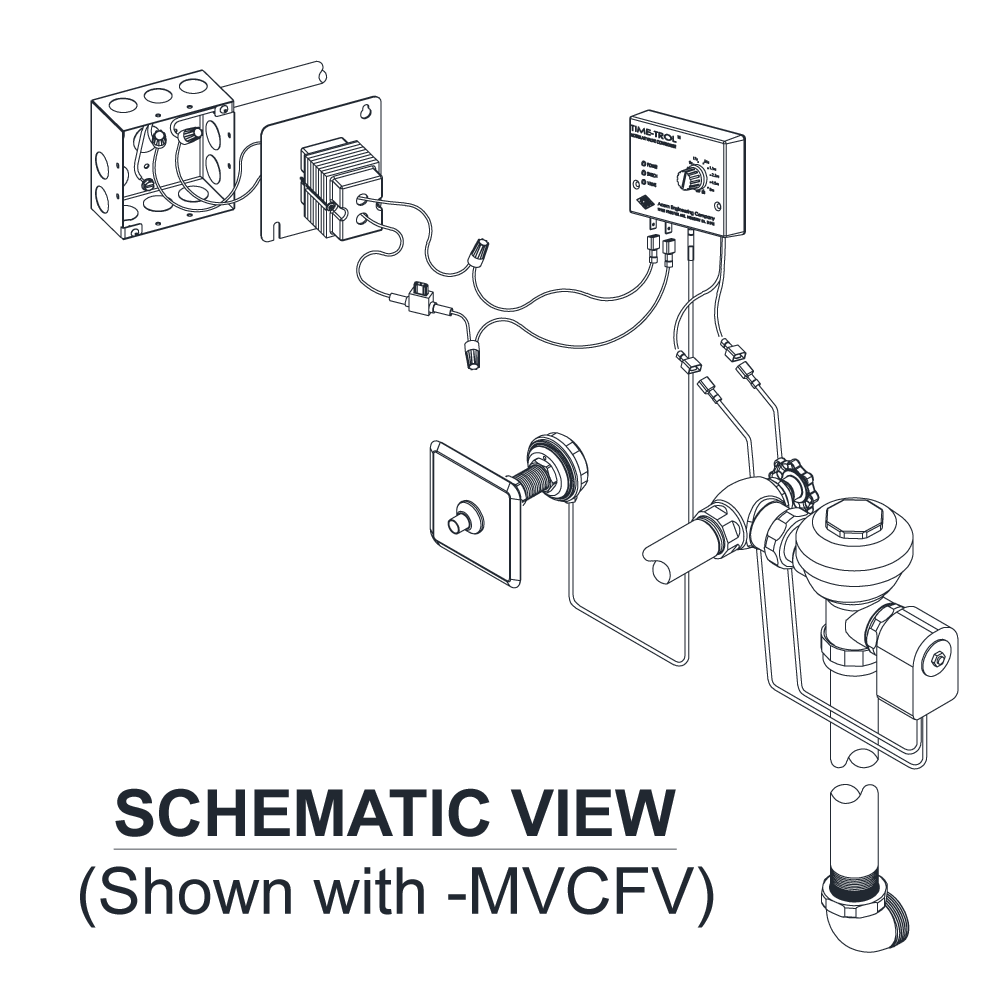

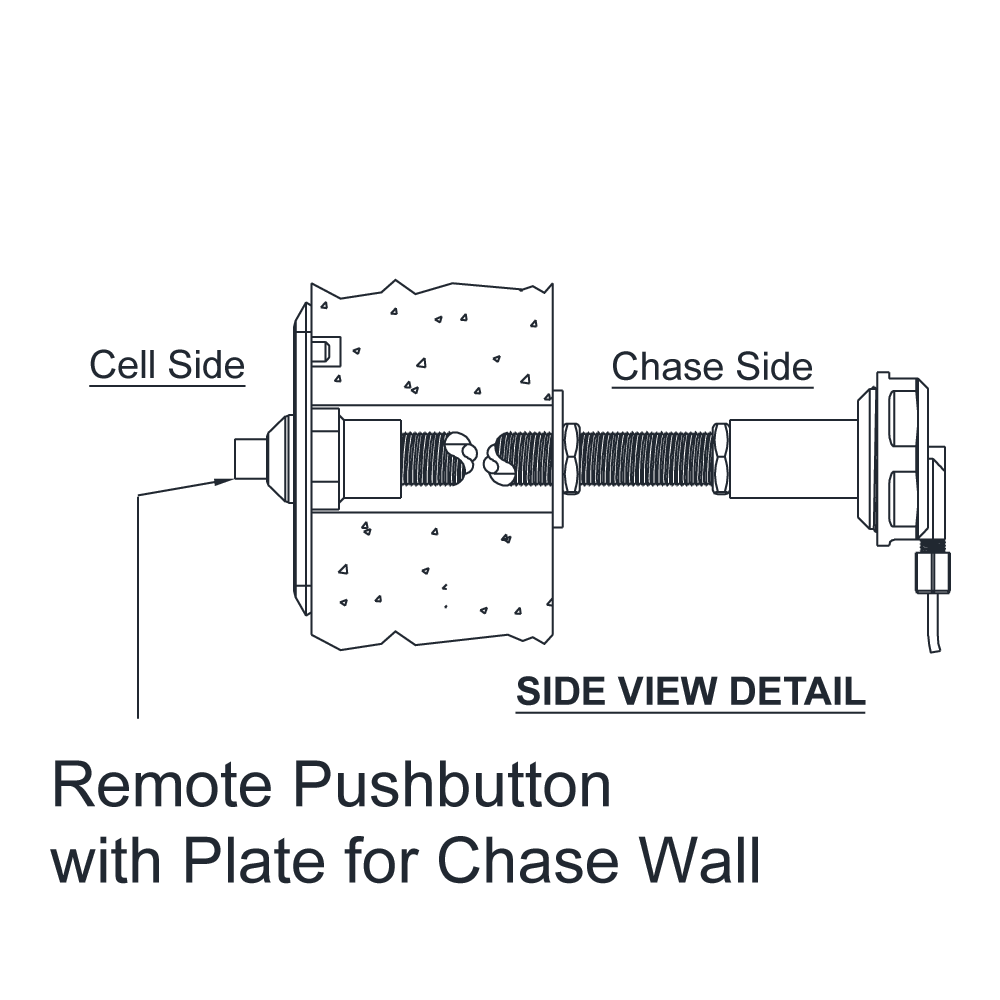

Installation is intended in the wall outside of the Holding Cell and requires an accessible Plumbing Chase. The Remote Pushbutton must be within 50 feet of the Electronic Valve Controller. The MVCFV, MTPFV, or EVSFV Electronic Control Module (typically installed within the Plumbing Chase at or near the Toilet Fixture) must be within 50 feet of the 24VAC Solenoid Flush Valve. To ensure proper operation, the Flush Valve must be installed at the Toilet fixture per the Manufacturer's recommendations.

Lav-Toilet Combination Fixture must be specified with the optional -LPFV (Less Punching for Flush Valve). Dual flush is not offered; Staff will have sole responsibility for flushing the Toilet fixture.

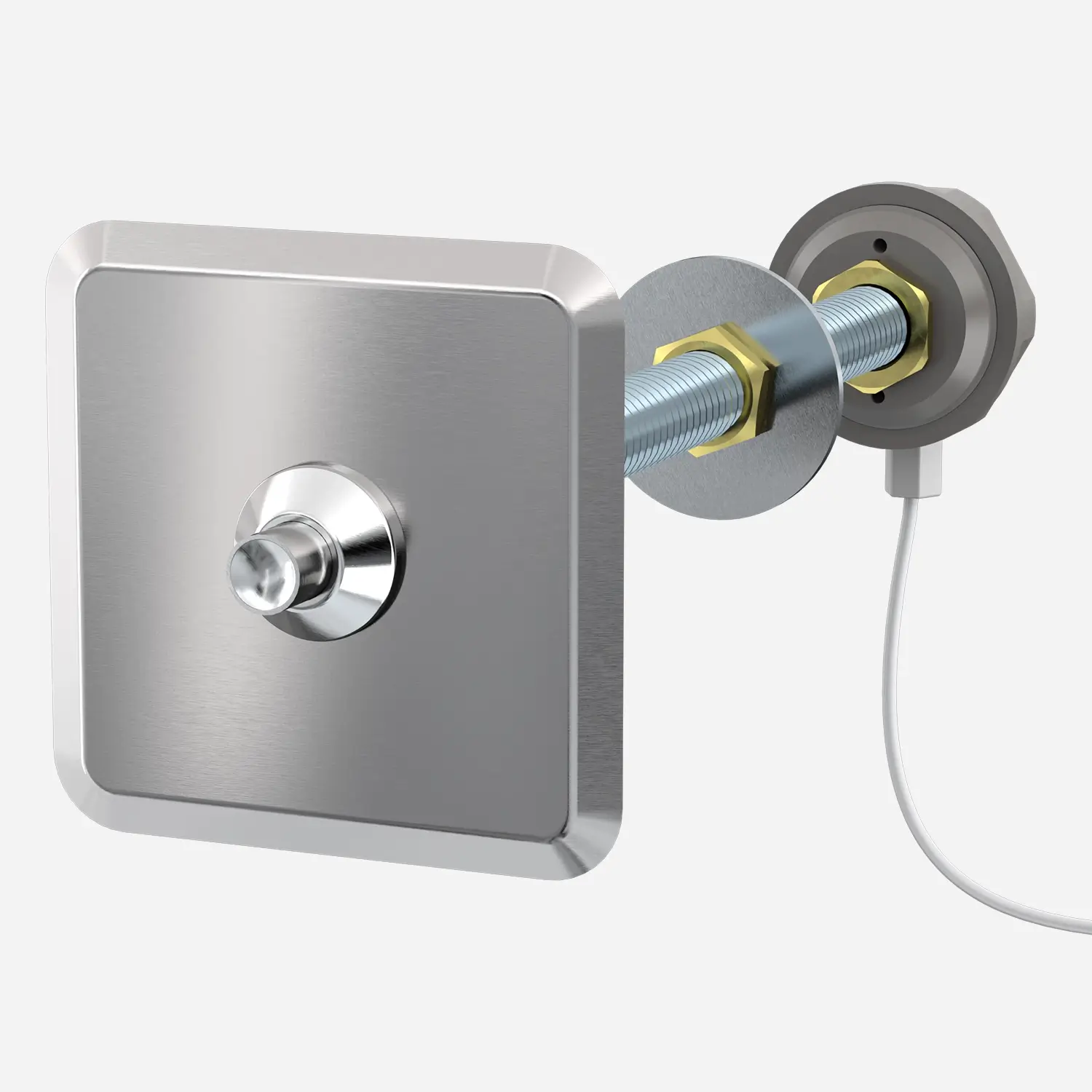

Remote Pushbutton Assembly consists of a 4-inch square 14-gauge Type 304 Stainless Steel Plate with exposed surfaces polished to a #4 Satin Finish. The Plate includes beveled edges and an Anti-Rotational Pin to help secure it to the Wall, and it includes a Through-Wall Conduit to suit the provided Wall Thickness, with Adapters for Pneumatic or Electronic Pushbutton Control.

Electronic Flush Valve style shall be specified on the Fixture Product Submittal Selections. Refer to the supplemental Flush Valve product Submittal for complete details.
