Option: Programmable Piezo Button

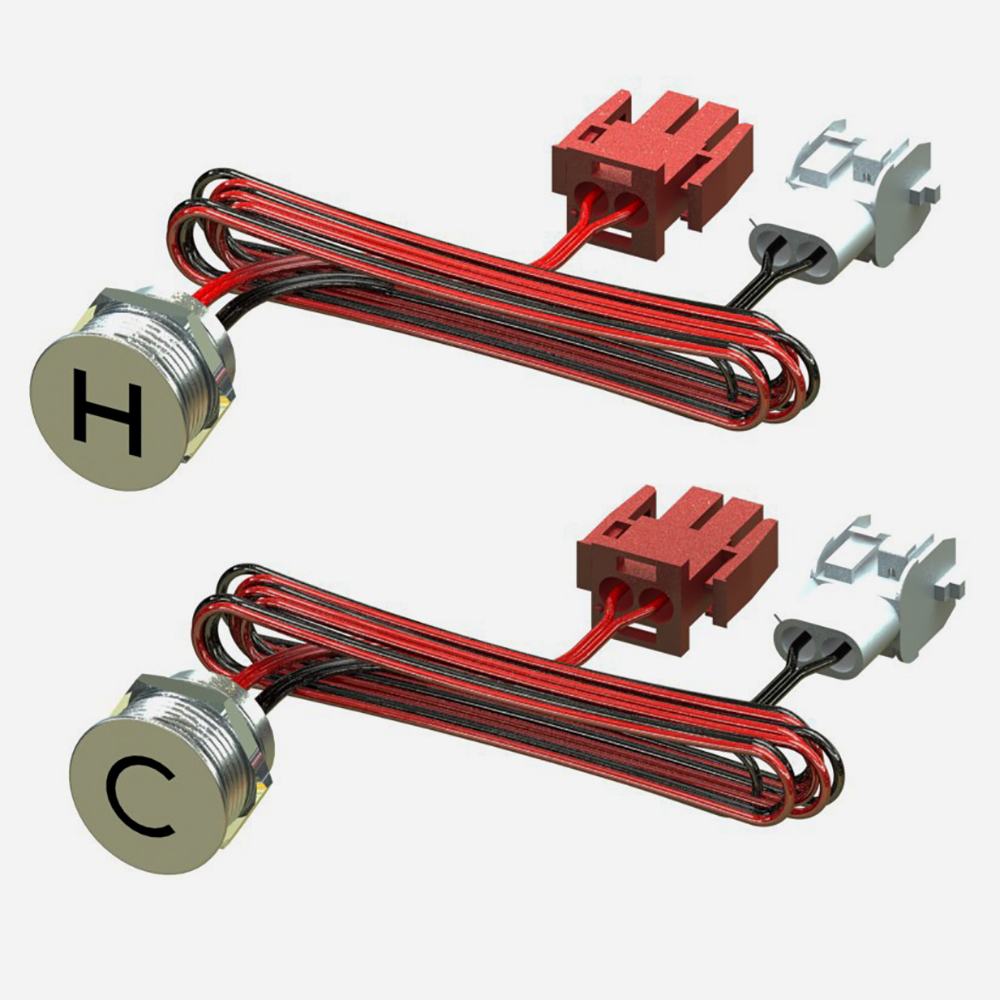

9VDC Programmable Piezo button(s) with 10’ foot connection leads are operated by touching the piezo cap to activate the solenoid valve. Button(s) have a default 8-second metered flow, but can be programmed for additional time on site. The flow cycle can be stopped by touching the Piezo cap before the flow cycle ends. Button(s) are powered by a 9VDC transformer or an optional 6 AA battery pack (batteries not included).
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Programmable Piezo Pushbutton offered on products with Options -PPZ, -PPZ1, -PPZ2 - Instructions to Adjust Flow Time | 0 | 526 KB | ||
| | Option -PPZ, -PPZ1, or -PPZ2 Programmable Programmable Piezo Buttons | 0 | 572 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Overview of MGI Divisions | 0 | 718 KB |
Models
Typical models are shown below
-PPZ1 (-PPZ) | Single Temperature: intended for those fixtures that do not include a mixing valve but are available with a single temperature -03M valve option. i.e. Penal-Ware & Dura-Ware, Combys and Lavatories
-PPZ2 | Hot & Cold: intended for those fixtures that do not include a mixing valve but are available with the dual, hot and cold, -04M valve options. i.e. Penal-Ware & Dura-Ware, Combys and Lavatories.
