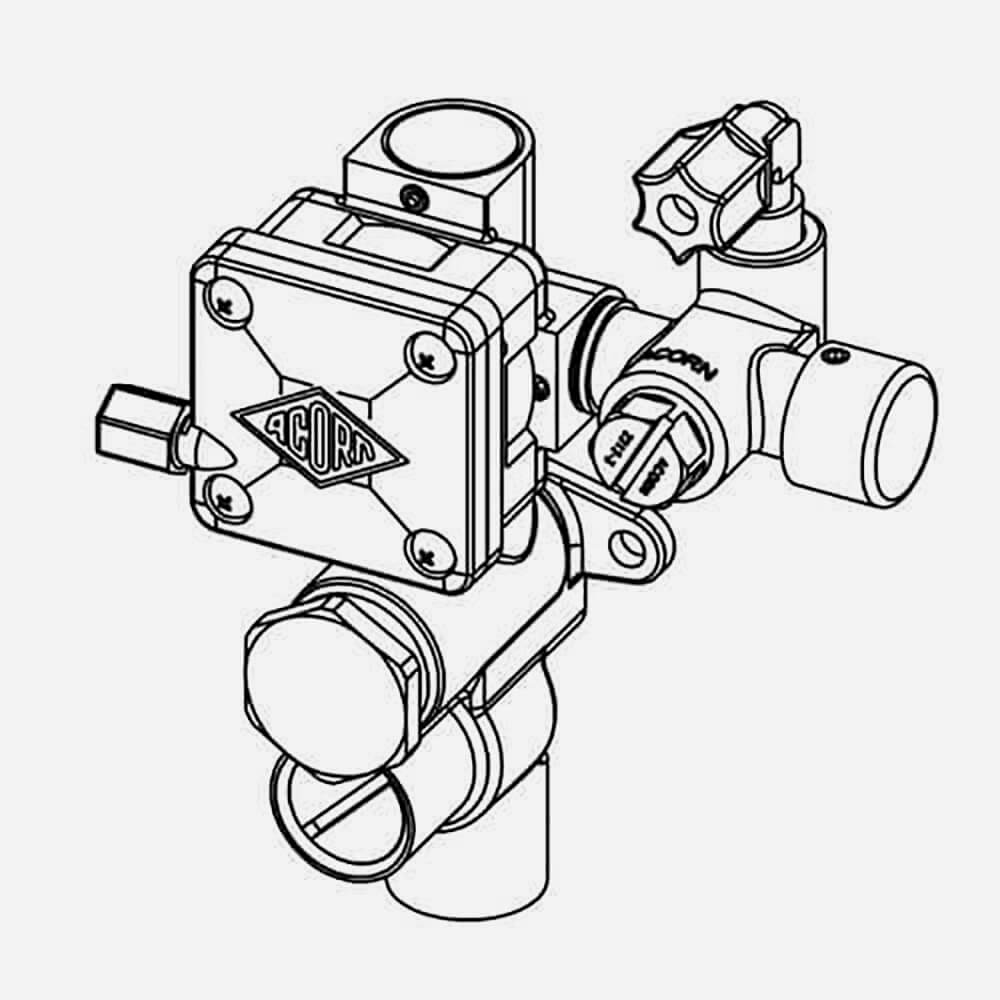

Single Temperature Replacement Air-Control™ Valve Assembly for Vitreous China & Aluminum Fixtures with Integral Bubbler
The Air-Control Valve Assembly is designed to replace existing valves on china and aluminum fixtures with an integral bubbler. The Air-Control valve assembly allows locating the valve up to 10 feet away from the activating pushbuttons. The pushbutton assembly is arranged to be mounted to the backsplash and support the fixture. Pushbuttons require minimum 1-5/16" diameter round or 1-1/8" square backsplash openings. When single temperature is required, a blank escutcheon is provided to maintain this feature. The integral spout expanded rubber connection will fit 15/16" through 1-1/8" diameter openings. Valve inlets are 1/2" NPT.
3382 assembly is features a single temperature valve. The assembly features 0.5 GPM flow control, single temperature pushbuttons, pushrod and bubbler connection.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | 0 | 169 KB | |||
| | Replacement Air-Control™ Valve Assembly for Vitreous China & Aluminum Fixtures with Intergral Bubbler - Single Temp (3382) and Hot & Cold (3383) | 0 | 640 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
| | Valves: Single Temp Air-Control™ Valve Body Assembly (-03) | 0 | 56 KB | ||
| | Stops: Plastic Air-Control® Check Stop Assembly | 0 | 74 KB | ||
| | Trims: Single Air Integral Bubbler Fix Trim | 0 | 211 KB |
Specifications
| Product Type | Valve |
| Brand | Replace-Ware® |
| Product Features | Single Temperature, Replacement |
| Institutional Applications | Correctional, Hospital & Treatment Centers, Educational Building, Train Station & Airports, Other Institutional Buildings |
| Commercial Applications | Stores & Shopping Centers, Warehouse, Office Building, Restaurant & Hospitality, Stadium & Arena |
