Single Temperature Retro-Air Valve

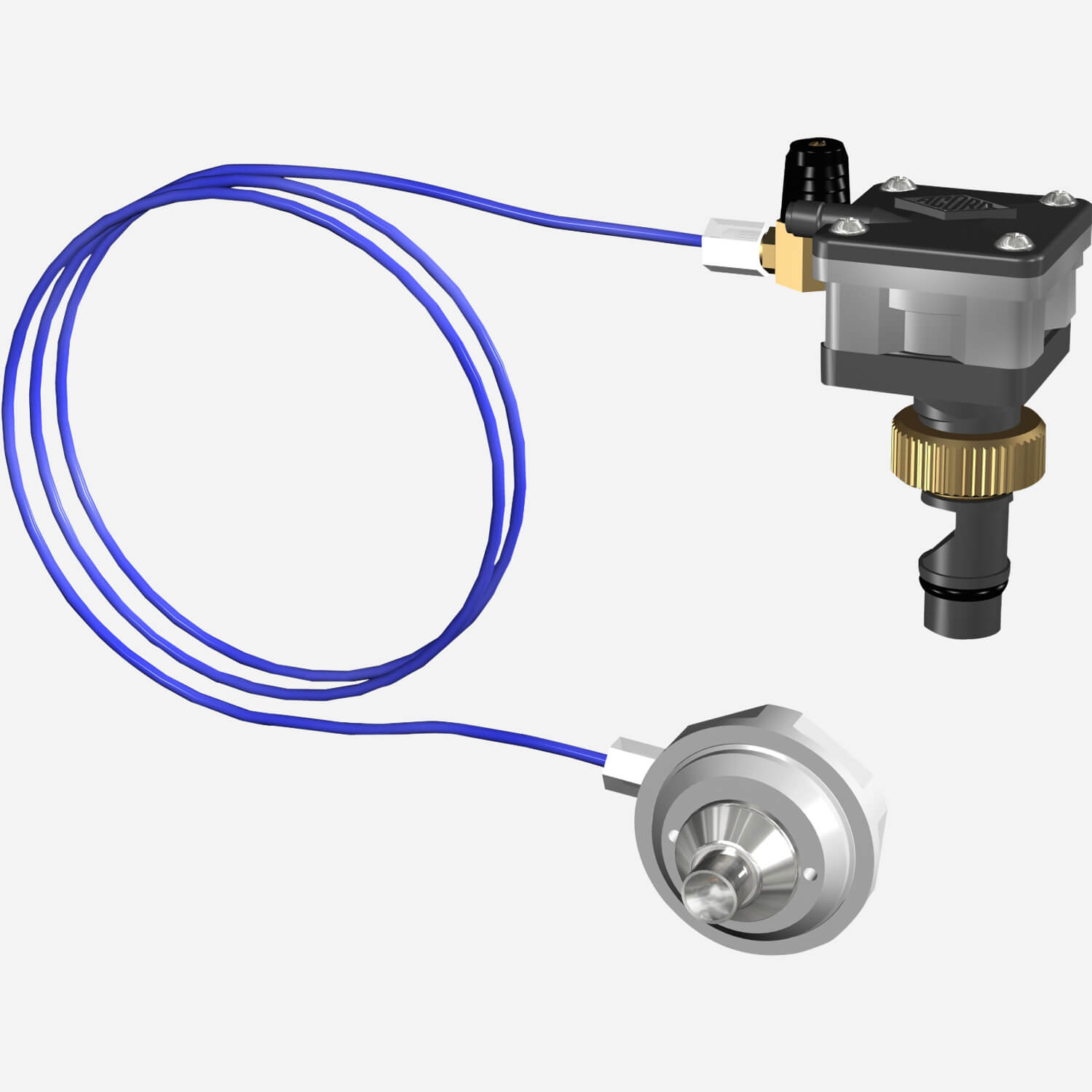

Retro-Air Valve Assembly is designed to replace existing metering or non-metering cartridges within existing Acorn Penal-Trol (manufactured since 1978), Metcraft Tempus II and Willoughby Temp 1/Temp 2 valves to pneumatic operation. The Retro-Air Valve Assembly package consists of the Retro-Air servomotor cartridge, a push button assembly (or adapter) and polyethylene 1/8" tubing to connect the push button to the Retro-Air servomotor cartridge, which replaces existing push buttons and push rod hardware. Available for both single temperature and hot and cold installations, the metering Retro-Air will solve the maintenance associated with traditional mechanical style metering cartridges.
3386 assembly features a single-temperature valve.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | 0 | 624 KB | |||
| | Retro-Air Valve Assembly - Single Temp (3386) and Hot & Cold (3387) | 0 | 529 KB | ||
 | | Single Temperature Retro-Air Valve replacing Acorn Penal-Trol Valve (from 1978 to present) | 0 | 73 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
| | Valves: Retro-Air-Control™ Valve Cartridge | 0 | 78 KB | ||
| | Trims: Air-Trol/Master-Trol Push Button Assembly | 0 | 130 KB | ||
| | Valves: Valve Body Assembly for Penal-Trol Valve (Thru JAN 1976) | 0 | 57 KB |
Specifications
| Product Type | Valve |
| Brand | Replace-Ware® |
| Product Features | Single Temperature, Replacement |
| Institutional Applications | Correctional, Hospital & Treatment Centers, Educational Building, Train Station & Airports, Other Institutional Buildings |
| Commercial Applications | Stores & Shopping Centers, Warehouse, Office Building, Restaurant & Hospitality, Stadium & Arena |
