Front/Rear Mount, On-Floor, ADA Compliant Bariatric Stainless Steel Toilet
This stainless steel bariatric toilet features reinforced housing and is designed to be installed on the floor and a finished wall either from the front or in a rear (chase) application. It is available in top or wall water supply, and floor or wall waste outlet. This toilet is ADA compliant when installed properly.
The toilet is designed to meet the needs of bariatric users, water conservation, and ADA compliance.
DISCLAIMERS:This product provides an om-floor bariatric solution capable of withstanding 1,000 lbs ( 453.59 kg0 when combined with an appropriately rated Bariatric Support System.
WaterSense® recent advancements have allowed toilets to use 1.28 gallons (4.85 liters) per flush or less while still providing equal or superior performance. The WaterSense label is used on toilets that are independently certified to meet rigorous criteria for both performance and efficiency. Only water-saving toilets that complete the certification process can earn the WaterSense label. Must use optional HET valves to meet WaterSense label requirements.
Please check with local ADA requirements. ADA compliance is subject to proper installation (including devices such as grab bar) and the interpretations of the local code authority.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | On-Floor, ADA Compliant Bariatric Stainless Steel Toilet - Wall Waste Outlet, Front Mount | 0 | 393 KB | ||
| | On-Floor, ADA Compliant Bariatric Stainless Steel Toilet - Wall Waste, Floor Waste, Rear (Chase) Mount and Front Mount versions available | 0 | 147 KB | ||
 | | Wall Supply, On-Floor/Wall Waste | 0 | 244 KB | ||
| | Wall Supply, On-Floor/Wall Waste, w/Big John Toilet Seat | 0 | 268 KB | ||
| | Wall Supply, On-Floor/Wall Waste | 0 | 92 KB | ||
| | Wall Supply, On-Floor/Wall Waste, w/Big John Toilet Seat | 0 | 145 KB | ||
| | On-Floor, ADA Compliant Bariatric Stainless Steel Toilet | 0 | 451 KB | ||
| | On-Floor, ADA Compliant Bariatric Stainless Steel Toilet | 0 | 238 KB | ||
| | Acorn Engineering - Commercial Water Closets | 0 | 170 KB | ||
 | | Acorn Engineering - Commercial Water Closets | 0 | 170 KB | ||
| | On-Floor, ADA Compliant Bariatric Stainless Steel Toilet - Wall Waste Outlet, Rear/Chase Mount | 0 | 374 KB | ||
| | On-Floor, ADA Compliant Bariatric Stainless Steel Toilet - Floor Waste Outlet, Front Mount | 0 | 336 KB | ||
| | On-Floor, ADA Compliant Bariatric Stainless Steel Toilet - Rear/Chase Mount On-Floor Waste Outlet | 0 | 424 KB | ||
| | Enviro-Glaze Powdercoating Color Chart | 0 | 2 MB | ||
| | Correctional Facility Fixtures HET Toilet/Acorn Vac | 0 | 816 KB | ||
 | | Wall Supply, On-Floor/Wall Waste, Powdercoated White, Big John Toilet Seat, Bedpan Lugs | 0 | 140 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB | ||
| | Tools / Fasteners: Stainless Steel Security Screws | 0 | 138 KB | ||
| | Tools / Fasteners: Washers, Nuts and Anchors | 0 | 74 KB |
Specifications
| Product Type | Toilet |
| Configurations Available | On-Floor with Wall Waste Outlet (-2), On-Floor with Floor Waste Outlet (-3) |
| Brand | Dura-Ware® |
| Material | Stainless Steel |
| Mounting | Front or Rear Mounted |
| Accessibility | ADA Compliant |
| High-Efficiency (Water Use) | Option -HET, -VAC Available |
| Vandal Resistant | Moderate |
| Product Features | Bariatric |
| Institutional Applications | Correctional, Hospital & Treatment Centers, Educational Building, Train Station & Airports, Other Institutional Buildings |
| Commercial Applications | Stores & Shopping Centers, Warehouse, Office Building, Restaurant & Hospitality, Stadium & Arena |
| Park and Recreation Applications | Yes |
| Compliance | WaterSense meets EPA Criteria - certified by IAPMO R&T |
Options
Accessories
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | BL | Option: Bedpan Lugs | ||
 | EG | Option: Enviro-Glaze® Powder Coating | ||
 | FM | Option: Front Mount | ||
 | FT | Option: Flood-Trol® Anti-Flood System for Manual Flush Valve | ||
 | FTA | Option: Flood-Trol® Anti-Flood System for Manual Flush Valve, Auto Reset | ||
 | FV (Toilet) | Option: Flush Valve for Toilet | ||
 | FVBO | Option: Flush Valve by Others | ||
 | FVH | Option: Hydraulic Flush Valve | ||
 | FVL | Option: Flush Valve with Lever Activation | ||
 | FVT | Option: Flush Valve Thru Wall Connection | ||
 | HET | Option: High Efficiency Toilet Flush - 1.28 gallons (4.85 liters) per Flush | ||
 | LPFS | Option: Less Punching for Seat | ||
 | MVCFV | Push Button Solenoid Flush Valve Application Time-Trol® | ||
 | PE | Option: Plain End Waste | ||
| RM | Option: Rear Mount | ||
 | T (Toilet) | Option: Top Supply for Toilet | ||
 | TF | Option: Transformer for AC Power Valve | ||
 | TSC | Option: Toilet Shipping Cover | ||
 | ULF (Toilet) | Option: Ultra Low Toilet Flush - 1.6 gallon (6 liter) per Flush | ||
 | VAC | Option: Configuration for Vacuum Plumbing | ||
 | W (Toilet) | Option: Wall Supply for Toilet | ||
 | WO3B | Option: 2-3/8 Inch P-Trap with 3 Inch Plain End Waste Outlet |
Models

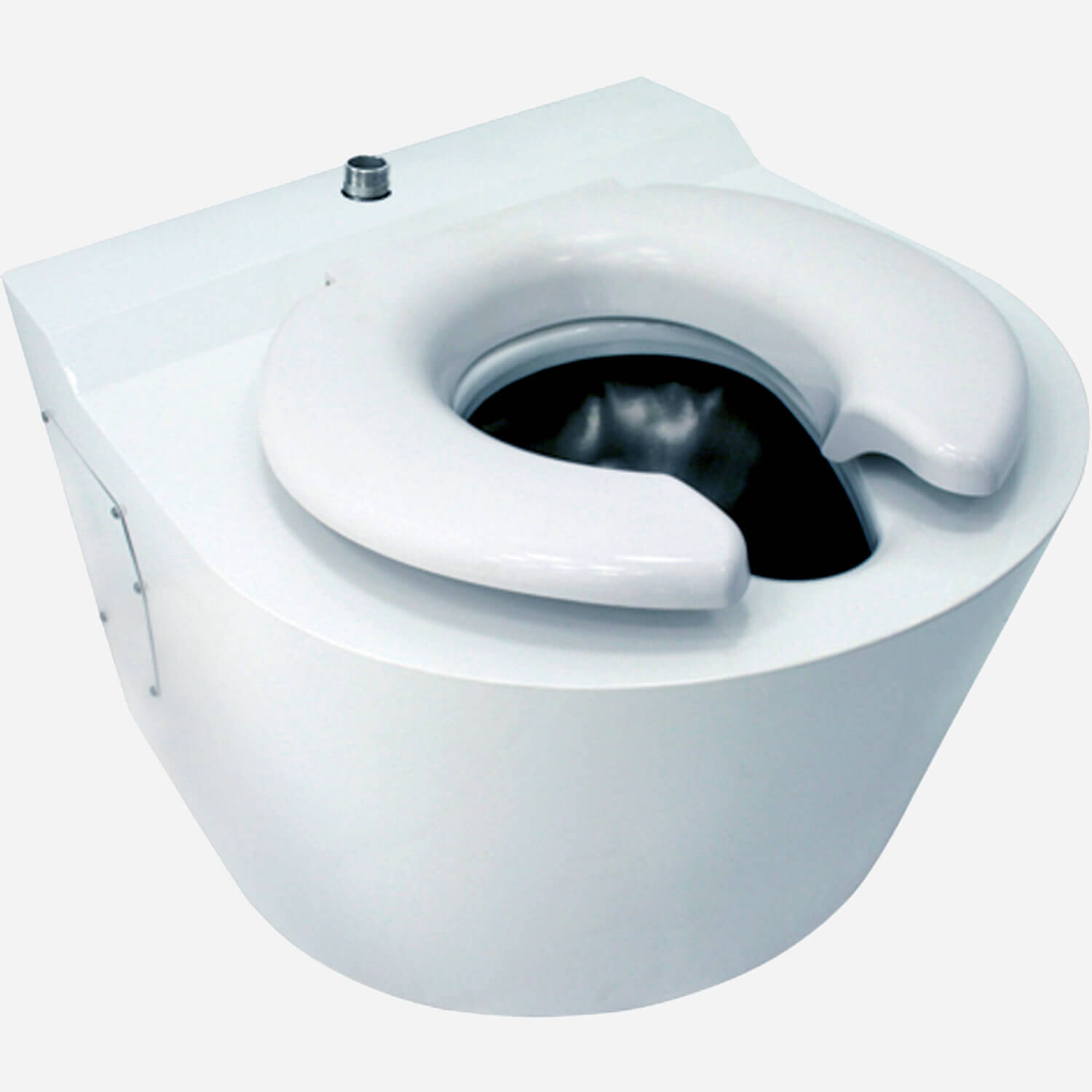

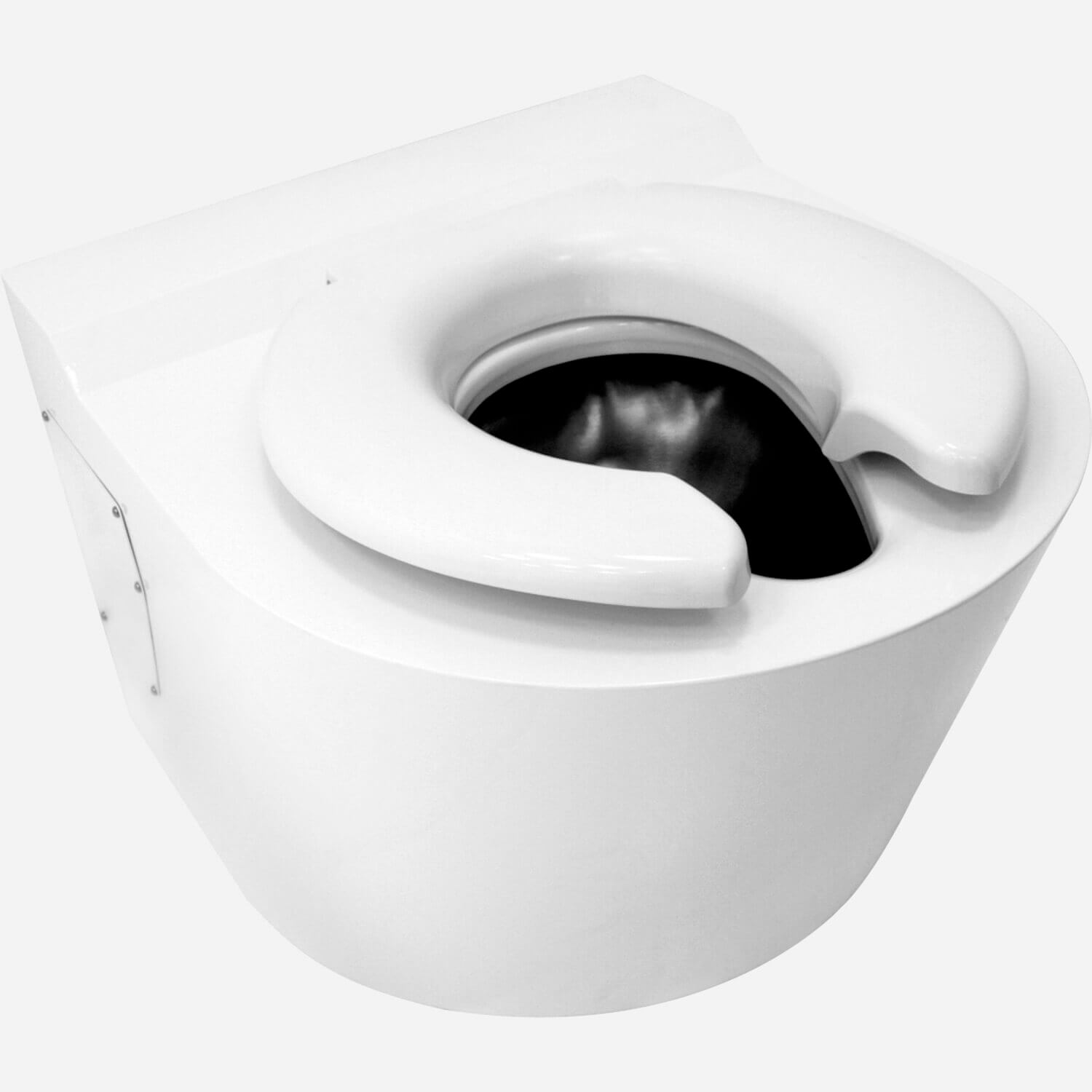

The toilets shown below are all front-mount toilets though rear-mount toilets are also available for rear-chase applications. The toilet measure 24" (610 mm) wide x 29" (737 mm) front-to-back. The exterior and bowl interior has a satin finish. The fixture, without the optional -HSBJ hinged seat) shall withstand loads up to 2,000 pounds (907.1 kg) with no measurable deflections. It can handle loads upto 5,000 pounds (2267.9 kg) with no permanent damage. The optional -HSBJ seat is rated at 1,200 pounds (544.3 kg). Optional -EG Enviro-Glaze color finishes are available.
2125-A-T-2-FM
Front mount fixture; With top spud to accommodate exposed Top Supply flush valve Wall; Wall Waste Outlet
2125-A-W-2-FM

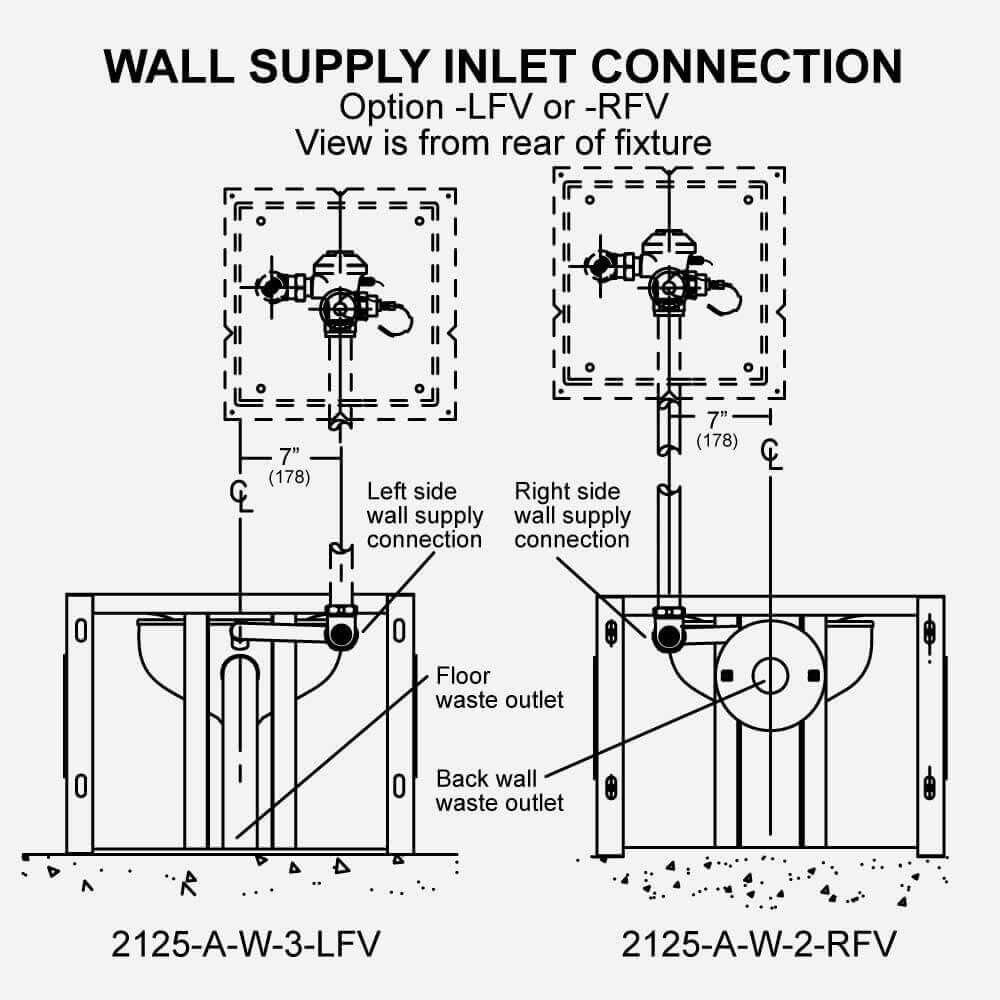

Front mount fixture; With rear spud to accommodate concealed Wall Supply flush valve; Must specify -LFV (left) or -RFV (right) for wall supply inlet; Wall waste outlet

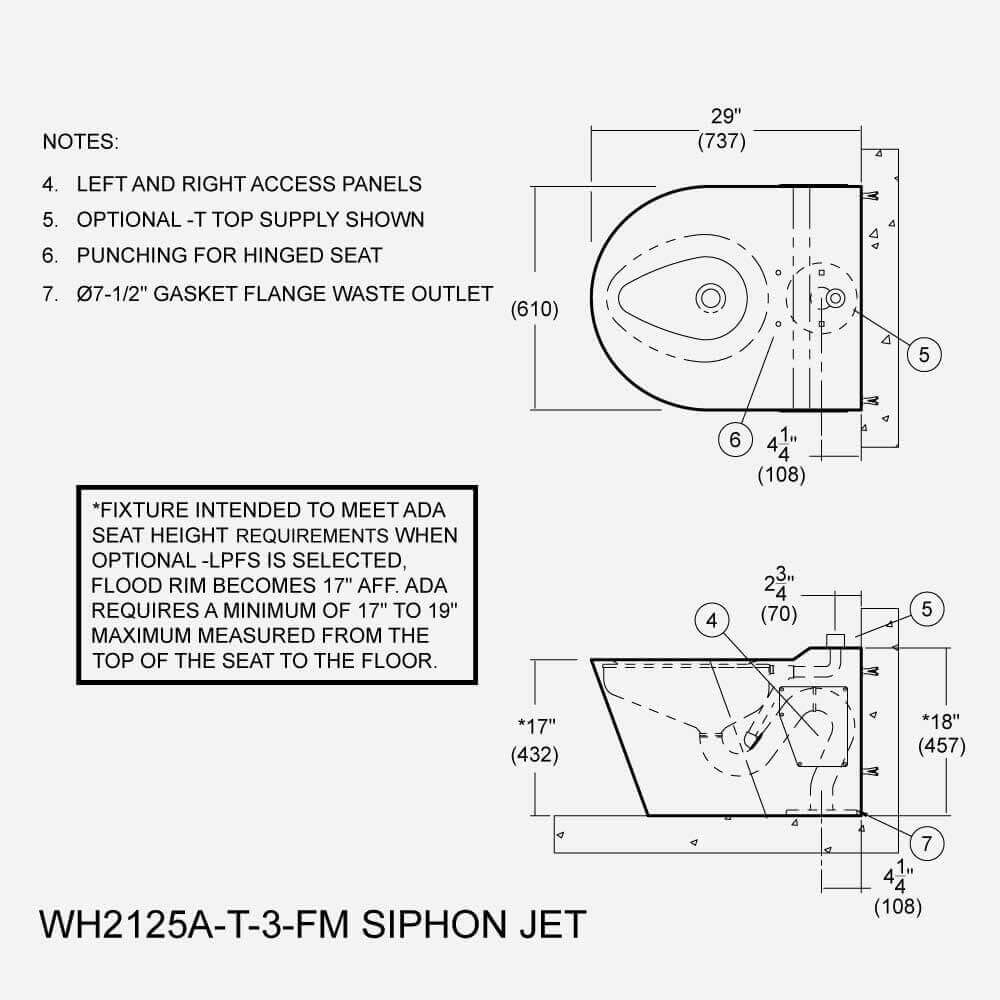

2125-A-T-3-FM
Front mount fixture; With top spud to accommodate exposed Top Supply flush valve; Floor Waste Outlet
2125-A-W-3-FM
Front mount fixture; With rear spud to accommodate concealed Wall Supply flush valve; Must specify -LFV (left) or -RFV (right) for wall supply inlet; Floor waste outlet
Popular Options include:

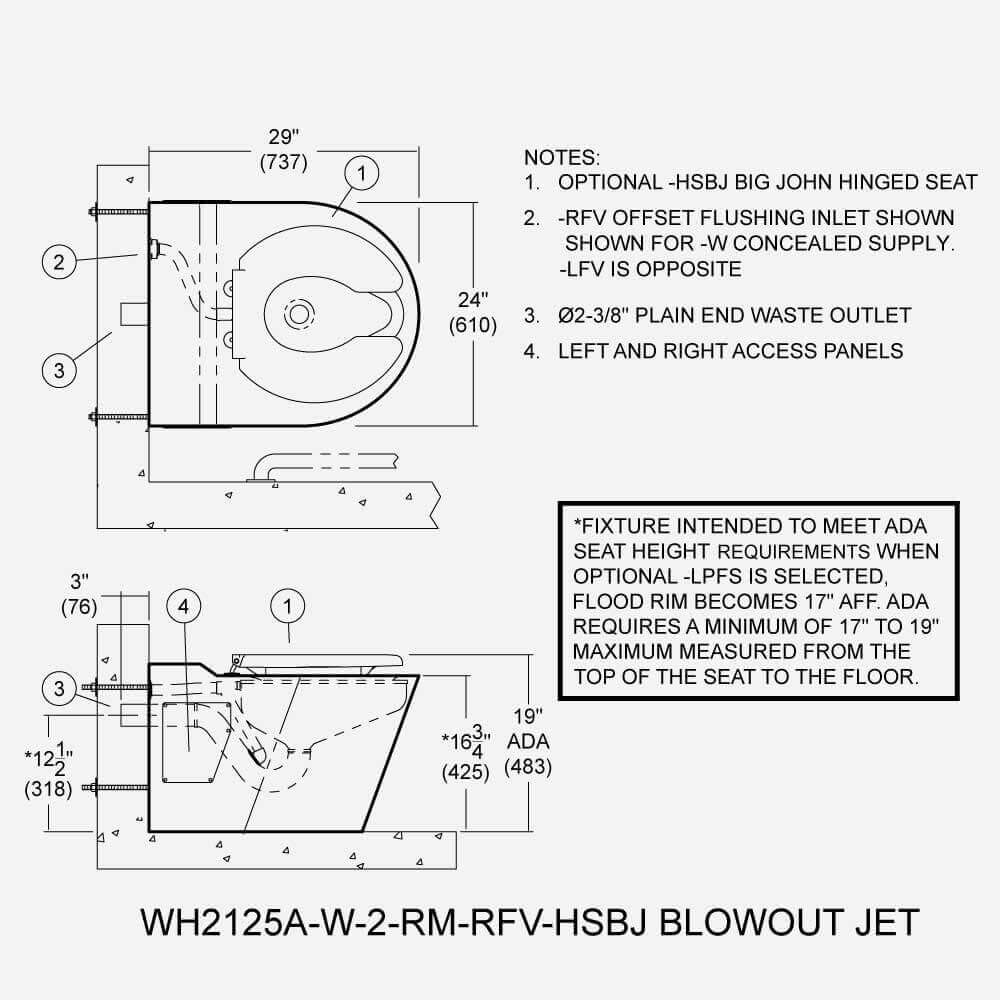

-HSBJ- | Big John® Toilet Seat - 1,200 lbs (544.31 kg) rated
-1.28 gpf (HET)- WaterSense® complaint flush valve
-RM - Rear mount configuration - installation requires Accessible Rear Plumbing Chase
Other options available including powder coating; see Options List and/or Submittal
