Rear/Front Mount, On/Off Floor, Wall Waste, Siphon Jet, Commercial Stainless Steel Toilet

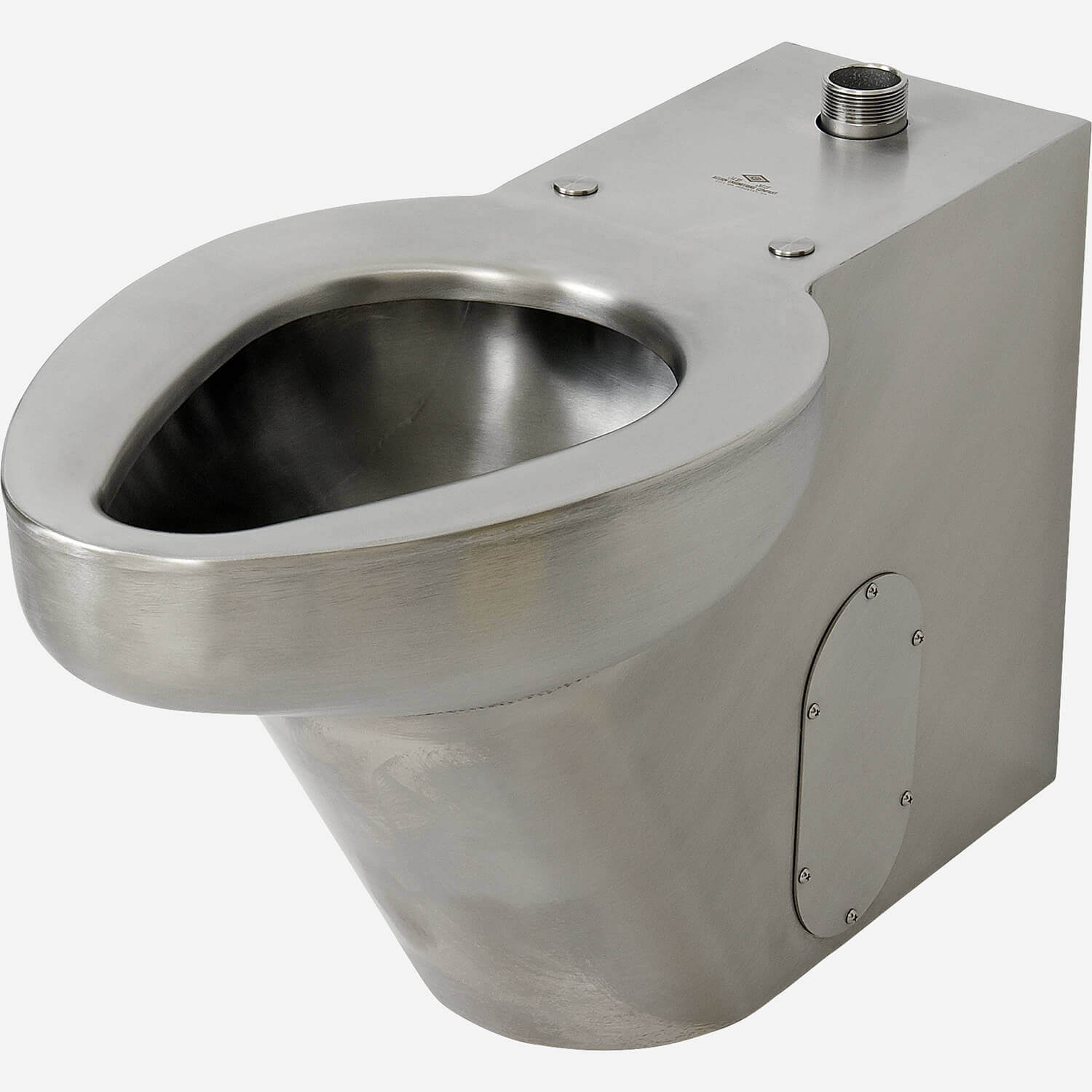

This stainless steel toilet is designed to be installed either from the front or in a rear (chase) application. It is available with siphon jet, mounts on or off-floor, has a top or wall water supply, and wall waste outlet. This toilet can be specified with an ADA seat height of 18 inches (457.2 mm).
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | 0 | 464 KB | |||
| | Siphon Jet Commercial Stainless Steel Toilet (Off-Floor or On-Floor, Wall Waste) | 0 | 173 KB | ||
 | | Wall Supply, Off-Floor, Front Mount | 0 | 364 KB | ||
| | Wall Supply, Off-Floor, Front Mount | 0 | 108 KB | ||
| | Acorn Engineering - Commercial Water Closets | 0 | 170 KB | ||
 | | Acorn Engineering - Commercial Water Closets | 0 | 170 KB | ||
| | Rear Mount, On/Off Floor, Wall Waste, Siphon Jet, Commercial Stainless Steel Toilet [2141-1 Off-Floor Toilet; 2141-2 On-Floor Toilet] | 0 | 295 KB | ||
| | Enviro-Glaze Powdercoating Color Chart | 0 | 2 MB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB | ||
| | Tools / Fasteners: Stainless Steel Security Screws | 0 | 138 KB | ||
| | Tools / Fasteners: Washers, Nuts and Anchors | 0 | 74 KB |
Specifications
| Product Type | Toilet |
| Configurations Available | Off-Floor with Wall Waste Outlet (-1), On-Floor with Wall Waste Outlet (-2) |
| Brand | Meridian |
| Material | Stainless Steel |
| Mounting | Front or Rear Mounted |
| Accessibility | Option -ADA Available (Taller Toilet) |
| High-Efficiency (Water Use) | Option -HET, -VAC Available |
| Vandal Resistant | Moderate |
| Institutional Applications | Hospital & Treatment Centers, Educational Building, Train Station & Airports, Other Institutional Buildings |
| Commercial Applications | Stores & Shopping Centers, Warehouse, Office Building, Restaurant & Hospitality, Stadium & Arena |
| Park and Recreation Applications | Yes |
| Compliance | WaterSense meets EPA Criteria - certified by IAPMO R&T |
Options
Accessories
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | 2 (Toilet) | Option: On-Floor, Wall Outlet Toilet | ||
 | 2-ADA (Toilet) | Option: On-Floor, Wall Outlet Toilet (increased height to meet ADA requirements) | ||
 | BL | Option: Bedpan Lugs | ||
 | CO1 | Option: Cleanout with O-Ring, Connecting to 4" No-Hub | ||
 | CO1-3 | Option: Cleanout with O-Ring, Connecting to 3" No-Hub | ||
 | EG | Option: Enviro-Glaze® Powder Coating | ||
 | FG | Option: Fourteen Gauge Type 304 Stainless Steel | ||
 | FM | Option: Front Mount | ||
 | FV (Toilet) | Option: Flush Valve for Toilet | ||
 | FVBO | Option: Flush Valve by Others | ||
 | FVH | Option: Hydraulic Flush Valve | ||
 | FVL | Option: Flush Valve with Lever Activation | ||
 | FVT | Option: Flush Valve Thru Wall Connection | ||
 | GW | Option: Gasketed Waste | ||
 | HET | Option: High Efficiency Toilet Flush - 1.28 gallons (4.85 liters) per Flush | ||
 | HP | Option: High Polish Finish on Stainless Steel Fixture | ||
 | HS-OFLC | Option: Hinged Seat (Less Cover) | ||
 | HS-OFWC | Option: Hinged Seat Open Front with Cover | ||
 | LPFS | Option: Less Punching for Seat | ||
 | MC | Option: Mounting Carrier | ||
 | MT | Option: Metal Template | ||
 | MVCFV | Push Button Solenoid Flush Valve Application Time-Trol® | ||
 | RM | Option: Rear Mount | ||
 | T (Toilet) | Option: Top Supply for Toilet | ||
 | TF | Option: Transformer for AC Power Valve | ||
 | ULF (Toilet) | Option: Ultra Low Toilet Flush - 1.6 gallon (6 liter) per Flush | ||
 | W (Toilet) | Option: Wall Supply for Toilet |
Details
Regularly Furnished: This toilet is manufactured with heavy gage type 304 stainless steel and features a wall waste. It is available as an off-the-floor unit or on-the-floor unit (both versions provide a standard seat height of 15" (381 mm). It can be configured with top supply (typically with an exposed flush valve, wall supply (typically with a concealed flush valve), front mount, rear (accessible pipe chase) mount, and ADA 18" (457 mm) seat height. A rear (chase), floor mount Ligature Resistant version of this toilet is also availalble by specifying LR2141.
| Model | Flush Valve | Off/On Mount | Front/Rear Mount | ADA |
| 2141-T-1-FM | Top Supply | Off-Floor | Front |  If mounted at ADA seat height |
| 2141-W-1-FM | Wall Supply | Off-Floor | Front | If mounted at ADA seat height |
| 2141-T-2-FM | Top Supply | On-Floor | Front | |
| 2141-W-2-FM | Wall Supply | On-Floor | Front | |
| 2141-T-2-FM-ADA | Top Supply | On-Floor | Front | Manufactured with ADA seat height |
| 2141-W-2-FM-ADA | Wall Supply | On-Floor | Front | Manufactured with ADA seat height |
| 2141-T-1-RM | Top Supply | Off-Floor | Rear | If mounted at ADA seat height |
| 2141-W-1-RM | Wall Supply | Off-Floor | Rear | If mounted at ADA seat height |
| 2141-T-2-RM | Top Supply | On-Floor | Rear | |
| 2141-W-2-RM | Wall Supply | On-Floor | Rear | |
| 2141-T-2-RM-ADA | Top Supply | On-Floor | Rear | Manufactured with ADA seat height |
| 2141-W-2-RM-ADA | Wall Supply | On-Floor | Rear | Manufactured with ADA seat height |
Product Function: The toilet is compliant with ASME A112.19.3 and CSA B45.4-2008. The toilet is design to meet the needs for water conservation and accessibility.
WaterSense® recent advancements have allowed toilets to use 1.28 gallons (4.85 liters) per flush or less while still providing equal or superior performance. The WaterSense label is used on toilets that are independently certified to meet rigorous criteria for both performance and efficiency. Only water-saving toilets that complete the certification process can earn the WaterSense label. Must use optional HET valves to meet WaterSense label requirements.
Please check with local ADA requirements. ADA compliance is subject to proper installation (including devices such as grab bar) and the interpretations of the local code authority.
