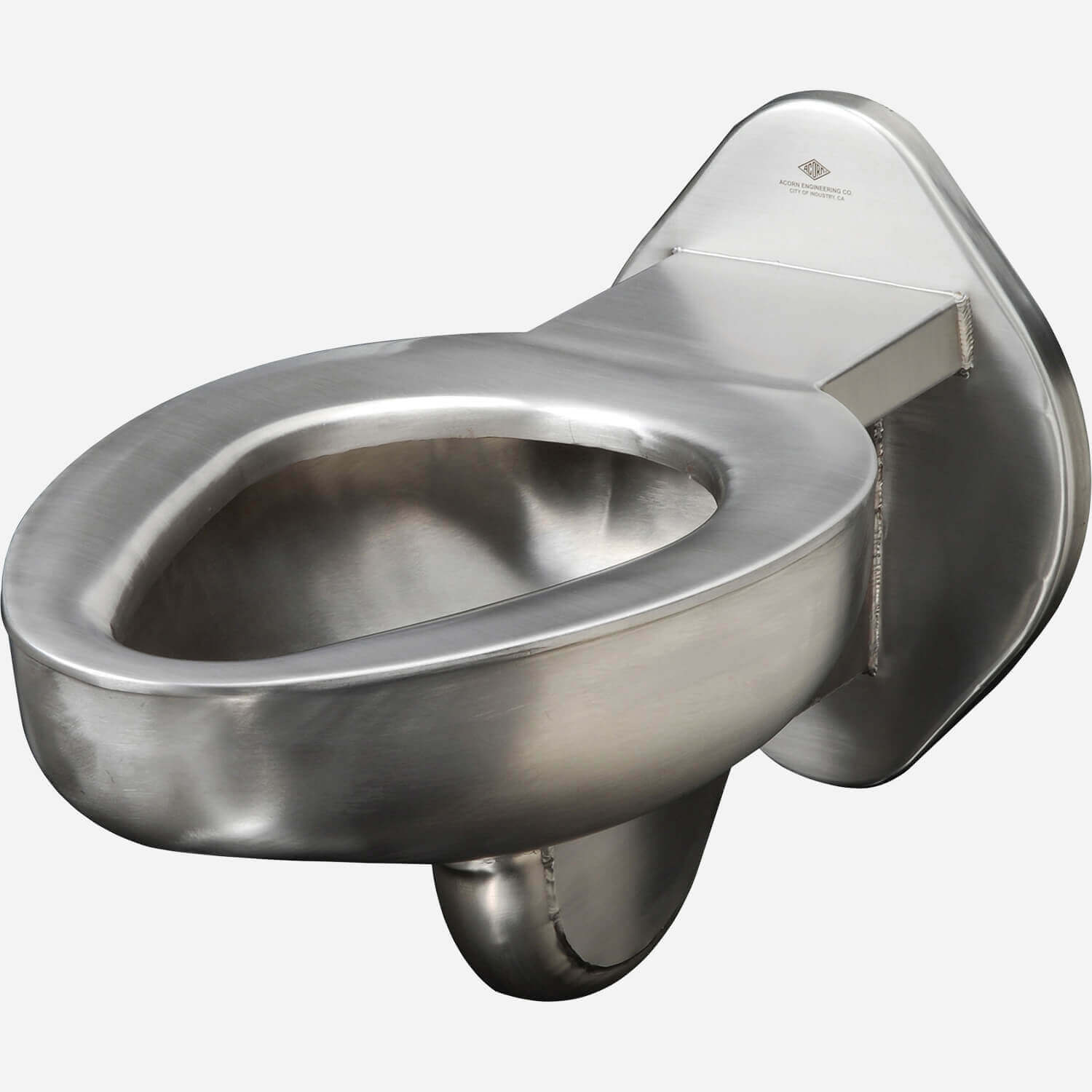

Rear Mount, Off-Floor, Blowout Jet, Stainless Steel Security Toilet
This stainless steel security toilet is designed for a rear (chase) application. It is available with blowout jet, mounts off-floor, and has a wall waste outlet. Top and wall supply configurations are available. This toilet can be specified with an ADA seat height of 18 inches (457.2 mm).
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Rear Mount, Off-Floor, Blowout Jet, Stainless Steel Security Toilet - Top Supply | 0 | 511 KB | ||
| | Off-Floor, Blowout Jet Stainless Steel Security Toilet for Rear Mount (Chase) Application | 0 | 204 KB | ||
 | | Wall Supply, Off-Floor | 0 | 248 KB | ||
| | Top Supply, Off-Floor | 0 | 256 KB | ||
| | Wall Supply, Off-Floor | 0 | 90 KB | ||
| | Top Supply, Off-Floor | 0 | 159 KB | ||
| | Off-Floor, Blowout Jet Stainless Steel Security Toilet for Rear Mount (Chase) Application | 0 | 447 KB | ||
| | Off-Floor, Blowout Jet Stainless Steel Security Toilet for Rear Mount (Chase) Application | 0 | 249 KB | ||
| | Rear Mount, Off-Floor, Blowout Jet, Stainless Steel Security Toilet - Wall Supply | 0 | 462 KB | ||
| | Enviro-Glaze Powdercoating Color Chart | 0 | 2 MB | ||
| | Correctional Facility Fixtures HET Toilet/Acorn Vac | 0 | 816 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB | ||
| | Tools / Fasteners: Stainless Steel Security Screws | 0 | 138 KB | ||
| | Tools / Fasteners: Washers, Nuts and Anchors | 0 | 74 KB | ||
| | Trims: Mounting Hardware, Penal FixtureS | 0 | 96 KB | ||
| | Waste Connections and Thru-Wall Extensions: Cleanout w/ O-Ring No-Hub -C01 and Threaded -CO2 | 0 | 78 KB | ||
| | Shower Heads - Nozzle Options: Universal Ball Joint w/Key OP V.C. (-Y-K) | 0 | 60 KB | ||
| | Valves: Flood-Trol Valve Assembly (-FT) - Old Style | 0 | 113 KB | ||
| | Valves: Flood-Trol (-FT) Valve Assembly | 0 | 80 KB | ||
| | Valves: Flood-Trol Manual Reset Assembly | 0 | 90 KB | ||
| | Valves: Flood-Trol Manual Reset Assembly - Front Access -FA -FT (Thru DEC 2010) | 0 | 128 KB |
Specifications
| Product Type | Toilet |
| Configurations Available | Off-Floor with Wall Waste Outlet (-1) |
| Brand | Penal-Ware® |
| Material | Stainless Steel |
| Mounting | Rear-Chase Mounted |
| High-Efficiency (Water Use) | Option -HET, -VAC Available |
| Vandal Resistant | High |
| Product Features | Blowout Jet |
| Institutional Applications | Correctional |
| Park and Recreation Applications | Yes |
| Compliance | WaterSense meets EPA Criteria - certified by IAPMO R&T |
Options
Accessories
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | CO1 | Option: Cleanout with O-Ring, Connecting to 4" No-Hub | ||
 | CO1-3 | Option: Cleanout with O-Ring, Connecting to 3" No-Hub | ||
 | COH | Option: Cleanout Treble Hook Assembly | ||
 | EG | Option: Enviro-Glaze® Powder Coating | ||
 | EVSFV | Option: Flush Valve Application Master-Trol® | ||
 | EVSPFV | Option: Piezo Button Flush Valve Application Master-Trol® | ||
 | FT | Option: Flood-Trol® Anti-Flood System for Manual Flush Valve | ||
 | FTA | Option: Flood-Trol® Anti-Flood System for Manual Flush Valve, Auto Reset | ||
 | FV (Toilet) | Option: Flush Valve for Toilet | ||
 | FVBO | Option: Flush Valve by Others | ||
 | FVH | Option: Hydraulic Flush Valve | ||
 | FVL | Option: Flush Valve with Lever Activation | ||
 | FVT | Option: Flush Valve Thru Wall Connection | ||
 | GW | Option: Gasketed Waste | ||
 | HET | Option: High Efficiency Toilet Flush - 1.28 gallons (4.85 liters) per Flush | ||
 | HPS | Option: High Polish Seat #7 Finish | ||
 | HS | Option: Hinged Seat | ||
 | MT | Option: Metal Template | ||
 | MVCFV | Push Button Solenoid Flush Valve Application Time-Trol® | ||
 | PC | Option: Pinned Cleanout Plug | ||
 | PFS | Option: Punch for Seat (By Others) | ||
 | T (Toilet) | Option: Top Supply for Toilet | ||
 | TF | Option: Transformer for AC Power Valve | ||
 | TSC | Option: Toilet Shipping Cover | ||
 | TWE | Option: Toilet Waste Extended To Be Specified | ||
 | ULF (Toilet) | Option: Ultra Low Toilet Flush - 1.6 gallon (6 liter) per Flush | ||
 | VAC | Option: Configuration for Vacuum Plumbing | ||
 | W (Toilet) | Option: Wall Supply for Toilet | ||
 | WO3B | Option: 2-3/8 Inch P-Trap with 3 Inch Plain End Waste Outlet |
Models
Rear (chase) mount, Top Supply, Off-Floor, Wall Waste Toilet
1675-W-1
Rear (chase) mount, Wall Supply, Off-Floor, Wall Waste Toilet
Details
The toilet is design to meet the needs for the rigorous demands of security facilities, water conservation and ADA compliancy.
WaterSense® recent advancements have allowed toilets to use 1.28 gallons (4.85 liters) per flush or less while still providing equal or superior performance. The WaterSense label is used on toilets that are independently certified to meet rigorous criteria for both performance and efficiency. Only water-saving toilets that complete the certification process can earn the WaterSense label. Must use optional HET valves to meet WaterSense label requirements. Please check with local ADA requirements. ADA compliance is subject to proper installation (including devices such as grab bars) and the interpretations of the local code authority.
