Model 130 Series

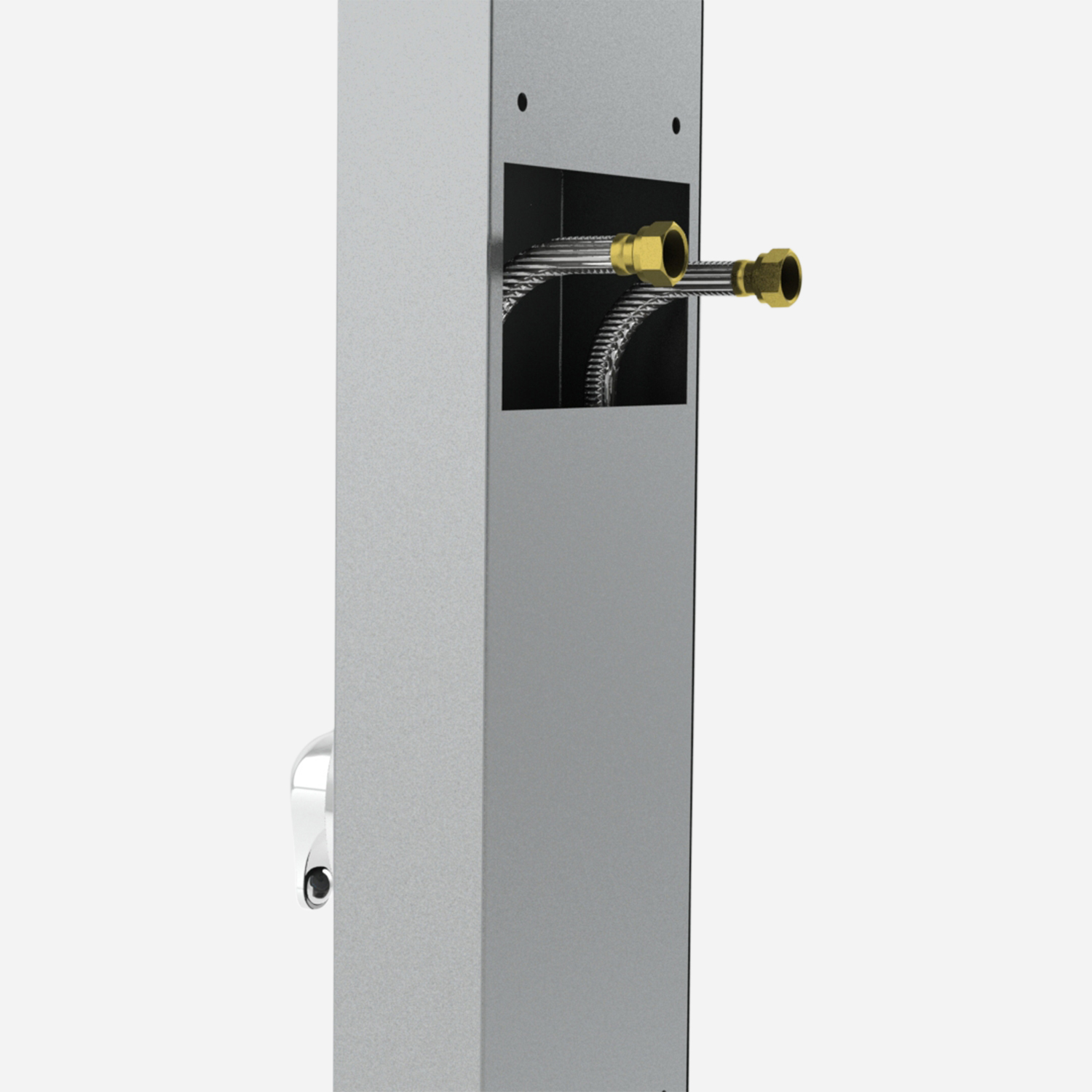

Modular Stainless Steel Back-to-Back Acme Shower
Housing and end caps shall be 16 gauge, type 304 stainless steel with satin finish. Shower heads shall be Acorn Logan Wizard with adjustable spray from a coarse stream to a fine mist. Showers shall be prepiped and hydrostatically factory tested at 150 PSI.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Modular Stainless Steel Back-to-Back Acme Shower | 0 | 948 KB | ||
| | Modular Stainless Steel Back-to-Back Acme Shower [130 | Electronic Valve; 136 | Air-Control Valve, 138 | ASSE 1016 T/P Balancing Valve] | 0 | 147 KB | ||
 | | Acorn Engineering - Commercial Showers | 0 | 288 KB | ||
| | Acorn Engineering - Commercial Showers | 0 | 221 KB | ||
| | Enviro-Glaze Powdercoating Color Chart | 0 | 2 MB | ||
| | Commercial Showers Brochure (pdf) | 0 | 2 MB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB | ||
| | T/P Valve Replace Cartridge & Trim for Valves prior to June 2014 | 0 | 130 KB | ||
| | Shower-Ware Multi-Stream Head with Universal Ball Joint Suffix -BA-MSH-Y | 0 | 70 KB | ||
| | Tools / Fasteners: Stainless Steel Security Screws | 0 | 138 KB | ||
| | Tools / Fasteners: Washers, Nuts and Anchors | 0 | 74 KB | ||
| | Valves: Air-Control™ Metering Servomotor Assembly | 0 | 124 KB | ||
| | Shower Heads: Shower Nozzle Assembly - Rigid Head | 0 | 132 KB | ||
| | Shower Heads: Standard Shower Head | 0 | 58 KB | ||
| | Shower-Ware - Cartridges: Concealed Flo-Cloz Cartridge | 0 | 157 KB | ||
| | Shower-Ware - Cartridges: T/P Temperature/Pressure Balancing Mixing Valve Cartridge/Checkstops | 0 | 493 KB | ||
| | Shower-Ware - Cartridges: Meter-Matic Cartridge (Plastic) | 0 | 72 KB | ||
| | Shower-Ware - Valves: Single Temp Air-Trol Valve Body Assembly | 0 | 75 KB | ||
| | Shower Heads - Nozzle Options: Multi-Stream Shower Head w/ Universal Ball Joint | 0 | 74 KB | ||
 | | Learn how to adjust the stop limits and temperature on a SV16 (MGI ConTrols® SV16) shower mixing valve. The SV16 ligature-resistant temperature/pressure balancing valve provides multiple layers of bather safety in a shower or bathtub. | 0 | 134 KB |
Specifications
| Product Type | Shower |
| Brand | Acorn ConTrols® Inside, Shower-Ware® |
| Material | Stainless Steel |
| Mounting | Wall Mounted |
| Vandal Resistant | Moderate |
| Product Features | Modular, Back-to-Back |
| Institutional Applications | Correctional, Hospital & Treatment Centers, Educational Building, Train Station & Airports |
| Commercial Applications | Stadium & Arena |
Options
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | BS | Option: Built-In Liquid Soap System | ||
 | CSH | Option: Conical Shower Head | ||
 | D | Option: Soap Dish | ||
 | EG | Option: Enviro-Glaze® Powder Coating | ||
 | F1.6 | Option: Flow Control 1.6 GPM | ||
 | F2.0 | Option: Flow Control 2.0 GPM | ||
 | FX | Option: Hand Shower | ||
 | MSH | Option: Multi-Stream, Ball Joint Shower Head | ||
 | P | Option: Penal Shower Head | ||
 | QD | Option: Quick Disconnect for Shower | ||
 | RD | Option: Recessed Soap Dish | ||
 | SC (Shower) | Option: Supply Cover for Shower | ||
 | T (Shower) | Option: Top Supply for Showers | ||
 | TF | Option: Transformer for AC Power Valve | ||
 | W (Shower) | Option: Wall Supply for Shower | ||
 | WS | Option: Without Shower Head | ||
 | Y | Option: Universal Ball Joint | ||
 | YY | Option: Lockable Universal Ball Joint |
Models
The model numbers are defined with the valve that is specified for the shower.
Model Number 136
Air-Control Valve, Single Temperature Metering
Model Number 138
Temperature-Pressure Balancing Mixing Valve with Ligature Resistant Tri-Lever Handle (ASSE 1016 Compliant) Patent No D697.591 and 10,474,170 B2 Valve with Lever Handle also available
Model Number 130
Single Temperature Electrical Valve
Specify: -MTP1, -MTPP1, -EVS1, -EVSP1, -MVC1,-MVC1-CI, -PPZ1
Details
When Option CSH-WSA is specified, the showerhead is designed to meet the needs for ligature-resistance and water conservation. DISCLAIMERS: This product with the CSH-WSA option only is designed to decrease the probability that it may be utilized as an apparatus for ligature. It is not a replacement for professionals who are trained in the proper evaluation, management, and supervision of persons at risk of suicide. Other Ligature-Resistant components are necessary including but not limited to shower valves. The showerhead as provided has been certified to meet EPA WaterSense criteria. The nozzle is removable for cleaning purposes only.
