ADA, Modular Stainless Steel Wall Mount Acme Shower
Vertical housing shall be fabricated from 16 gauge, type 304 stainless steel, and shall have a satin finish. The exposed trim shall be chrome-plated brass. Fixture shall be furnished with an ADA compliant control valve with Patented Ligature Resistant ADA Compliant Tri-Lever Handle, lever handle or pushbutton, a hand shower with on/off pushbutton, vacuum breaker and flow control, a diverter valve with a Ligature Resistant ADA Compliant Tri-Lever Handle, a recessed soap dish, a two-wall stainless steel grab bar, and a padded vinyl folding seat.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | 0 | 2 MB | |||
| | ADA, Modular Stainless Steel Wall Mount Acme Shower [110ADA | Electronic Valve; 116ADA | Air-Control Valve, 118ADA | ASSE 1016 T/P Balancing Valve] | 0 | 189 KB | ||
| | Enviro-Glaze Powdercoating Color Chart | 0 | 2 MB | ||
| | Commercial Showers Brochure (pdf) | 0 | 2 MB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB | ||
| | T/P Valve Replace Cartridge & Trim for Valves prior to June 2014 | 0 | 130 KB | ||
| | Shower-Ware Multi-Stream Head with Universal Ball Joint Suffix -BA-MSH-Y | 0 | 70 KB | ||
| | Shower-Ware - Valves: Diverter Valve thru Present | 0 | 333 KB | ||
| | Valves: Air-Control™ Metering Servomotor Assembly | 0 | 124 KB | ||
| | Valves: Time-Trol Controller Valve Assembly -MVC | 0 | 123 KB | ||
| | Shower Heads: Shower Nozzle Assembly - Rigid Head | 0 | 132 KB | ||
| | Shower Heads: Standard Shower Head | 0 | 58 KB | ||
| | Shower-Ware - Cartridges: Concealed Flo-Cloz Cartridge | 0 | 157 KB | ||
| | Shower-Ware - Valves: Diverter Valve thru January 2014 | 0 | 130 KB | ||
| | Shower Heads - Nozzle Options: Multi-Stream Shower Head w/ Universal Ball Joint | 0 | 74 KB | ||
 | | Learn how to adjust the stop limits and temperature on a SV16 (MGI ConTrols® SV16) shower mixing valve. The SV16 ligature-resistant temperature/pressure balancing valve provides multiple layers of bather safety in a shower or bathtub. | 0 | 134 KB |
Specifications
| Product Type | Shower |
| Brand | Acorn ConTrols® Inside, Shower-Ware® |
| Material | Stainless Steel |
| Mounting | Wall Mounted |
| Vandal Resistant | Moderate |
| Product Features | Modular |
| Institutional Applications | Correctional, Hospital & Treatment Centers, Educational Building, Train Station & Airports |
| Commercial Applications | Stadium & Arena |
| Accessibility | ADA Compliant |
Options
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | BS | Option: Built-In Liquid Soap System | ||
 | CSH | Option: Conical Shower Head | ||
 | CSH-WSA | Secur-Care® Ligature-Resistant, WaterSense Shower Head, Panel Mounted | ||
 | EG | Option: Enviro-Glaze® Powder Coating | ||
 | F2.0 | Option: Flow Control 2.0 GPM | ||
 | FH | Option: Fixed Head in Lieu of Handshower | ||
 | FSP | Option: Folding Seat, Phenolic (Plastic) in Lieu of Padded | ||
 | FSS | Option: Folding Seat, Stainless Steel | ||
 | LFS | Option: Less Folding Seat | ||
 | LGB (Shower) | Option: Less Grab Bar on Shower | ||
 | LRD | Option: Less Recessed Soap Dish | ||
 | MSH | Option: Multi-Stream, Ball Joint Shower Head | ||
 | P | Option: Penal Shower Head | ||
 | QD | Option: Quick Disconnect for Shower | ||
 | RP | Option: Reinforced Panel for Folding Seat | ||

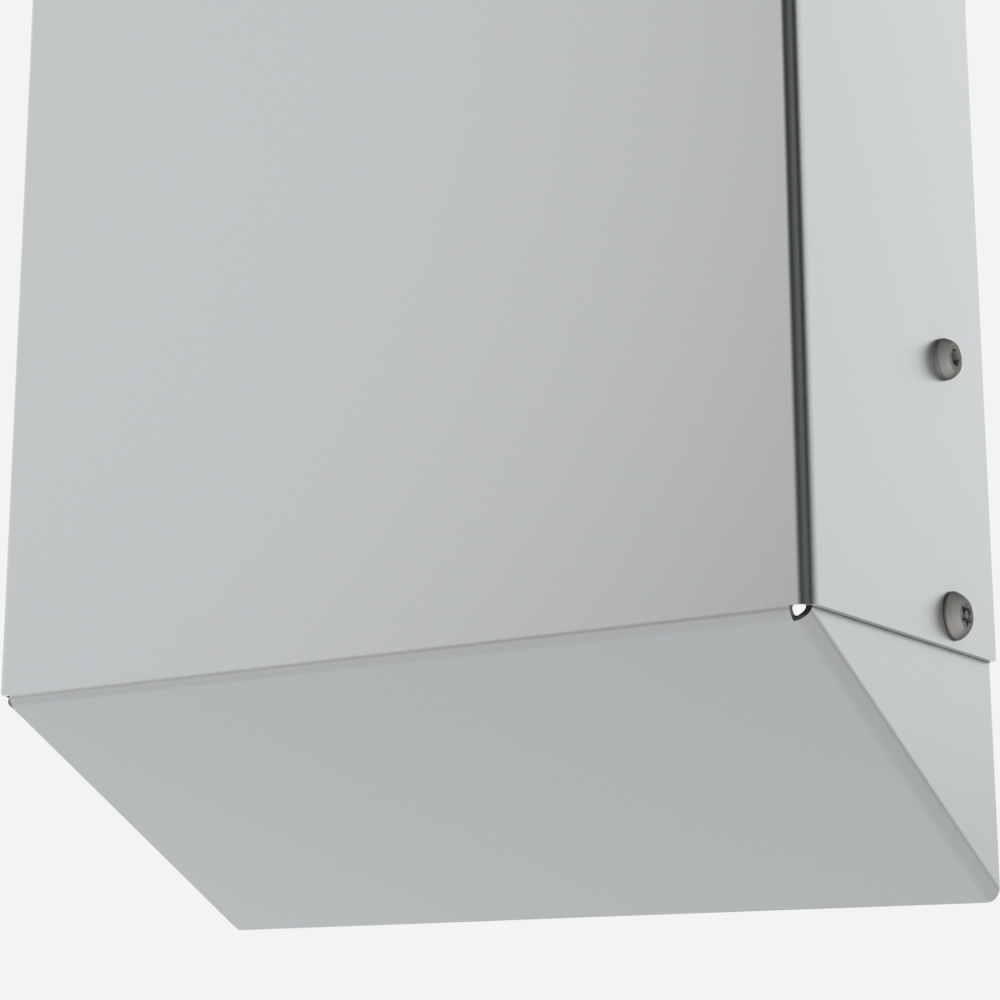

 | SLPB | Option: Sloped Bottom Housing | ||

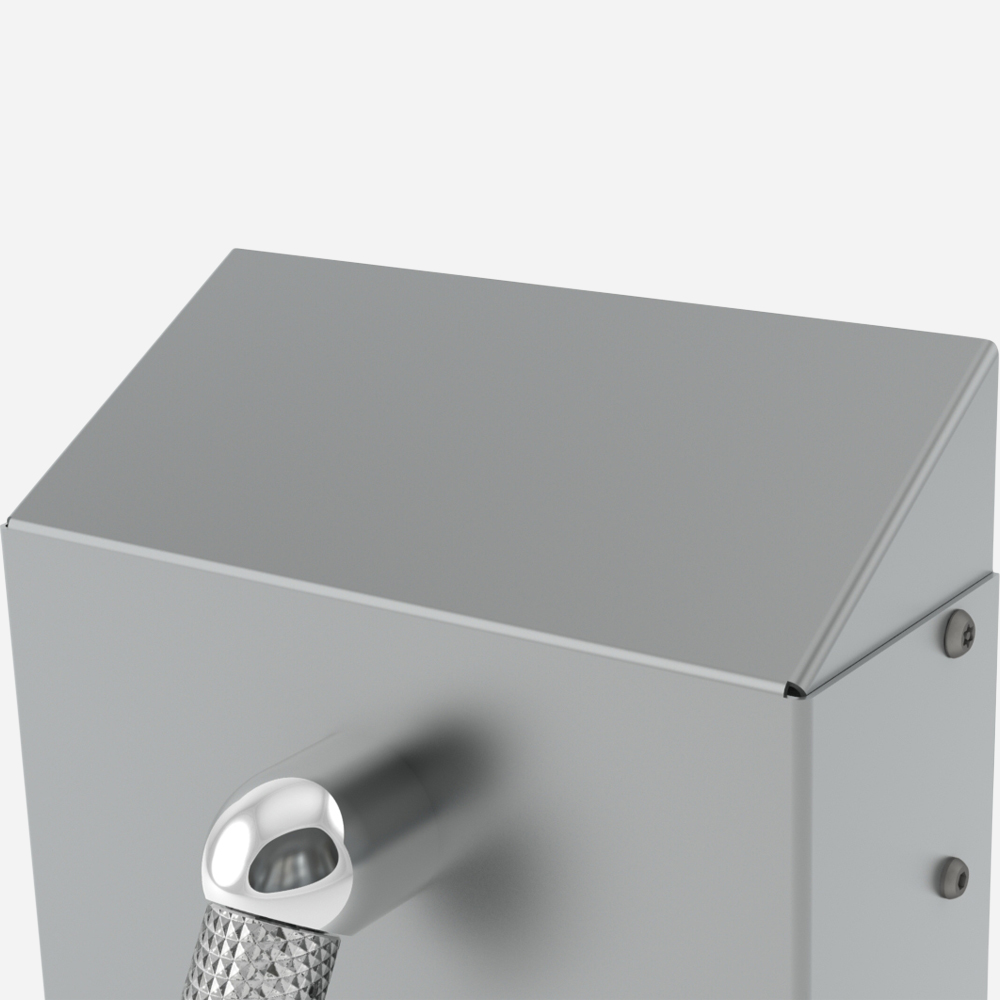

 | SLPT | Option: Sloped Top Housing | ||
 | T (Shower) | Option: Top Supply for Showers | ||
 | TF | Option: Transformer for AC Power Valve | ||
 | W (Shower) | Option: Wall Supply for Shower | ||
 | WS | Option: Without Shower Head | ||
 | Y | Option: Universal Ball Joint | ||
 | YY | Option: Lockable Universal Ball Joint |
Models
The model numbers are defined with the valve that is specified for the shower.
Model Number 116ADA
Air-Control Valve, Single Temperature Metering
Model Number 118ADA
Temperature-Pressure Balancing Mixing Valve with Ligature Resistant Tri-Lever Handle (ASSE 1016 Compliant) Patent No D697.591 and 10,474,170 B2
Model Number 110ADA
Single Temperature Electrical Valve
Specify: -MTP1, -MTPP1, -EVS1, -EVSP1, -MVC1,-MVC1-CI, -PPZ1
Details
When Option CSH-WSA is specified, the showerhead is designed to meet the needs for ligature-resistance and water conservation.
DISCLAIMERS:This product with the CSH-WSA option only is designed to decrease the probability that it may be utilized as an apparatus for ligature. It is not a replacement for professionals who are trained in the proper evaluation, management, and supervision of persons at risk of suicide. Other Ligature-Resistant components are necessary including but not limited to shower valves. The showerhead as provided has been certified to meet EPA WaterSense criteria. The nozzle is removable for cleaning purposes only.
