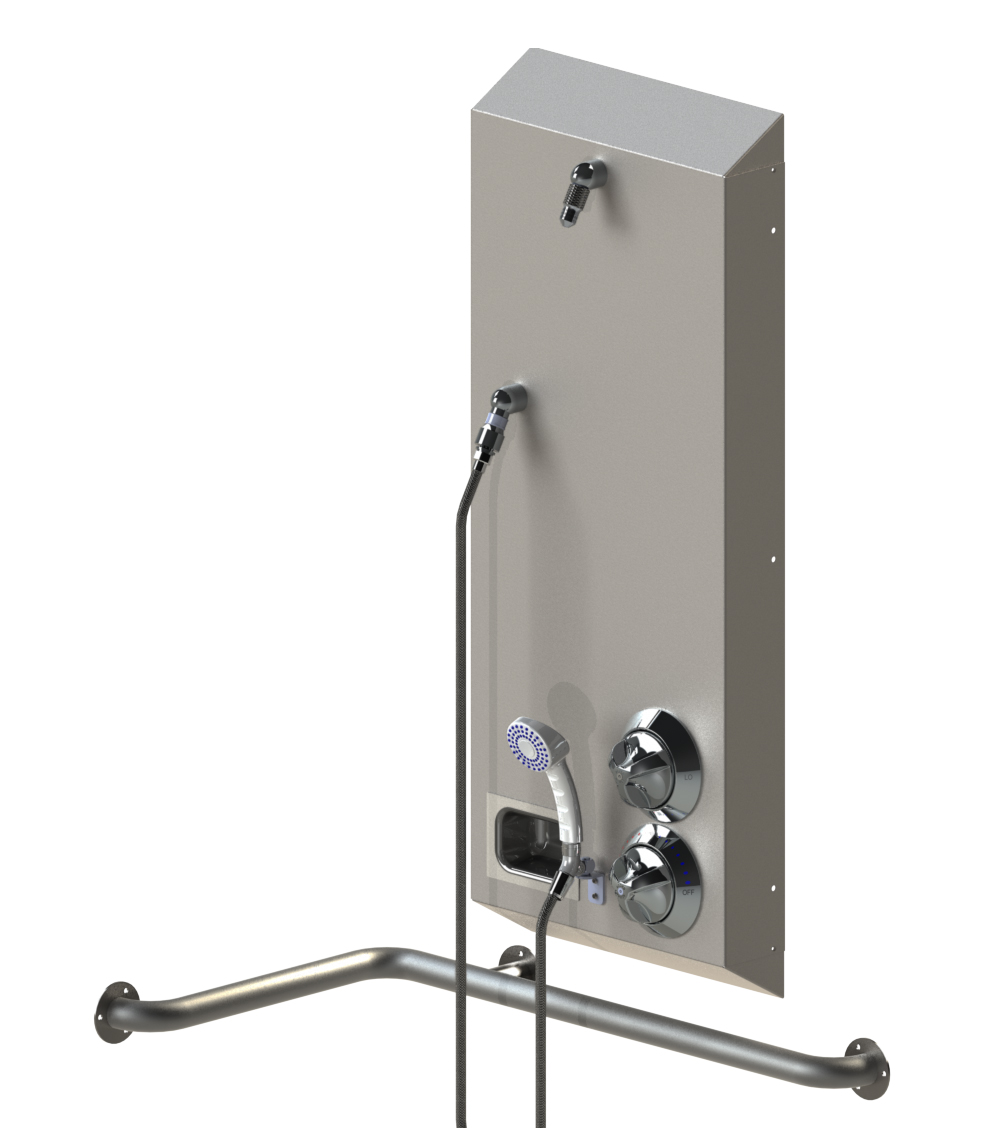

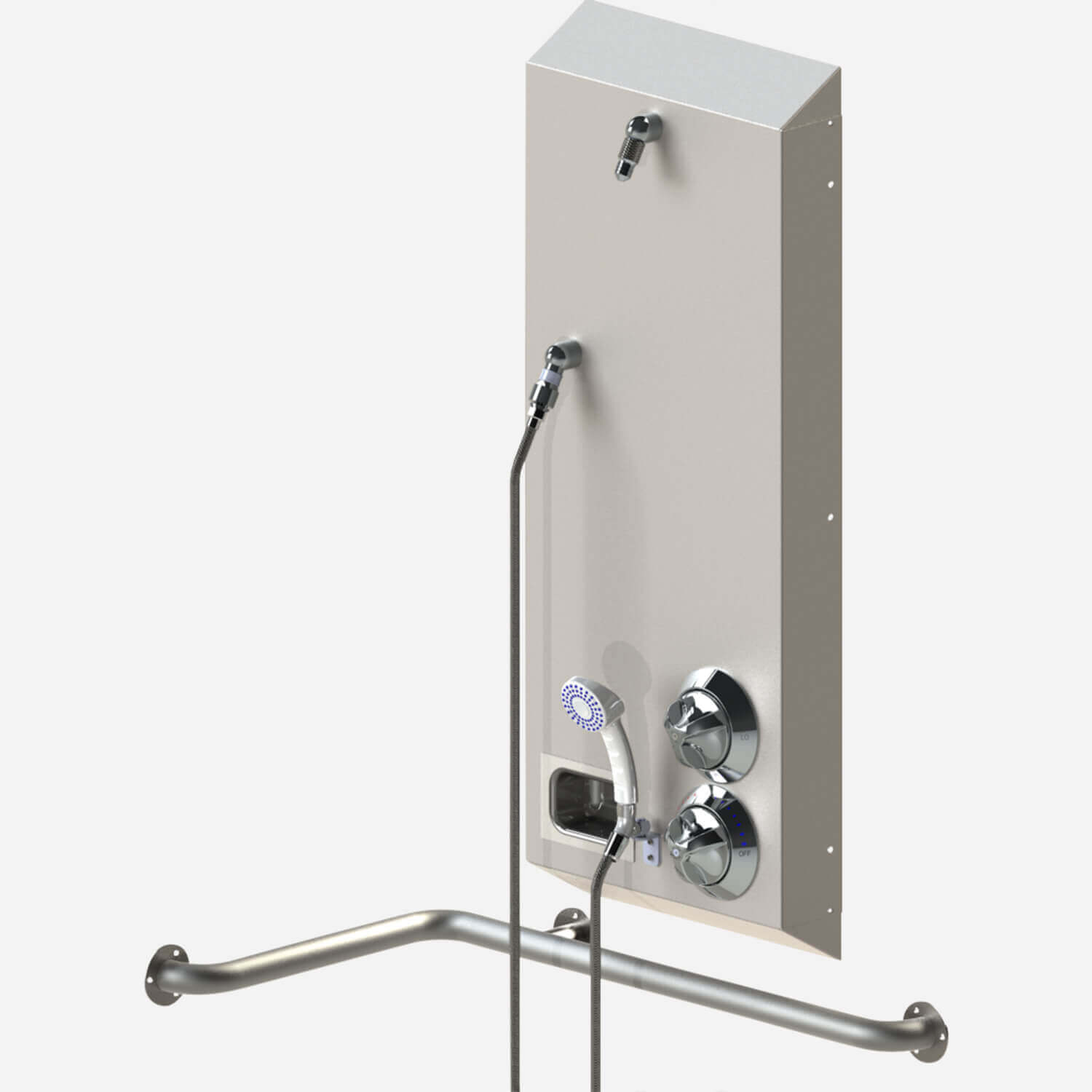

ADA/CBC Surface Mount Stainless Steel Apex Shower with Handheld and Wide Housing
The shower housing shall be fabricated from 18 gauge, type 304 stainless steel, and shall have a satin finish. Housing top and bottom shall have a 30-degree slope. The exposed trim shall be chrome-plated brass. The fixture shall be furnished with an ADA compliant control valve with an ADA Compliant Tri-Lever Handle, lever handle or pushbutton, a fixed upper showerhead, a diverter valve with an ADA Compliant Tri-Lever Handle or lever handle, a quick disconnect hand shower with an on/off pushbutton, vacuum breaker and flow control, valve supply flexible hose connectors, a recessed soap dish, a two-wall stainless steel grab bar, an 1103 series padded vinyl folding seat and a curtain and headrail for a 36-inch opening. Units to conform with ANSI, UFAS, and ADA requirements for accessibility.
Disclaimer for ADA 609.3, CBC 11B-609.3 Compliance: The guideline Section and Figure reference indicate “The space between the Grab Bar and projecting objects above shall be 12 inches (305 mm) minimum.” Whenever possible Acorn Engineering Company recommends the installation of a Flush Mount Shower Housing design (410 Series) for compliance and assumes no responsibility for Surface Mount Shower Housings deemed as non-conforming. Compliance is subject to the interpretation and requirements of the Local Code Authority.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | ADA/CBC Surface Mount Stainless Steel Apex Shower with Handheld and Wide Housing with Electronic Valves | 0 | 2 MB | ||
| | ADA/CBC Surface Mount Stainless Steel Apex Shower with Handheld, Wide Housing [450BADAWH | Electronic Valve (specify Master-Trol, Time-Trol, Piezo Button); 456BADAWH | Air-Control Pneumatic Valve; 458BADAWH | ASSE 1016 T/P Balancing Valve] | 0 | 277 KB | ||
 | | ADA Surface Mount Stainless Steel Apex Shower shown with Handheld and Wide Housing shown with ASSE 1016 valve with Lever Style Handle 6 Foot Head Height with Soap Dish | 0 | 280 KB | ||
| | ADA Surface Mount Stainless Steel Apex Shower shown with Handheld and Wide Housing shown with ASSE 1016 valve with Lever Style Handle 6 Foot Head Height with Soap Dish | 0 | 202 KB | ||
 | | Acorn Engineering - Commercial Showers | 0 | 288 KB | ||
| | Acorn Engineering - Commercial Showers | 0 | 221 KB | ||
| | ADA/CBC Surface Mount Stainless Steel Apex Shower with Handheld and Wide Housing [456BADAWH and 458BADAWH] | 0 | 808 KB | ||
| | Enviro-Glaze Powdercoating Color Chart | 0 | 2 MB | ||
| | Commercial Showers Brochure (pdf) | 0 | 2 MB | ||
 | | ADA Surface Mount Stainless Steel Apex Shower with Handheld and Wide Housing T/P Balancing Mixing Valve with Tri-Lever Handle (ASSE 1016 Compliant) Recessed Soap Dish, Diverter, Two-Wall Grab Bar (1108-3). Seat, Curtain with its headrail not shown | 0 | 242 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB | ||
| | T/P Valve Replace Cartridge & Trim for Valves prior to June 2014 | 0 | 130 KB | ||
| | Shower-Ware Multi-Stream Head with Universal Ball Joint Suffix -BA-MSH-Y | 0 | 70 KB | ||
| | Shower-Ware - Valves: Diverter Valve thru Present | 0 | 333 KB | ||
| | Tools / Fasteners: Stainless Steel Security Screws | 0 | 138 KB | ||
| | Tools / Fasteners: Washers, Nuts and Anchors | 0 | 74 KB | ||
| | Trims: Air-Trol/Master-Trol Push Button Assembly | 0 | 130 KB | ||
| | Shower Heads: Flex Shower Head | 0 | 132 KB | ||
| | Shower Heads: Hand Shower Vertical Adjust Equipment | 0 | 59 KB | ||
| | Shower Heads: Flangeless Rear Mount Shower Head | 0 | 70 KB | ||
| | Shower-Ware - Cartridges: Concealed Flo-Cloz Cartridge | 0 | 157 KB | ||
| | Shower-Ware - Cartridges: Meter-Matic Cartridge (Plastic) | 0 | 72 KB | ||
| | Shower-Ware - Valves: Diverter Valve thru January 2014 | 0 | 130 KB | ||
| | Shower Heads - Nozzle Options: Multi-Stream Shower Head w/ Universal Ball Joint | 0 | 74 KB | ||
 | | Learn how to adjust the stop limits and temperature on a SV16 (MGI ConTrols® SV16) shower mixing valve. The SV16 ligature-resistant temperature/pressure balancing valve provides multiple layers of bather safety in a shower or bathtub. | 0 | 134 KB |
Specifications
| Product Type | Shower |
| Brand | Acorn ConTrols® Inside, Shower-Ware® |
| Material | Stainless Steel |
| Mounting | Wall Mounted |
| Product Features | Wide Housing |
| Institutional Applications | Hospital & Treatment Centers, Educational Building, Train Station & Airports, Other Institutional Buildings |
| Commercial Applications | Stadium & Arena |
| Park and Recreation Applications | Yes |
| Accessibility | ADA Compliant, Calif Title 24 |
Options
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | BS | Option: Built-In Liquid Soap System | ||
 | CSH | Option: Conical Shower Head | ||
 | D | Option: Soap Dish | ||
 | EG | Option: Enviro-Glaze® Powder Coating | ||
 | F1.6 | Option: Flow Control 1.6 GPM | ||
 | F2.0 | Option: Flow Control 2.0 GPM | ||
 | FH | Option: Fixed Head in Lieu of Handshower | ||
 | FSP | Option: Folding Seat, Phenolic (Plastic) in Lieu of Padded | ||
 | FSS | Option: Folding Seat, Stainless Steel | ||
 | LCH | Option: Less Curtain and Headrail | ||
 | LFS | Option: Less Folding Seat | ||
 | LGB (Shower) | Option: Less Grab Bar on Shower | ||
 | LRD | Option: Less Recessed Soap Dish | ||
 | MSH | Option: Multi-Stream, Ball Joint Shower Head | ||
 | P | Option: Penal Shower Head | ||
 | RP | Option: Reinforced Panel for Folding Seat | ||
 | SC (Shower) | Option: Supply Cover for Shower | ||
 | SCH | Option: Supply Cover Horizontal | ||
 | T (Shower) | Option: Top Supply for Showers | ||
 | W (Shower) | Option: Wall Supply for Shower | ||
 | Y | Option: Universal Ball Joint | ||
 | YY | Option: Lockable Universal Ball Joint |
Models
The model numbers are defined with the valve that is specified for the shower.
Model Number 456BADAWH
Air-Control Valve, Single Temperature Metering
Model Number 458BADAWH
Temperature-Pressure Balancing Mixing Valve with Ligature Resistant Tri-Lever Handle (ASSE 1016 Compliant) Patent No D697.591 and 10,474,170 B2 Valve with Lever Handle also available
Model Number 458BADAWH
Single Temperature Electrical Valve
Specify: -MTP1, -MTPP1, -EVS1, -EVSP1, -MVC1,-MVC1-CI, -PPZ1
Details
Top or Wall Supply must be specified
When Option CSH-WSA is specified, the showerhead is designed to meet the needs for ligature-resistance and water conservation.
Disclaimers: This product with the CSH-WSA option only is designed to decrease the probability that it may be utilized as an apparatus for ligature. It is not a replacement for professionals who are trained in the proper evaluation, management, and supervision of persons at risk of suicide. Other Ligature-Resistant components are necessary including but not limited to shower valves. The showerhead as provided has been certified to meet EPA WaterSense criteria. The nozzle is removable for cleaning purposes only.
