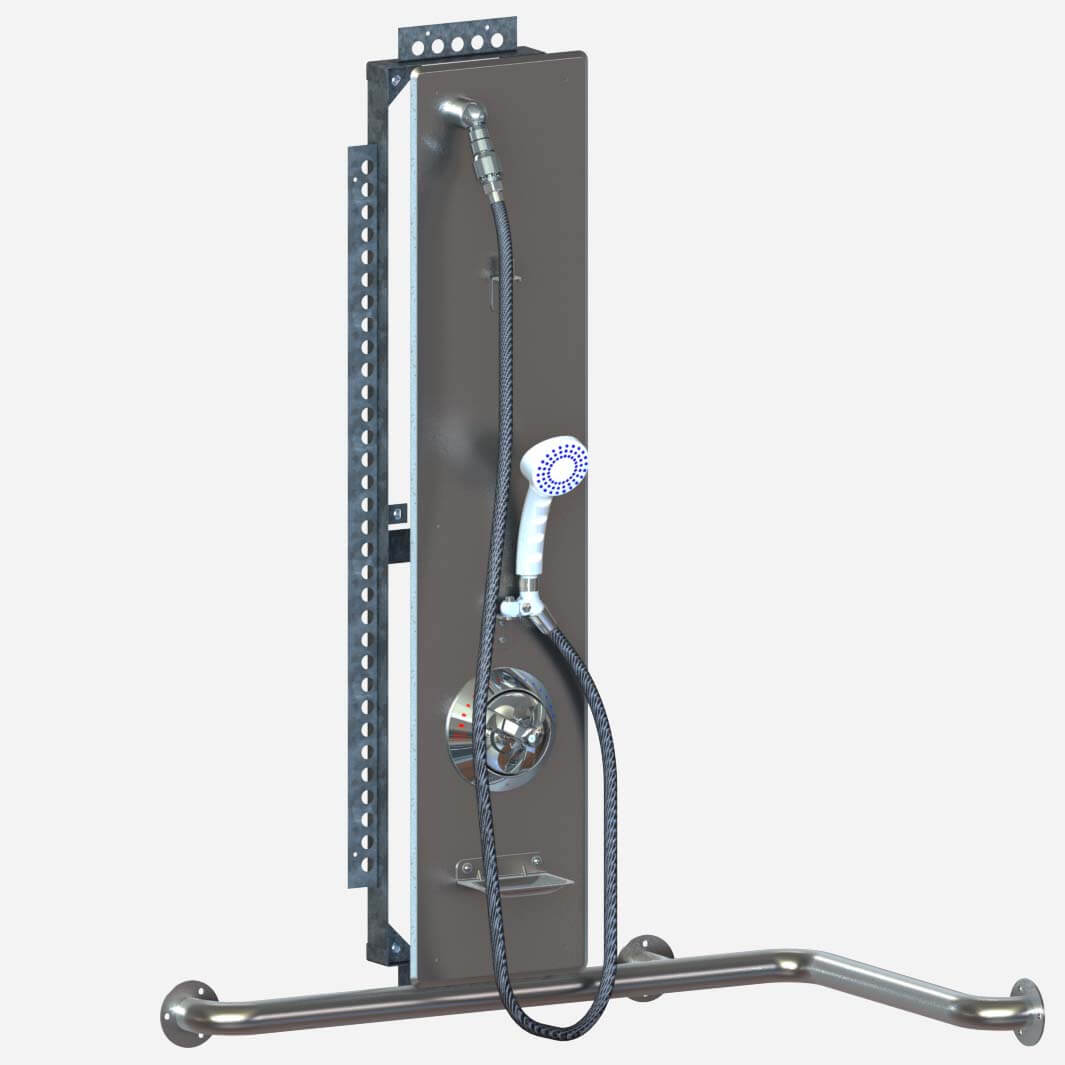

ADA Flush Mount Stainless Steel Handheld Apex Shower
The shower panel shall be fabricated from 18 gauge, type 304 stainless steel, and shall have a satin finish. The exposed trim shall be chrome-plated brass. Fixture shall be furnished with an ADA compliant control valve with Patented ADA Compliant Tri-Lever Handle, lever handle or pushbutton, quick disconnect hand shower with on/off pushbutton, vacuum breaker, and flow control, valve supply flexible hose connectors and a surface mounted soap dish. Units to conform with ANSI, UFAS, and ADA requirements for accessibility.
When Option CSH-WSA is specified, the showerhead is designed to meet the needs for ligature-resistance and water conservation.
Note: Folding seat and grab bar not included.
Disclaimers: This product with the CSH-WSA option only is designed to decrease the probability that it may be utilized as an apparatus for ligature. It is not a replacement for professionals who are trained in the proper evaluation, management, and supervision of persons at risk of suicide. Other Ligature-Resistant components are necessary including but not limited to shower valves.
The showerhead as provided has been certified to meet EPA WaterSense criteria. The nozzle is removable for cleaning purposes only.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | ADA Flush Mount Stainless Steel Handheld Apex Shower with Electronic Valve [EVS1, EVSP1, MVC1] | 0 | 2 MB | ||
| | ADA Flush Mount Stainless Steel Handheld Apex Shower [410BADA | Electronic Valve (specify Master-Trol, Master-Trol Plus, Time-Trol, Piezo Button); 416BADA | Air-Control Pneumatic Valve; 418BADA | ASSE 1016 T/P Balancing Valve] | 0 | 234 KB | ||
 | | ADA Flush Mount Stainless Steel Handheld Apex Shower with T/P ASSE 1016 Mix Valve | 0 | 412 KB | ||
| | ADA Flush Mount Stainless Steel Handheld Apex Shower with T/P ASSE 1016 Mix Valve | 0 | 259 KB | ||
 | | Acorn Engineering - Commercial Showers | 0 | 288 KB | ||
| | Acorn Engineering - Commercial Showers | 0 | 221 KB | ||
| | 0 | 699 KB | |||
| | Enviro-Glaze Powdercoating Color Chart | 0 | 2 MB | ||
| | Commercial Showers Brochure (pdf) | 0 | 2 MB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB | ||
| | T/P Valve Replace Cartridge & Trim for Valves prior to June 2014 | 0 | 130 KB | ||
| | Shower-Ware Multi-Stream Head with Universal Ball Joint Suffix -BA-MSH-Y | 0 | 70 KB | ||
| | Valves: Time-Trol Controller Valve Assembly -MVC | 0 | 123 KB | ||
| | Valves: Time-Trol Valve | 0 | 168 KB | ||
| | Trims: Air-Trol/Master-Trol Push Button Assembly | 0 | 130 KB | ||
| | Shower Heads: Flex Shower Head | 0 | 132 KB | ||
| | Shower Heads: Hand Shower Vertical Adjust Equipment | 0 | 59 KB | ||
| | Shower Heads: Flangeless Rear Mount Shower Head | 0 | 70 KB | ||
| | Shower-Ware - Cartridges: Concealed Flo-Cloz Cartridge | 0 | 157 KB | ||
| | Shower-Ware - Cartridges: T/P Temperature/Pressure Balancing Mixing Valve Cartridge/Checkstops | 0 | 493 KB | ||
| | Shower-Ware - Valves: Single Temp Air-Trol Valve Body Assembly | 0 | 75 KB | ||
| | Shower Heads - Nozzle Options: Multi-Stream Shower Head w/ Universal Ball Joint | 0 | 74 KB | ||
 | | Learn how to adjust the stop limits and temperature on a SV16 (MGI ConTrols® SV16) shower mixing valve. The SV16 ligature-resistant temperature/pressure balancing valve provides multiple layers of bather safety in a shower or bathtub. | 0 | 134 KB |
Specifications
| Product Type | Shower |
| Brand | Acorn ConTrols® Inside, Shower-Ware® |
| Material | Stainless Steel |
| Mounting | Flush Mounted |
| Vandal Resistant | Moderate |
| Institutional Applications | Hospital & Treatment Centers, Educational Building, Train Station & Airports, Other Institutional Buildings |
| Commercial Applications | Stadium & Arena |
| Park and Recreation Applications | Yes |
| Accessibility | ADA Compliant |
Options
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | BS | Option: Built-In Liquid Soap System | ||
 | EG | Option: Enviro-Glaze® Powder Coating | ||
 | EVS1 | Option: Single Temperature Application Master-Trol® | ||
 | EVSP1 | Option: Piezo Button Single Temperature Application Master-Trol® | ||
 | LPF | Option: Less Plaster Flange | ||
 | MTP1 | Option: Master-Trol® Plus Single Temperature Valve | ||
 | MTPP1 | Option: Master-Trol® Plus Single Temperature Piezo Button Valve | ||
 | MV | Option: Metering Air-Control™ Valve in Shower Riser | ||
 | MVC1 | Single Temperature Valve Application Time-Trol® | ||
| MVC1-CI | Option: Single Temperature, Cycle Interrupt Valve Application Time-Trol® | ||
 | RD | Option: Recessed Soap Dish | ||
 | RP | Option: Reinforced Panel for Folding Seat | ||
 | TF | Option: Transformer for AC Power Valve | ||
 | W (Shower) | Option: Wall Supply for Shower |
Models
The model numbers are defined with the valve that is specified for the shower.
Model Number 416BADA
Air-Control Valve, Single Temperature Metering
Model Number 418BADA
Temperature-Pressure Balancing Mixing Valve with Ligature Resistant Tri-Lever Handle (ASSE 1016 Compliant) Patent No D697.591 and 10,474,170 B2 Valve with Lever Handle also available
