ADA Flush Mount Stainless Steel Apex Shower with Handheld and Wide Housing
The shower panel shall be fabricated from 18 gauge, type 304 stainless steel, and shall have a satin finish. The exposed trim shall be chrome-plated brass. Fixture shall be furnished with an ADA compliant control valve with a Patented Ligature Resistant ADA Compliant Tri-Lever Handle, lever handle or pushbutton, a fixed upper showerhead, a diverter valve with a Patented Ligature Resistant ADA Compliant Tri-Lever Handle or lever handle, a quick disconnect hand shower with on/off pushbutton, vacuum breaker and flow control, valve supply flexible hose connectors, a recessed soap dish, a two-wall stainless steel grab bar, a 1103 Series padded vinyl folding seat and a curtain and headrail for a 36-inch opening. Units to conform with ANSI, UFAS, and ADA requirements for accessibility. Installation shall be made in accordance with the manufacturer's recommendations and details.
When Option CSH-WSA is specified, the showerhead is designed to meet the needs for ligature-resistance and water conservation.
Disclaimers: This product with the CSH-WSA option only is designed to decrease the probability that it may be utilized as an apparatus for ligature. It is not a replacement for professionals who are trained in the proper evaluation, management, and supervision of persons at risk of suicide. Other Ligature-Resistant components are necessary including but not limited to shower valves.
The showerhead as provided has been certified to meet EPA WaterSense criteria. The nozzle is removable for cleaning purposes only.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | ADA Flush Mount Stainless Steel Apex Shower with Handheld and Wide Housing [416BADAWH | Air-Control Pushbutton Valve; 418BADAWH | ASSE 1016 Compliant T/P Temperature-Pressure Balancing Mixing Valve] | 0 | 648 KB | ||
| | ADA Flush Mount Stainless Steel Apex Shower with Handheld and Wide Housing [410BADAWH | Electronic Valve (specify Master-Trol, Master-Trol Plus, Time-Trol, Piezo Button); 416BADAWH | Air-Control Pneumatic Valve; 418BADAWH | ASSE 1016 T/P Balancing Valve] | 0 | 254 KB | ||
 | | Acorn Engineering - Commercial Showers | 0 | 288 KB | ||
| | Acorn Engineering - Commercial Showers | 0 | 221 KB | ||
| | ADA Flush Mount Stainless Steel Apex Shower with Handheld and Wide Housing with Electronic Valve (with MTP1, EVS1, PPZ1) | 0 | 2 MB | ||
| | Enviro-Glaze Powdercoating Color Chart | 0 | 2 MB | ||
| | Commercial Showers Brochure (pdf) | 0 | 2 MB | ||
 | | ADA Flush Mount Apex Shower (Wide Housing) with Fixed Upper Shower and Handheld Shower, T/P Balancing Mixing Valve, Tri-Lever Handle (ASSE 1016 and mounted on right), Recessed Soap Dish and Two-Wall (1108-3); Curtain with Head Rail and seat not shown. | 0 | 42 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB | ||
| | T/P Valve Replace Cartridge & Trim for Valves prior to June 2014 | 0 | 130 KB | ||
| | Shower-Ware Multi-Stream Head with Universal Ball Joint Suffix -BA-MSH-Y | 0 | 70 KB | ||
| | Shower-Ware - Valves: Diverter Valve thru Present | 0 | 333 KB | ||
| | Valves: Time-Trol Valve | 0 | 168 KB | ||
| | Trims: Air-Trol/Master-Trol Push Button Assembly | 0 | 130 KB | ||
| | Shower Heads: Flex Shower Head | 0 | 132 KB | ||
| | Shower Heads: Hand Shower Vertical Adjust Equipment | 0 | 59 KB | ||
| | Shower Heads: Flangeless Rear Mount Shower Head | 0 | 70 KB | ||
| | Shower-Ware - Cartridges: Concealed Flo-Cloz Cartridge | 0 | 157 KB | ||
| | Shower-Ware - Cartridges: T/P Temperature/Pressure Balancing Mixing Valve Cartridge/Checkstops | 0 | 493 KB | ||
| | Shower-Ware - Valves: Diverter Valve thru January 2014 | 0 | 130 KB | ||
| | Shower-Ware - Valves: Single Temp Air-Trol Valve Body Assembly | 0 | 75 KB | ||
| | Shower Heads - Nozzle Options: Multi-Stream Shower Head w/ Universal Ball Joint | 0 | 74 KB | ||
 | | Learn how to adjust the stop limits and temperature on a SV16 (MGI ConTrols® SV16) shower mixing valve. The SV16 ligature-resistant temperature/pressure balancing valve provides multiple layers of bather safety in a shower or bathtub. | 0 | 134 KB |
Specifications
| Product Type | Shower |
| Brand | Acorn ConTrols® Inside, Shower-Ware® |
| Material | Stainless Steel |
| Mounting | Flush Mounted |
| Vandal Resistant | Moderate |
| Product Features | Wide Housing |
| Institutional Applications | Hospital & Treatment Centers, Educational Building, Train Station & Airports, Other Institutional Buildings |
| Commercial Applications | Stadium & Arena |
| Park and Recreation Applications | Yes |
Options
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | BS | Option: Built-In Liquid Soap System | ||

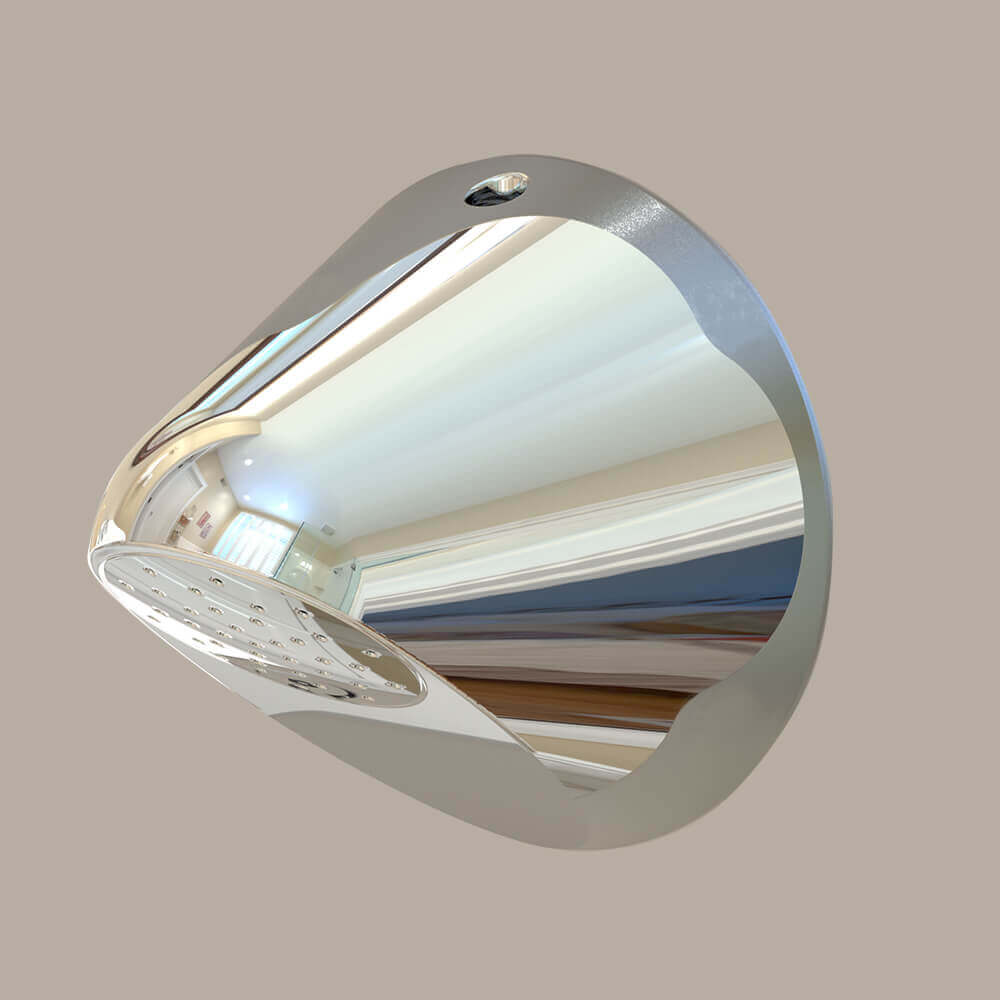

 | CSH | Option: Conical Shower Head | ||

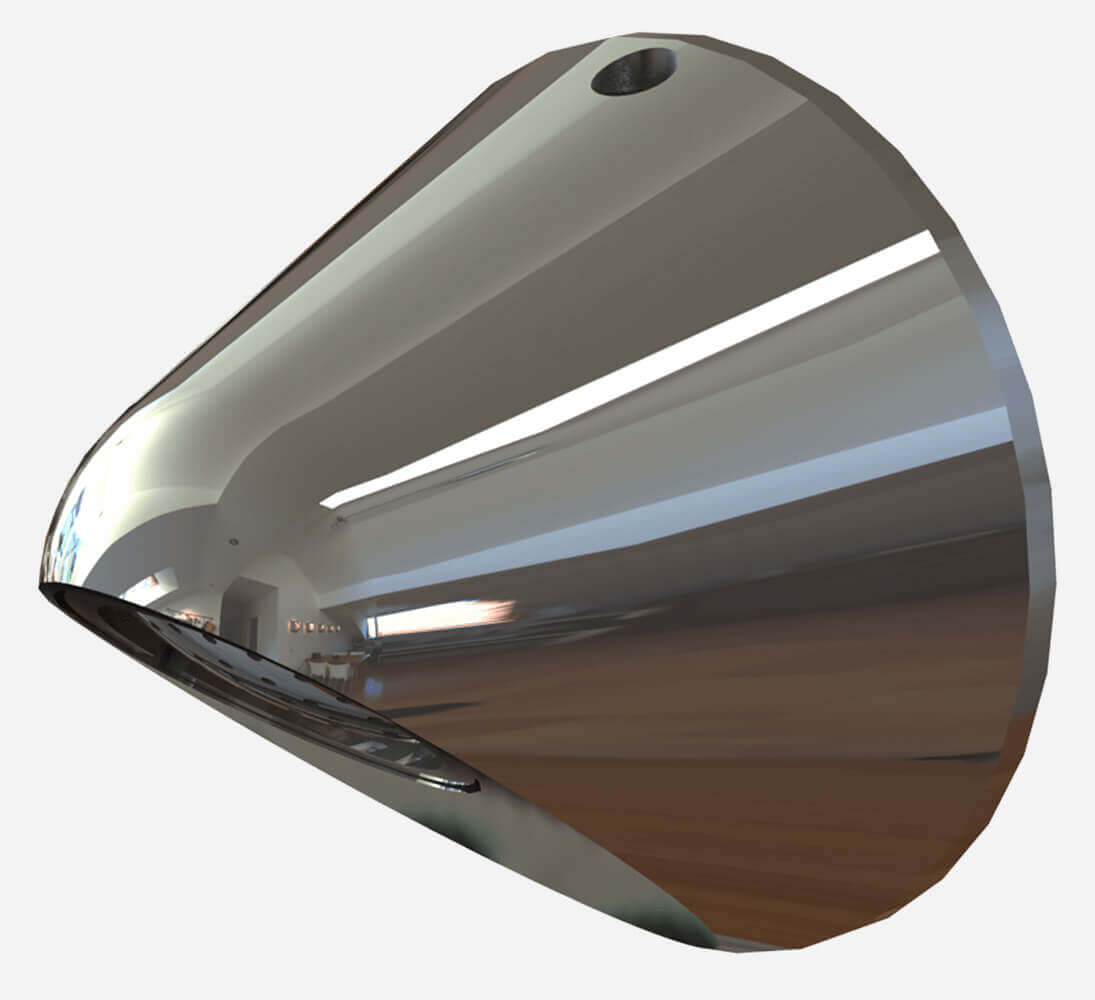

 | CSH-WSA | Secur-Care® Ligature-Resistant, WaterSense Shower Head, Panel Mounted | ||
 | D | Option: Soap Dish | ||
 | EG | Option: Enviro-Glaze® Powder Coating | ||
 | F2.0 | Option: Flow Control 2.0 GPM | ||
 | FH | Option: Fixed Head in Lieu of Handshower | ||
 | FSP | Option: Folding Seat, Phenolic (Plastic) in Lieu of Padded | ||
 | FSS | Option: Folding Seat, Stainless Steel | ||

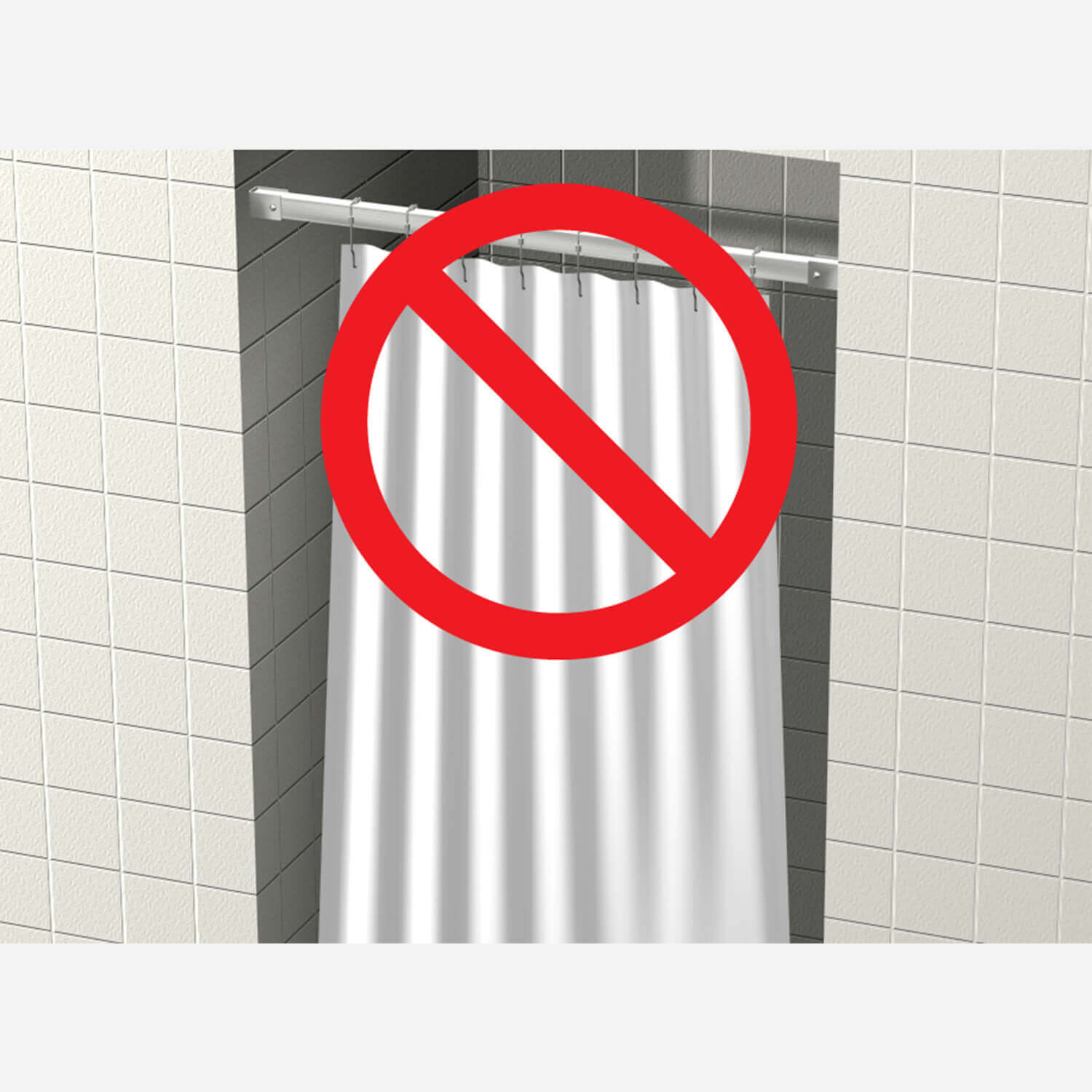

 | LCH | Option: Less Curtain and Headrail | ||

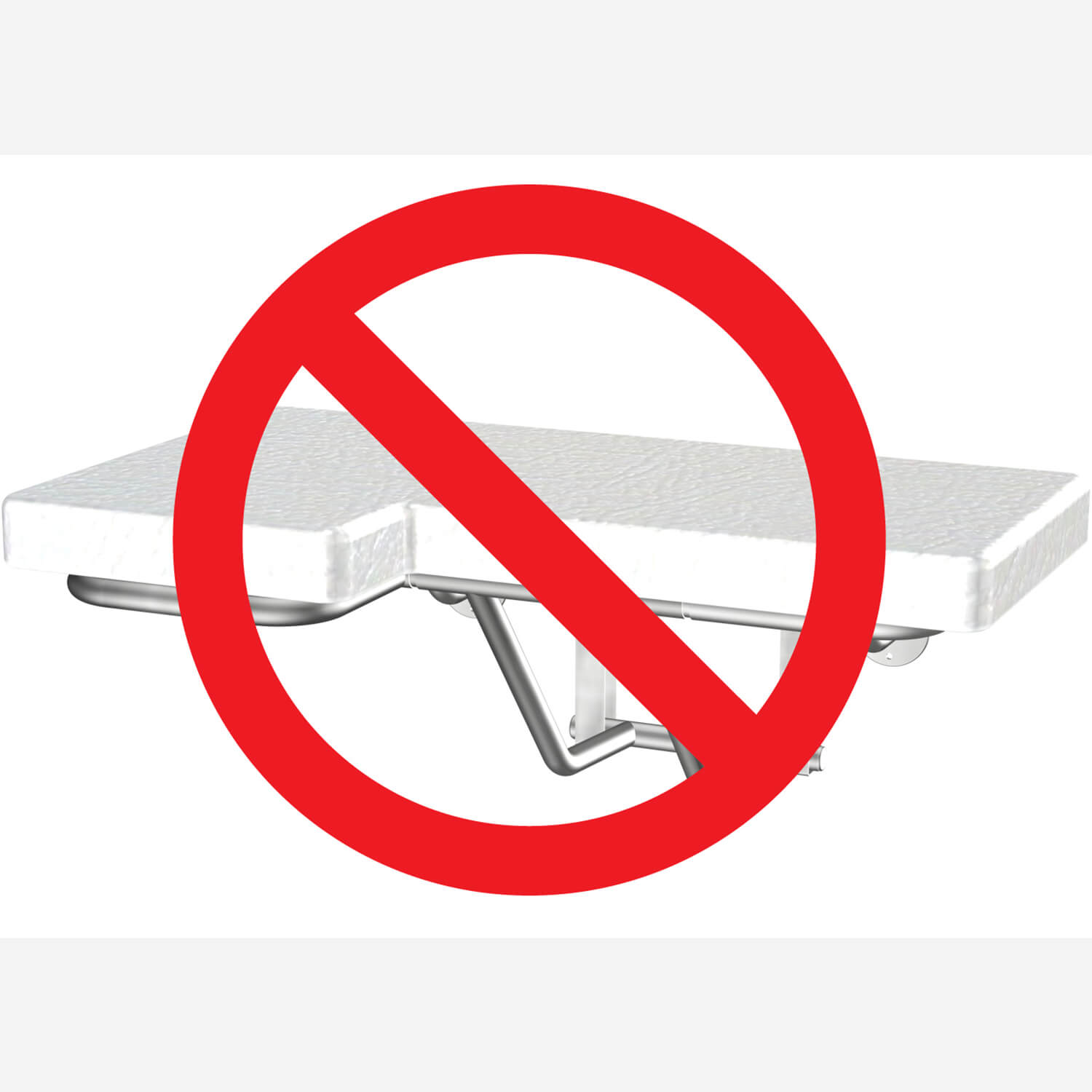

 | LFS | Option: Less Folding Seat | ||
 | LGB (Shower) | Option: Less Grab Bar on Shower | ||

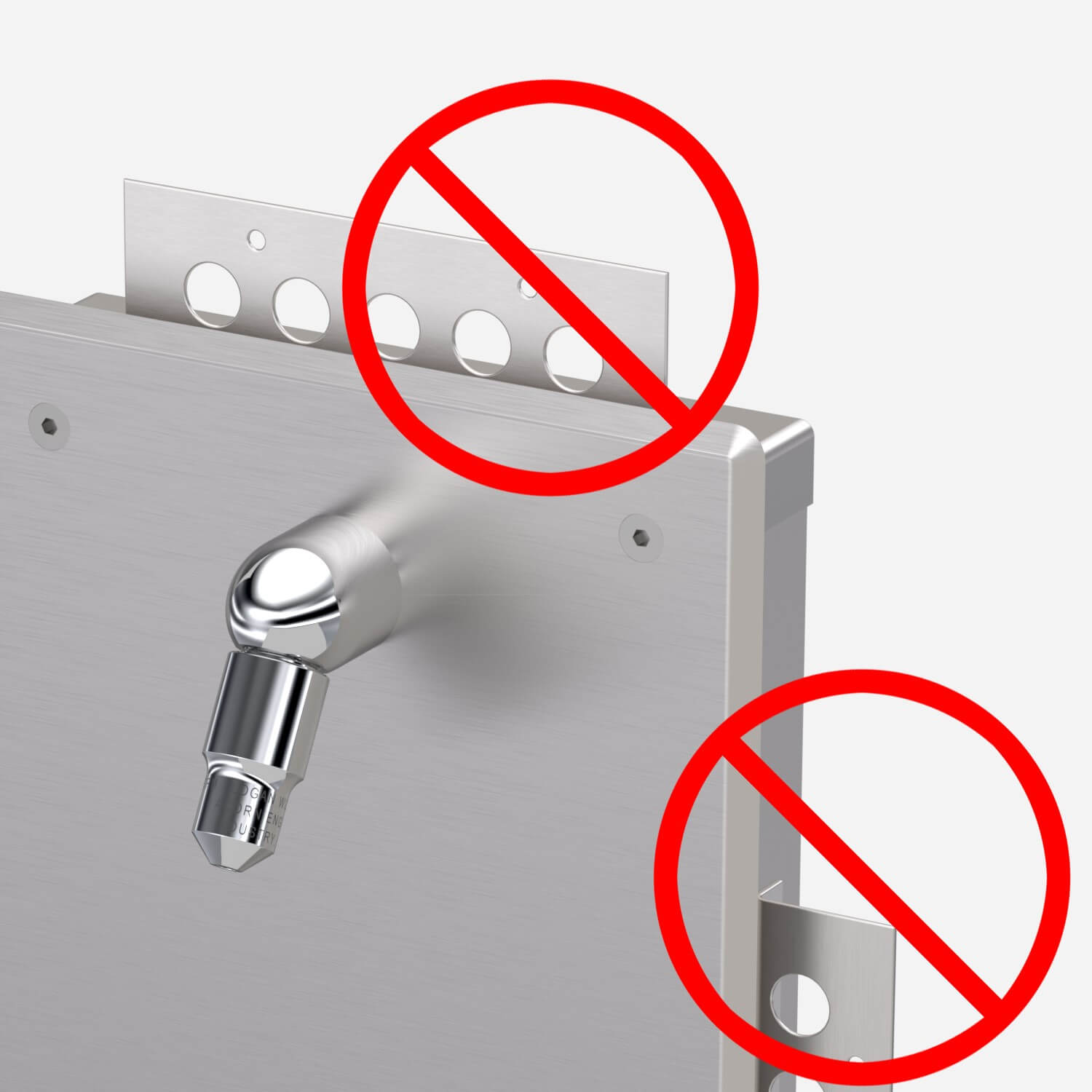

 | LPF | Option: Less Plaster Flange | ||
 | LRD | Option: Less Recessed Soap Dish | ||

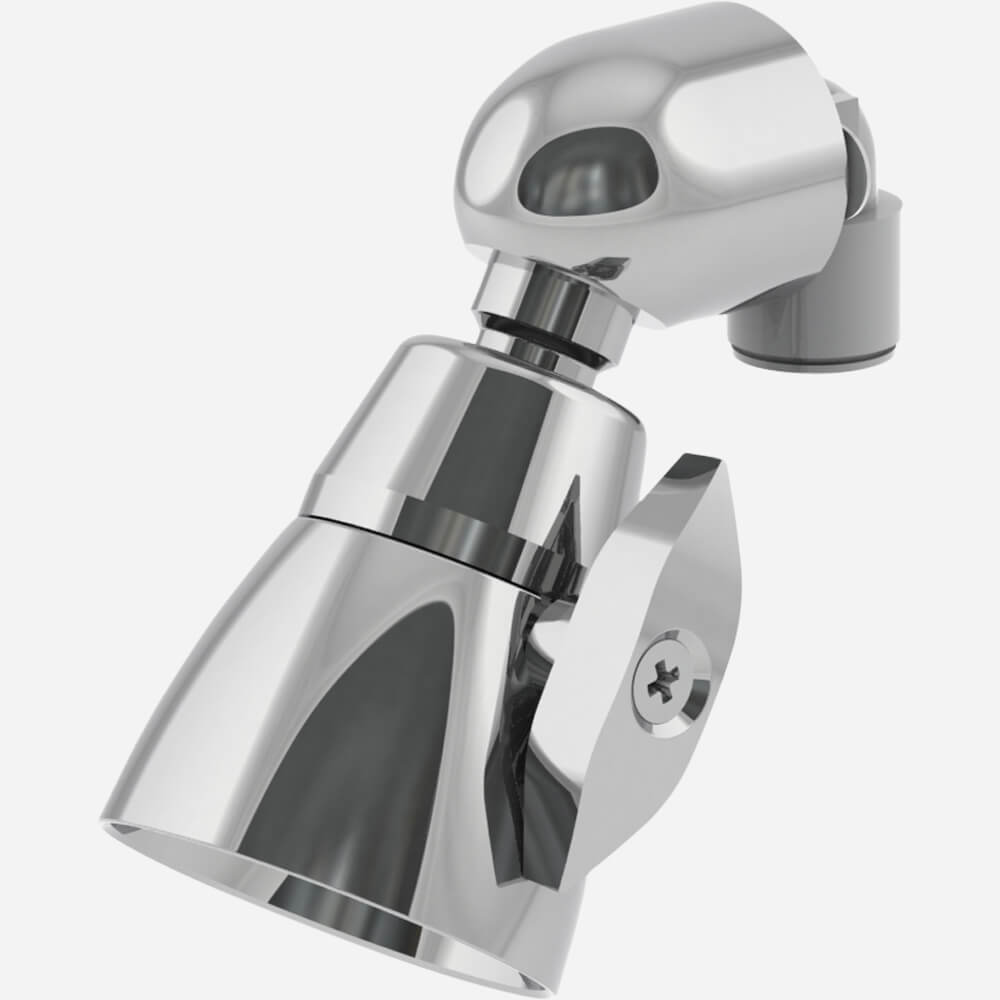

 | MSH | Option: Multi-Stream, Ball Joint Shower Head | ||
 | P | Option: Penal Shower Head | ||

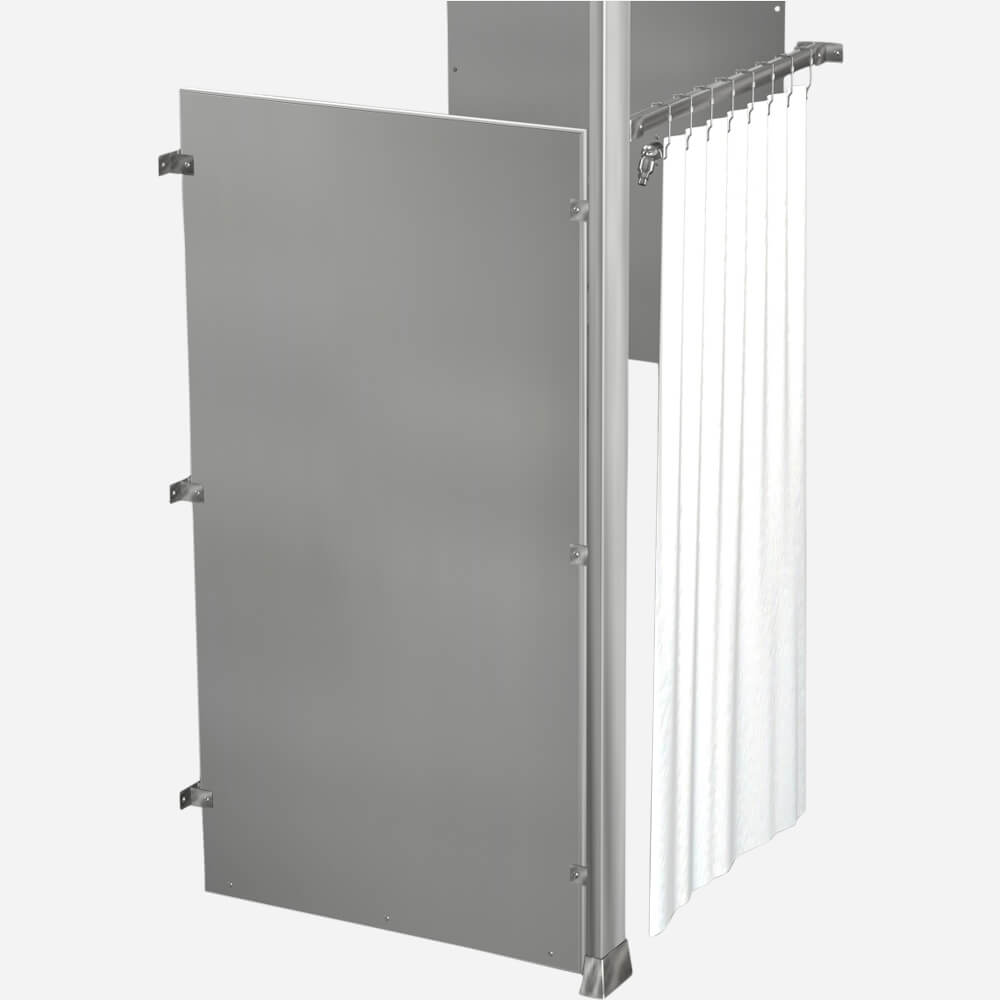

 | RP | Option: Reinforced Panel for Folding Seat | ||
 | TF | Option: Transformer for AC Power Valve | ||

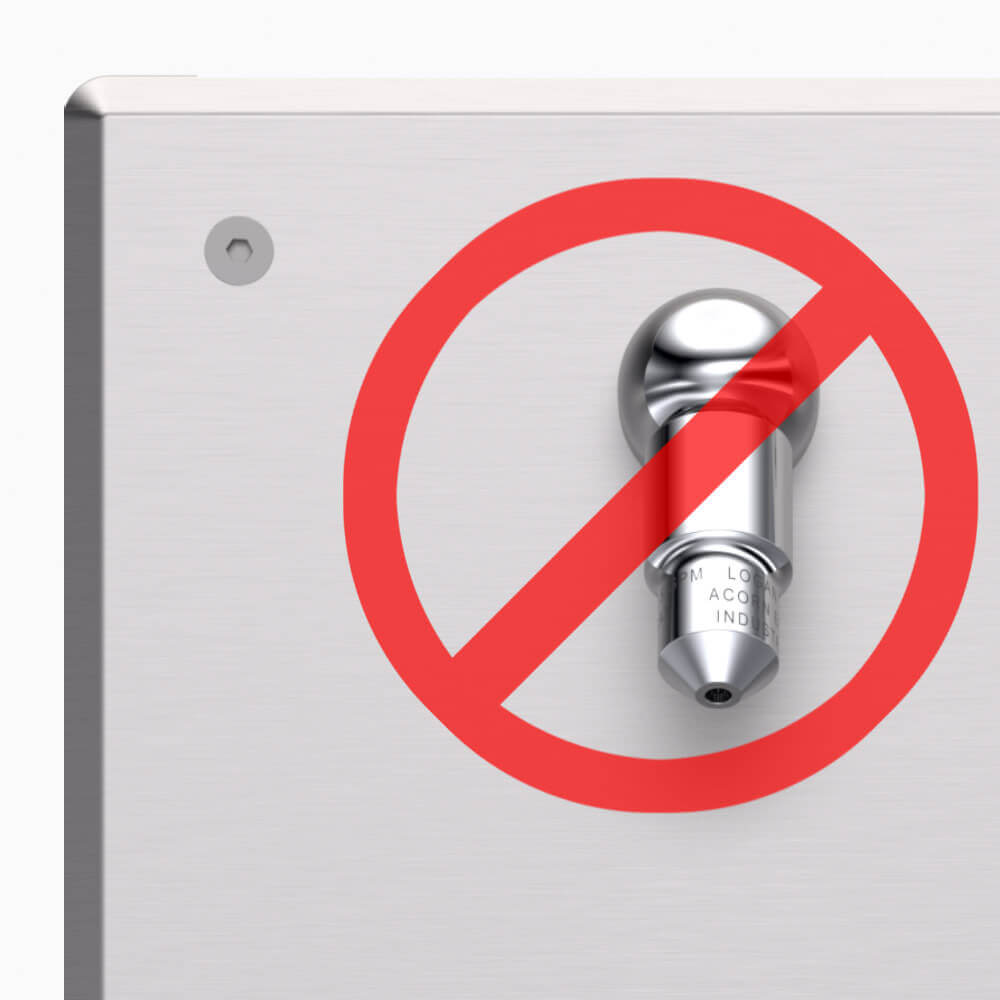

 | WS | Option: Without Shower Head | ||

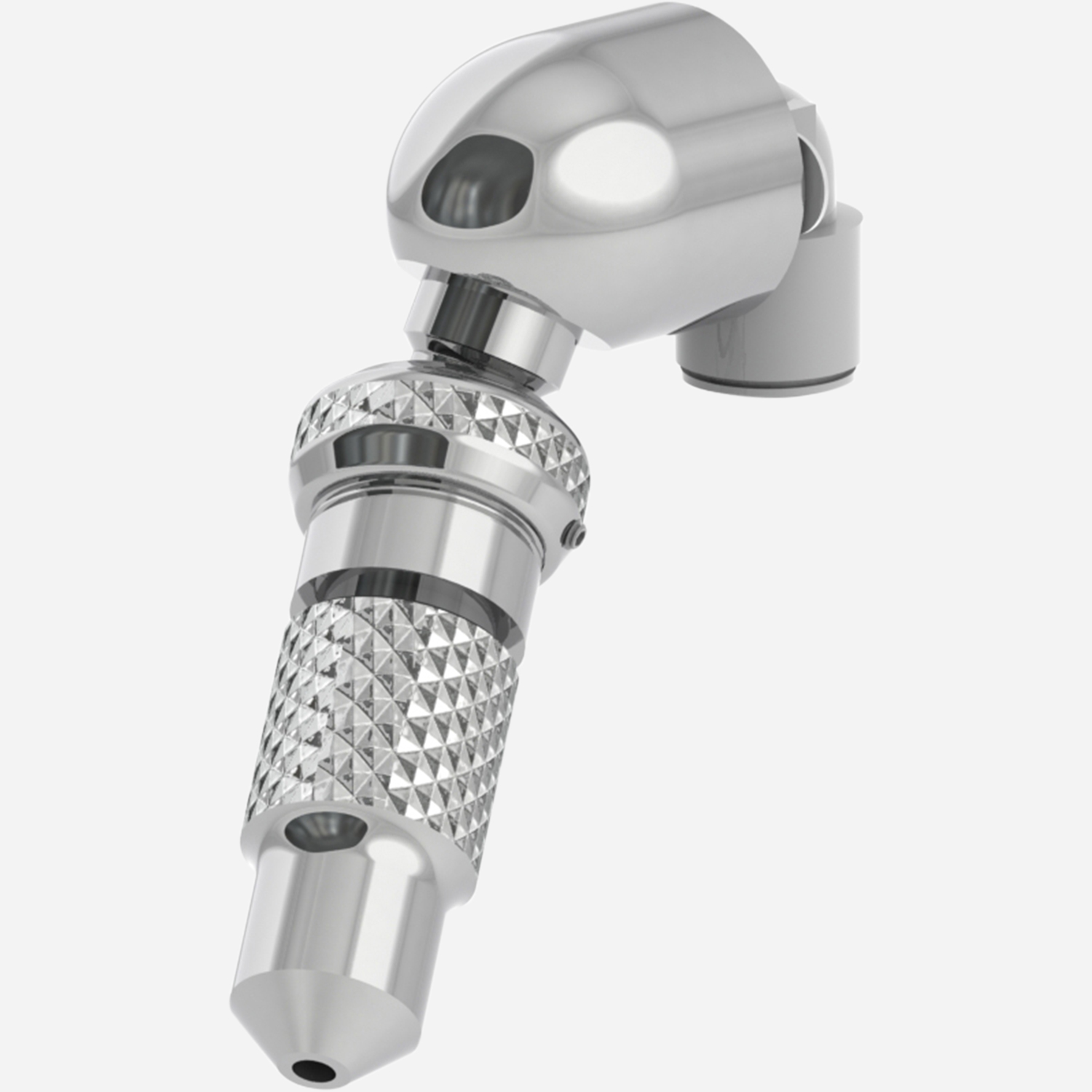

 | Y | Option: Universal Ball Joint | ||

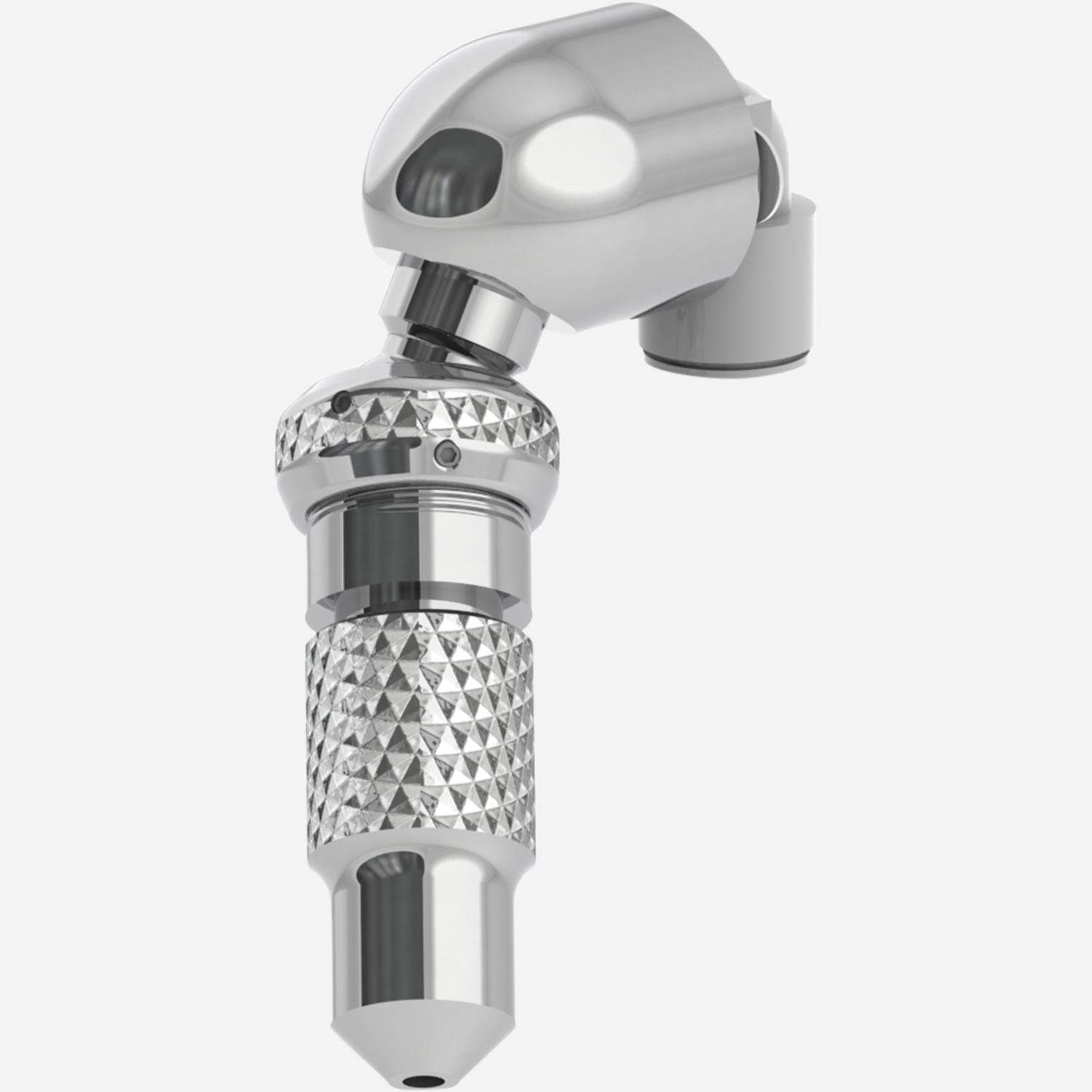

 | YY | Option: Lockable Universal Ball Joint |
Models
The model numbers are defined with the valve that is specified for the shower.
Model Number 416BADAWH
Air-Control Valve, Single Temperature Metering
Model Number 418BADAWH

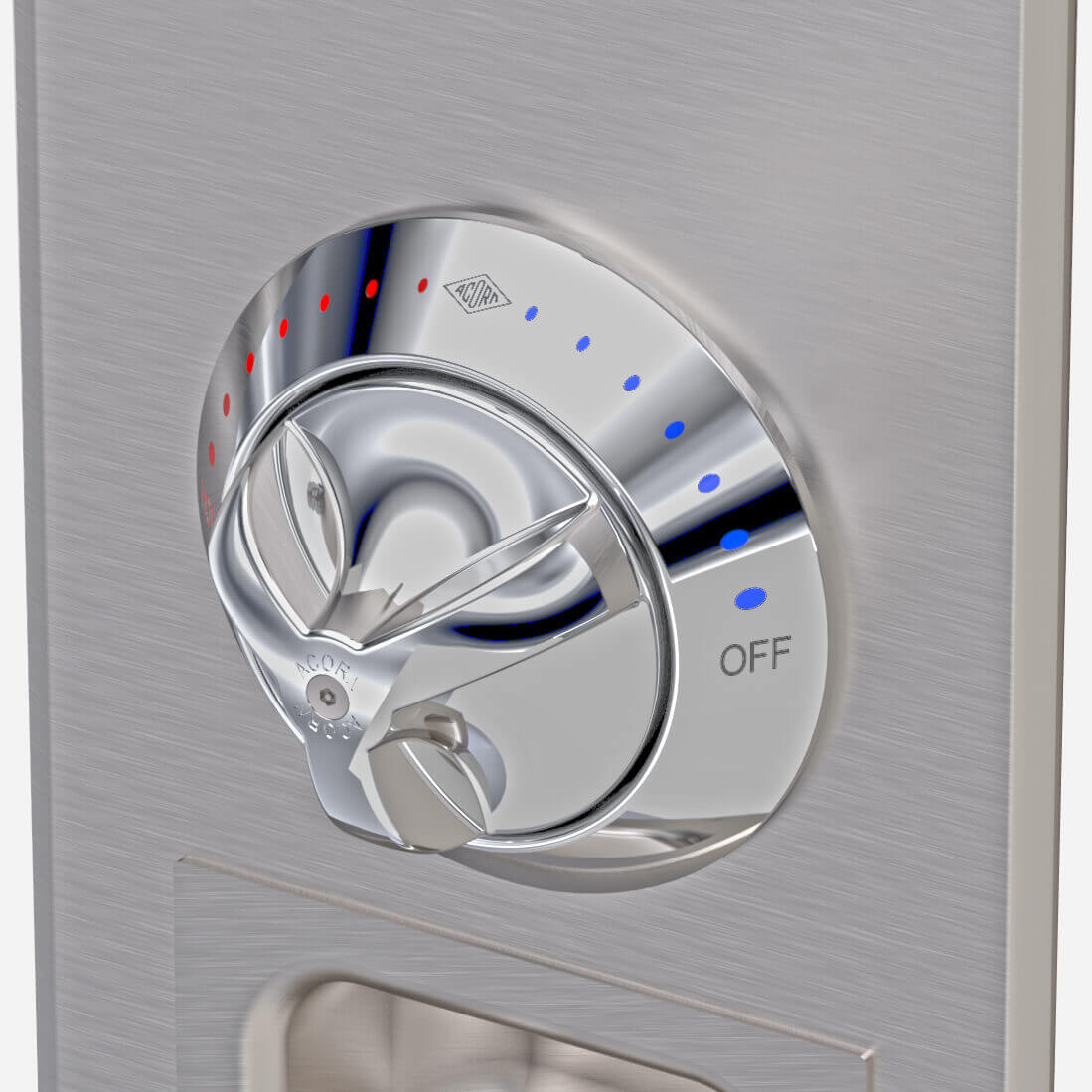

Temperature-Pressure Balancing Mixing Valve with Ligature Resistant Tri-Lever Handle (ASSE 1016 Compliant) Patent No D697.591 and 10,474,170 B2 Valve with Lever Handle also available

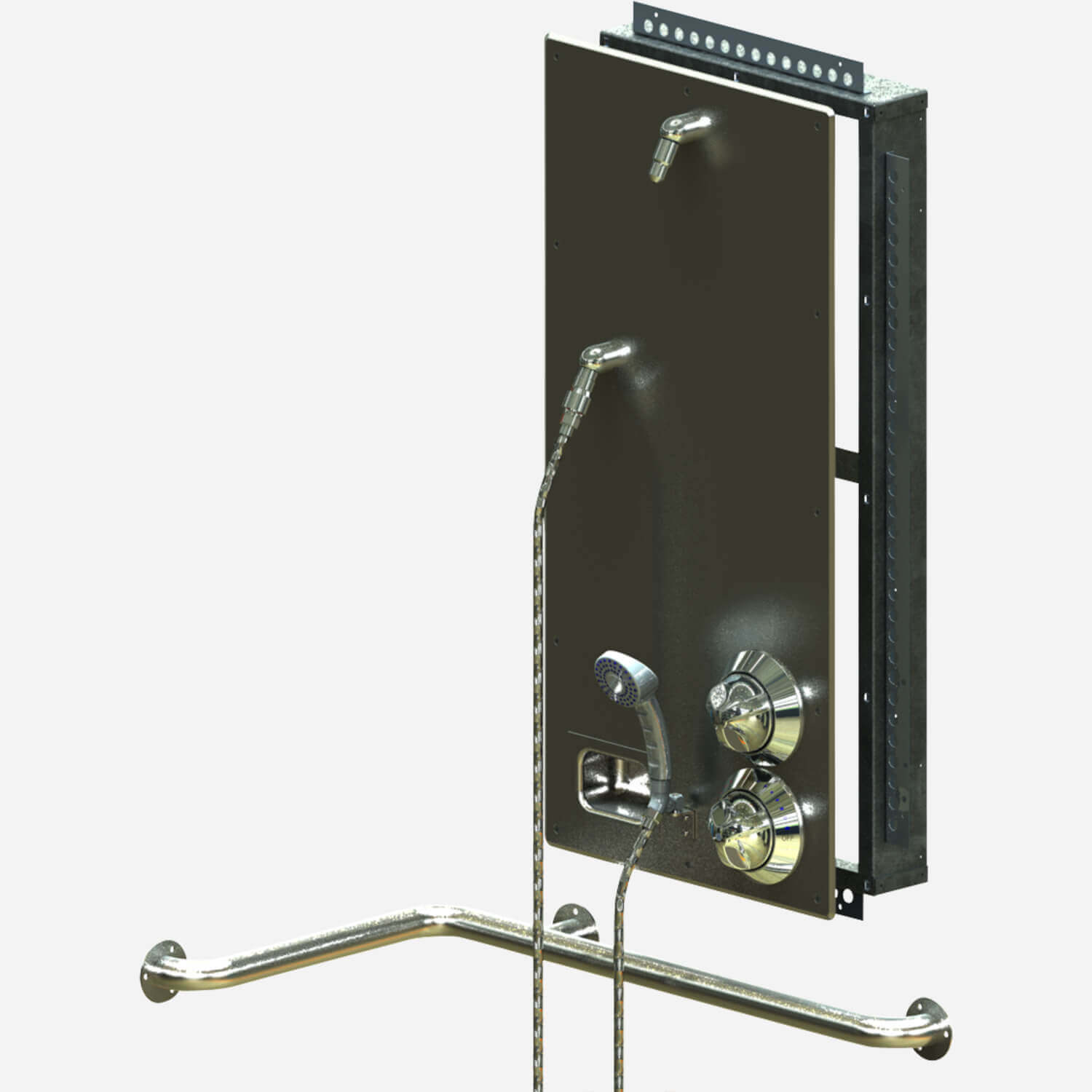

Model Number 410BADAWH
Single Temperature Electrical Valve
Specify: -MTP1, -MTPP1, -EVS1, -EVSP1, -MVC1,-MVC1-CI, -PPZ1
