Flush Mount Stainless Steel Apex Shower
Shower panel shall be 18 gauge, type 304 stainless steel with satin finish. Valve shall have flexible hose supply connectors. Shower head shall be Acorn Logan Wizard with adjustable spray from a coarse stream to a fine mist.
When Option CSH-WSA is specified, the showerhead is designed to meet the needs for ligature-resistance and water conservation.
Disclaimers: This product with the CSH-WSA option only is designed to decrease the probability that it may be utilized as an apparatus for ligature. It is not a replacement for professionals who are trained in the proper evaluation, management, and supervision of persons at risk of suicide. Other Ligature-Resistant components are necessary including but not limited to shower valves. The showerhead as provided has been certified to meet EPA WaterSense criteria. The nozzle is removable for cleaning purposes only.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Flush Mount Stainless Steel Apex Shower - standard model 418B Temperature-Pressure Balancing Mixing Valve (ASSE 1016 Compliant) | 0 | 475 KB | ||
| | Flush Mount Stainless Steel Apex Shower [410B | Electronic Valve (specify Master-Trol, Master-Trol Plus, Time-Trol, Piezo Button); 416B | Air-Control Pneumatic Valve; 418B | ASSE 1016 T/P Balancing Valve] | 0 | 204 KB | ||
 | | Flush Mount Stainless Steel Apex Shower with with T/P ASSE 1016 Mix Valve; Wall Supply, Option Recessed Soap Dish | 0 | 468 KB | ||
| | Flush Mount Stainless Steel Apex Shower with with T/P ASSE 1016 Mix Valve; Wall Supply, Option Recessed Soap Dish | 0 | 186 KB | ||
 | | Acorn Engineering - Commercial Showers | 0 | 288 KB | ||
| | Acorn Engineering - Commercial Showers | 0 | 221 KB | ||
| | 0 | 1 MB | |||
| | Enviro-Glaze Powdercoating Color Chart | 0 | 2 MB | ||
| | Commercial Showers Brochure (pdf) | 0 | 2 MB | ||
| | Stainless Steel Fixtures and Accessories for Parks | 0 | 1 MB | ||
 | | Flush Mount Stainless Steel Apex Shower with Temperature-Pressure Balancing Mixing Valve with Ligature Resistant Tri-Lever Handle (ASSE 1016 Compliant) and Optional Recessed Soap Dish | 0 | 189 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB | ||
| | T/P Valve Replace Cartridge & Trim for Valves prior to June 2014 | 0 | 130 KB | ||
| | Shower-Ware Multi-Stream Head with Universal Ball Joint Suffix -BA-MSH-Y | 0 | 70 KB | ||
| | Tools / Fasteners: Stainless Steel Security Screws | 0 | 138 KB | ||
| | Tools / Fasteners: Washers, Nuts and Anchors | 0 | 74 KB | ||
| | Valves: Time-Trol Valve | 0 | 168 KB | ||
| | Trims: Air-Trol/Master-Trol Push Button Assembly | 0 | 130 KB | ||
| | Shower Heads: Flangeless Rear Mount Shower Head | 0 | 70 KB | ||
| | Shower-Ware - Cartridges: Concealed Flo-Cloz Cartridge | 0 | 157 KB | ||
| | Shower-Ware - Cartridges: T/P Temperature/Pressure Balancing Mixing Valve Cartridge/Checkstops | 0 | 493 KB | ||
| | Shower-Ware - Cartridges: Meter-Matic Cartridge (Plastic) | 0 | 72 KB | ||
| | Shower-Ware - Valves: Single Temp Air-Trol Valve Body Assembly | 0 | 75 KB | ||
| | Shower Heads - Nozzle Options: Multi-Stream Shower Head w/ Universal Ball Joint | 0 | 74 KB | ||
 | | Learn how to adjust the stop limits and temperature on a SV16 (MGI ConTrols® SV16) shower mixing valve. The SV16 ligature-resistant temperature/pressure balancing valve provides multiple layers of bather safety in a shower or bathtub. | 0 | 134 KB |
Specifications
| Product Type | Shower |
| Brand | Acorn ConTrols® Inside, Shower-Ware® |
| Material | Stainless Steel |
| Mounting | Flush Mounted |
| Vandal Resistant | Moderate |
| Institutional Applications | Hospital & Treatment Centers, Educational Building, Train Station & Airports, Other Institutional Buildings |
| Commercial Applications | Stadium & Arena |
| Park and Recreation Applications | Yes |
Options
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | BS | Option: Built-In Liquid Soap System | ||
 | CSH | Option: Conical Shower Head | ||
 | D | Option: Soap Dish | ||
 | EG | Option: Enviro-Glaze® Powder Coating | ||
 | F2.0 | Option: Flow Control 2.0 GPM | ||
 | FG | Option: Fourteen Gauge Type 304 Stainless Steel | ||
 | FX | Option: Hand Shower | ||
 | LPF | Option: Less Plaster Flange | ||
 | MSH | Option: Multi-Stream, Ball Joint Shower Head | ||
 | P | Option: Penal Shower Head | ||
 | QD | Option: Quick Disconnect for Shower | ||
 | RD | Option: Recessed Soap Dish | ||
 | TF | Option: Transformer for AC Power Valve | ||
 | WS | Option: Without Shower Head | ||
 | Y | Option: Universal Ball Joint | ||
 | YY | Option: Lockable Universal Ball Joint |
Models
The model numbers are defined with the valve that is specified for the shower.
Model Number 416B
Air-Control Valve, Single Temperature Metering
Model Number 418B

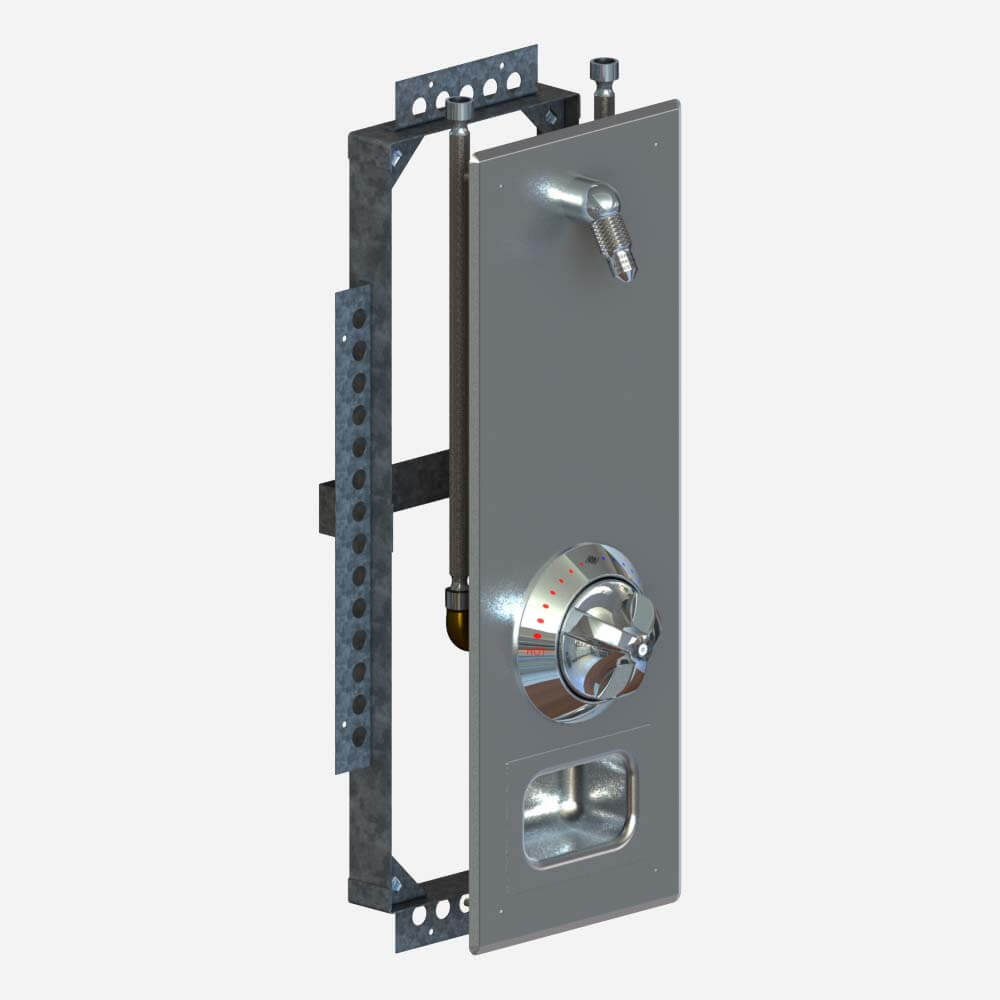

Temperature-Pressure Balancing Mixing Valve with Ligature Resistant Tri-Lever Handle (ASSE 1016 Compliant) Patent No D697.591, 10,474,170 B2
Valve with Lever Handle also available

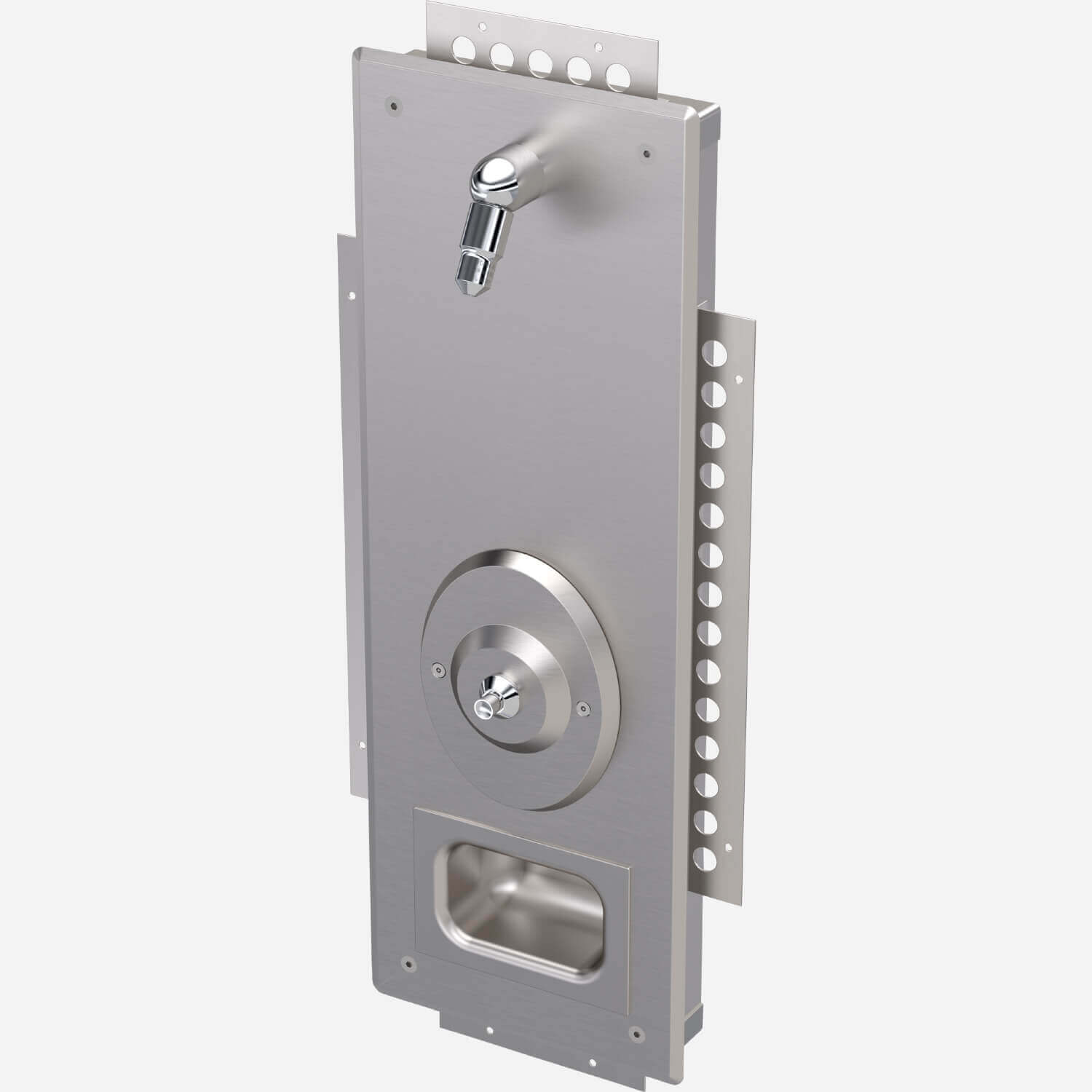

Model Number 410B
Single Temperature Electrical Valve
Specify: -MTP1, -MTPP1, -EVS1, -EVSP1, -MVC1,-MVC1-CI, -PPZ1
