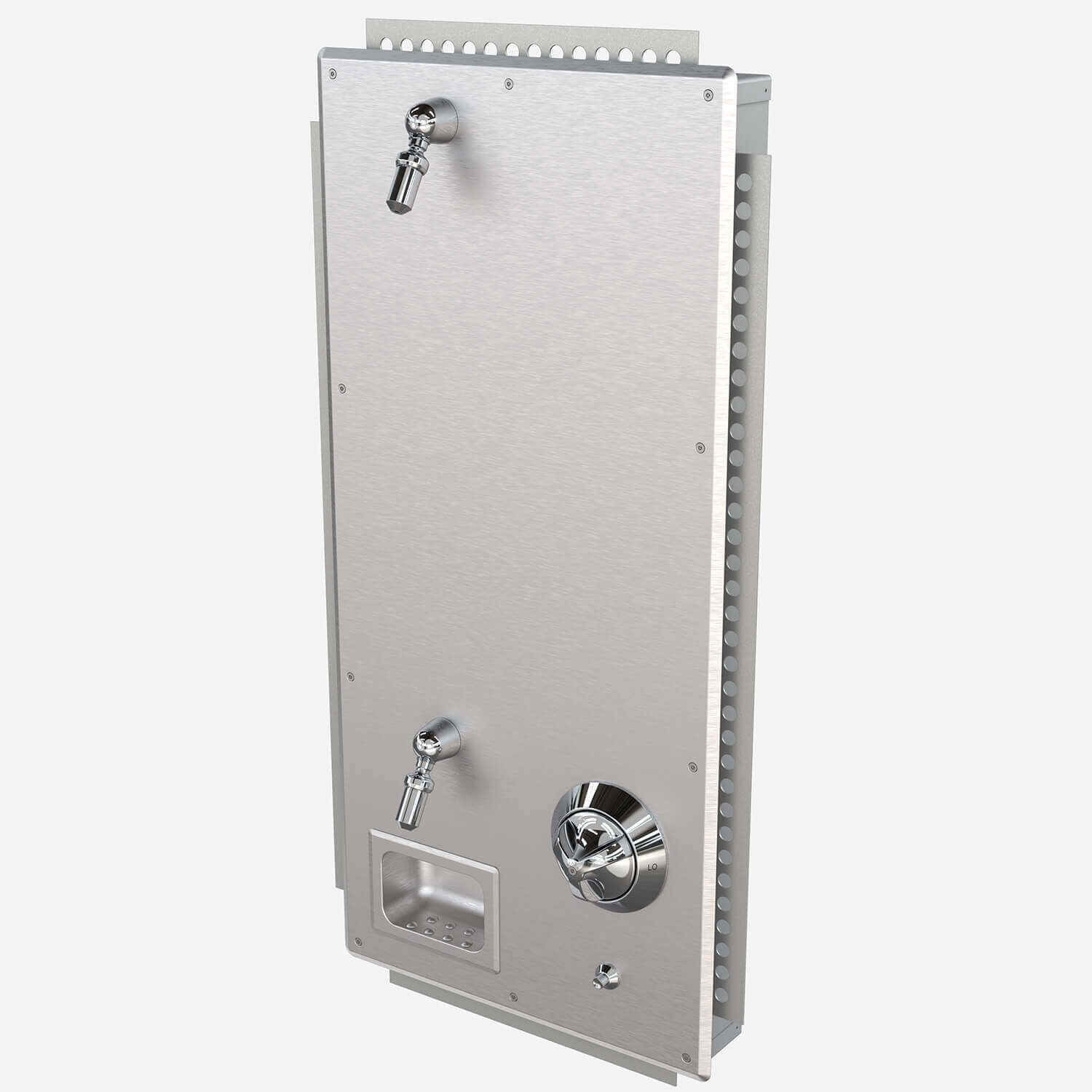

Apex Flush Mounted Shower - CBC (Calif Title 24) Compliant - Wide Housing
The shower is designed to be installed on a finished wall from the front and includes as standard equipment a Control Valve, Fixed Upper Showerhead, Handheld Shower and Hose, Diverter Valve, and Recessed Soap Dish. When installed properly and in accordance with all Shower Stall Type requirements, the unit will conform with the 2019 California Access Compliance Reference Manual with DSA Access Compliance Code Cycle Supplement effective July 1, 2021 and 2010 ADA Standards. Refer to applicable Accessibility Guidelines for complete details.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Apex Flush Mounted Shower - CBC (Calif Title 24) Compliant - Wide Housing | 0 | 3 MB | ||
| | Apex Flush Mounted Shower - CBC (Calif Title 24) Compliant - Wide Housing [410CBCWH | Electronic Valve (specify Master-Trol, Master-Trol Plus, Time-Trol, Piezo Button); 416CBCWH | Air-Control Pneumatic Valve; 418CBCWH | ASSE 1016 T/P Balancing Valve] | 0 | 256 KB | ||
 | | Acorn Engineering - Commercial Showers | 0 | 288 KB | ||
| | Acorn Engineering - Commercial Showers | 0 | 221 KB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB | ||
| | Shower-Ware - Valves: Diverter Valve thru Present | 0 | 333 KB |
Specifications
| Brand | Shower-Ware®, Acorn ConTrols® Inside |
| Material | Stainless Steel |
| Mounting | Flush Mounted |
| Fixture Width | 19" |
| Product Features | Wide Housing |
| Accessibility | ADA Compliant, Calif Title 24 |
Options
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | CSH | Option: Conical Shower Head | ||
 | CSH-WSA | Secur-Care® Ligature-Resistant, WaterSense Shower Head, Panel Mounted | ||
 | D | Option: Soap Dish | ||
 | EG | Option: Enviro-Glaze® Powder Coating | ||
 | EVS1 | Option: Single Temperature Application Master-Trol® | ||
 | EVSP1 | Option: Piezo Button Single Temperature Application Master-Trol® | ||
 | LPF | Option: Less Plaster Flange | ||
 | LRD | Option: Less Recessed Soap Dish | ||
 | MSH | Option: Multi-Stream, Ball Joint Shower Head | ||
 | MTP1 | Option: Master-Trol® Plus Single Temperature Valve | ||
 | MTPP1 | Option: Master-Trol® Plus Single Temperature Piezo Button Valve | ||
 | MV | Option: Metering Air-Control™ Valve in Shower Riser | ||
 | MVC1 | Single Temperature Valve Application Time-Trol® | ||
| MVC1-CI | Option: Single Temperature, Cycle Interrupt Valve Application Time-Trol® | ||
 | P | Option: Penal Shower Head | ||
 | PBH | Option: Pushbutton, Hemispherical | ||
 | PPZ1 | Option: Single Temperature Programmable Piezo Button | ||
 | TF | Option: Transformer for AC Power Valve | ||

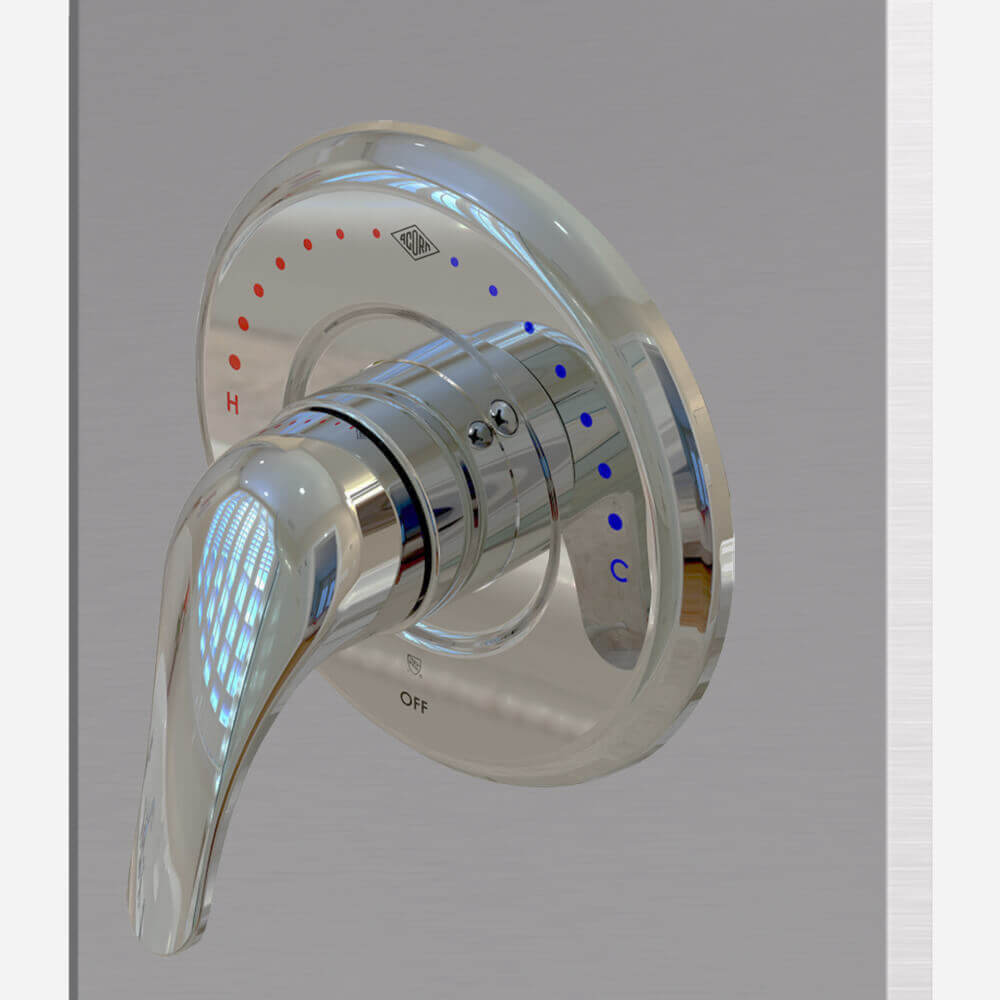

 | Type 8-LVR | Option: Lever Handle for ASSE 1016-Compliant Type 8 T/P Balancing Commercial Shower Valve | ||
 | W (Shower) | Option: Wall Supply for Shower | ||
 | Y | Option: Universal Ball Joint | ||
 | YY | Option: Lockable Universal Ball Joint |
Models
Typical models are shown below
418CBCWH-W-R
Upper Standard
Height Showerhead
Lower Handheld Shower
Controls on Right Side
Upper Control is Diverter
T/P Balancing Valve
416CBCWH-W-R-FH-Y
Upper and Lower Fixed Showerheads
with Universal Ball Joint
Controls on Right Side
Upper Control is Diverter
Lower Pushbutton is Acorn
Air-Control Valve
416CBCWH-W-L-FH-Y
Upper and Lower Fixed Showerheads
with Universal Ball Joint
Controls on Left Side
Upper Control is Diverter
Lower Pushbutton is
Acorn Air-Control Valve
The model numbers are defined with the valve that is specified for the shower.
Model Number 416CBCWH
Air-Control Valve,
Single Temperature
Metering
Model Number 418CBCWH
ASSE 1016 Compliant
Temperature-Pressure Balancing
Mixing Valve with
ADA Ligature-Resistant
Tri-Lever Handle
Patent No D697.591 and
10,474,170 B2
Valve with Lever Handle
also available
Model Number 410CBCWH
Single Temperature Electrical Valve;
activation button is similar to
416CBCWH Shower
Specify: -MTP1, -MTPP1, -EVS1,
-EVSP1, -MVC1,-MVC1-CI, -PPZ1
