Surface Mount Apex Stainless Steel Shower
Housing shall be 18 gauge, type 304 stainless steel with a satin finish. Valve shall have flexible hose supply connectors. The showerhead shall be Acorn Logan Wizard with adjustable spray from a coarse stream to a fine mist.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Surface Mount Apex Stainless Steel Shower [456B | Air-Control Pneumatic Valve; 458B | ASSE 1016 T/P Balancing Valve] | 0 | 630 KB | ||
| | Surface Mount Stainless Apex Steel Shower [450B | Electronic Valve (specify Master-Trol, Master-Trol Plus, Time-Trol, Piezo Button); 456B | Air-Control Pneumatic Valve; 458B | ASSE 1016 T/P Balancing Valve] | 0 | 149 KB | ||
 | | With T/P ASSE 1016 Mix Valve, Top Supply | 0 | 392 KB | ||
| | With T/P ASSE 1016 Mix Valve, Top Supply | 0 | 196 KB | ||
| | Surface Mount Apex Stainless Steel Shower [Wall Supply 450B-W, 456B-W, 458B-W; Top Supply 458B-T] | 0 | 922 KB | ||
| | Surface Mount Apex Stainless Steel Shower [Wall Supply 450B-W, 456B-W, 458B-W; Top Supply 458B-T] | 0 | 832 KB | ||
 | | Acorn Engineering - Commercial Showers | 0 | 288 KB | ||
| | Acorn Engineering - Commercial Showers | 0 | 221 KB | ||
| | Surface Mount Apex Stainless Steel Shower [450B | Electronic Valve - specify Master-Trol, Master-Trol Plus, Time-Trol, Piezo Button] | 0 | 2 MB | ||
| | Enviro-Glaze Powdercoating Color Chart | 0 | 2 MB | ||
| | Commercial Showers Brochure (pdf) | 0 | 2 MB | ||
 | | Surface Mount Stainless Apex Steel Shower Temperature-Pressure Balancing Mixing Valve with Ligature Resistant Tri-Lever Handle (ASSE 1016 Compliant) and optional Recessed Soap Dish | 0 | 140 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB | ||
| | T/P Valve Replace Cartridge & Trim for Valves prior to June 2014 | 0 | 130 KB | ||
| | Shower-Ware Multi-Stream Head with Universal Ball Joint Suffix -BA-MSH-Y | 0 | 70 KB | ||
| | Tools / Fasteners: Stainless Steel Security Screws | 0 | 138 KB | ||
| | Tools / Fasteners: Washers, Nuts and Anchors | 0 | 74 KB | ||
| | Valves: Single Temp Air-Control™ Valve Body Assembly (-03) | 0 | 56 KB | ||
| | Stops: Plastic Air-Control® Check Stop Assembly | 0 | 74 KB | ||
| | Trims: Air-Trol/Master-Trol Push Button Assembly | 0 | 130 KB | ||
| | Shower Heads: Flangeless Rear Mount Shower Head | 0 | 70 KB | ||
| | Shower-Ware - Cartridges: Concealed Flo-Cloz Cartridge | 0 | 157 KB | ||
| | Shower-Ware - Cartridges: T/P Temperature/Pressure Balancing Mixing Valve Cartridge/Checkstops | 0 | 493 KB | ||
| | Shower-Ware - Cartridges: Meter-Matic Cartridge (Plastic) | 0 | 72 KB | ||
| | Shower Heads - Nozzle Options: Multi-Stream Shower Head w/ Universal Ball Joint | 0 | 74 KB | ||
 | | Learn how to adjust the stop limits and temperature on a SV16 (MGI ConTrols® SV16) shower mixing valve. The SV16 ligature-resistant temperature/pressure balancing valve provides multiple layers of bather safety in a shower or bathtub. | 0 | 134 KB |
Specifications
| Product Type | Shower |
| Brand | Acorn ConTrols® Inside, Shower-Ware® |
| Material | Stainless Steel |
| Mounting | Wall Mounted |
| Vandal Resistant | Moderate |
| Institutional Applications | Hospital & Treatment Centers, Educational Building, Train Station & Airports, Other Institutional Buildings |
| Commercial Applications | Stadium & Arena |
| Park and Recreation Applications | Yes |
Options
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | BS | Option: Built-In Liquid Soap System | ||
 | CH | Option: Curtain and Headrail | ||
 | CSH | Option: Conical Shower Head | ||
 | D | Option: Soap Dish | ||
 | EG | Option: Enviro-Glaze® Powder Coating | ||
 | F1.6 | Option: Flow Control 1.6 GPM | ||
 | F2.0 | Option: Flow Control 2.0 GPM | ||
 | FG | Option: Fourteen Gauge Type 304 Stainless Steel | ||
 | FX | Option: Hand Shower | ||
 | MSH | Option: Multi-Stream, Ball Joint Shower Head | ||
 | P | Option: Penal Shower Head | ||
 | RD | Option: Recessed Soap Dish | ||
 | RP | Option: Reinforced Panel for Folding Seat | ||
 | SC (Shower) | Option: Supply Cover for Shower | ||
 | SCH | Option: Supply Cover Horizontal | ||
 | T (Shower) | Option: Top Supply for Showers | ||
 | TF | Option: Transformer for AC Power Valve | ||
 | W (Shower) | Option: Wall Supply for Shower | ||
 | WS | Option: Without Shower Head | ||
 | Y | Option: Universal Ball Joint | ||
 | YY | Option: Lockable Universal Ball Joint |
Models
The model numbers are defined with the valve that is specified for the shower.
Model Number 456B
Air-Control Valve, Single Temperature Metering

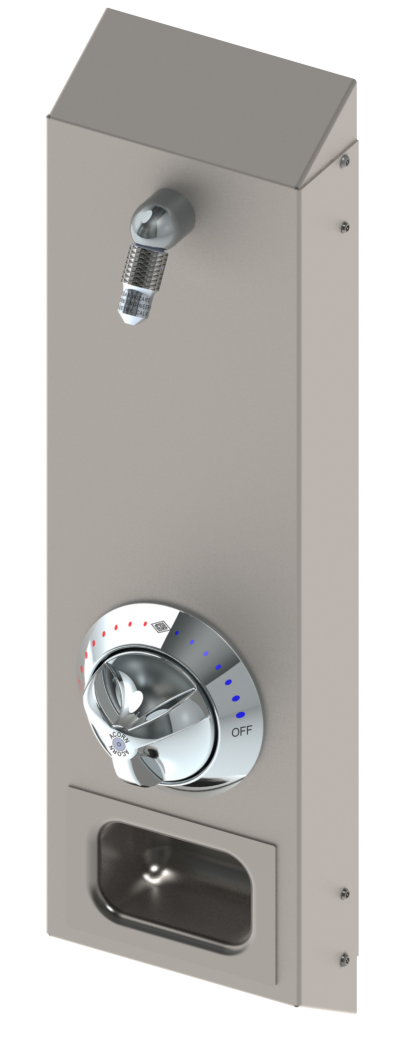

Model Number 458B
Temperature-Pressure Balancing Mixing Valve with Ligature Resistant Tri-Lever Handle (ASSE 1016 Compliant) Patent No D697.591 and 10,474,170 B2 Valve with Lever Handle also available

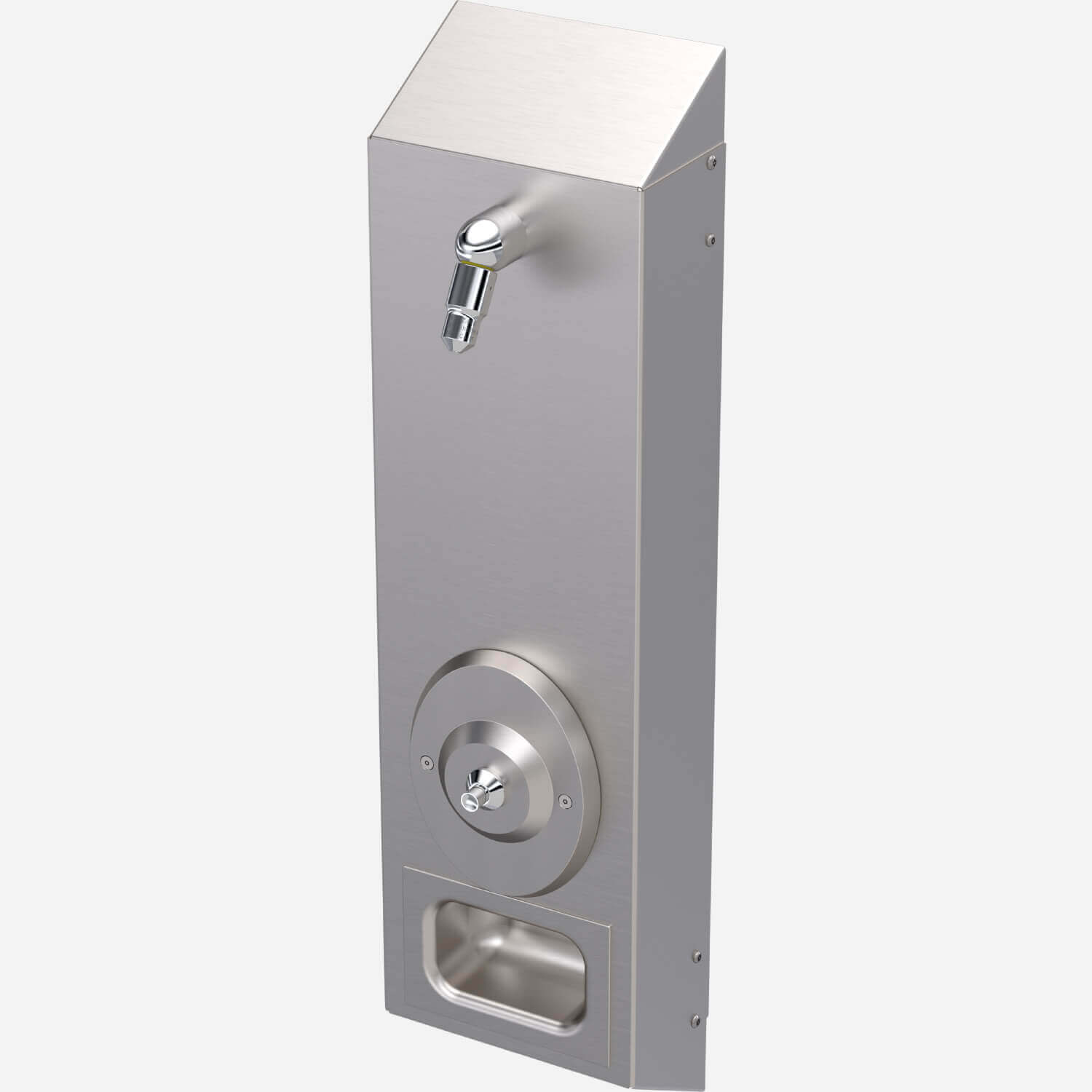

Model Number 450B
Single Temperature Electrical Valve
Specify: -MTP1, -MTPP1, -EVS1, -EVSP1, -MVC1,-MVC1-CI, -PPZ1
Details
When Option CSH-WSA is specified, the showerhead is designed to meet the needs for ligature-resistance and water conservation.
DISCLAIMERS:This product with the CSH-WSA option only is designed to decrease the probability that it may be utilized as an apparatus for ligature. It is not a replacement for professionals who are trained in the proper evaluation, management, and supervision of persons at risk of suicide. Other Ligature-Resistant components are necessary including but not limited to shower valves. The showerhead as provided has been certified to meet EPA WaterSense criteria. The nozzle is removable for cleaning purposes only.
