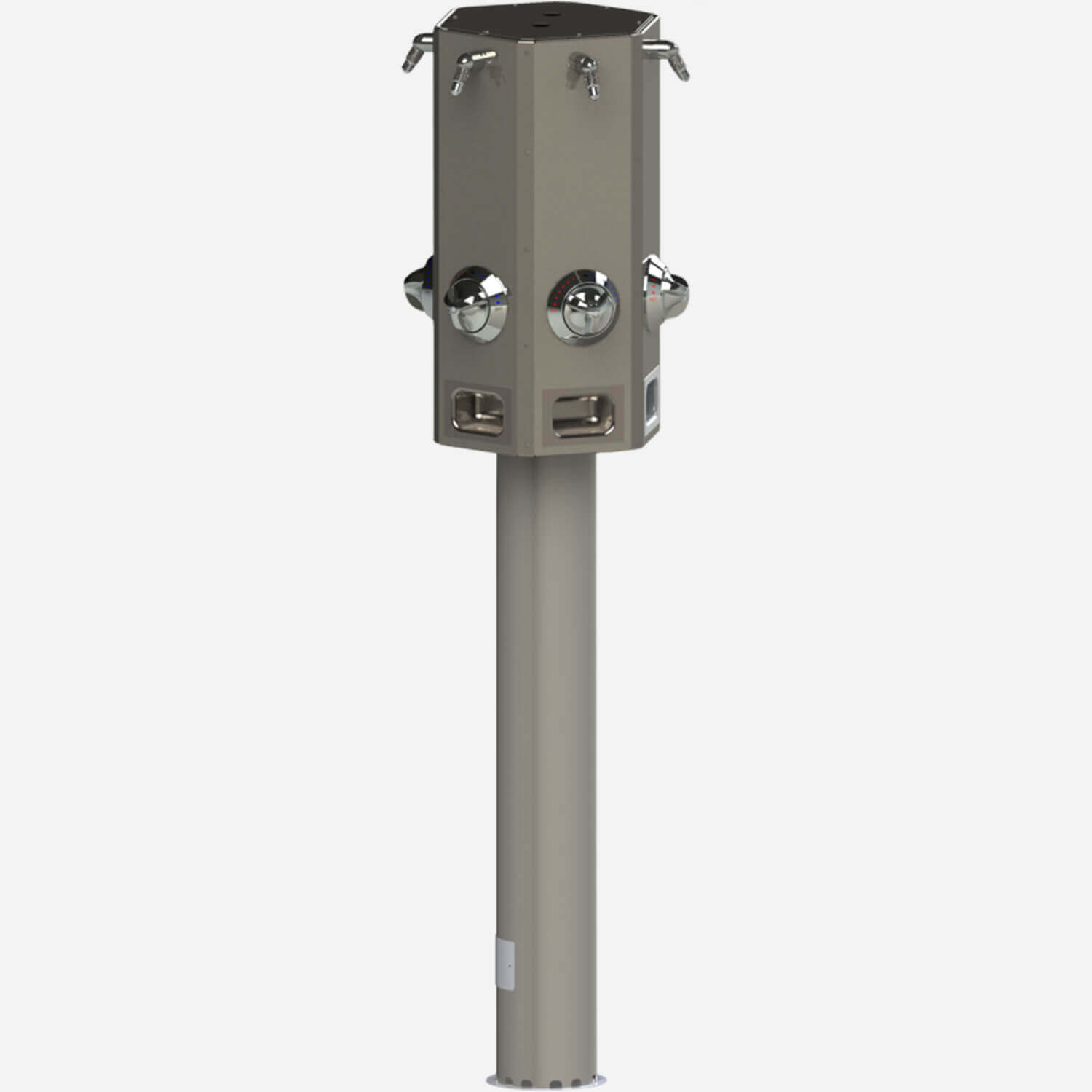

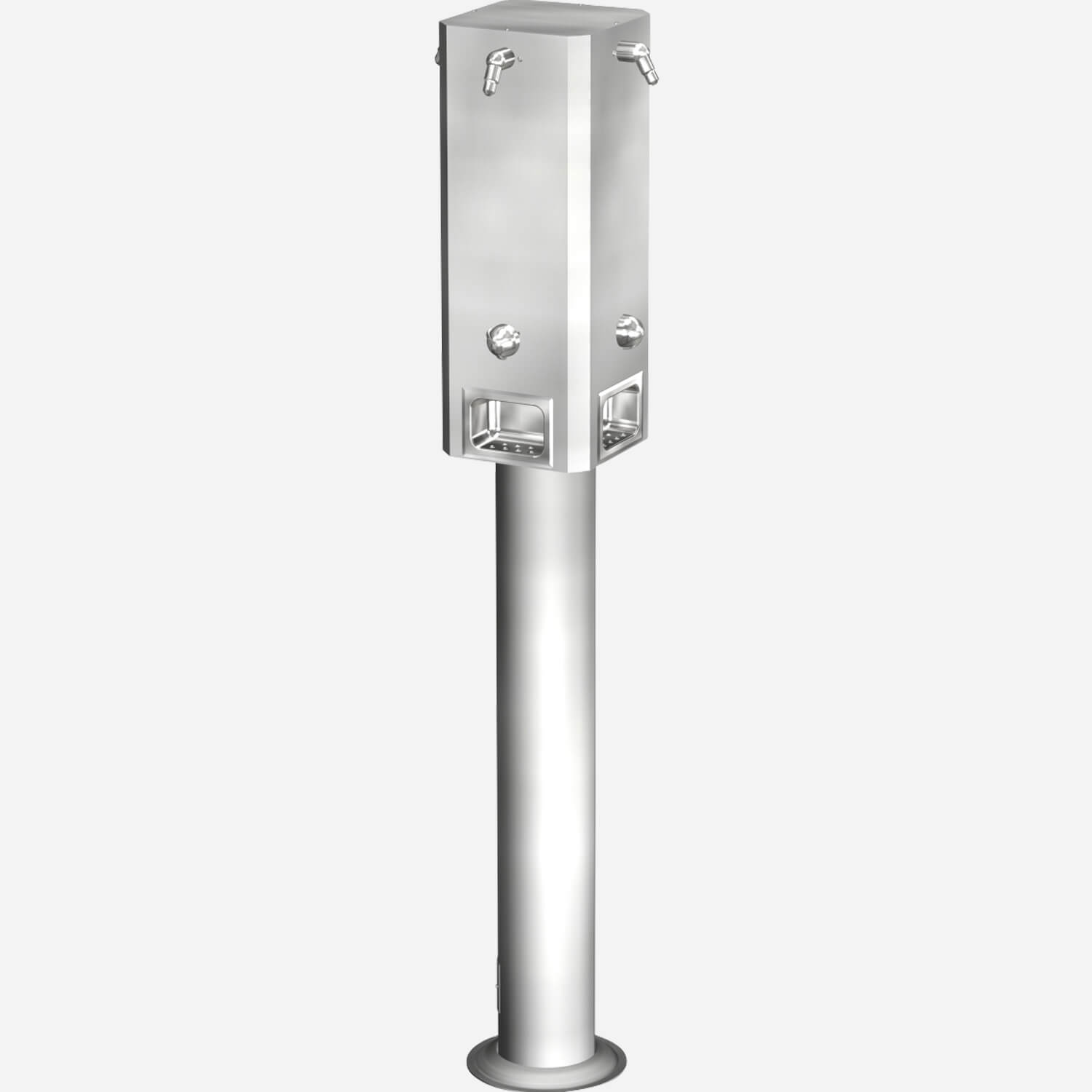

Classic Stainless Steel Column Shower
Column shall be heavy duty type 304 stainless steel with satin finish. Column shall be factory pre-piped and hydrostatically tested to 150 PSI. Drain base shall be heavy cast iron with a rust preventative coating, and shall have a Dome Grate with polished chrome-plated finish. Shower head discharge height shall be (specify).
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | 600, 600HC, 700, 700HC Series Bottom Supply Shower - Drain Base with Dome Grate | 0 | 2 MB | ||
| | Classic Column Shower - Two, Three, Four, Five or Six Station [626, 636, 646, 656, 666 628, 638, 648, 658, 668, 620, 630, 640, 650, 660] | 0 | 177 KB | ||
 | | Classic Column Shower - Four Station, Air-Control Pneumatic Pushbutton Valves, Top Supply with Center Vent [-T25], Unit Shutoff Valve [-GG], Penal Showerhead [-P], Ceiling Anchor Plate for Supply Cover [-CA], Supply Cover [-SC], Recessed Soap Dish [-RD] | 0 | 2 MB | ||
| | Classic Column Shower - Four Station, Air-Control Pneumatic Pushbutton Valves, Top Supply with Center Vent [-T25], Unit Shutoff Valve [-GG], Penal Showerhead [-P], Ceiling Anchor Plate for Supply Cover [-CA], Supply Cover [-SC], Recessed Soap Dish [-RD] | 0 | 734 KB | ||
 | | Acorn Engineering - Commercial Showers | 0 | 288 KB | ||
| | Acorn Engineering - Commercial Showers | 0 | 221 KB | ||
| | 600, 600HC, 700, 700HC Series Bottom Supply Shower - Drain Base with Dome Grate for Center Vent | 0 | 2 MB | ||
| | 600, 600HC, 700, 700HC Series Top Supply Shower - Drain Base with Dome Grate | 0 | 2 MB | ||
| | 600, 600HC, 700, 700HC Series Top Supply Shower - Drain Base with Dome Grate for Center Vent | 0 | 2 MB | ||
| | Enviro-Glaze Powdercoating Color Chart | 0 | 2 MB | ||
| | Commercial Showers Brochure (pdf) | 0 | 2 MB | ||
 | | Six Station Classic Stainless Steel Column Shower with Temperature-Pressure Balancing Mixing Valves with Ligature Resistant Tri-Lever Handles (ASSE 1016 Compliant), Top Supply, Dome Grate Drain with Inside Caulk, and optional Recessed Soap Dish | 0 | 32 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB | ||
| | T/P Valve Replace Cartridge & Trim for Valves prior to June 2014 | 0 | 130 KB | ||
| | Shower-Ware Multi-Stream Head with Universal Ball Joint Suffix -BA-MSH-Y | 0 | 70 KB | ||
| | Shower Heads: Shower Nozzle Assembly - Rigid Head | 0 | 132 KB | ||
| | Shower Heads: Standard Shower Head | 0 | 58 KB | ||
| | Shower-Ware - Column Drains: 3" No Hub-Vent Off Drain Base Assembly | 0 | 95 KB | ||
| | Shower-Ware - Column Drains: 4" No Hub-Vent Off Drain Base Assembly | 0 | 94 KB | ||
| | Shower-Ware - Column Drains: 3" No Hub-Vent Off Drain Base Dome Grate | 0 | 109 KB | ||
| | Shower-Ware - Column Drains: 4" No Hub-Vent Off Drain Base Dome Grate | 0 | 110 KB | ||
| | Shower-Ware - Cartridges: Concealed Flo-Cloz Cartridge | 0 | 157 KB | ||
| | Shower-Ware - Cartridges: T/P Temperature/Pressure Balancing Mixing Valve Cartridge/Checkstops | 0 | 493 KB | ||
| | Shower-Ware - Cartridges: Meter-Matic Cartridge (Plastic) | 0 | 72 KB | ||
| | Shower Heads - Nozzle Options: Multi-Stream Shower Head w/ Universal Ball Joint | 0 | 74 KB | ||
 | | Learn how to adjust the stop limits and temperature on a SV16 (MGI ConTrols® SV16) shower mixing valve. The SV16 ligature-resistant temperature/pressure balancing valve provides multiple layers of bather safety in a shower or bathtub. | 0 | 134 KB |
Specifications
| Product Type | Shower |
| Brand | Acorn ConTrols® Inside, Shower-Ware® |
| Material | Stainless Steel |
| Vandal Resistant | Moderate |
| Institutional Applications | Correctional, Educational Building, Train Station & Airports, Other Institutional Buildings |
| Commercial Applications | Stadium & Arena |
| Patent | D697,591 (for -8 Style Valve), (D) Acorn Engineering Co. |
| Mounting | Pedestal |
| Product Features | Classic Shower - multi-sided control panel on cylindrical pedestal |
Options
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | B11 | Option: Shower Drain Base Bottom Supply with Dome Grate | ||
 | B15 | Option: Shower Drain Base Bottom Supply with Dome Grate for Center Vent | ||
 | BDF | Option: Bradley® Drain Adapter Flange | ||
 | BS | Option: Built-In Liquid Soap System | ||
 | CA | Option: Ceiling Anchor Plate | ||
 | CF | Option: Adjustable Column Flange | ||
 | CSH | Option: Conical Shower Head | ||
 | D | Option: Soap Dish | ||
 | EG | Option: Enviro-Glaze® Powder Coating | ||
 | EVS1 | Option: Single Temperature Application Master-Trol® | ||
 | EVSP1 | Option: Piezo Button Single Temperature Application Master-Trol® | ||
 | F1.6 | Option: Flow Control 1.6 GPM | ||
 | FO | Option: 4" No-Hub Waste Outlet | ||
 | FS | Option: Foot Spray | ||
 | FX | Option: Hand Shower | ||
 | IC (Column Shower) | Option: Inside Caulk Waste, 3-inch (Column Shower) | ||
 | LD | Option: Less Drain Slots | ||
 | MSH | Option: Multi-Stream, Ball Joint Shower Head | ||
 | MTP1 | Option: Master-Trol® Plus Single Temperature Valve | ||
 | MTPP1 | Option: Master-Trol® Plus Single Temperature Piezo Button Valve | ||
 | MV | Option: Metering Air-Control™ Valve in Shower Riser | ||
 | MVC1 | Single Temperature Valve Application Time-Trol® | ||
| MVC1-CI | Option: Single Temperature, Cycle Interrupt Valve Application Time-Trol® | ||
 | P | Option: Penal Shower Head | ||
 | PBH | Option: Pushbutton, Hemispherical | ||
 | QD | Option: Quick Disconnect for Shower | ||
 | RD | Option: Recessed Soap Dish | ||
 | SC (Shower) | Option: Supply Cover for Shower | ||
 | T11 | Option: Shower Drain Base Top Supply with Dome Grate | ||
 | T15 | Option: Shower Drain Base Top Supply with Dome Grate for Center Vent | ||
 | TF | Option: Transformer for AC Power Valve | ||
 | Type 8-LVR | Option: Lever Handle for ASSE 1016-Compliant Type 8 T/P Balancing Commercial Shower Valve | ||
 | VC (Shower) | Option: Valve Cover for Shower | ||
 | Y | Option: Universal Ball Joint | ||
 | YY | Option: Lockable Universal Ball Joint |
Models
Shower Heads are solid brass, triple chrome-plated, and include a 1.6 Gallons (6 liters) per Minute flow restrictor. The Acorn Logan Wizard Shower Head design provides self-cleaning with every use and has an adjustable spray pattern from a coarse stream to a fine mist.
The model numbers are defined with the valve that is specified for the shower.
Model Number 6__6
Air-Control Valve,
Single Temperature Metering
Model 626 - 2 Station
Model 636 - 3 Station
Model 646 - 4 Station
Model 656 - 5 Station
Model 666 - 6 Station
Model Number 6__8
Temperature-Pressure Balancing Mixing Valve
with Ligature Resistant Tri-Lever Handle
(ASSE 1016 Compliant)
Patent No D697.591, 10,474,170 B2
Valve with Lever Handle also available
Model 628 - 2 StationModel 638 - 3 StationModel 648 - 4 StationModel 658 - 5 StationModel 668 - 6 Station
ELECTRONIC VALVES
Model 620 - 2 Station; Model 630 - 3 Station; Model 640 - 4 StationModel 650 - 5 Station; Model 660 - 6 Station
Single Temperature Electrical Valve
Specify: -MTP1, -MTPP1, -EVS1, -EVSP1, -MVC1,-MVC1-CI, -PPZ1
SUPPLY/DRAIN TYPE
Top Supply with
-T11 | Drain Base with Dome Grate | install
-T15 | Drain Base with Center Vent, Drain Grate | install
-T21 | Drain Base | install
-T25 | Drain Base with Center Vent | install
Bottom Supply with
-B11 | Drain Base with Dome Grate | install
-B15 | Drain Base with Center Vent, Drain Grate | install
-B21 | Drain Base | install
-B25 | Drain Base with Center Vent | install
